Problems with Aqara Opple switch getting bind with every other device on onboarding

[mcividino]

I added 3 new aqara opple switches at home, but I'm having issues with them. As soon as they are onboarded, they control all the other zigbee devices in the house.
Even if I shut down the server, it keeps turning on and off everything.
If I press the onboarding button in the Aqara opple switches while the zigbee2mqtt is not running, it stops happening. However, as soon as I get zigbee2mqtt running, and onboard the switch again, the issue is back.
I'm about to throw away these switches to buy three new ones, as I cannot use them.
Any idea of how to unbind the switches with the other devices? Also, how can I check the existing bindings?
Thanks in advance.

[srtxema]

i have same problem

[hachel]

I have the exact same problem. That sounds exactly like the switch bound to all other devices, but under the devices bind tab I can only see a bind to the coordinator:

Unbinding it from any other device fails with "device_unbind_failed".

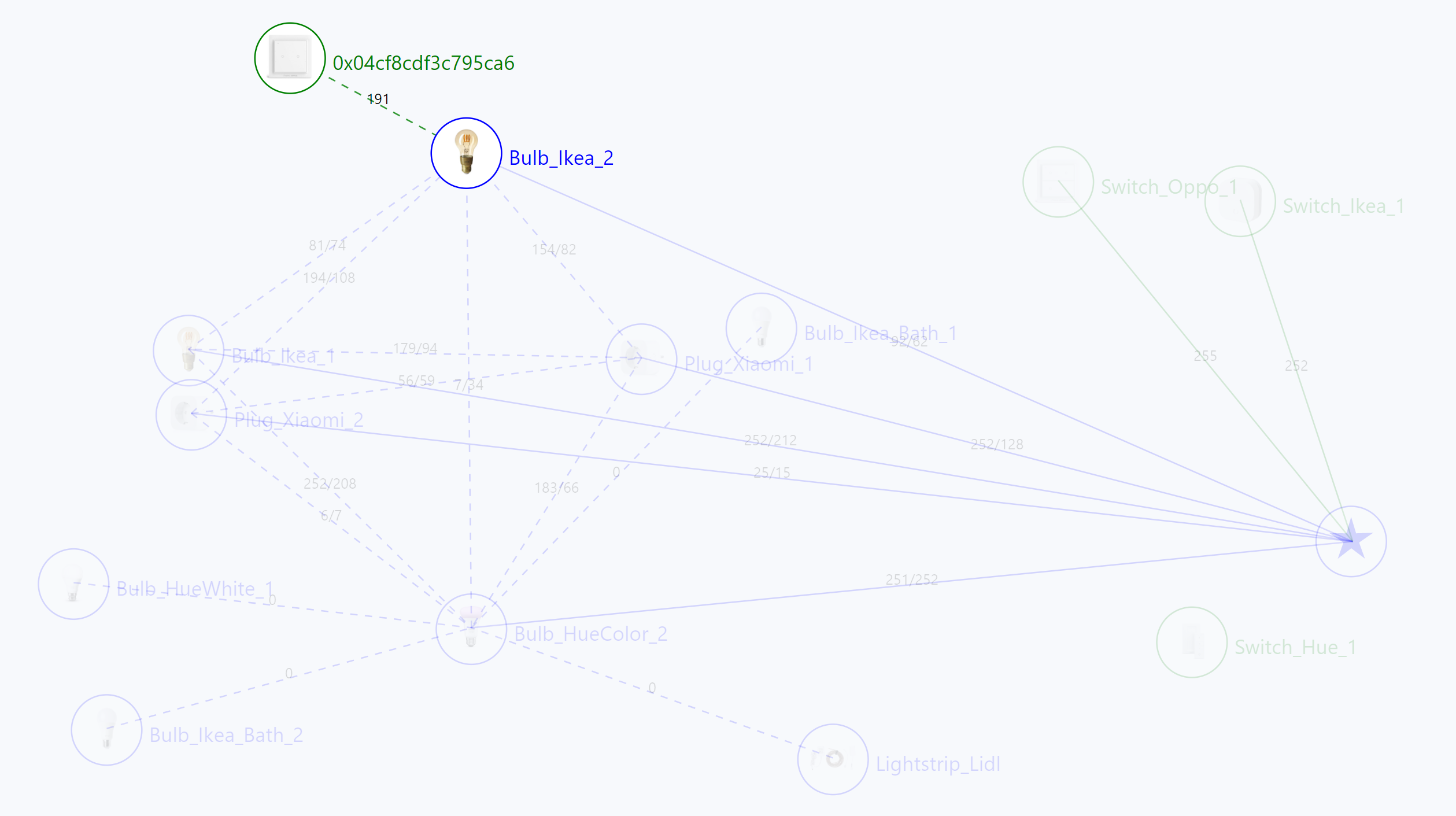

In the map it shoes the switch with a link to a bulb and no link to the router, but I don't know if that is a relevant to the problem:

EDIT: There are no groups under the groups tab.

[hachel]

Ok sorry for the hustle. As you can see above the bind to the coordinator is missing the LevelCtrl cluster. As soon as I selected it and hit bind it worked.

[tomillr]

I'm having the same experience trying to pair one of the newer Zigbee 3.0-based switches "Aqara wireless remote switch H1 (double rocker)" or "WRS-R02".

No matter how many time I've tried to reset and re-pair those switches, they automatically are bound to all the Zigbee lights in my house and not the hub itself.

Any idea how to properly pair them?

[d-c-u-p]

Can't help on that topic.
But I hope you can answer a question to me. I'm looking for exactly this switch cos it suppossingly sends a "release" action after a long button press. Is that correct?

I'd need that to dim my lights but I can't find a suitable switch with release action :/

[d-c-u-p]

Just a thought on you actual question. Why would it matter to you if the switch connects to a "repeater" and not to the router itself?
Usually it connects to the point with the best connection. So to my understanding that should be just fine

[LorenzoBoers]

I'm having the same experience trying to pair one of the newer Zigbee 3.0-based switches "Aqara wireless remote switch H1 (double rocker)" or "WRS-R02".

No matter how many time I've tried to reset and re-pair those switches, they automatically are bound to all the Zigbee lights in my house and not the hub itself.

Any idea how to properly pair them?

Having this same issue. You found a solution yet?

[hubjab]

I'm having the same experience trying to pair one of the newer Zigbee 3.0-based switches "Aqara wireless remote switch H1 (double rocker)" or "WRS-R02".
No matter how many time I've tried to reset and re-pair those switches, they automatically are bound to all the Zigbee lights in my house and not the hub itself.
Any idea how to properly pair them?

Having this same issue. You found a solution yet?

I had the same issue with Xiaomi/Aqara WRS-R02 and I solved it by using "Zigbee2mqtt Edge" version instead of "Zigbee2mqtt".

[mmakaay]

I got the same issue with RTS-R02. I haven't tried switching to the dev edge version. Does anybody have an idea about what the fix commit was?

[stefan242]

I have. See below!

[stefan242]

I have the same problem with several Aqara Opple switches. It works for a while with a new switch and then these switches turn on and off all zigbee bulbs in the mesh network. Even if I plug off the zigbee stick and turn off my Raspi with Node-RED. So it seems as if the switches connect directly to all bulbs it can find.

[stefan242]

I have solved my problem! If you use the

operation_mode: event
in exposes of your device (wake up the device before changing modes!)
you can use all of the double and triples button presses again and all of my switches do NOT switch other bulbs anymore.
Be sure, that event is marked.

[mmakaay]

Currently away on a little holiday, but back in a few days.
Something to look forward to, thanks for the update ;-)

[mikemoik]

Servus, i have the same problem. when debugging i got notice of those two messages published by the aquara opple switch (6 buttons, pushed was button 1, the friendly name is "but_op3_02"):
object topic: "zigbee2mqtt/but_op3_02" payload: object action: "button_1_single" battery: 100 device: object linkquality: 49 voltage: 3088 qos: 0 retain: false _msgid: "4fbf7c07c9cdf7d8"
which is the normal msg when single pushing button 1.

but there was also this msg:
{"level":"debug","message":"Received Zigbee message from 'but_op3_02', type 'commandOff', cluster 'genOnOff', data '{}' from endpoint 1 with groupID 0"}

now, how to disable the behavior that the aquara opple switch is sending commandOff to the genOnOff cluster? it's doing the same thing when pushing button 2 only with sending commandOn. i think this is the root cause of this thread here.
honestly, i'm not able to understand what's going on here:
https://www.zigbee2mqtt.io/guide/usage/binding.html#when-to-use-this

[stefan242]

What does your switch report in the tab state in Zigbee2MQTT?

{
    "battery": 100,
    "linkquality": 45,
    "operation_mode": "event",
    "voltage": 3174
}

operation_mode HAS to be "event"!
Other mode would be command and I assume, that is the setting of your switch!?

[mikemoik]

THAT did the trick, THANKS! maybe i overlooked it here in the thread!

[sebastianlorenzen]

The solution with the "event" config is still working with latest HA and Zigbee2MQTT version.

[IDarboIV]

Just had this myself last night, when repairing some Opple switches. Thought i was going mad, as it makes no sense.

Will try this when im home and hopefully fixes the issue.
