Proposal: Media Studio — image and video generation on LibreChat's providers, billing and storage

[usnavy13]

media-studio-demo.mp4

Image and video generation in LibreChat today happens through per-provider agent tools. Each tool owns its own credentials, request shape and output handling, results are not billed through the balance, video jobs cannot outlive the tool call, and native image output from Gemini (#6065) has no home in the message model. This proposal adds one shared media pipeline, exposed three ways: a Media Studio workspace, two agent tools, and native Gemini images in chat. The existing image tools are untouched.

The work is complete on a branch and running in a test deployment.

• Branch: https://github.com/usnavy13/LibreChat/tree/feat/media-studio
• Companion @librechat/agents pull request: feat: add native media port for Google image output and host model-invocation tracing agents#553
• LibreChat pull request: feat: add Media Studio and shared media generation runtime #16141

What it adds

Media Studio. A workspace next to chat for creating and iterating on images and video. Each creation is a thread: the original stays immutable, edits and retries are separate turns, and results can be compared across models side by side. Presets save provider, model, parameters and uploaded reference images. The gallery is searchable, supports multi-select delete, and Data Controls gains "Delete all Studio creations". Temporary creations stay out of the library and expire on their own deadline. A result can be sent to a chat with "Use in chat", and any chat image has an "Open in Media Studio" action.

Agent tools. media_generate and media_status register in the existing tool registry. Image requests wait a bounded time (default 120 s) and otherwise return a durable receipt; video requests always return a receipt the agent can check later. Every configured provider is reachable from agents through the same service Studio uses.

Native Gemini images in chat. Gemini image models return ordered text and image parts on an ordinary assistant message. Images are stored as normal image_generation files, and the private continuation signatures Gemini needs for follow-up turns are kept on the message and replayed on the next request. Chat keeps ownership of the model call and its billing.

Providers. Adapters for OpenAI Images and video (gpt-image and DALL-E profiles), Azure OpenAI v1, OpenRouter image and video with capability discovery, Gemini, Vertex Veo, xAI, Black Forest Labs, Recraft, Krea, Runway, MiniMax, Alibaba, HeyGen, Sourceful, Atlas, Seed and Microsoft. An integration references an existing endpoint (builtin, custom, vertex) to reuse its credentials, headers and user-provided key slot, or uses a direct connection for providers without a chat endpoint. Model controls (size, quality, format, background, duration and so on) come from per-model capability profiles, so the form only shows what the selected model accepts.

Billing. Media uses the existing balance and transactions settings. In balance mode each integration declares maxCostUSD; credits are reserved before dispatch and settled through the Transaction ledger from provider-reported cost, frozen token rates or a completed-result estimate. With balance off, transactions record usage without a debit. Uncertain paid outcomes (a cancel that may have completed) stay as liabilities until reconciled instead of being retried. Native chat is billed once by chat and never enters the Studio ledger.

Storage and retention. Originals are ordinary File records on the deployment's configured file strategy (local, S3, CloudFront, Azure Blob, Firebase) and follow the chat retention policy. Thumbnails and video posters are best-effort derivatives through ffmpeg, which the Dockerfiles now install. Deleting an original removes its derivatives; the shared expired-file sweep owns expiry.

Operator and admin. Everything sits behind media.enabled plus interface.media role permissions (use, create; USER off by default, ADMIN on). Surfaces (studio, chat, tools), queue and concurrency limits, worker leases, transfer caps, polling and title generation are all in librechat.yaml.

Realtime. Studio and the sidebar receive snapshot-invalidation events through the existing event-transport interface, with polling as the recovery path for reconnects and deployments without cross-replica delivery.

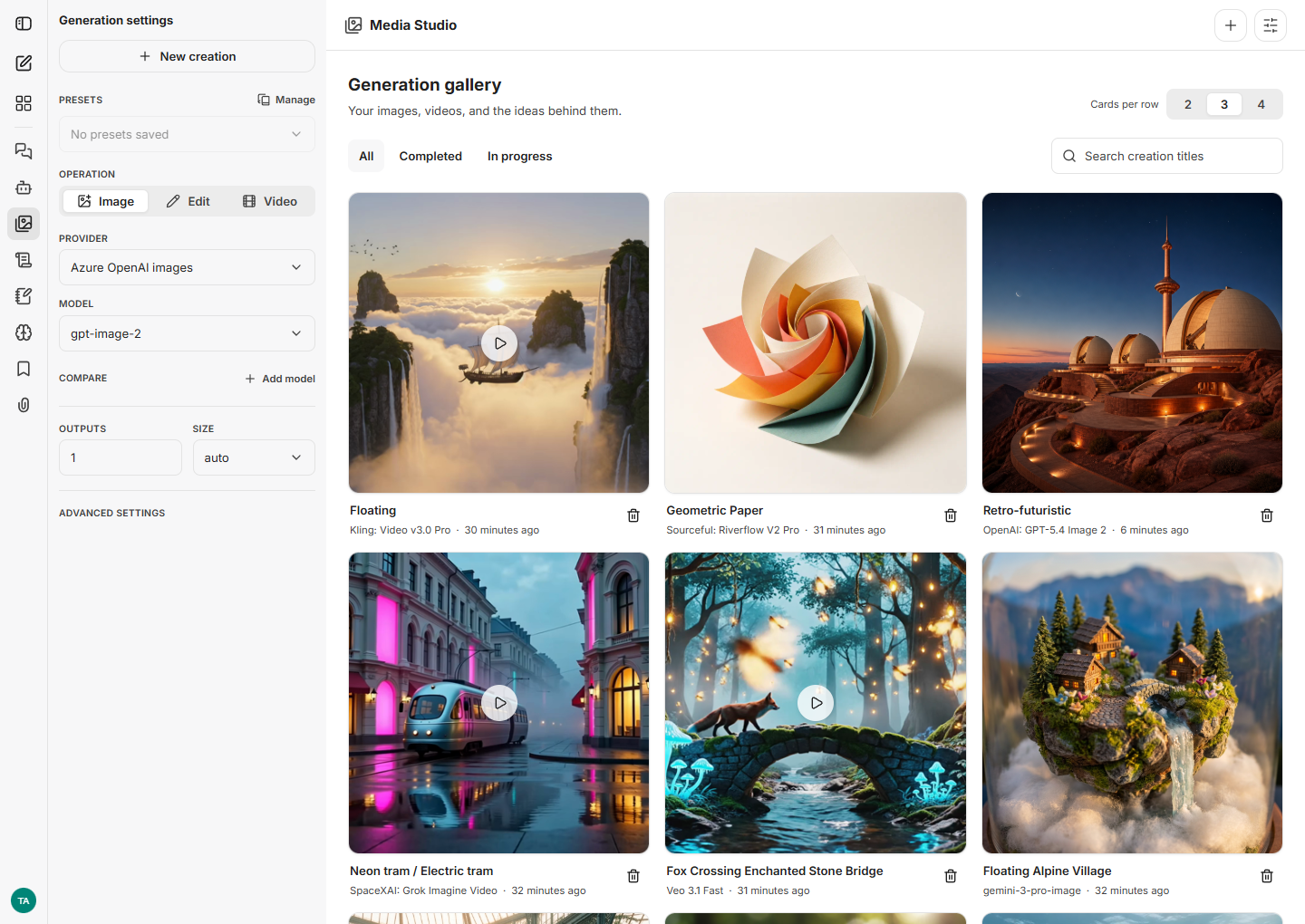

One library across providers, with image and video results side by side.

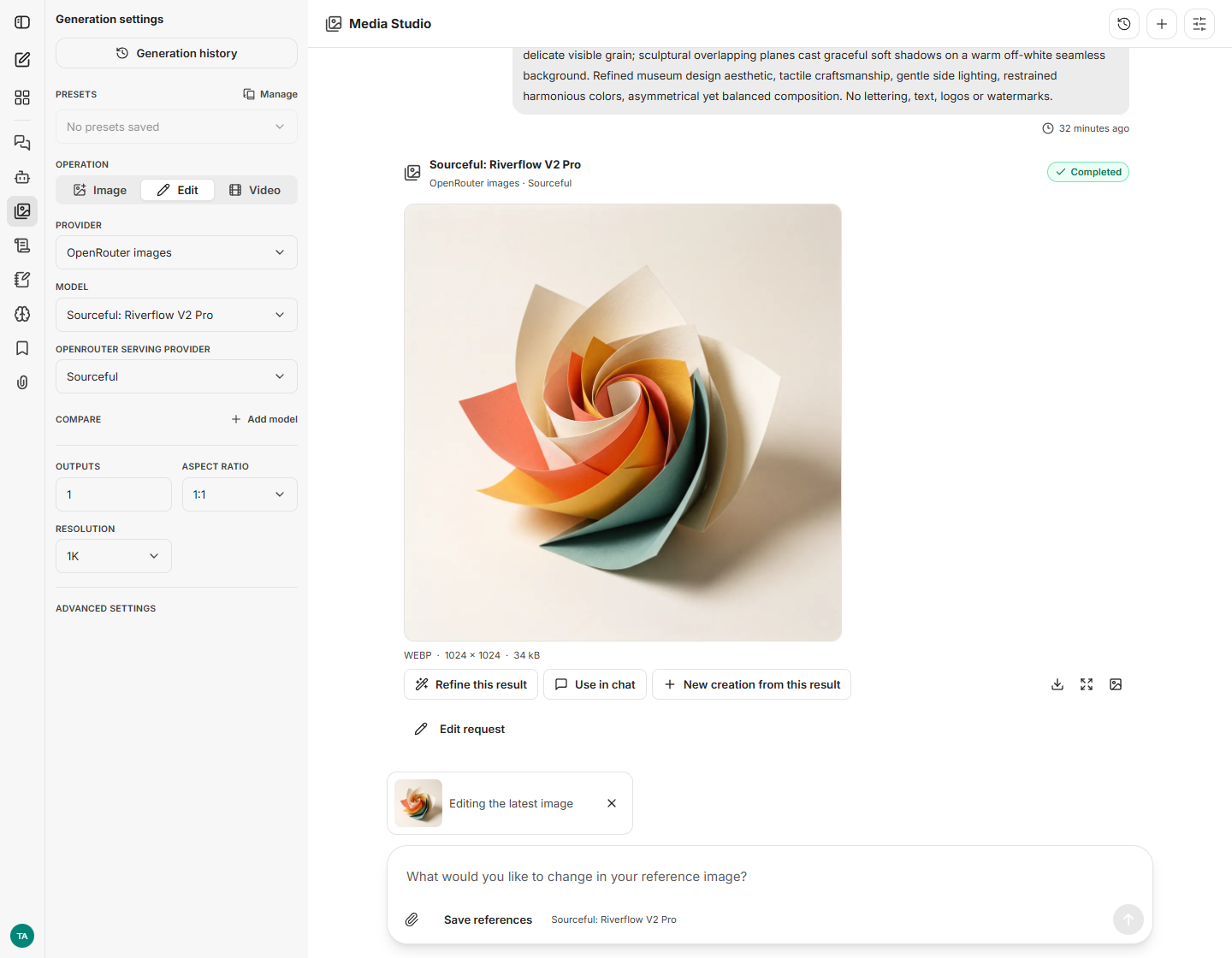

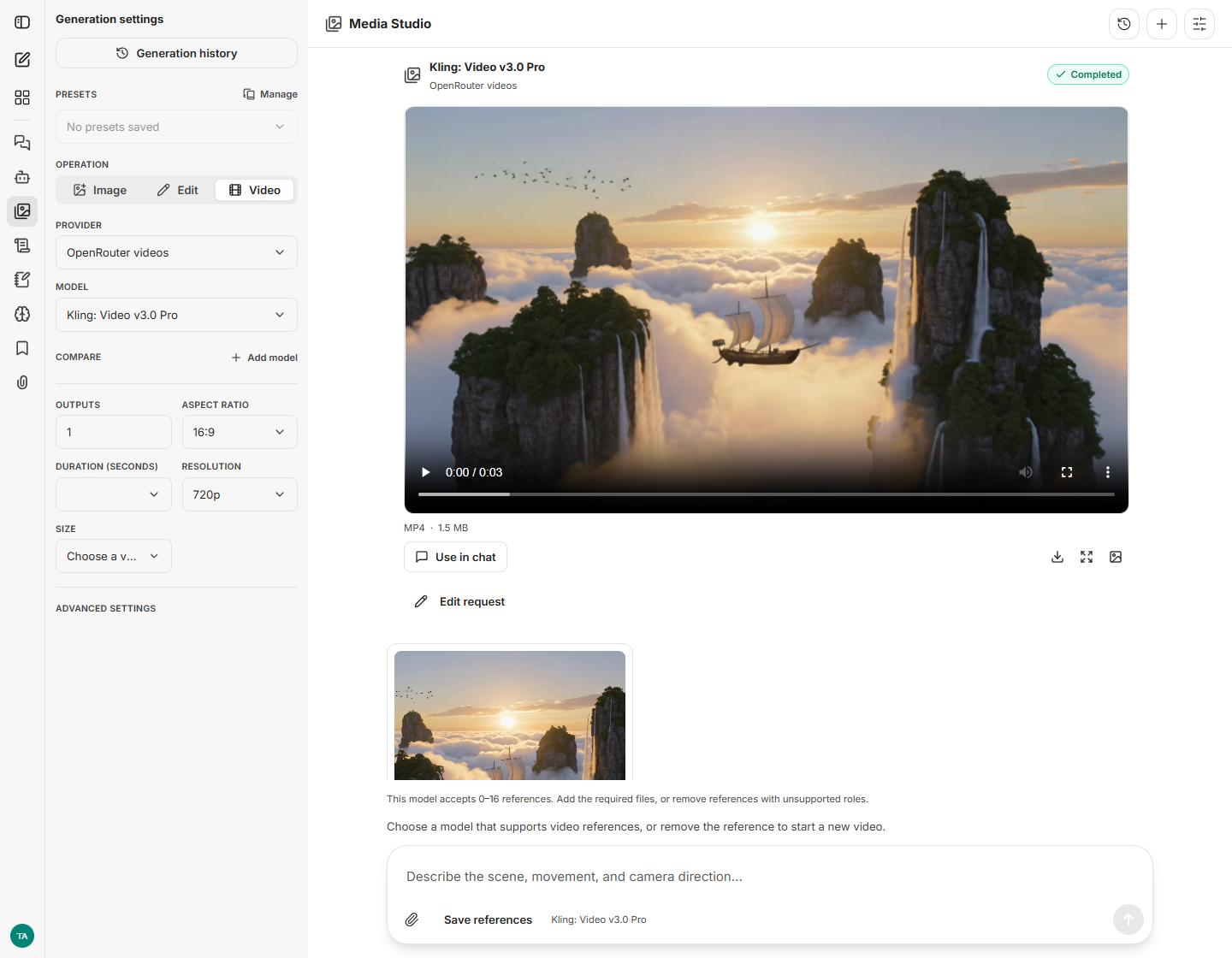

Image thread: immutable original, edit composer, hand-off to chat.	Video thread: async result, reference image, per-model video controls.

How it fits

Agent media tools ─┐
Media Studio ──────┴─ admission → durable jobs → provider adapters → File originals
                           └─ existing Balance / Transaction settlement

Native Gemini chat ── existing SDK invocation and accounting
                           └─ injected File writer + private Message continuation

The pipeline reuses what LibreChat already has rather than adding parallel copies: provider keys and user-provided credentials, file strategies, balances and transactions, rate limiters, moderation, SSRF guards, Prometheus metrics, Langfuse tracing, SystemCapabilities, role permissions and the event transport. New backend code is TypeScript in packages/api/src/media, database contracts live in packages/data-schemas, and shared types in packages/data-provider. With media.enabled: false (the default) no worker runs and no generation is accepted; a deployment that never enabled it sees no change.

Related requests

• [Enhancement]: Integration of Gemini 2.0 (text and images output) #6065 native Gemini text and image output — addressed by the chat surface
• [Enhancement]: Support for Sora Video Generation (Azure OpenAI Integration) #7702 Sora video — Azure OpenAI video works through a direct /openai/v1 connection; the receipt model avoids the blocking poll loop the community Sora PRs use
• [Enhancement]: Extend Token Tracking to Audio, OCR, and Image Generation Services #13305 token tracking for image generation — media settles on the Transaction ledger
• [Enhancement]: UI Switchable image models #15958 (and the closed [Enhancement]: Support for GPT-Image-2.5 #15813) per-user model and quality choice — Studio and the tools expose per-model controls
• [Enhancement]: can image generation/edition be implemented generically with endpoints as with conversation ? #8910 image generation configured like chat endpoints — integrations reference endpoints
• [Enhancement]: gpt-image-1 support #6592 maintainer position that image generation is delivered through agent tools — honoured: the tools stay, and media_generate is itself a registered tool

Scope limits

Vertex serves Studio and the tools but is not on the native chat path; native chat is Gemini Developer API only. Azure is supported through direct connections only. Studio threads have no archive, pin, tag or public share. Not in this contribution: Bedrock Canvas and Reel, Imagen, agent-wide default reference sets (discussion #13724), zip download (#14486), watermarking (#10589), a timeline editor and standalone audio generation. These are named as follow-ups rather than half-built.

Dependencies

Native chat output needs two additions to @librechat/agents: an injected NativeMediaPort that the Google adapter calls to persist image parts before any output is emitted, and a traceModelInvocation API so hosts can trace model calls made outside a graph run with the SDK's own Langfuse lifecycle. Those are in the companion pull request above. The LibreChat branch consumes a build of that SDK branch until a release exists; the pull request will move to a released version.

Trying it

Check out the branch, build, and enable one integration:

media:
  enabled: true
  integrations:
    - id: openai-images
      api: openai.images
      endpointRef: { kind: builtin, endpoint: openAI }
      catalog: { kind: configured, models: ['gpt-image-1'] }
      operations: ['image.generate', 'image.edit']
      billing: { maxCostUSD: 0.25 }
interface:
  media:
    use: true
    create: true

librechat.example.yaml documents every field. The mock e2e suite has Studio, tools, video and native chat journeys that run without provider keys.

Question for maintainers

Thumbnails and video posters are produced with ffmpeg, so the branch adds it to the official Docker images. Is that acceptable, or would you rather derivatives stay disabled unless the operator installs ffmpeg and points media.assets.derivatives.ffmpegPath at it?
