Dataset fields with the same name allowed with different types #2379

@wslulciuc

Description

@wslulciuc

The Marquez DB model currently allows dataset fields of the same name, but of different types, to be associated with a given dataset (introduced in DB migration V12). For example, let's say we post an OpenLineage event for job my-job with an output dataset my-output where the output dataset has fields a with types VARCHAR and INT:

$ curl -X POST http://localhost:5000/api/v1/lineage \
  -H 'Content-Type: application/json' \
  -d '{
        "eventType": "COMPLETE",
        "eventTime": "2020-12-28T20:52:00.001+10:00",
        "run": {
          "runId": "d46e465b-d358-4d32-83d4-df660ff614dd"
        },
        "job": {
          "namespace": "my-namespace",
          "name": "my-job"
        },
        "outputs": [{
          "namespace": "my-namespace",
          "name": "my-output",
          "facets": {
            "schema": {
              "_producer": "https://github.com/OpenLineage/OpenLineage/blob/v1-0-0/client",
              "_schemaURL": "https://github.com/OpenLineage/OpenLineage/blob/v1-0-0/spec/OpenLineage.json#/definitions/SchemaDatasetFacet",
              "fields": [
                { "name": "a", "type": "VARCHAR"},
                { "name": "a", "type": "INT"}
              ]
            }
          }
        }],
        "producer": "https://github.com/OpenLineage/OpenLineage/blob/v1-0-0/client"
      }'

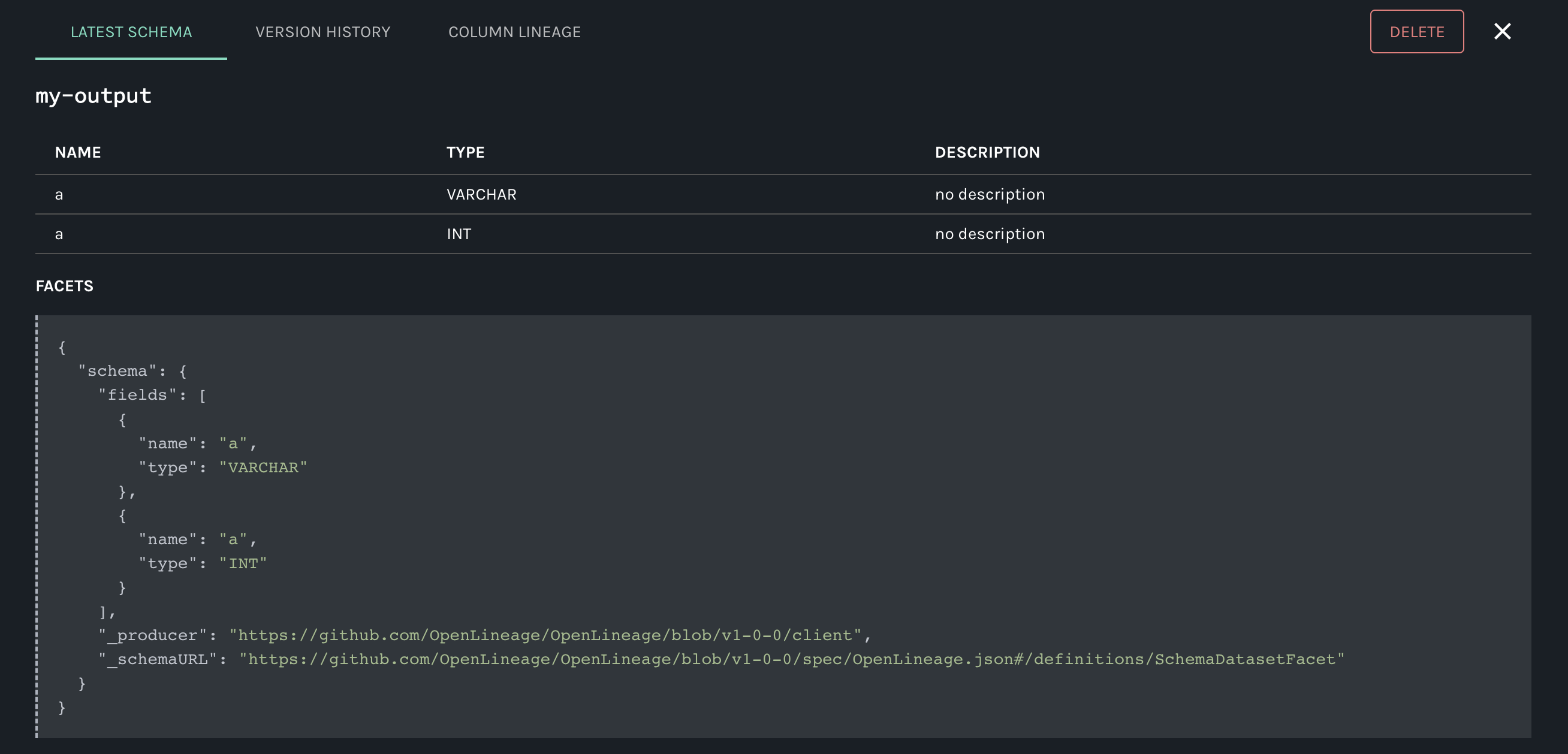

In the UI, we know see the metadata for dataset my-output:

Screen Shot 2023-01-23 at 1 54 09 PM

What's expected?

The Marquez model should consider a dataset field of the same name as a duplicate without considering the data type. We don't want to drop the metadata for the OL event completely, so the backend logic will be to insert a dataset field on a first come first serve basis. In other words, using the example job my-job above, the output dataset my-output with fields a of types VARCHAR and INT will only register field a of type VARCHAR; field a of type INT will be ignored.
