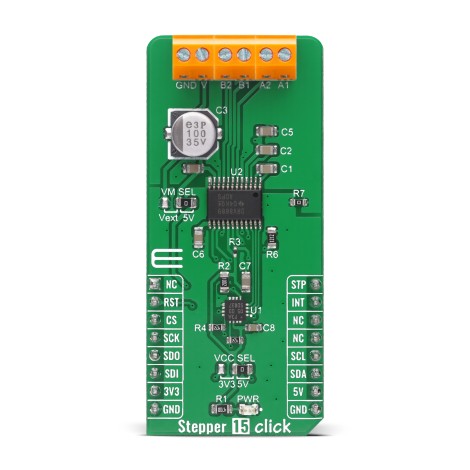

Stepper 15 Click demo application is developed using the NECTO Studio, ensuring compatibility with mikroSDK's open-source libraries and tools. Designed for plug-and-play implementation and testing, the demo is fully compatible with all development, starter, and mikromedia boards featuring a mikroBUS™ socket.
- Author : Nenad Filipovic
- Date : Mar 2021.
- Type : I2C/SPI type
This library contains API for the Stepper 15 Click driver. The library contains drivers for work control of the Stepper Motor.
- MikroSDK.Board
- MikroSDK.Log
- Click.Stepper15
stepper15_cfg_setupConfig Object Initialization function.
void stepper15_cfg_setup ( stepper15_cfg_t *cfg );stepper15_initInitialization function.
err_t stepper15_init ( stepper15_t *ctx, stepper15_cfg_t *cfg );stepper15_default_cfgClick Default Configuration function.
void stepper15_default_cfg ( stepper15_t *ctx );stepper15_make_one_stepStepper 15 make one step function.
err_t stepper15_make_one_step ( stepper15_t *ctx, uint8_t step_speed );stepper15_set_directionStepper 15 set direction function.
err_t stepper15_set_direction ( stepper15_t *ctx, uint8_t direction );stepper15_step_by_angleStepper 15 step by angle function.
err_t stepper15_step_by_angle ( stepper15_t *ctx, uint8_t step_speed, float angle, uint16_t step_360 );Initializes I2C and SPI driver and set default configuration, enable the device and enable outputs mode.
void application_init ( void )
{
log_cfg_t log_cfg; /**< Logger config object. */
stepper15_cfg_t stepper15_cfg; /**< Click config object. */
/**
* Logger initialization.
* Default baud rate: 115200
* Default log level: LOG_LEVEL_DEBUG
* @note If USB_UART_RX and USB_UART_TX
* are defined as HAL_PIN_NC, you will
* need to define them manually for log to work.
* See @b LOG_MAP_USB_UART macro definition for detailed explanation.
*/
LOG_MAP_USB_UART( log_cfg );
log_init( &logger, &log_cfg );
log_info( &logger, " Application Init " );
// Click initialization.
stepper15_cfg_setup( &stepper15_cfg );
STEPPER15_MAP_MIKROBUS( stepper15_cfg, MIKROBUS_1 );
err_t init_flag = stepper15_init( &stepper15, &stepper15_cfg );
if ( ( init_flag == I2C_MASTER_ERROR ) || ( init_flag == SPI_MASTER_ERROR ) ) {
log_error( &logger, " Application Init Error. " );
log_info( &logger, " Please, run program again... " );
for ( ; ; );
}
stepper15_default_cfg ( &stepper15 );
log_info( &logger, " Application Task " );
log_printf( &logger, "---------------------------------\r\n" );
stepper15_set_work_mode( &stepper15, STEPPER15_WORK_MODE_ENABLE_DEVICE );
Delay_ms ( 100 );
stepper15_set_output_mode( &stepper15, STEPPER15_OUTPUT_MODE_OUTPUTS_ENABLE );
Delay_ms ( 100 );
if ( stepper15_get_fault_condition( &stepper15 ) == STEPPER15_FAULT_CONDITION ) {
log_printf( &logger, " Fault condition \r\n" );
} else {
log_printf( &logger, " Correct condition \r\n" );
}
log_printf( &logger, "---------------------------------\r\n" );
log_printf( &logger, " Stop the stepper motor \r\n" );
stepper15_motor_stop( &stepper15 );
Delay_ms ( 1000 );
}The application task represents an example that demonstrates the use of the Stepper 15 Click board™ with which the user can sequentially move the motor. The first part of the sequence executes the clockwise/counterclockwise motor movement for an angle of 90-degrees with a step speed of 85/100%, all the way to the last sequence of the same movement routine of 360-degree angle with a step speed of 85/100%. Results are sent to the USART Terminal, where you can track their changes.
void application_task ( void )
{
log_printf( &logger, "---------------------------------\r\n" );
log_printf( &logger, " Clockwise motion \r\n" );
log_printf( &logger, " Angle of rotation : 90 degrees \r\n" );
log_printf( &logger, " Step speed : 85 %% \r\n" );
stepper15_set_direction ( &stepper15, STEPPER15_DIRECTION_CLOCKWISE );
stepper15_step_by_angle( &stepper15, step_speed - 15, 90, step_360 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
log_printf( &logger, "---------------------------------\r\n" );
log_printf( &logger, " Counterclockwise motion \r\n" );
log_printf( &logger, " Angle of rotation : 180 degrees \r\n" );
log_printf( &logger, " Step speed : 85 %% \r\n" );
stepper15_set_direction ( &stepper15, STEPPER15_DIRECTION_COUNTERCLOCKWISE );
stepper15_step_by_angle( &stepper15, step_speed - 15, 180, step_360 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
log_printf( &logger, "---------------------------------\r\n" );
log_printf( &logger, " Clockwise motion \r\n" );
log_printf( &logger, " Angle of rotation : 270 degrees \r\n" );
log_printf( &logger, " Step speed : 90 %% \r\n" );
stepper15_set_direction ( &stepper15, STEPPER15_DIRECTION_CLOCKWISE );
stepper15_step_by_angle( &stepper15, step_speed - 10, 270, step_360 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
log_printf( &logger, "---------------------------------\r\n" );
log_printf( &logger, " Counterclockwise motion \r\n" );
log_printf( &logger, " Angle of rotation : 360 degrees \r\n" );
log_printf( &logger, " Step speed : 100 %% \r\n" );
stepper15_set_direction ( &stepper15, STEPPER15_DIRECTION_COUNTERCLOCKWISE );
stepper15_step_by_angle( &stepper15, step_speed, 360, step_360 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
log_printf( &logger, "---------------------------------\r\n" );
log_printf( &logger, " Clockwise motion \r\n" );
log_printf( &logger, " Angle of rotation : 360 degrees \r\n" );
log_printf( &logger, " Step speed : 100 %% \r\n" );
stepper15_set_direction ( &stepper15, STEPPER15_DIRECTION_CLOCKWISE );
stepper15_step_by_angle( &stepper15, step_speed, 360, step_360 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
}This Click board can be interfaced and monitored in two ways:
- Application Output - Use the "Application Output" window in Debug mode for real-time data monitoring. Set it up properly by following this tutorial.
- UART Terminal - Monitor data via the UART Terminal using a USB to UART converter. For detailed instructions, check out this tutorial.
The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.
