Regarding including Reservoirs in HYMAP

[PrateekSharma99]

I am trying to include a single reservoir data in to the HYMAP part of LIS. Following is the command setup that I have written. Could you suggest me as to why am I getting the following errors.

TEMPLATE model timestep: "1hr"
HYMAP2 routing model time step: "1hr"
HYMAP2 routing model output interval: "1da"
HYMAP2 routing model restart interval: "1mo"
HYMAP2 routing method: "local inertia" "
HYMAP2 routing model time step method: "adaptive"
HYMAP2 routing model adaptive time step alfa coefficient: 1.0
HYMAP2 run in ensemble mode: 1
HYMAP2 routing model linear reservoir flag: 1
HYMAP2 routing model evaporation option: none
HYMAP2 routing model restart file: LOCATION
HYMAP2 routing model start mode: coldstart

HYMAP2 floodplain dynamics: 0
HYMAP2 reservoir operation option: 1
HYMAP2 number of reservoirs: 1
HYMAP2 reservoir operation input time series size: 150
HYMAP2 reservoir operation input directory: LOCATION
HYMAP2 reservoir operation header filename: LOCATION
HYMAP2 reservoir operation input data type: "water level"
HYMAP2 enable 2-way coupling: 0
HYMAP2 routing model dwi flag: 0

Whenever I try to run this part I am facing this error could anyone tell me why is it so

forrtl: error (65): floating invalid
Image PC Routine Line Source
LIS 00000000013CFCD4 Unknown Unknown Unknown
libpthread-2.17.s 00002ADE5D65F630 Unknown Unknown Unknown
LIS 00000000004A7048 hymap2_resopmod_m 56 HYMAP2_resopMod.F90
LIS 00000000004A54DA hymap2_model_core 330 HYMAP2_model_core.F90
LIS 00000000004A054E hymap2_model_ 229 HYMAP2_model.F90
LIS 00000000004C9466 hymap2_routing_ru 349 HYMAP2_routing_run.F90
LIS 00000000006838D9 lis_routingmod_mp 131 LIS_routingMod.F90
LIS 000000000123A583 retrospective_run 206 retrospective_runMod.F90
LIS 0000000000CC6014 MAIN__ 68 lisdrv.F90
LIS 0000000000416632 Unknown Unknown Unknown
libc-2.17.so 00002ADE5DB90555 __libc_start_main Unknown Unknown
LIS 0000000000416529 Unknown Unknown Unknown

[agetiran]

@Daduji123,
you need to specify the directory and header files for the reservoir operation scheme. It's not clear what "LOCATION" means.

HYMAP2 reservoir operation input directory: LOCATION
HYMAP2 reservoir operation header filename: LOCATION

In the reservoir operation input directory, you'll need a text file for each reservoir with two columns: date (YYYYMMDD), and reservoir water level observations. The reservoir operation header filename is a text file containing three columns: reservoir name, i.e., same name of text files used for each reservoir (but without extension), x, y. x and y are the horizontal and vertical locations of the grid points in the domain.

[PrateekSharma99]

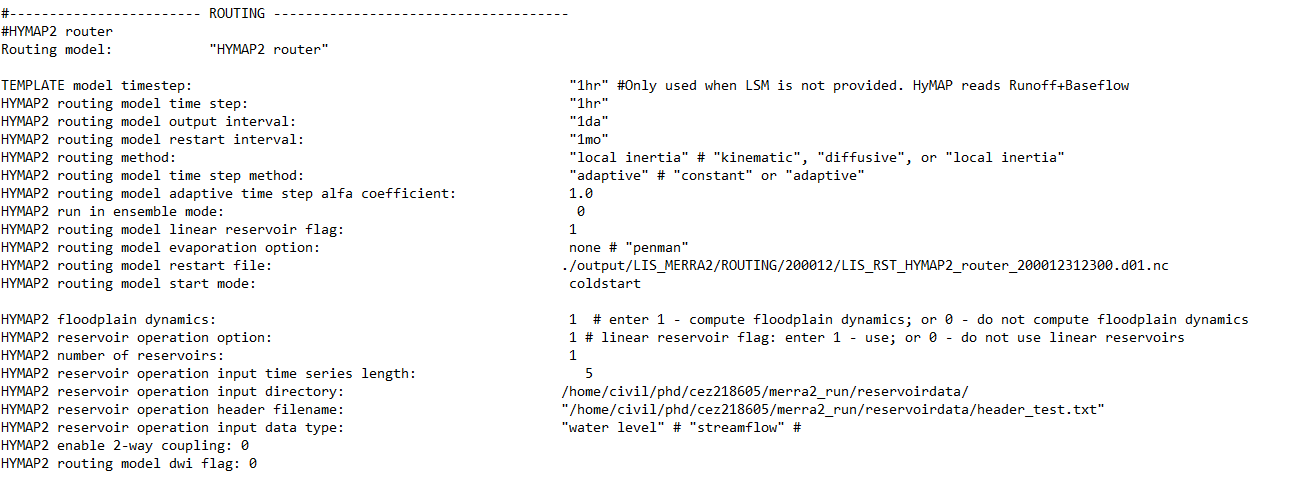

Good Afternoon @agetiran The location is specified already as follows:

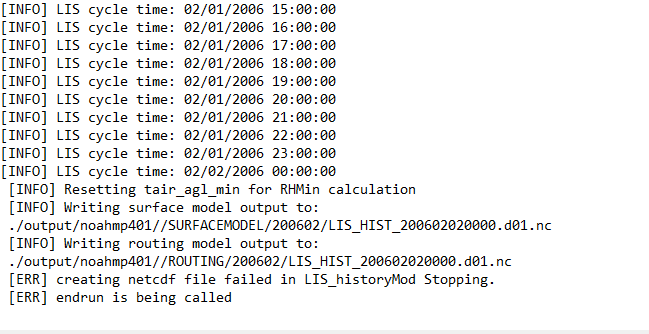

I was able to solve the earlier error by changing some input parameters. The model fails at a point where the outputs are written after a single cycle run for the routing part whenever reservoirs are included but works fine without the reservoirs. This type of error occurs:

I was able to point out that the error occurs in the sub-routine LIS_writeRoutingModelOutput of LIS_historyMod.F90 LINE:(614-750 ) specific line number: 733,738
I have attached the MODEL_OUTPUT_LIST_FAT and the .config file that I am using. Could you please provide any inputs on this.
Prateek.zip
