How to deploy DaemonSets Service in Kubernetes (K8s)?

DaemonSets in Kubernetes Cluster

Like other controllers, DaemonSets manage groups of replicated Pods.

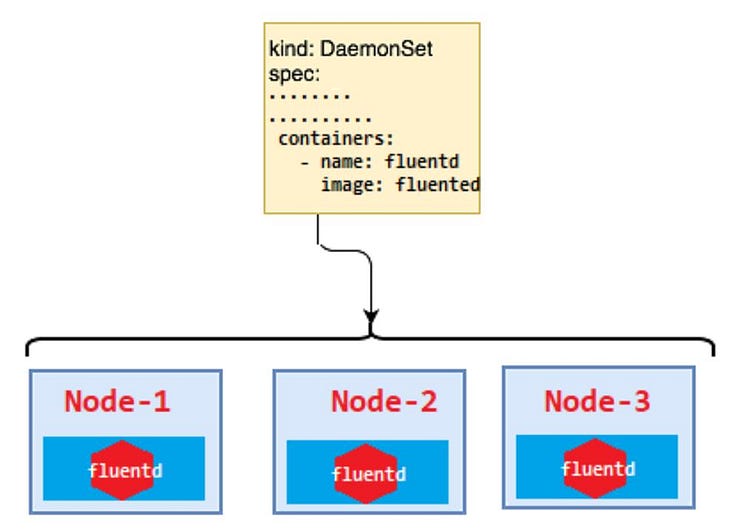

However, DaemonSet ensures that all or selected Worker Nodes run a copy of a Pod (one-Pod-per-node).

As you add nodes, DaemonSets automatically add Pods to the new nodes. As the nodes are removed from the cluster, those Pods are garbage collected.

Here is the manifest of DaemonSet:

apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: fluentd
  namespace: kube-system
  labels:
    k8s-app: fluentd
spec:
  selector:
    matchLabels:
      name: fluentd
  template:
    metadata:
      labels:
        name: fluentd
    spec:
      containers:
      - name: fluentd
        image: fluentd:latest

Create a daemonset:

kubectl create -f daemonset.yamldaemonset.apps "fluentd" created

Check the pod running:

kubectl get pods -n kube-systemNAME         READY  STATUS  RESTARTS AGE
fluentd-7svlj 1/1   Running     0   58s
fluentd-kwm4x 1/1   Running     0   58s
fluentd-q64wf 1/1   Running     0   58s

Check no. of nodes:

kubectl get nodes
NAME                 STATUS      ROLES        AGE            VERSION
gke-cluster-1-default-pool-a6a57f2a-77wb Ready < none > 6h v1.11.6-gke.2
gke-cluster-1-default-pool-a6a57f2a-xkgz Ready < none > 6h v1.11.6-gke.2
gke-cluster-1-default-pool-a6a57f2a-z2bx Ready < none > 6h v1.11.6-gke.2

Display your daemon sets:

kubectl get daemonsets
NAME     DESIRED CURRENT READY UP-TO-DATE   AVAILABLE AGE
fluentd    3        3      3      3           3        5m

Get details of a daemonset:

kubectl describe daemonset fluentd

Edit a daemonset:

kubectl edit daemonset fluentd

Delete a daemonset:

kubectl delete daemonset fluentd
daemonset.apps “fluentd” deleted

Some uses of a DaemonSet are:

1. running a cluster storage daemon, such as glusterd, ceph, on each node.

2. running a logs collection daemon on every node, such as fluentd or logstash.

3. running a node monitoring daemon on every node, such as Prometheus Node Exporter, AppDynamics Agent, Datadog agent, New Relic agent, etc.

Running Pods on Only Some Nodes

If you specify a .spec.template.spec.mode selector, then the DaemonSet controller will create Pods on nodes which match that node selector.

spec:
   nodeSelector:
      environment: prod

Now, If you mention a .spec.template.spec.affinity, then DaemonSet controller will be creating the Pods on nodes which will be matching the node affinity.

spec:
  tolerations:
    - key: node-role.kubernetes.io/master
      effect: NoSchedule

In case you will not specify anything, then the controller will be creating Pods on every node of the cluster.

Additional Resources

For more information about DaemonSets, check out these resources:

• Kubernetes DaemonSet Documentation - Official Kubernetes documentation explaining DaemonSets in detail
• Understanding Kubernetes DaemonSets - A comprehensive guide covering DaemonSet use cases and implementation

If you like this article, please share with others. ❤️
