Path location for best model storage #1100
-
|
I have used monailabel to complete the training, and the best checkpoints are recorded from the log, where will this model be stored? The train_stats.json {
"rank": 0,
"current_epoch": 2000,
"current_iteration": 10000,
"total_epochs": 2000,
"total_iterations": 5,
"epoch": 2000,
"start_ts": 1666763633,
"total_time": "1:24:30",
"best_metric": 0.7582034468650818,
"train": {
"metrics": {
"train_dice": 0.7764385342597961,
"train_cancer_dice": 0.7764385342597961
},
"key_metric_name": "train_dice",
"best_metric": 0.8023391366004944,
"best_metric_epoch": 1954
},
"eval": {
"metrics": {
"val_mean_dice": 0.71221923828125,
"val_cancer_dice": 0.71221923828125
},
"key_metric_name": "val_mean_dice",
"best_metric": 0.7582034468650818,
"best_metric_epoch": 1865
}
} |
Beta Was this translation helpful? Give feedback.
Replies: 5 comments 12 replies
-
|
Hi @Minxiangliu , if you are using monailabel's basic trainer, the saved best metric model should be named by the |
Beta Was this translation helpful? Give feedback.
-
|
Hi @tangy5 ,
def getPreTrans(**kwargs):
if kwargs['mode'] == 'train':
return [
LoadImaged(keys=['image','label'], reader='ITKReader'),
NormalizeLabelsInDatasetd(keys='label', label_names=kwargs['labels']),
EnsureChannelFirstd(keys=['image','label']),
Orientationd(keys=['image','label'], axcodes='RAS'),
Spacingd(keys=['image','label'], pixdim=kwargs['target_spacing'], mode=('bilinear', 'nearest')),
Lambdad(keys=['image','label'], func=lambda x:np.moveaxis(x,-1,1)),
CropForegroundd(keys=['image','label'], source_key='image', k_divisible=kwargs['padd_size'])
]path: class SegmentConfig(TaskConfig):
def init(self, name: str, model_dir: str, conf:dict, planner: Any, **kwargs):
super().init(name, model_dir, conf, planner, **kwargs)
# Model Files
self.path = [
os.path.join(self.model_dir, f"pretrained_{name}.pt"), # pretrained
os.path.join(self.model_dir, f"{name}.pt"), # published
]
self.trans_params ={
'labels':{"cancer": 1},
'target_spacing':(3.33, 3.33, 2.18),
'padd_size':(96, 96, 96),
'crop_size':(96, 96, 96)
}
network_params = {
'spatial_dims':3,
'in_channels':1,
'out_channels':len(self.trans_params['labels']) + 1, # labels plus background,
'channels':(16, 32, 64, 128, 256),
'strides':(2, 2, 2, 2),
'num_res_units':2,
'norm':'batch',
}
self.slidingWindowInfererParams = {
'roi_size':self.trans_params['crop_size'], 'sw_batch_size':4, 'overlap':0.5, 'padding_mode':'replicate'
}
self.network = UNet(**network_params)
self.description = "A model for volumetric (3D) segmentation of the HNC from PET CT image"
def trainer(self) -> Optional[TrainTask]:
output_dir = os.path.join(self.model_dir, self.name)
load_path = self.path[0] if os.path.exists(self.path[0]) else self.path[1]
_trans_params = self.trans_params.copy()
_trans_params.update({'mode':'train'})
task: TrainTask = lib.trainers.ModelTrain(
description=self.description,
model_dir=output_dir,
publish_path=self.path[1],
network=self.network,
load_path=load_path,
crop_size=self.trans_params['crop_size'],
labels=self.trans_params['labels'],
slidingWindowInfererParams = self.slidingWindowInfererParams,
config=self.conf,
preTrans=getPreTrans(**_trans_params)
)
return taskpath: class ModelTrain(BasicTrainTask):
def __init__(self, **kwargs):
super().__init__(**kwargs)
self._network = kwargs['network']
self.crop_size = kwargs['crop_size']
self.labels = kwargs['labels']
self.pre_trans = kwargs['preTrans']
self.slidingWindowInfererParams = kwargs['slidingWindowInfererParams']
def network(self, context: Context):
return self._network
def optimizer(self, context: Context):
return torch.optim.Adam(context.network.parameters(), lr=1e-4, weight_decay=1e-5)
def loss_function(self, context: Context):
return DiceCELoss(to_onehot_y=True, softmax=True)
def lr_scheduler_handler(self, context: Context):
return None
def train_data_loader(self, context, num_workers=0, shuffle=False):
return super().train_data_loader(context, num_workers, True)
def train_pre_transforms(self, context: Context):
train_transforms = self.pre_trans.copy()
train_transforms.extend([
EnsureTyped(keys=['image','label'], device=context.device),
RandSpatialCropd(keys=['image', 'label'], roi_size=self.crop_size, random_size=False, random_center=True),
RandFlipd(keys=['image','label'], prob=0.5, spatial_axis=0),
RandFlipd(keys=['image','label'], prob=0.5, spatial_axis=1),
RandFlipd(keys=['image','label'], prob=0.5, spatial_axis=2),
NormalizeIntensityd(keys='image', nonzero=True, channel_wise=True),
RandScaleIntensityd(keys='image', factors=0.1, prob=1.0),
RandShiftIntensityd(keys='image', offsets=0.1, prob=1.0),
SelectItemsd(keys=['image','label'])
])
return train_transforms
def train_post_transforms(self, context: Context):
return [
EnsureTyped(keys="pred", device=context.device),
Activationsd(keys="pred", softmax=True),
AsDiscreted(
keys=("pred", "label"),
argmax=(True, False),
to_onehot=(len(self.labels) + 1, len(self.labels) + 1),
),
]
def val_pre_transforms(self, context: Context):
val_transforms = self.pre_trans.copy()
val_transforms.extend([
SelectItemsd(keys=['image','label'])
])
return val_transforms
def val_inferer(self, context: Context):
return SlidingWindowInferer(**self.slidingWindowInfererParams)
def train_key_metric(self, context: Context):
return region_wise_metrics(self.labels, self.TRAIN_KEY_METRIC, "train")
def val_key_metric(self, context: Context):
return region_wise_metrics(self.labels, self.VAL_KEY_METRIC, "val")
def train_handlers(self, context: Context):
handlers = super().train_handlers(context)
if context.local_rank == 0:
handlers.append(
TensorBoardImageHandler(
log_dir=context.events_dir,
batch_transform=from_engine(["image", "label"]),
output_transform=from_engine(["pred"]),
interval=10,
epoch_level=True,
)
)
return handlersAdditional verification code: def load_model(path:str, model:UNet):
state_dict = torch.load(path, map_location='cuda')
model.load_state_dict(state_dict, strict=True)
model.eval().cuda()
return model
def getDataList():
with open(r'D:\AI-Project-Code\HNC\Segmentation\DataSets\cvDataSets\testCV1.json', 'r') as file:
val_ds = json.load(file)
return val_ds
def val_dataloader(test_ds):
return ThreadDataLoader(test_ds,
num_workers=0,
batch_size=1,
shuffle=False,
drop_last=False)
trans_params ={
'mode':'train',
'labels':{"cancer": 1},
'target_spacing':(3.33, 3.33, 2.18),
'padd_size':(96, 96, 96),
'crop_size':(96, 96, 96)
}
transform=getPreTrans(**trans_params)
transform.extend([EnsureTyped(keys=['image','label']), ToDeviced(keys=['image','label'],device='cuda')])
transform = Compose(transform)
datasetParameter = {'transform':transform, 'cache_rate':1.0, 'copy_cache':False, 'num_workers':2}
datasetParameter['data'] = getDataList()
test_ds = CacheDataset(**datasetParameter)
loader = val_dataloader(test_ds)
network_params = {
'spatial_dims':3,
'in_channels':1,
'out_channels':len(trans_params['labels']) + 1, # labels plus background,
'channels':(16, 32, 64, 128, 256),
'strides':(2, 2, 2, 2),
'num_res_units':2,
'norm':'batch',
}
model = UNet(**network_params)
model = load_model(
path=r'D:\AI-Project-Code\HNC\Segmentation\monailabel\app-hnc\modelCV1\segmentation\train_01\model.pt', model=model)
post_pred = Compose([Activations(softmax=True), AsDiscrete(argmax=True, to_onehot=len(trans_params['labels']) + 1)])
post_label = Compose([AsDiscrete(argmax=False, to_onehot=len(trans_params['labels']) + 1)])
dice_metric = DiceMetric(include_background=False, reduction="mean")
for idx, batch_data in enumerate(loader):
image, label = batch_data['image'], batch_data['label']
outputs = sliding_window_inference(
inputs=image,
roi_size=trans_params['crop_size'],
sw_batch_size=4,
predictor=model,
overlap=0.5,
padding_mode='replicate')
outputs = [post_pred(i) for i in decollate_batch(outputs)]
label = [post_label(i) for i in decollate_batch(label)]
dice_metric(y_pred=outputs, y=label)
metric = dice_metric.aggregate().item()
dice_metric.reset()
print(metric)The metric result is about 0.65 |
Beta Was this translation helpful? Give feedback.
-
|
Hi @Minxiangliu , thanks for posting the codes, before we can take detailed look at these codes, I would like to understand your question here. For "the results are much different from the log content", is this means you have external test data accuracy (test off monailabel) different from the validation data accuracy when training with monailabel? |
Beta Was this translation helpful? Give feedback.
-
|
Hi @Minxiangliu, I see two different metrics, one is DiceMetric and the other Dice + Cross Entropy (DiceCELoss). Any reason for this? |
Beta Was this translation helpful? Give feedback.
-
|
DiceCEMetric is owned by the original sample program, I have not modified it, it should be the loss function, but what I want to know is not the loss, but the dice metric score. |
Beta Was this translation helpful? Give feedback.
-
|
Hi @tangy5 , In the post transform, I wrote the same method according to the writing method of monailabel. In monailabel: def train_post_transforms(self, context: Context):
return [
EnsureTyped(keys="pred", device=context.device),
Activationsd(keys="pred", softmax=True),
AsDiscreted(
keys=("pred", "label"),
argmax=(True, False),
to_onehot=(len(self.labels) + 1, len(self.labels) + 1),
),
]
def val_inferer(self, context: Context):
self.slidingWindowInfererParams= {
'roi_size':self.trans_params['crop_size'], 'sw_batch_size':4, 'overlap':0.5, 'padding_mode':'replicate'
}
return SlidingWindowInferer(**self.slidingWindowInfererParams)In custom method: post_pred = Compose([Activations(softmax=True), AsDiscrete(argmax=True, to_onehot=len(trans_params['labels']) + 1)])
post_label = Compose([AsDiscrete(argmax=False, to_onehot=len(trans_params['labels']) + 1)])
image, label = batch_data['image'], batch_data['label']
outputs = sliding_window_inference(
inputs=image,
roi_size=trans_params['crop_size'],
sw_batch_size=4,
predictor=model,
overlap=0.5,
padding_mode='replicate')
outputs = [post_pred(i) for i in decollate_batch(outputs)]
label = [post_label(i) for i in decollate_batch(label)]In DiceMetric, I refer to the writing of monailabel: MONAILabel/monailabel/tasks/train/utils.py Lines 17 to 28 in 22d1e54 In custom method: dice_metric = DiceMetric(include_background=False, reduction="mean")
dice_metric(y_pred=outputs, y=label)Here I am not sure if it is consistent with the setting of monailabel. |
Beta Was this translation helpful? Give feedback.
-
|
The code looks good, so the test DSC is about 0.65, what about the validation DSC in the logs? You could visually look at the prediction, and see whether the predicted masks are making sense (e.g., if an obvious shift or mis-alignment exist), then we can tell whether it's a bug or the problem of model performance. And understand the gap better. Thanks |
Beta Was this translation helpful? Give feedback.
-
|
Hi @tangy5 , I've packaged up my code, model, and test files, can you help me identify what's the problem? Thanks for your time. If you are in the If you can directly execute 3D Slicer Execution Screen: monailabel log: |
Beta Was this translation helpful? Give feedback.
-
|
Hi @tangy5 , Is what I'm doing here(#1100 (comment)) different from monailabel? |
Beta Was this translation helpful? Give feedback.
-
|
Hi @Minxiangliu , as I mentioned, the code looks good. I can't tell the difference here, post transforms are the same, if you are using same pre transforms, it should be good. |
Beta Was this translation helpful? Give feedback.
-
|
Hi @tangy5 , {
"rank": 0,
"current_epoch": 2000,
"current_iteration": 10000,
"total_epochs": 2000,
"total_iterations": 5,
"epoch": 2000,
"start_ts": 1666763633,
"total_time": "1:24:30",
"best_metric": 0.7582034468650818,
"train": {
"metrics": {
"train_dice": 0.7764385342597961,
"train_cancer_dice": 0.7764385342597961
},
"key_metric_name": "train_dice",
"best_metric": 0.8023391366004944,
"best_metric_epoch": 1954
},
"eval": {
"metrics": {
"val_mean_dice": 0.71221923828125,
"val_cancer_dice": 0.71221923828125
},
"key_metric_name": "val_mean_dice",
"best_metric": 0.7582034468650818,
"best_metric_epoch": 1865
}
}In addition, I have specified training data( def partition_datalist(self, context: Context, shuffle=False):
with open(r'../../DataSets/cvDataSets/trainCV1.json', 'r') as file:
train_ds = json.load(file)
with open(r'../../DataSets/cvDataSets/testCV1.json', 'r') as file:
val_ds = json.load(file)
return train_ds, val_ds |
Beta Was this translation helpful? Give feedback.
-
|
Hi @tangy5 , Please how can I use |
Beta Was this translation helpful? Give feedback.
-
|
I want to start another discussion to clarify my problem.#1107 (comment) |
Beta Was this translation helpful? Give feedback.

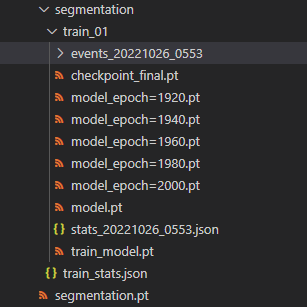

Hi @Minxiangliu , if you are using monailabel's basic trainer, the saved best metric model should be named by the
key_metric_filename, if you are using the default setting, it should be the "model.pt"MONAILabel/monailabel/tasks/train/basic_train.py
Line 110 in 22d1e54
