title Vimar 03982 control via MQTT
description Integrate your Vimar 03982 via Zigbee2MQTT with whatever smart home infrastructure you are using without the vendor's bridge or gateway.
addedAt 2023-06-27 12:46:16 -0700
pageClass device-page

Vimar 03982
Model 03982
Vendor Vimar
Description Roller shutter with slat orientation and change-over relay
Exposes cover (state, position)

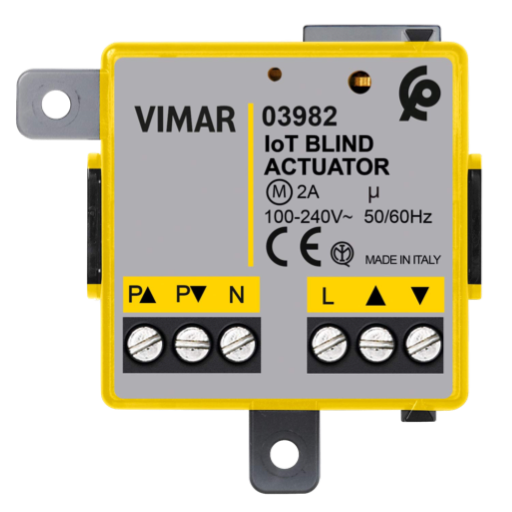

Picture Vimar 03982

Options

How to use device type specific configuration

  • invert_cover: Inverts the cover position, false: open=100,close=0, true: open=0,close=100 (default false). The value must be true or false

  • cover_position_tilt_disable_report: Do not publish set cover target position as a normal 'position' value (default false). The value must be true or false

Exposes

Cover

The current state of this cover is in the published state under the state property (value is OPEN or CLOSE). To control this cover publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "OPEN"}, {"state": "CLOSE"}, {"state": "STOP"}. It's not possible to read (/get) this value. To change the position publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"position": VALUE} where VALUE is a number between 0 and 100.
