setup.md

Chimoney Interledger Wallet Address Setup Guide

Generate a Interledger Wallet Address using Chimoney Sandbox API

Setup Guide: This walkthrough will help you authenticate and use Chimoney’s
/accounts/issue-wallet-address endpoint to generate an ILP wallet address for a user.

---

Step 1: Create a Sandbox Account and get Your API Key

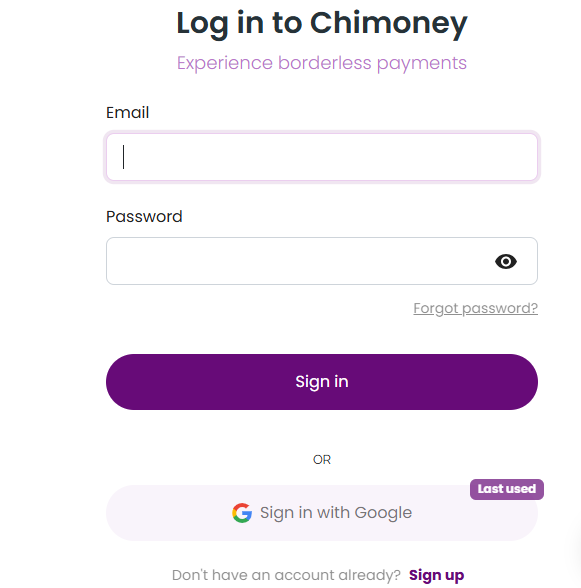

1. Go to sandbox.chimoney.io

Click “Sign Up” or “Sign In”.

📸 Screenshot Example:

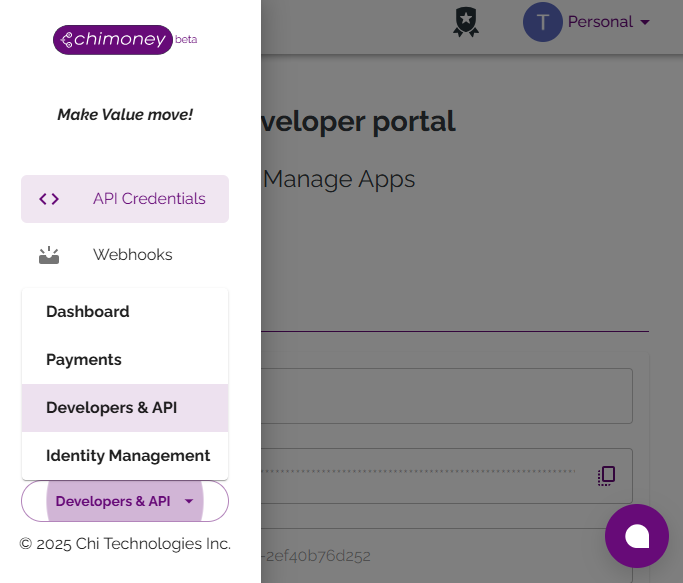

2. Developer Dashboard

Once logged in, you'll land on the Developer Dashboard.
Navigate to the Developers & API section from the sidebar.

📸 Screenshot Example:

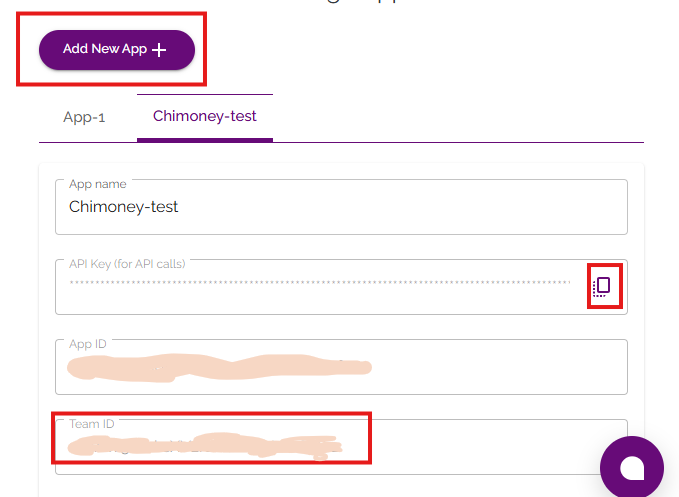

3. Create an App

Click “Add New App” and enter an App name.

Once created:

• Copy your API Key
• Copy your User ID (labelled as Team ID)

📸 Screenshot Example:

You’ll use the Team ID as your userId in requests.

---

Step 2: Make Your First API Call

Prerequisites

• Chimoney Sandbox developer account
• Your API key from the Developer dashboard
• Your Team ID (used as userId)
• A unique ilpUsername (e.g. jane.doe)
• Postman or cURL for testing the endpoint

---

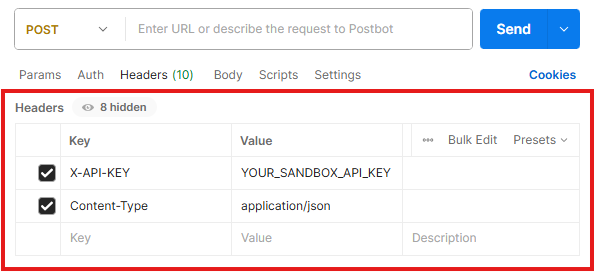

1. Set Up Authentication in Postman

• Open your collection or create a new POST request.

• Under Headers tab, add:

  Key	Value
  X-API-KEY	YOUR_SANDBOX_API_KEY
  Content-Type	application/json

📸 Screenshot Example

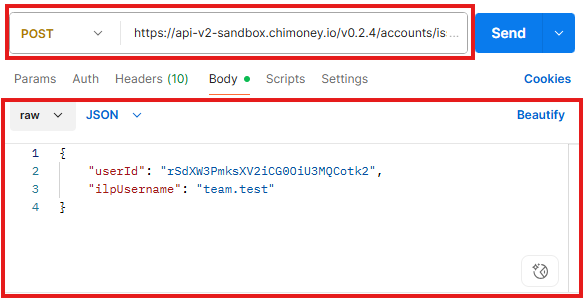

2. Configure the Request

• Method & URL

  POST <https://api-v2-sandbox.chimoney.io/v0.2.4/accounts/issue-wallet-address>

• Body (raw JSON)

  {
    "userID": "your_team_id",
    "ilpUsername": "jane.doe"
  }

📸 Screenshot Example

3. Send & Verify

• Click on Send in Postman

• Look for 200 OK response

  {
    "status": "success",
    "message": "Wallet Address issued succesfully",
    "data": {
      "id": "",
      "createdAt": "2025-07-22T22:09:21.756Z",
      "publicName": "Public Name",
      "url": "https://ilp-sandbox.chimoney.com/user",
      "status": "ACTIVE",
      "asset": {
        "code": "USD",
        "createdAt": "2024-08-24T19:57:56.102Z",
        "id": "",
        "scale": 2,
        "withdrawalThreshold": null
      },
      "additionalProperties": []
    }
  }

📸 Screenshot Example

4. Common Errors & Fixes

HTTP Status	Type	Code	Message	Likely Cause	Suggested Fix
400	Validation Error	INVALID_REQUEST	The request parameters are invalid.	userId or ilpUsername is invalid or missing	Double-check the request body and field formats
401	Unauthorized	–	Unauthorized access	API key is missing or incorrect	Ensure X-API-KEY is present and valid in header
500	Server Error	INTERNAL_SERVER_ERROR	An internal server error occurred.	Issue on Chimoney’s end or malformed request	Try again later or contact Chimoney support

5. Troubleshooting Tips

• Use your exact teamId as userId from the app settings — not a random string.
• If you get 401, re-copy the API key from the dashboard.
• Use a unique ilpUsername per user (you can reuse the same userId for multiple ILP addresses).
