Compativel SC-10 (28461) ?

[djgel]

Hi,

I have a SC-10 (BR) , this model e manual is same a SC-20 .... Find model, this is 28461 ... sometimes the same code is even referenced to the sc-20 version ... you know if this work for me ?

[Yogui79]

Hello

Honestly we haven't tested for this model but the remote look like mine
Could you post a picture
Do you have on the bottom right from the screen a blue led
Is your spa a 110V version?
@LEECHER1 please could you confirm

[djgel]

Yes, have a blue led blink all time!
Yes, 110v Version! 1300W heating.

Well, I bought an LC12s on Aliexpress and I'm waiting for it to arrive next week and then test it with my ESP32, I've uploaded the codes on it...

The Manual is same models ... no find any diffences ...

[LEECHER1]

Hey,

Yes it is the same version but with the 110v.
We haven't no way to test it.
Can you post it when it worked? Then we can include the article number in the code.

See this

Best regards

[Yogui79]

Hi
Please could you try this
#17
Look the last post

[djgel]

Hi,

Thanks for the feedback, sorry, my reading in English is great, but my writing is confusing! My problem is not in Search Network , it is in SearchChannel , the modification he made to search the channel, which is the time with the channel is open, I had also already changed it to a time of 5000 and nothing to find the channel. For this reason I considered that either my pump does not work on this frequency, or the lc12s is not operational. Worse, I ordered it to come from China because here in Brazil I couldn't find it to buy. New is another 1 month and not knowing where the problem is.

[djgel]

After many, many tests here, on channels that seemed to blink, absolute darkness I found the channel! The light blinks very weak, with this, I couldn't see! Serves for that other person who also did not find the channel, VERY hard to see. I had to go testing one by one to see this! another thing, the control has to be in the base to keep it on and work. I found it on Channel 1A! After this step, I went to the NettworkID search, and I found it in 30 Minutes, 0x103 ... Lucky! I moved to the main code, changing the network, MQTT, channel and network settings. However, I have an error after booting spa.ino:

20:53:42.982 ->
20:53:42.982 -> ELF file SHA256: 000000000000000
20:53:42.982 ->
20:53:42.982 -> Backtrace:0x40151ba0x3fb7900x4013f0b0x3fb7b 0x4008bc:0x3fb7d 0x40089ae0x3fb7f
20:53:42.982 ->
20:53:42.982 -> Rebooting...
20:53:56.165 -> ets Jun 8 2016 00:22:57
20:53:56.165 ->
20:53:56.165 -> rst:0x1 (POWERON_RESET),boot:0x13 (SPI_FAST_FLASH_BOOT)
20:53:56.165 -> configsip: 0, SPIWP:0xee
20:53:56.212 -> clk_drv:0x00,q_drv:0x00,d_drv:0x00,cs0_drv:0x00,hd_drv:0x00,wp_drv:0x00
20:53:56.212 -> mode:DIO, clock div:1
20:53:56.212 -> load:0x3fff0018,len:4
20:53:56.212 -> load:0x3fff001c,len:1044
20:53:56.212 -> load:0x40078000,len:10124
20:53:56.212 -> load:0x40080400,len:5856
20:53:56.212 -> entry 0x400806a8
20:53:56.492 -> ----------------------------------------------------------------------------------------------------------------------
20:53:56.492 ->
20:53:56.492 -> Intex Purespa communication sketch version 1.1.0 build on : 2021.05.29 22:25:18
20:53:56.492 ->
20:53:56.492 -> ----------------------------------------------------------------------------------------------------------------------
20:53:56.539 -> Booting
20:53:57.520 -> Guru Meditation Error: Core panic'ed (Interrupt wdt timeout on CPU0)
20:53:57.566 -> Core 0 register dump:
20:53:57.566 -> PC 0x40086ce PS 0x00060434 A0 0x8010a2a A1 0x3fb940
20:53:57.566 -> A2 0x00000017 A3 0x00000000 A4 0x3fbf8 A5 0x00000040
20:53:57.566 -> A6 0x00000000 A7 0x3fb200 A8 0x80083d7 A9 0x3fb930
20:53:57.566 -> A10 0x00000000 A11 0x3fba0 A12 0x00000001 A13 0x00000001
20:53:57.566 -> A14 0x00060420 A15 0x00000000 SAR 0x0000001e EXCCAUSE 0x00000005
20:53:57.566 -> EXCVADDR 0x00000000 LBEG 0x4000ce LEND 0x4000cf LCOUNT 0xffff
20:53:57.566 ->
20:53:57.566 -> ELF file SHA256: 000000000000000
20:53:57.613 ->
20:53:57.613 -> Backtrace:0x40086ce0x3fb9400x4010a27:0x3fb970 0x40089ae0x3fb9a
20:53:57.613 ->
20:53:57.613 -> ore 1 register dump:
20:53:57.613 -> PC 0x40151ba PS 0x00060e4 A0 0x8013f0e A1 0x3fb790
20:53:57.613 -> A2 0x00000000 A3 0x80000001 A4 0x00000000 A5 0x00000001
20:53:57.613 -> A6 0x00060a0 A7 0x00000000 A8 0x00060023 A9 0x3fb88c
20:53:57.613 -> A10 0x00000001 A11 0x00000001 A12 0x80089c0 A13 0x3fb690
20:53:57.613 -> A14 0x00000000 A15 0x3fb480 SAR 0x00000000 EXCCAUSE 0x00000005
20:53:57.613 -> EXCVADDR 0x00000000 LBEG 0x00000000 LEND 0x00000000 LCOUNT 0x00000000
20:53:57.660 ->
20:53:57.660 -> ELF file SHA256: 000000000000000
20:53:57.660 ->
20:53:57.660 -> Backtrace:0x40151ba0x3fb7900x4013f0b0x3fb7b 0x4008bc:0x3fb7d 0x40089ae0x3fb7f
20:53:57.660 ->
20:53:57.660 -> Rebooting...

Using ESP32 Dev Kit V1

[djgel]

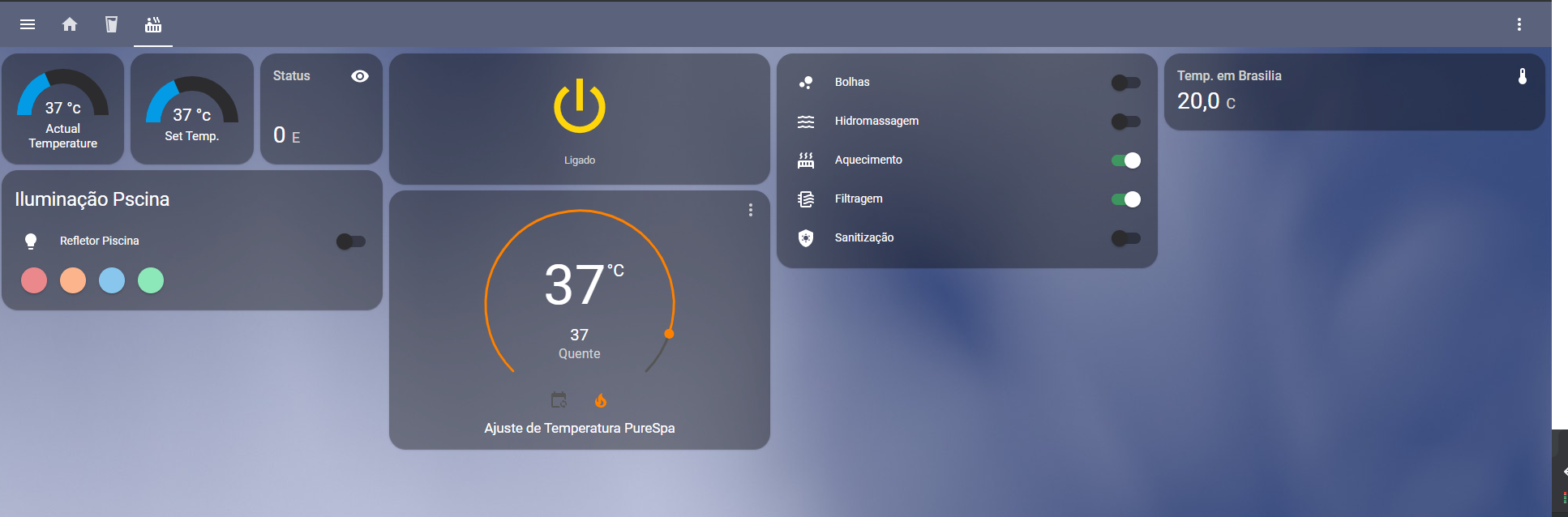

finally , work here ! Received a V4, (V1 broken after tried 1000 times) and work , but wifi reconnecting all time ... Downgrade a Board EPS32 and work! Happiness!

[LEECHER1]

Nice to hear to worked out :) 👍
