HA - Santization start

[djgel]

Hi,

If put on a switch.intex_sanitizer, its return to Off, filter is same .... i imagine because a set time , how to make this ?

[LEECHER1]

The Sanitizer time use this Command before you turn on the Sanitizer Button.

Sanitizer Timer	IntexSpa/Cmd Sanitizer time	hours=3,5,8	-	-

[LEECHER1]

See my last Video. To see it how it works.

[djgel]

@LEECHER1 , thks for attention! there was an error in the switch! now it works! Start, stop wait time confirm and start again. Now make a scheduler to star 3 timesfor week ! Thks

[LEECHER1]

Good :)

i have Scheduler for 1 h (1h with Auto off) per day. I check it out it is enough chlorine.

How long to you starting?

[djgel]

I thought and set it up by activating it (3 hours activated by the pump pattern) at 11:59PM tuesday, thursday saturday and sunday (Days that have more use ... more time with it uncapped providing greater chlorine evaporation) I have to, in Mondays, Wednesdays and Fridays only enable filtering. Active heating when I plan to enter in advance. With HA, and since I use Nabu Casa, I can activate remotely now!

[djgel]

can you publish a input.selection use por set time for filter and sanitization ?

[LEECHER1]

Hey,

Yes but this not a tutorial to copy and paste.

You need by the sanitizer a dropdown menu the slider is not working. By the filter you can use a slider or dropdown. You see only the dropdown version.

It is all in German.

1. configuration.yaml

• platform: mqtt
  name: "IntexSpa/Filter Setup Zeit" #change the name do you what
  state_topic: "IntexSpa/filter setup time"
• platform: mqtt
  name: "IntexSpa/Desinfektion setup Zeit" #change the name do you what
  state_topic: "IntexSpa/Sanitizer setup time"

---

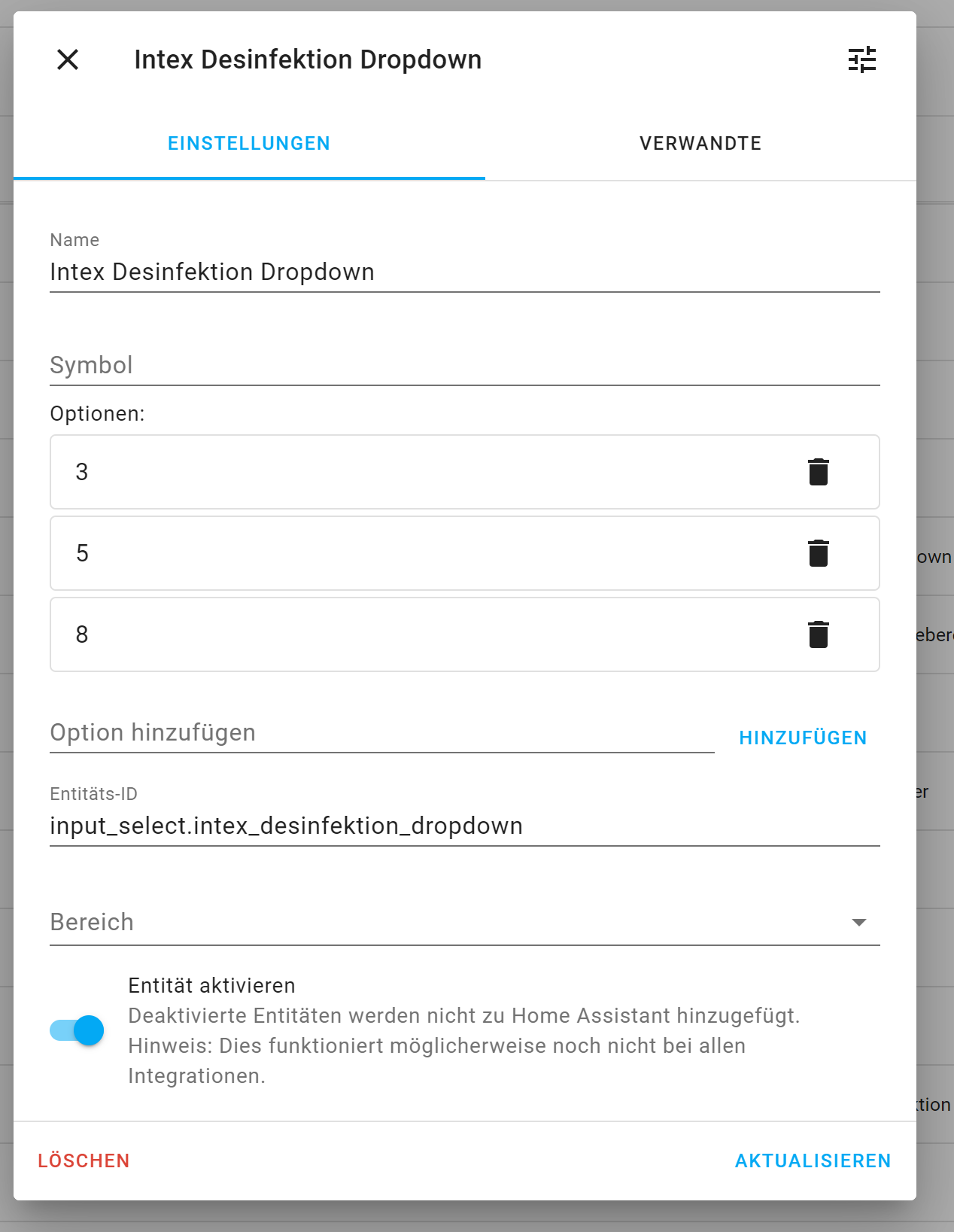

This is the helper function
(Configuration -> Helpers)

See the Screenshot.

---

3. automations.yaml

Three version Automations 3h, 5, 8h

• id: '1620839242388'
  alias: intex Desinfektion Dropdown - 3
  description: ''
  trigger:
  • platform: numeric_state
    below: '4'
    entity_id: input_select.intex_desinfektion_dropdown
    condition: []
    action:
  • service: mqtt.publish
    data:
    topic: IntexSpa/Cmd Sanitizer time
    payload: '3'
    mode: single
• id: '1620839267752'
  alias: intex Desinfektion Dropdown - 5
  description: ''
  trigger:
  • platform: numeric_state
    below: '6'
    entity_id: input_select.intex_desinfektion_dropdown
    above: '4'
    condition: []
    action:
  • service: mqtt.publish
    data:
    topic: IntexSpa/Cmd Sanitizer time
    payload: '5'
    mode: single
• id: '1620839288864'
  alias: intex Desinfektion Dropdown - 8
  description: ''
  trigger:
  • platform: numeric_state
    below: '9'
    entity_id: input_select.intex_desinfektion_dropdown
    above: '7'
    condition: []
    action:
  • service: mqtt.publish
    data:
    topic: IntexSpa/Cmd Sanitizer time
    payload: '8'
    mode: single

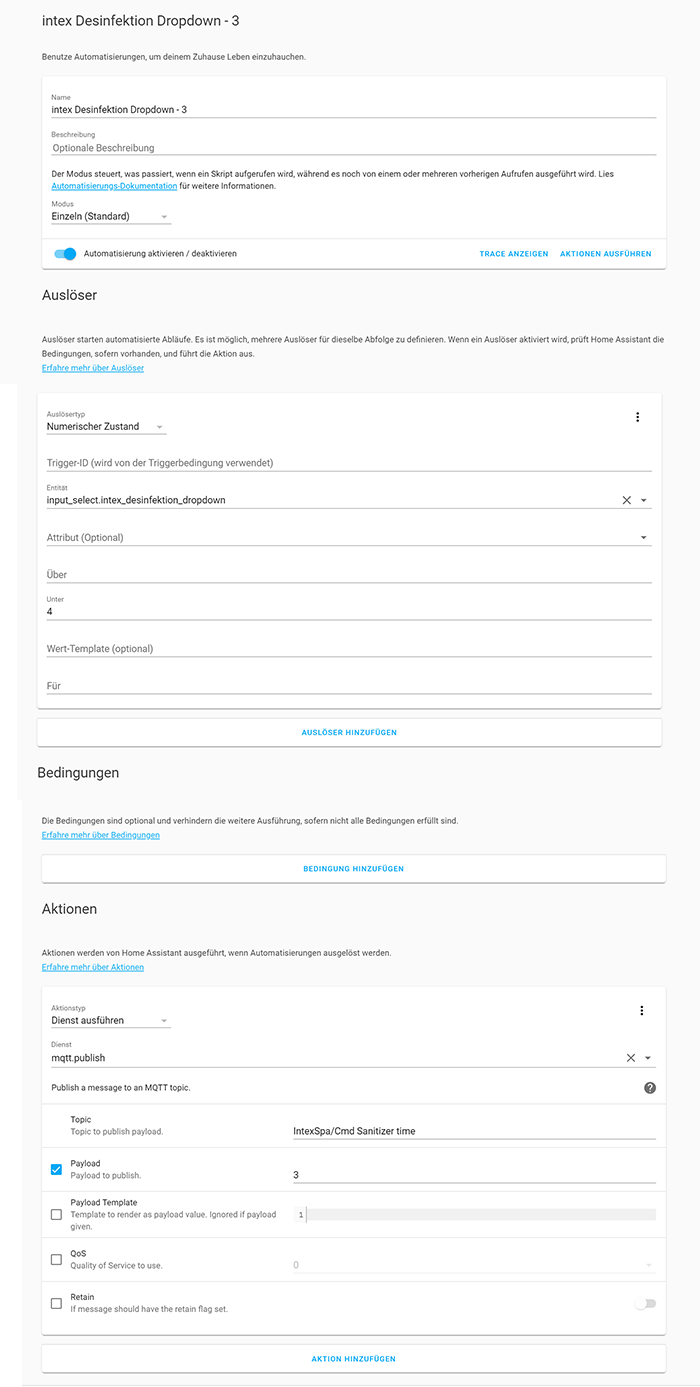

And Screenshot for one automation:

I hope i can help you.

[djgel]

Change only de input_selection for Input_number! Thanksssssss !

[LEECHER1]

Change only de input_selection for Input_number! Thanksssssss !

sorry, what do you mean?

[djgel]

Sorry, just meant I changed Input_selection to Input_number or "helper" to use sliding selection. Everything works 100% . Thank you
