In a previous hands-on we performed a data analysis using matplotlib. In this hands-on we are going to perform a data analysis using Kibana and Elastic Search.
- Task 5.1: Elasticsearch
- Task 5.2: Kibana
- Task 5.3: Longtash and Beats
- Task 5.4: Using our Twitter dataset
- Task 5.5: Elastic Cloud
- Task 5.6: Student Project
- Task 5.7: Acknoledgements
The goal of this lab is to fetch twitter data using logstash and then put it into elasticsearch. Finally We want to do visualisation using kibana. We will use Beats to collect information from Twitter, are open source data shippers that we will install as agents on our servers. Beats can send data directly to Elasticsearch or send it to Elasticsearch via Logstash, which we can use to parse and transform the data. We will build the following workflow:
Elasticsearch is an open source NoSQL distributed and scalable search engine. Elastic Search provides a distributed, multitenant-capable full-text search engine with an HTTP web interface and schema-free JSON documents.
The installation of Elastic Search is quite simple following the documentation here.
The .zip archive for Elasticsearch v5.4.1 can be downloaded and installed as follows:
wget https://artifacts.elastic.co/downloads/elasticsearch/elasticsearch-5.4.1.zip
unzip elasticsearch-5.4.1.zip
cd elasticsearch-5.4.1/
./bin/elasticsearch
#### Checking that Elasticsearch is running
After these simple steps an Elasticsearch instance should be running at http://localhost:9200 in your browser if you run with default configuration. You can send an http request to port 9200 on local host which should give you a response something like this:
{
"name" : "zTy5Ohn",
"cluster_name" : "elasticsearch",
"cluster_uuid" : "MT8F5SiVTJmmkXh8lMjzag",
"version" : {
"number" : "5.4.0",
"build_hash" : "780f8c4",
"build_date" : "2017-04-28T17:43:27.229Z",
"build_snapshot" : false,
"lucene_version" : "6.5.0"
},
"tagline" : "You Know, for Search"
}
Warnings: By default, Elasticsearch runs in the foreground, prints its logs to the standard output (stdout), and can be stopped by pressing Ctrl-C. Keep the terminal open where elastic search is running to be able to keep the instance running.You could also use nohup mode to run the instance in the background. Elasticsearch requires Java 8 or later. Use the official Oracle distribution. You can check the java version of your platform using the command java -version
Kibana is an open source data exploration and visualization tool built on Elastic Search to help you understand data better. It provides visualization capabilities on top of the content indexed on an Elasticsearch cluster. Users can create bar, line and scatter plots, or pie charts and maps on top of large volumes of data.
The installation and initialization of Kibana is similar to that of Elasticsearch following the documentation here. Kibana is provided for Linux and Darwin (macOS) as a .tar.gz package. I'm show the steps using the Darwin version (choose the correct version according your operation system).
The 64-bit Linux archive for Kibana v5.4.1 can be downloaded and installed as follows:
wget https://artifacts.elastic.co/downloads/kibana/kibana-5.4.1-darwin-x86_64.tar.gz
tar -xzf kibana-5.4.1-darwin-x86_64.tar.gz
cd kibana-5.4.1-darwin-x86_64
Kibana can be started from the command line as follows:
./bin/kibana
Kibana instance should be running at http://localhost:5601 in your browser if you run with default configuration (see here for configuring Kibana). We can access the Kibana web user interface via your browser http://localhost:5601. When we first start Kibana, it will create a new Elasticsearch index called .kibana where it stores the visualizations and dashboards. Because this is the first time starting it, we should be prompted to configure an index pattern. We should see something similar to:
The simplest architecture for the Beats platform setup consists of one, Elasticsearch, and Kibana. The Beats insert the transactions directly into the Elasticsearch instance. If you want to perform additional processing or buffering on the data, however, you’ll want to install Logstash. An important advantage to this approach is that you can use Logstash to modify the data captured by Beats in any way you like. You can also use Logstash’s many output plugins to integrate with other systems.
To download and install Logstash, use the commands that work with your system according this webpage. In our case we used Darwin (macOS):
curl -L -O https://artifacts.elastic.co/downloads/logstash/logstash-5.4.1.zip
unzip logstash-5.4.1.zip
In the logstash-5.4.1 directory, it can be /usr/share/logstash if you installed Logstash from a .deb package in linux, we need to create the configuration file twitter.conf (included in this github) that onfigure Logstash to listen on port 5044 for incoming Beats connections and to index into Elasticsearch as:
input {
beats {
port => 5044
}
twitter {
consumer_key => "XXXXXXXXXXXXXXXXXXXXX"
consumer_secret => "XXXXXXXXXXXXXXXXXXXXX"
oauth_token => "XXXXXXXXXXXXXXXXXXXXX"
oauth_token_secret => "XXXXXXXXXXXXXXXXXXXXX"
keywords => [ "barcelona" ]
full_tweet => true
}
}
filter {
}
output {
stdout {
codec => dots
}
elasticsearch {
hosts => "localhost:9200"
index => "twitter"
document_type => "tweet"
template => "twitter_template.json"
template_name => "twitter"
}
}
You can include more keywords as:
keywords => [ "barcelona", "london", "paris" ]
Also in the logstash-5.4.1 folder create the file twitter_template.json that indicates the template used (included in this github) :
{
"template": "twitter",
"order": 1,
"settings": {
"number_of_shards": 1
},
"mappings": {
"tweet": {
"_all": {
"enabled": false
},
"dynamic_templates" : [ {
"message_field" : {
"match" : "message",
"match_mapping_type" : "string",
"mapping" : {
"type" : "string", "index" : "analyzed", "omit_norms" : true
}
}
}, {
"string_fields" : {
"match" : "*",
"match_mapping_type" : "string",
"mapping" : {
"type" : "string", "index" : "analyzed", "omit_norms" : true,
"fields" : {
"raw" : {"type": "string", "index" : "not_analyzed", "ignore_above" : 256}
}
}
}
} ],
"properties": {
"text": {
"type": "string"
},
"coordinates": {
"properties": {
"coordinates": {
"type": "geo_point"
},
"type": {
"type": "string"
}
}
}
}
}
}
}
To install the required plugin, run the following command inside the logstash directory according this webpage. In our case we used (mac):
./bin/logstash-plugin install logstash-input-beats
./bin/logstash-plugin update logstash-input-beats
./bin/logstash -f twitter.conf
Warning: It a error "Limit of total fields [1000] in index [twitter] has been exceeded" appears like:
[2017-06-03T21:18:55,963][WARN ][logstash.outputs.elasticsearch] Could not index event to Elasticsearch. {:status=>400, :action=>["index", {:_id=>nil, :_index=>"twitter", :_type=>"tweet", :_routing=>nil}, 2017-06-03T19:18:55.000Z %{host} %{message}], :response=>{"index"=>{"_index"=>"twitter", "_type"=>"tweet", "_id"=>"AVxvZWi_fVHNJgzwxRRA", "status"=>400, "error"=>{"type"=>"illegal_argument_exception", "reason"=>"Limit of total fields [1000] in index [twitter] has been exceeded"}}}}
You can add the following command using the Dev Tools section:
PUT twitter/_settings
{
"index.mapping.total_fields.limit": 2000
}
Now we are ready to start to analize our Twitter Data:
- Select the
keywordsin thelogstash-5.4.1/twitter.conffile. - start elasticsearch, kibana and logstash using different xterm in order to see if during the initialization process any error occurs are corrently
elasticsearch-5.4.1/bin/elasticsearch
curl -XDELETE 'http://localhost:9200/twitter'
kibana-5.4.0-darwin-x86_64/bin/Kibana
logstash-5.4.1/bin/logstash -f logstash-5.4.1/twitter.conf
We are ready to access the Kibana web user interface via your browser http://localhost:5601. Uncheck the Index contains time-based events option. Replace logstash-* with twitter and use as timestamp field @timestamp:
Click Create button. Kibana will now show you the index definition for the twitter index. You can see all of the fields names, their data types and if the fields are analyzed and indexed. This provides a good high level overview of the data configuration in the index. Y
In order to treate new index pattern you can use Management–>Index Patterns–> Add New.
At this point, your index pattern is saved. You can now start discovering your data. Click on the Discover link in the navigation bar. This opens the Discover view which is a very helpful way to dive into your raw data. You should see something similar to this:
At the top of the screen is the query box which allows you to filter your data based on search terms. Enter messias a example in the filter box to filter results that only contain that field. On the left of the screen is the list of fields in the index. Each field has an icon to the left of the field name that indicates the data type for the field. If you click on the field name, it will expand to show you sample data for that field in the index.
The easiest and fastest way to get started with Elasticsearch is to spin up a free trial on Elastic Cloud (here) , which comes with a free Kibana instance.

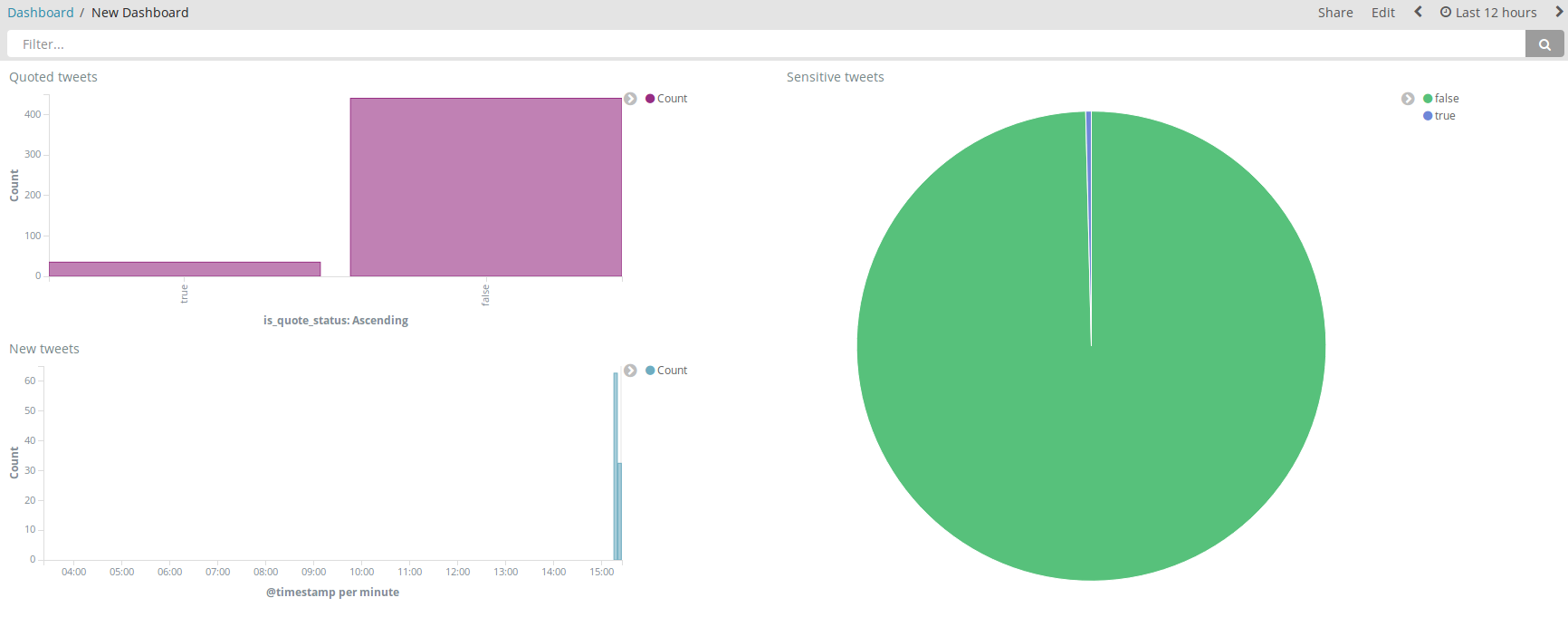

Use the Visualize and Dashboard links in the navigation bar to obtain a awesome Dashboard that describes your data.
