Can’t launch GUI of the terminal , error >psychometric class

[mnmneE]

Hi there,

I followed the documentation related to the installation of autopilot; yet I am not able to launch the GUI of the terminal because error of python's binding of QT library that is Pyside2; I configured virtual environment and made sure that Python 3.7 is the main used version/ I wonder if is a bug in the init file or if I did something wrong during the process!

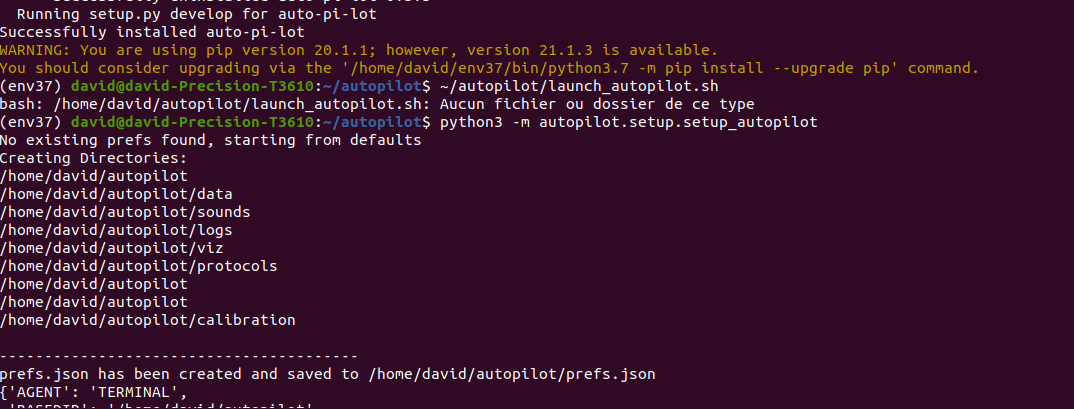

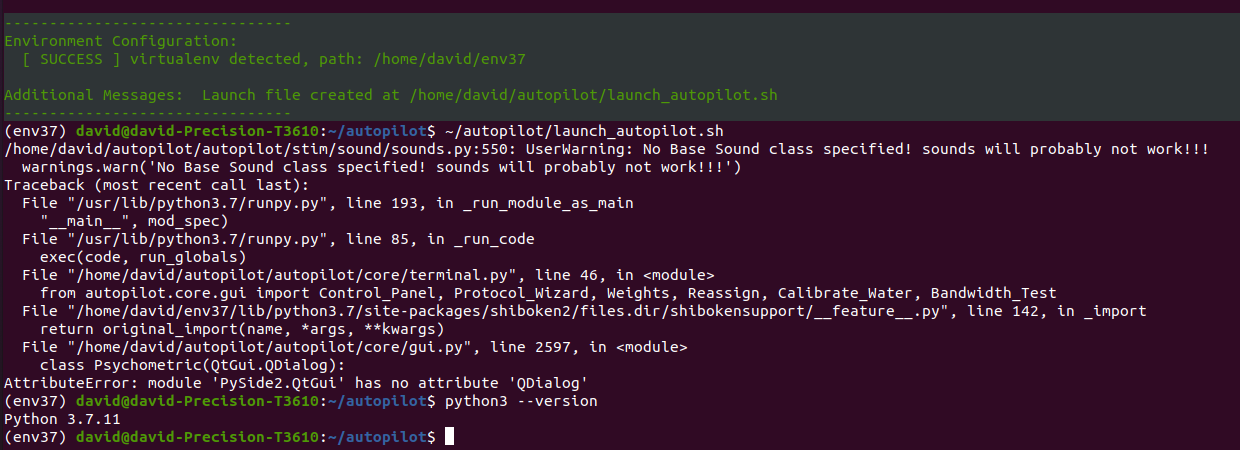

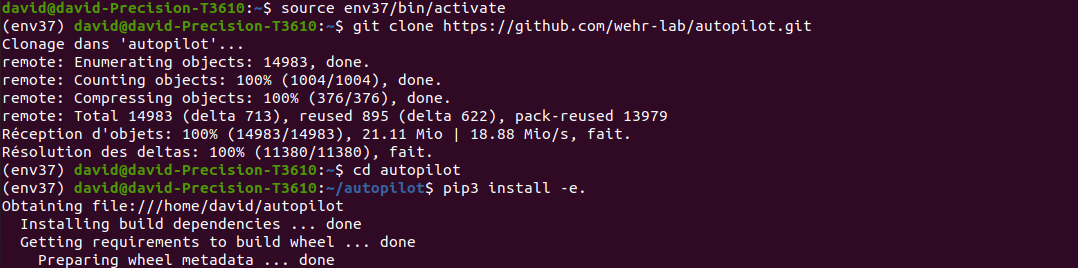

please find attached screen shots about the terminal results/
in advance, thanks very much for your help.

Regards

[sneakers-the-rat]

Yikes, thanks for bringing this up.

PySide moved a lot of its widget objects that were formerly part of QtGui into QtWidgets, this has been patched in the dev branch, which i am currently working on pulling back to main, but i have patched them separately in the meantime, try pulling!

#107

[mnmneE]

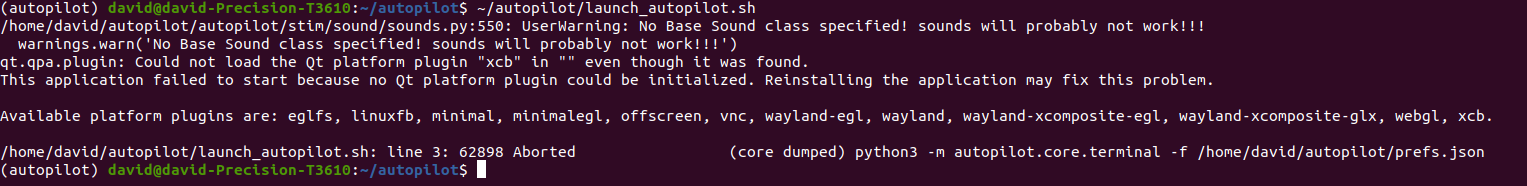

Thanks for your reply and help, actually I tried again and I couldn't launch the terminal because of an error also related to Qt library ; please find attached a screenshot for the reported error; in advance thanks for your help

[sneakers-the-rat]

ah yes, this is a reasonably common problem with Qt5.

so the error:

Could not load the Qt platform plugin "xcb" in "" even though it was found

This doesn't show up on the CI (which installs and launches the GUI on a fresh linux image) and that might be pretty telling. See this update i made to the travis config in the dev branch:

https://github.com/wehr-lab/autopilot/blob/8c078ee96fafb324770cb71035da667dccc24348/.travis.yml#L17-L28

• qt depends on libxcb https://doc.qt.io/qt-5/linux-requirements.html
• and here are the ubuntu libxcb related libraries: https://packages.ubuntu.com/source/bionic/libxcb
• it looks like the napari folks had a similar issue WARNING: Could not load the Qt platform plugin "xcb" in "" even though it was found napari/napari#1457 , specifically see here WARNING: Could not load the Qt platform plugin "xcb" in "" even though it was found napari/napari#1457 (comment)

I think you should try installing/reinstalling xcb. I'm not sure what the absolute minimal combination of packages here, but just taking inspiration from the travis config which works:

sudo apt update
sudo apt install --reinstall -y  \
  libxcb-icccm4 \
  libxcb-image0 \
  libxcb-keysyms1 \
  libxcb-randr0 \
  libxcb-render-util0 \
  libxcb-xinerama0 \
  libxcb-xfixes0

i've opened an issue #108 to remind myself to add those in to

• the scripts (we had managed to get away with the terminal not needing any system packages until now, but can't stay lucky forever :p) like that for the pilot agents: https://github.com/wehr-lab/autopilot/blob/30afe22720e1fd6676c8ff90569f6e34ba6faec0/autopilot/setup/scripts.py#L39-L46
• and the installation docs

lmk if that doesn't work :)

[mnmneE]

Thanks alot for this comprehensive reply; I will try to re/install the xcb and may check if there are other commands to do for it, then will keep you updated.

[mnmneE]

Hi, after installing xcb , the terminal GUI is successfully launched; thanks very much for your help.

[sneakers-the-rat]

excellent! i'll be pulling in a lot of work in the next few days, nothing should be too breaking, but no need to be shy with any further issues you will inevitably run into :)
