Engine services and ports

It is possible to connect to and interact with a debug version of the engine through a number of different open TCP ports and services. The following services and ports are typically available in a debug build of the engine:

  • SSDP - Port 1900.
  • Engine service - Port 8001 or the port specified in DM_SERVICE_PORT environment variable. When running from the editor DM_SERVICE_PORT is set to “dynamic” which means that the engine will let the OS assign a random available port.
  • Redirect service - Port 8002.
  • Log service - Port assigned by OS.
  • Remotery - Port 17815.

SSDP

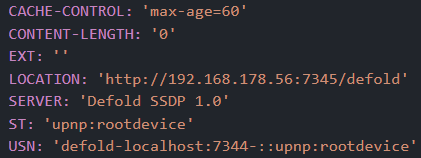

SSDP (Simple Service Discovery Protocol) is used by the running engine to broadcast its existence on the network so that the editor can discover it and connect to issue commands.

Example of a client in JavaScript

Using npm package node-ssdp

const Client = require('node-ssdp').Client;
const client = new Client();

client.on('response', function (headers, statusCode, rinfo) {
	if (headers.SERVER.indexOf('Defold') !== -1) {
		console.log('Found running Defold Engine!', headers.LOCATION);
	}
});
client.search('upnp:rootdevice');


Engine service

The engine service is implemented as a small web server running within the engine. The server provides a number of endpoints which can be used to query for data or issue commands:

/post

This endpoint will accept a POST request containing a protobuf command. One such example is the Reload command from resource_ddf.proto to reload a resource when hot-reloading content. Examples (also check engine.clj where some of these are used):

  • /post/@system/reboot - Reboot the engine. com.dynamo.system.proto.System$Reboot
  • /post/@system/run_script - Run a Lua script. com.dynamo.engine.proto.Engine$RunScript
  • /post/@render/resize - Resize the engine window. com.dynamo.render.proto.Render$Resize
  • /post/@resource/reload - Reload a resource (ie hot-reload). com.dynamo.resource.proto.Resource$Reload

/ping

This endpoint will accept a GET request and reply with a "pong". This can be used to check that the server is running and responding to requests.

/info

This endpoint will accept a GET request and reply with a JSON formatted string containing information about the engine:

{"version": "1.4.1", "platform": "x86_64-macos", "sha1": "8f96e450ddfb006a99aa134fdd373cace3760571"}

/upnp

This endpoint will accept a GET request and reply with an upnp specification (XML).

Redirect service

The redirect service will redirect any request to the engine service on its actual port (see Engine Service)

Log service

The log service can be used to read logs from the engine using a TCP socket.

Remotery

Remotery, the high performance profiler used in Defold, serves data on port 17815 using a Web Socket connection.
