dotnet-trace does not resolve symbols on linux-arm

[PeterMeier1902]

I want to use dotnet-trace on linux-arm (ARMv7-A 32Bit) to analyse my application, but the symbols/names of my application are not resolved for some reason.

If i use dotnet-trace for the same application on linux-x64 it will resolve the symbols/names just fine.

I am using dotnet-trace version 5.0.160202 together with .net core 5.0.102.

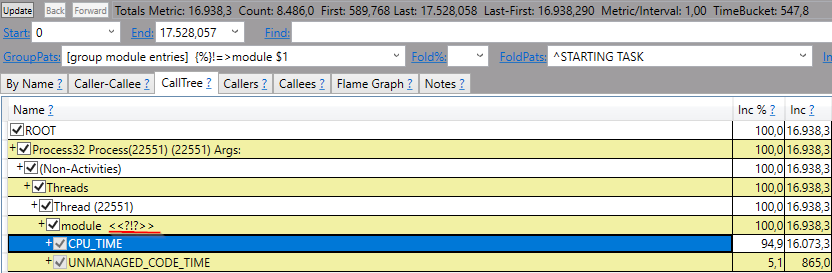

An example trace on linux-arm looks like this in PerfView:

Maybe i am missing something simple and this is a problem on my side, therefore i wrote done my steps. My application TestTrace consists of 2 files:

Program.cs:

using System;

namespace TraceTest
{
    class Program
    {
        static void Main(string[] args)
        {
            Console.WriteLine("DoSomething ...");
            DoSomething();
            Console.WriteLine("Finished!");
        }

        static void DoSomething()
        {
            for(var i = 0; i< 1_000_000_000; i++){}
        }
    }
}

TraceTest.csproj:

<Project Sdk="Microsoft.NET.Sdk">
  <PropertyGroup>
    <OutputType>Exe</OutputType>
    <TargetFramework>netcoreapp5.0</TargetFramework>
  </PropertyGroup>
</Project>

1. How i build the binaries for linux-arm on Windows:

dotnet publish --configuration Debug -r linux-arm --self-contained

2. I copied the whole content inside the directory ..\TraceTest\bin\Debug\netcoreapp5.0\linux-arm\publish to $HOME/TraceTest on linux-arm

3. Install the .net core 5.0 sdk on linux-arm (all the following commands were executed as root):

wget https://download.visualstudio.microsoft.com/download/pr/726e260e-ce94-46c3-a169-57b2ebf5433d/5fb2a00b04b3509a0a6db63e302523a8/dotnet-sdk-5.0.102-linux-arm.tar.gz -O dotnet-sdk-5.0.102-linux-arm.tar.gz
mkdir -p "$HOME/dotnet" && tar zxf dotnet-sdk-5.0.102-linux-arm.tar.gz -C "$HOME/dotnet"
export DOTNET_ROOT=$HOME/dotnet
export PATH=$PATH:$HOME/dotnet

4. Install dotnet-trace on linux-arm (during my tests the following commands installed dotnet-trace version '5.0.160202'):

dotnet tool install --global dotnet-trace
export PATH="$PATH:/home/root/.dotnet/tools"

5. Collect a trace for my TraceTest application:

cd $HOME/TraceTest
chmod +x TraceTest
dotnet-trace collect -- TraceTest

I got the following output (i stopped the trace manually here):

root@myLinuxArmMachine:$HOME/TraceTest# dotnet-trace collect -- TraceTest
No profile or providers specified, defaulting to trace profile 'cpu-sampling'

Provider Name                           Keywords            Level               Enabled By
Microsoft-DotNETCore-SampleProfiler     0x0000F00000000000  Informational(4)    --profile
Microsoft-Windows-DotNETRuntime         0x00000014C14FCCBD  Informational(4)    --profile

Process        : $HOME/TraceTest/TraceTest
Output File    : $HOME/TraceTest/trace.nettrace
[00:00:00:17]   Recording trace 599.055  (KB)
Press <Enter> or <Ctrl+C> to exit...969  (KB)
Stopping the trace. This may take up to minutes depending on the application being traced.

Trace completed.

6. I opened the trace file $HOME/TraceTest/trace.nettrace on my windows machine with PerfView. I double-clicked on Thread Time (with StartStop Activities) Stacks and opened the tab CallTree, but there were no resolved symbols/names (see the screenshot from above).

I did the same tracing process on linux-x64 and the symbols/names were resolved just fine:

Other things i tried without success:

• Use .net core 3.1 instead of .net core 5.0 (so adapt the TraceTest.csproj, use the .net core 3.1 sdk and install dotnet-trace for .net core 3.1). I know that it is not possible to do the dotnet-trace collect -- TraceTest command on .net core 3.1 (so i added a Console.ReadKey() to my Program.cs and started the application manually).
• Convert the trace to the speedscope format via dotnet-trace convert trace.nettrace --format Speedscope --output trace.speedscope. There are no resovled names for any frame inside the created file trace.speedscope.json.
  In comparsion i can see some meaningful names for the fames in the converted trace of linux-x64. Furthermore, there are more frames in the linux-x64 trace in general. It seems like all the different frames inside the linux-x64 are reduced to one frame "CPU_TIME" inside the linux-arm trace.
• Copy the project TestTrace directly to linux-arm and execute it via dotnet run.
• Trace with the PublishReadyToRun option enabled dotnet publish --configuration Debug -r linux-arm -p:PublishReadyToRun=true (compiled this on linux-x64 and not on Windows)
• Do not stop the tracing manually. I always get the following error, but i do not think this should affect the tracing results:

[ERROR] Microsoft.Diagnostics.NETCore.Client.ServerNotAvailableException: Could not send Stop command. The target process may have exited.
   at Microsoft.Diagnostics.NETCore.Client.EventPipeSession.Stop() in /_/src/Microsoft.Diagnostics.NETCore.Client/DiagnosticsClient/EventPipeSession.cs:line 62
   at Microsoft.Diagnostics.Tools.Trace.CollectCommandHandler.Collect(CancellationToken ct, IConsole console, Int32 processId, FileInfo output, UInt32 buffersize, String providers, String profile, TraceFileFormat format, TimeSpan duration, String clrevents, String clreventlevel, String name, String diagnosticPort) in /_/src/Tools/dotnet-trace/CommandLine/Commands/CollectCommand.cs:line 221

I also searched for related problems, but i cannot find my exact problem (working fine on linux-x64, but not on linux-arm).

I hope i missing out something simple here and someone can help me.

[josalem]

Thanks for reaching out! I have a couple clarifying questions:

• Are you also stopping the trace manually for the x64 scenario?
• Are you stopping the trace manually using ctrl-c or enter? There is currently a bug in the trace collect -- logic that will forward ctrl-c to the sub-process -- feature of diagnostic tools forwards SigInt to child process #1938. Using enter should bypass that issue for now.
• Did you ever see a "read past end of stream" error in PerfView?
• I'm not sure it's relevant, but what distro+version of Linux are you running in?

If you have a faulty trace, I can take a look at it and see if there's anything glaring that stands out.

CC - @mikem8361 for symbols and @sdmaclea for ARM

[t-mustafin]

I got the same issue on runtime v6.0.0-preview.1.21102.12: x64's .nettrace and .speedscope.json contain symbols, but armel files not. nettrace_speedscope.zip.

Diagnostics state: diagnostics v5.0.160202.
OS: x64 ubuntu 18.04; armel Tizen6.

[t-mustafin]

Same behaviour on runtime v5.0.3. Seems it is not a question, it is a bug.

@josalem my answers:

• For x64 scenario test stops after finishing its work.
• No, I do not stop my trace manually with ctrl-c or enter.
• No, I did not seen "read past end of stream" error in PerfView.
• OS: x64 ubuntu 18.04; armel Tizen6.

[t-mustafin]

Arm64 resolves symbols on runtime v6.0.0-preview.1.21102.12: arm64.zip

[hoyosjs]

cc: @jkotas @gbalykov @alpencolt
