How to launch docker ELK in raspberry4

Index

1. Install 64bit Raspberry
2. Prepared Related Docker Image
3. docker-compose.yml Command
4. Check
5. kibana setting

---

Install 64bit Raspberry

• You must download 64 bit raspberry os from https://downloads.raspberrypi.org/raspios_arm64/images/raspios_arm64-2020-08-24/2020-08-20-raspios-buster-arm64.zip

• utilize Rufus to install above image.

Prepared Related Docker Image

• Dowload Elasticsearch Image from here ( I use 7.13.2-arm64 )

• Dowload kibana Image from here ( I use 7.13.2-arm64 )

---

docker-compose.yml Command

• You can eliminate deploy section, if you don't use docker swarm mode.

version: '3.6'
networks:
  esnet:
    driver: "overlay"
services:
  es00:
    image: docker.elastic.co/elasticsearch/elasticsearch:7.13.2-arm64
    hostname: es00
    environment:
      - cluster.name=docker-cluster
      - node.name=es00
      - node.data=true
      - node.master=true
      - bootstrap.memory_lock=true
      - discovery.type=single-node
      - "ES_JAVA_OPTS=-Xmx2g -Xms2g"
      - xpack.security.enabled=false
      - xpack.monitoring.collection.enabled=true
    volumes:
      #- /mnt/linux/Docker/ELK/elastic_storage:/usr/share/elasticsearch/data
      - es00:/usr/share/elasticsearch/data
    networks:
      - esnet
    ports:
      - 9200:9200
      - 9300:9300
    deploy:
      replicas: 1
      placement:
        constraints:
         - node.labels.role == elasticsearch
  kibana:
    image: docker.elastic.co/kibana/kibana:7.13.2-arm64
    hostname: "docker_{{.Node.Hostname}}-{{.Service.Name}}"
    environment:
       - ELASTICSEARCH_HOSTS=http://es00:9200
    ports:
      - 5601:5601
    networks:
      - esnet
    depends_on:
      - es00
    deploy:
      placement:
        constraints:
          - node.labels.role == elasticsearch

volumes:
  es00: {}

Check

1. Check elasticsearch , please click http://localhost:9200 and show below means it's work!

2. Check kibana, please click http://localhost:5601 and show below means it's work!

kibana setting

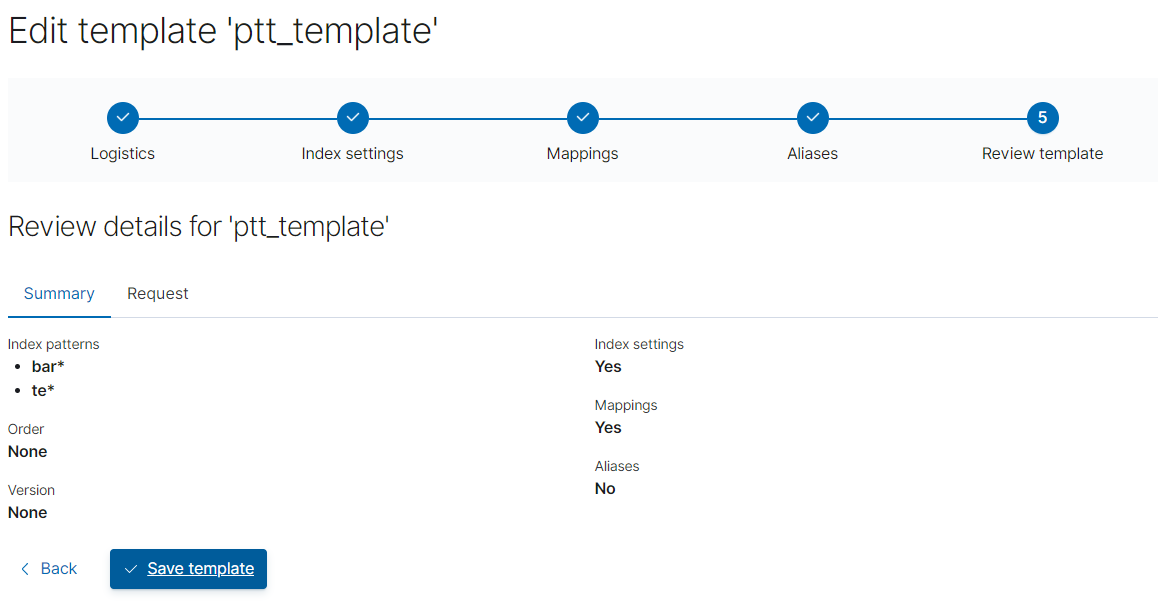

1. How to setting Index template by kibana

tags: ELK Single Node
