GUI error: VIA selection not fine with overlapping parts

[NilsRo]

Current Behaviour

If a VIA is below a corner of another part it cannot be selected anymore sometimes. It is the case at the corners only.

Build:
CD-498-0-a-1ffcea 2019-12-01 64 Qt 5.12.3

Operating System:
Windows 10

Steps to reproduce:

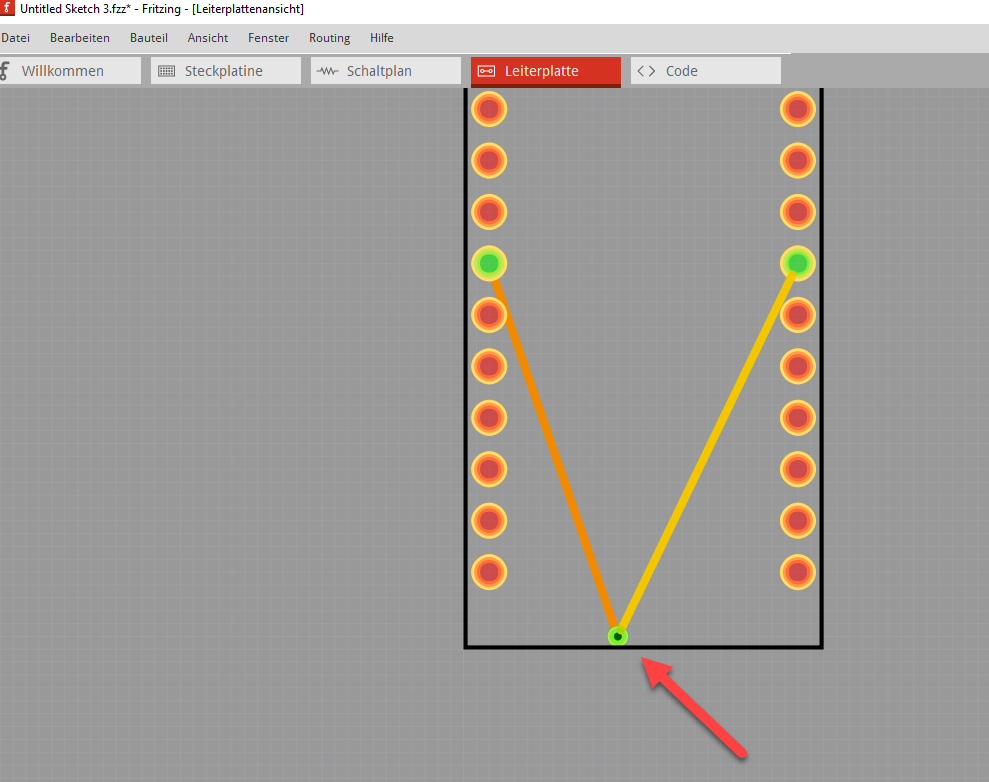

• Put a VIA under the corner of another part.
• Try to select it.

Expected Behaviour

Selection should be working in the same way as the VIA is not placed under the corner of another object.

Untitled Sketch 3.zip

[KjellMorgenstern]

There are various kind of issues like that.

[NilsRo]

Any news about it? With compact PCBs it is nearly not possible to use fritzing as you have to move the overlapping component everytime.

[failiz]

related to #943

[failiz]

Special case of #3569. I think we should we move the info to that issue and close this one.

[KjellMorgenstern]

I can not reproduce this exactly like in the screenshots, since the via has a larger selection rectangle around. However, if there are multiple conflicting areas around, it is still an issue.

Frtizing 0.9.6 , Left via is impossible to get, right via is easy:

[KjellMorgenstern]

The via can now be directly selected with a single click.
#3177 already gives the via priority by proximity from mouse to center.
#3569 makes the connector surface itself clickable not only for dragging a wire, but also for selecting the item

The selected item can be moved with arrow keys, or (since #3569) with the mouse when Ctrl is held.
