Automatic Reproducibility for Science

Motivation

I

• Trust in science comes from independent reproduction of results
• Science is an inherently communal effort

II

• During the COVID pandemic, epidemiological simulations done by Neil Ferguson (Imperial College) showed that lockdowns could significantly reduce the death toll.
• This simulation was not made easilly available for a number of reasons, one of which was the software would be onerous to run on any other system.
• This, among other issues, reduced public confidence in the simulations

III

• In theory, computational experiments should be much easier to reproduce than physical experiments (basically automatic)
• Modern tools solve "software environment portability" in theory, like portability libraries, Nix, VMs
• But even so, it is not easy for other scientists to reproduce simulations
• The tools still require expensive "interventions"
• No incentive to follow interventions, especially in the highly-competetive nature of modern academia
• Seek more "automatic" methods, require less and less intervention

Vision

• Just run code normally, and we'll create a reproducible version
• Computational provenance := process and inputs used to generate a specific output
  • Disjoint graph between Processes and files
  • Recursive
  •
  • ./count.sh
  •
• Capture system calls that manipulate file system or process-tree
  • Tradeoff between granularity and overhead
  • Don't necessarily need to capture read/write (very many of these!) just need to capture open-for-reading and open-for-writing
• Example applications
  • Send script to reproduce experiment
  • Script can use incremental computation
  • Could generate package specification

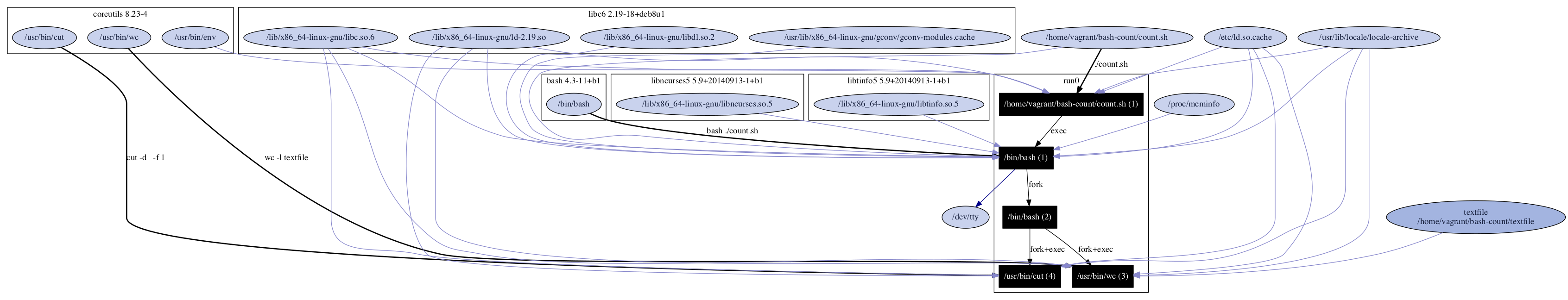

  • Create dataflow graph of process

Solutions

• Kernel mods
  • Example: PASS
  • Example: PASSv2
  • Pro: Kernel is never wrong
  • Con: High maintenance cost/risky attack surface
• Linux Security Modules
  • LSM on kernel.org
  • Example of LSM on Kernel.org docs
  • Example: Camflow
  • Pro: Some structure as opposed to arbitrary kernel modules
  • Pro: LSMs are stackable
  • Con: Medium maintenance/risky attack surface
• Auditd
  • Auditd on Archwiki
  • SPADE+Audit
  • Boot param CONFIG_AUDIT=y in /boot/config*
  • Kernel cmd arg audit=1 in /proc/cmdline or /etc/default/grub
  • Pro: Low-overhead, kernel-supported
  • Con: Requires kernel args
• eBPF
  • Problem:
  • sudo $(which bpftrace) -e 'tracepoint:syscalls:sys_enter_openat { printf("%s opens %s\n", comm, str(args.filename)); }'
  • Pro: Lowish-overhead
  • Con: Captures everyone/requires root
• ptrace
  • ptrace(2) man page
  • ptrace example
  • Example: strace
  • Example: rr
  • Pro: User-level!
  • Con: Very slow
  • Con: Bypassable (don't care)
• FUSE
  • Perf overhead study
  • Example: SPADE+FUSE
  • Pro: medium slow
  • Con: Only FS
• LD_PRELOAD
  • Incomplete
  • Example: OPUS

Performance smackdown

•
•

Futher issues

Handling distributed computation

• Each node does provenance tracing locally
• "Stitch" provenance graphs together after the fact
• PASSv2 features stitching provenance across "layers"

Manging storage

• Refer to package repositories where possible
• Long term archival storage issue
  • Backup in SWH
• Dedup across repository of executions
  • Example: Reprozip
• Prune provenance based on what is not overwritten
• Ideally, small enough to store for free in GitHub

Granularity issues and provenance explosion

• Finer granularity => greater runtime and storage cost but more precise incremental computation
• Coarser granularity => lower runtme and storage cost but incremental computation can be imprecise
• BEEP describes problem and solution
