Test framework for wasm-go

The pkg/test directory provides a unit testing framework for the wasm-go project, helping plugin developers write and run high-quality unit tests. The framework supports running tests in both Go mode and Wasm mode.

Running test with the compiled wasm binary helps to ensure that the plugin will run when actually compiled to wasm, however stack traces and other debug features will be much worse. It is recommended to run unit tests both with Go and with wasm. Tests will run much faster under Go mode for quicker development cycles, and the wasm mode test can confirm the behavior matches when actually compiled.

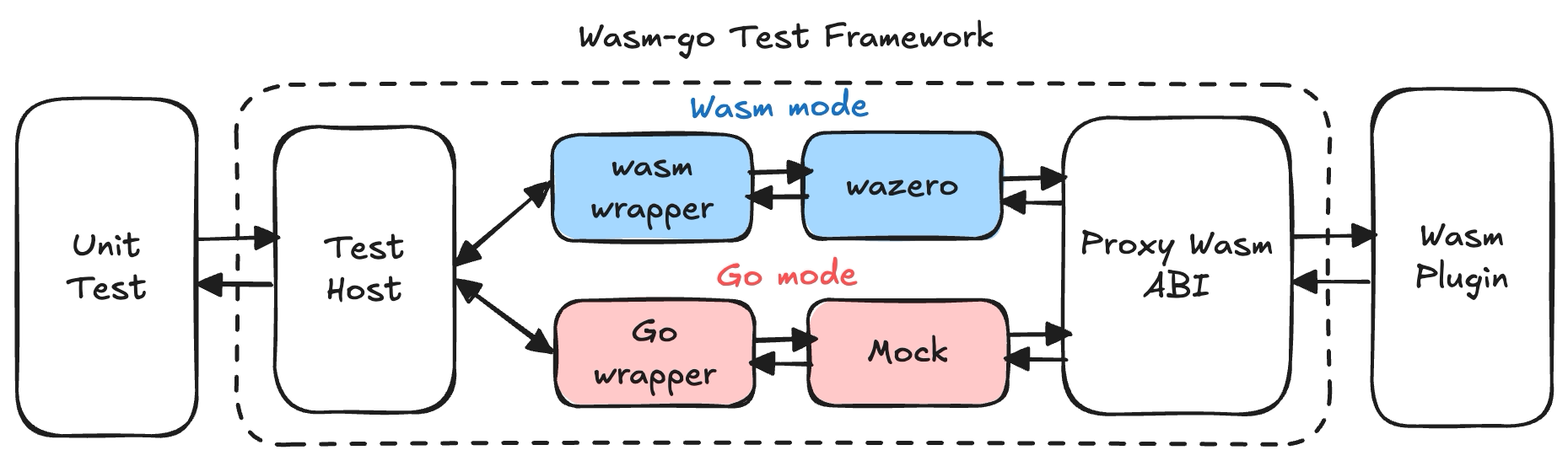

Framework Structure

host.go - Provides TestHost interface to simulate host(envoy) behavior
redis.go - Provides Redis response building utility functions
test.go - Provides test runners supporting both Go mode and Wasm mode
utils.go - Provides utility functions for header testing

Core Features

1. Test Runners (`test.go`)

`RunTest(t testing.T, f func(testing.T))`

Runs tests in both Go mode and Wasm mode simultaneously, ensuring the plugin works correctly in both environments.

func TestMyPlugin(t *testing.T) {
    test.RunTest(t, func(t *testing.T) {
        // Your test code
    })
}

`RunTestWithPath(t testing.T, wasmPath string, f func(testing.T))`

Runs tests in both Go mode and Wasm mode with a specified wasm file path. This function allows callers to specify custom wasm file paths for testing.

`RunGoTest(t testing.T, f func(testing.T))`

Runs tests only in Go mode using ABI host call mock interfaces.

`RunWasmTest(t testing.T, f func(testing.T))`

Runs tests only in Wasm mode using intelligent wasm file path detection in wazero runtime.

`RunWasmTestWithPath(t testing.T, wasmPath string, f func(testing.T))`

Runs tests only in Wasm mode with a specified wasm file path. This function allows callers to specify custom wasm file paths for testing.

Note: The framework automatically compiles wasm binaries when needed. The framework supports multiple ways to specify the wasm file path:

Environment Variable: Set WASM_FILE_PATH environment variable
Custom Path: Use RunWasmTestWithPath() or RunTestWithPath() functions
Auto-compilation: The framework automatically compiles wasm binariy with a fixed filename (wasm-unit-test.wasm)
Debug-Friendly: Panics are preserved in test environment for better debugging, while still recovered in production

Common Wasm file Path

The framework searches for wasm files in the following locations (in order of priority):

main.wasm - Default wasm file name in project root
plugin.wasm - Alternative wasm file name in project root

Example project structure:

my-wasm-plugin/
├── main.go
├── main.wasm
├── go.mod
└── pkg/

Note: The auto-detection only searches in the current working directory. For more complex project structures, use environment variables or explicit path functions.

# Compile wasm binary
GOOS=wasip1 GOARCH=wasm go build -buildmode=c-shared -o main.wasm ./

# Or specify custom path via environment variable
export WASM_FILE_PATH="build/plugin.wasm"
go test ./...

2. Test Host Simulation (`host.go`)

`NewTestHost(config json.RawMessage) (TestHost, types.OnPluginStartStatus)`

Creates a test host instance to simulate the Envoy proxy environment. The config parameter represents the configuration for the wasm plugin.

config := json.RawMessage(`{"key": "value"}`)
host, status := test.NewTestHost(config)
require.Equal(t, types.OnPluginStartStatusOK, status)
defer host.Reset()

Main Methods

HTTP Request

CallOnHttpRequestHeaders(headers [][2]string) types.Action - Call request header processing
CallOnHttpRequestBody(body []byte) types.Action - Call request body processing
CallOnHttpStreamingRequestBody(body []byte, endOfStream bool) types.Action - Call streaming request body processing

HTTP Response

CallOnHttpResponseHeaders(headers [][2]string) types.Action - Call response header processing
CallOnHttpResponseBody(body []byte) types.Action - Call response body processing
CallOnHttpStreamingResponseBody(body []byte, endOfStream bool) types.Action - Call streaming response body processing

External Call

CallOnHttpCall(headers [][2]string, body []byte) - Simulate HTTP call response
CallOnRedisCall(status int32, response []byte) - Simulate Redis call response
GetHttpCalloutAttributes() []proxytest.HttpCalloutAttribute - Get HTTP callout attributes (outbound http calls made by the plugin)
GetRedisCalloutAttributes() []proxytest.RedisCalloutAttribute - Get Redis callout attributes (outbound redis calls made by the plugin)

Plugin Configuration

GetMatchConfig() (any, error) - Get match configuration

Property

SetRouteName(routeName string) error - Set route name
SetClusterName(clusterName string) error - Set cluster name
SetRequestId(requestId string) error - Set request ID
GetProperty(path []string) ([]byte, error) - Get property data from the host for a given path
SetProperty(path []string, data []byte) error - Set property data on the host for a given path

Result Retrieval

GetHttpStreamAction() types.Action - Get HTTP stream action
GetRequestHeaders() [][2]string - Get request headers
GetResponseHeaders() [][2]string - Get response headers
GetRequestBody() []byte - Get request body
GetResponseBody() []byte - Get response body
GetLocalResponse() *proxytest.LocalHttpResponse - Get local response

Metrics

GetCounterMetric(name string) (uint64, error) - Get the value for the counter metric in the host
GetGaugeMetric(name string) (uint64, error) - Get the value for the gauge metric in the host
GetHistogramMetric(name string) (uint64, error) - Get the value for the histogram metric in the host

Logs

GetTraceLogs() []string - Get the trace logs that have been collected in the host
GetDebugLogs() []string - Get the debug logs that have been collected in the host
GetInfoLogs() []string - Get the info logs that have been collected in the host
GetWarnLogs() []string - Get the warn logs that have been collected in the host
GetErrorLogs() []string - Get the error logs that have been collected in the host
GetCriticalLogs() []string - Get the critical logs that have been collected in the host

Context Management

CompleteHttp() - Complete HTTP request
Reset() - Reset test host state

Tick

GetTickPeriod() uint32 - Get the current tick period in the host
Tick() - Execute types.PluginContext.OnTick in the plugin

3. Redis Response Building (`redis.go`)

General Function

CreateRedisResp(value interface{}) []byte - Create Redis response for any type
CreateRedisRespArray(values []interface{}) []byte - Create array response for any type

Specific Functions

CreateRedisRespString(value string) []byte - Create string response
CreateRedisRespInt(value int) []byte - Create integer response
CreateRedisRespBool(value bool) []byte - Create boolean response
CreateRedisRespFloat(value float64) []byte - Create float response
CreateRedisRespNull() []byte - Create null response
CreateRedisRespError(message string) []byte - Create error response

4. Header Utility Functions (`utils.go`)

Header Checking Functions

HasHeader(headers [][2]string, headerName string) bool - Check if headers contain a header with the specified name (case-insensitive)
GetHeaderValue(headers [][2]string, headerName string) (string, bool) - Get the value of the specified header, returns value and found status (case-insensitive)
HasHeaderWithValue(headers [][2]string, headerName, expectedValue string) bool - Check if headers contain a header with the specified name and value (case-insensitive)

These utility functions are particularly useful for testing HTTP header processing in your wasm plugins. They provide case-insensitive header matching, which is important for HTTP compliance.

Usage Examples

Basic Test Example

func TestMyPlugin(t *testing.T) {
    test.RunTest(t, func(t *testing.T) {
        // 1. Create test host
        config := json.RawMessage(`{"key": "value"}`)
        host, status := test.NewTestHost(config)
        require.Equal(t, types.OnPluginStartStatusOK, status)
        defer host.Reset()

        // 2. Set request headers
        headers := [][2]string{
            {":method", "GET"},
            {":path", "/test"},
            {":authority", "test.com"},
        }

        // 3. Call plugin methods
        action := host.CallOnHttpRequestHeaders(headers)
        require.Equal(t, types.ActionPause, action)

        // 4. Verify outbound calls made by the plugin (if any)
        // httpCallouts := host.GetHttpCalloutAttributes()
        // require.Len(t, httpCallouts, 1)
        // assert.Equal(t, "httpbin.org", httpCallouts[0].Upstream)
        // assert.Equal(t, "GET", test.GetHeaderValue(httpCallouts[0].Headers, ":method"))

        // 5. Simulate external call responses (if needed)

        // host.CallOnRedisCall(0, test.CreateRedisRespString("OK"))

        // host.CallOnHttpCall([][2]string{{":status", "200"}}, []byte(`{"result": "success"}`))

        // 6. Complete request
        host.CompleteHttp()

        // 7. Verify results
        localResponse := host.GetLocalResponse()
        require.NotNil(t, localResponse)
        assert.Equal(t, uint32(200), localResponse.StatusCode)
    })
}

Streaming Request Test Example

func TestStreamingRequest(t *testing.T) {
    test.RunTest(t, func(t *testing.T) {
        host, status := test.NewTestHost(testConfig)
        require.Equal(t, types.OnPluginStartStatusOK, status)
        defer host.Reset()

        // Set request headers
        headers := [][2]string{
            {":method", "GET"},
            {":path", "/stream"},
            {":authority", "test.com"},
        }

        // Call request header processing
        action := host.CallOnHttpRequestHeaders(headers)
        require.Equal(t, types.ActionPause, action)

        // Simulate streaming response body
        action = host.CallOnHttpStreamingRequestBody([]byte("chunk1"), false)
        assert.Equal(t, types.ActionContinue, action)

        action = host.CallOnHttpStreamingRequestBody([]byte("chunk2"), true)
        assert.Equal(t, types.ActionContinue, action)

        // Complete request
        host.CompleteHttp()
    })
}

Plugin Configuration Test Example

var testConfig = func() json.RawMessage {
	data, _ := json.Marshal(map[string]interface{}{
		// Global config - applies to all requests when no specific rule matches
		"name": "john",
		// Rules for specific route matching
		"_rules_": []map[string]interface{}{
			{
				"_match_route_": []string{"foo"}, // route level config
				"name": "foo",
			},
            {
                "_match_domain_": []string{"foo.bar.com"}, // domain level config
                "name": "foo.bar.com",
            }
		},
	})
	return data
}()

func TestParseConfig(t *testing.T) {
    test.RunGoTest(t, func(t *testing.T) {
        host, status := test.NewTestHost(testConfig)
        require.Equal(t, types.OnPluginStartStatusOK, status)
        defer host.Reset()

        // Get global plugin configuration
        config, err := host.GetMatchConfig()
		// Get plugin configuration with match route
		host.SetRouteName("foo")
		config, err = host.GetMatchConfig()
		// Get plugin configuration with match cluster
		host.SetClusterName("service")
		config, err = host.GetMatchConfig()
		// Get plugin configuration with match domain
		host.SetDomainName("foo.bar.com")
		config, err = host.GetMatchConfig()

        // Verify configuration content
        // ... Your configuration validation logic
    })
}

Note: GetMatchConfig() can only be used in RunGoTest() mode because they are not the proxy-wasm ABI interface. These functions use Go reflection to expose internal plugin configuration for testing.

Best Practices

1. Test Mode Selection

Use RunTest() to ensure the plugin works in both modes
Use RunGoTest() for rapid iteration during development
Always use RunWasmTest() before release to verify compiled behavior
Use RunTestWithPath() or RunWasmTestWithPath() when you need to specify custom wasm file paths

2. Resource Management

Always use defer host.Reset() to clean up test state
Create new test host instances at the beginning of each test function

3. Assertion Usage

Use require for precondition checks
Use assert for result verification
Provide clear error messages

4. Test Data

Use meaningful test data
Test boundary conditions and error cases
Simulate real network environments

5. Outbound Call Testing

Use GetHttpCalloutAttributes() and GetRedisCalloutAttributes() to verify external service calls
Test order: Verify outbound calls before simulating external responses
Check that the plugin makes the expected outbound calls with correct parameters
Verify upstream service names, headers, and request bodies
Test both successful and failed external call scenarios

6. Wasm File Path Management

Use environment variable WASM_FILE_PATH for consistent configuration across different environments
Leverage intelligent path detection for common project structures
Use RunTestWithPath() or RunWasmTestWithPath() for project-specific wasm file locations

Important Notes

Test Isolation: Each test case should use an independent test host instance
State Cleanup: Use defer host.Reset() to ensure test state is properly cleaned up
Error Handling: Tests should verify the plugin's error handling logic
Performance Considerations: Avoid creating too many objects or performing time-consuming operations in tests
HTTP Request Lifecycle: If plugin implementing custom onHttp* methods, follow the proper request lifecycle in test. Do not skip intermediate steps - if you implement onHttpRequestHeader, do not directly call onHttpRequestBody.
Wasm File Path: The framework automatically detects wasm files in common locations. For custom paths, use environment variables or explicit path functions to ensure consistent test execution across different environments.

Related Resources

proxy-wasm-go-sdk - Underlying SDK
examples/ - More test examples
proxy-wasm specification - WebAssembly proxy specification

By using this testing framework, you can ensure your wasm-go plugin works correctly in various environments, improving code quality and reliability.
