Calculation of elastic modulus gives Euler angle

[PengWei97]

Hi all，
I use Euler angles to rotate the elastic stiffness matrix. I only give the first Euler angle 45° and the other two to 0°. Then according to C_ijkl = R_im*R_jn*R_ko*R_lp*C_mnop, the specific calculation is as follows, But the C1111 calculated manually is different from the C1111 calculated by the program running.

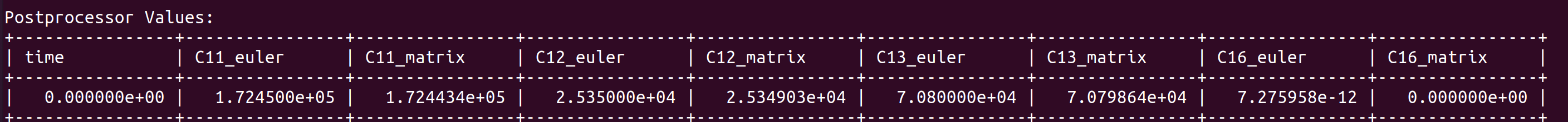

The manually calculated c1111 is 1.1729e5, and the moose calculated c1111 is 1.7245e5.

What is the problem with me?
The following is the process of my calculation and the input file used.

[./elasticity_euler] type = ComputeElasticityTensor block = 0 base_name = 'euler' fill_method = symmetric9 C_ijkl = '1.27e5 0.708e5 0.708e5 1.27e5 0.708e5 1.27e5 0.7355e5 0.7355e5 0.7355e5' euler_angle_1 = 45. # same as above but opposite direction because _transpose_ gets built from these angles euler_angle_2 = 0. euler_angle_3 = 0. [../]
rotation_matrix_1_rotation.i

Thank you and best regards, Wei

[jessecarterMOOSE]

Did you try rotating by -45 degrees? According to the documentation, the Euler angles are used to calculate the transpose of the rotation matrix due to the Bunge convention.

[jessecarterMOOSE]

Also I think that with 4 indices (ijkl) that can either be 1 or 2, you should have at least 8 terms in your summation.

[PengWei97]

Thank you very much for your guidance. @jessecarterMOOSE
I already know where my problem is and have overlooked some items. The following is my revised process, I hope other people will not make the same mistake as me.
