## Astronomy/Weather Clock
2
2
3
-
3
+
4
4
5
5
This project is designed to create a desktop clock which provides weather and astronomical information. While primarily designed to run on a Raspberry Pi, the code generates a Node.js server and client web app which can be run on other computers and operating systems, albeit without the Raspberry Pi’s hardware-level support for wired and wireless temperature/humidity sensors. GPS support is also primarily aimed at the Raspberry Pi, but might work on other Linux variants if similarly configured.
6
6
@@ -12,11 +12,11 @@ On a display which is narrower than a 16-by-9 aspect ratio, four forecast days c
12
12
13
13
**A touchscreen or mouse is required to display the last two or three days of the seven-day forecast, to switch the display from sunrise/sunset to moonrise/moonset, or to switch from hourly temperatures to hourly probability-of-precipitation.*
@@ -58,7 +58,7 @@ Having a back-up weather data source is still, therefore, a good idea. For that
58
58
59
59
By default, this application uses GPS-synced system time, if available, or `pool.ntp.org` as an NTP time server (keeping its own time via NTP, rather than using the system clock). You can configure the use of a different time server, however, you should not choose a Google or Facebook time server, or any other NTP server that implements “leap second smearing”, if you want the Astronomy/Weather Clock to be able to accurately display leap seconds as shown below:
_This image is hypothetical — the pictured moment in time is not guaranteed to be an actual leap second. Video here: <https://shetline.com/video/leap_second_display.mp4>_
64
64
@@ -68,7 +68,7 @@ As soon as you’ve got the Astronomy/Weather Clock up and running the first tim
68
68
69
69
Your city might be filled in automatically by using your IP address — but then again, it might not. If you’re using this clock in a bedroom you might find the **Dimming** options very useful, as they establish a schedule during which the display will be reduced in brightness.
To close the web browser while it’s running in full-screen kiosk mode, press `Alt-F4`, or use the Settings/Quit button if available. To get out of full screen mode, but leave the browser running, press `Alt-F11`.
74
74
@@ -80,7 +80,7 @@ With your Raspberry Pi shut down and disconnected from power, connect the DHT22/
80
80
81
81

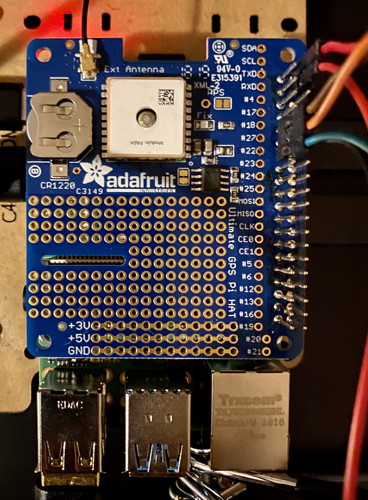

**This default was GPIO 4 (physical pin 7) before version 2.4.0, but the Adafruit GPS HAT is pre-wired to use that pin, hence the new default.*
82
82
83
-
83
+
84
84
85
85
Also for the Raspberry Pi you have the option to provide wireless indoor conditions and outdoor weather data using [433 MHz Acu Rite 06002M wireless temperature and humidity sensors](https://www.amazon.com/gp/product/B00T0K8NXC/) paired with a [433 MHz receiver module](https://www.amazon.com/gp/product/B00HEDRHG6/).
86
86
@@ -105,7 +105,7 @@ When connecting the 433 MHz receiver module follow the same precautions as speci
Wind speed is displayed using *wind barbs*. When using imperial units, the wind barbs represent wind speed in knots, rounded to the nearest multiple of 5 knots, up to a maximum of 100 knots. In metric mode the wind barbs, by default, represent wind speed in meters per second, in increments of 2.5 m/s (in the diagram above, divide the captions by 2 for m/s).
111
111
@@ -136,92 +136,92 @@ If an arc becomes a full circle, that means the corresponding planet on that tra
136
136
137
137

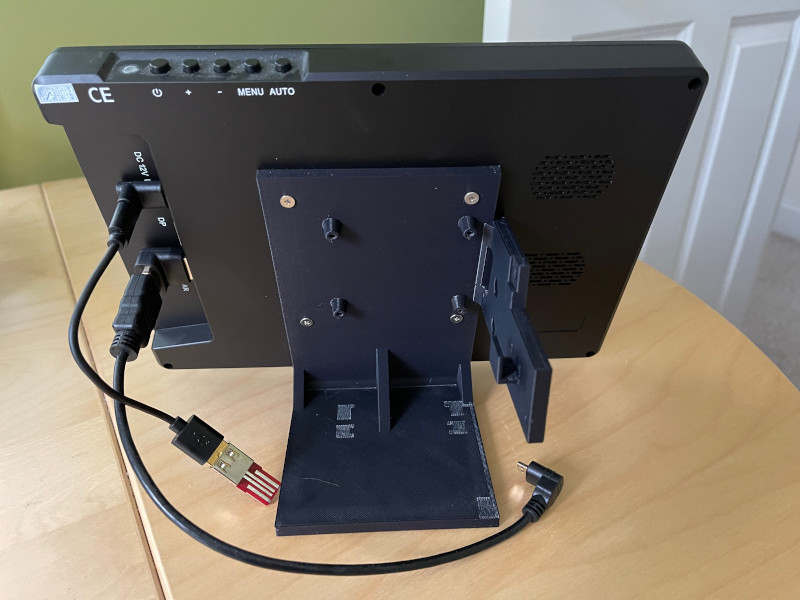

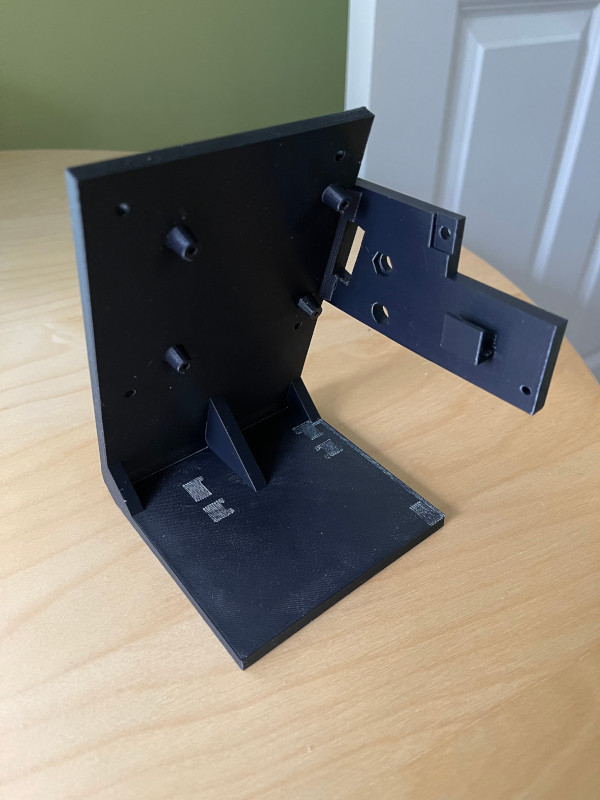

#### Rearview of stand
138
138
139
-
The 3D model for this stand is provided by the project file `raspberry_pi_setup/monitor_stand.stl`. Below is how that model came out when printed using black ABS, 20% infill, at a cost of about $33 USD.
139
+
The 3D model for this stand is provided by the project file `raspberry_pi_setup/monitor_stand.stl`. Below is how that model came out when printed using black ABS, 20% infill, at a cost of about $28 USD.
140
140
141
-
141
+
142
142
143
-
I’m reasonably happy with the results using this stand, but if I did it over again, I’d:
144
-
145
-
* Make the stand about 0.75" (19 cm) shorter, all of that taken from below the stand-offs for mounting the Raspberry Pi.
146
-
* Move the wire pass-through hole for the temperature/humidity sensor forward, so that it was roughly below the hole for the GPS antenna connector — I hadn’t left as much room for the connectors at the ends of the jumpers as I would have liked.
147
-
* Move the 433 MHz receiver clip outward, away from the surface of the side panel, to allow more room for the hex nut used to secure the temperature/humidity sensor.
148
-
* Add an opening in the side panel for easier access to the SD card slot.
143
+
This is my second design of this stand, after making a few improvements from my first design. I made this version shorter, improved wire routing, and added an access hole where (using tweezers) it’s possible to access the SD card slot without disassembling the clock.
149
144
150
145
<br>
151
146
152
147

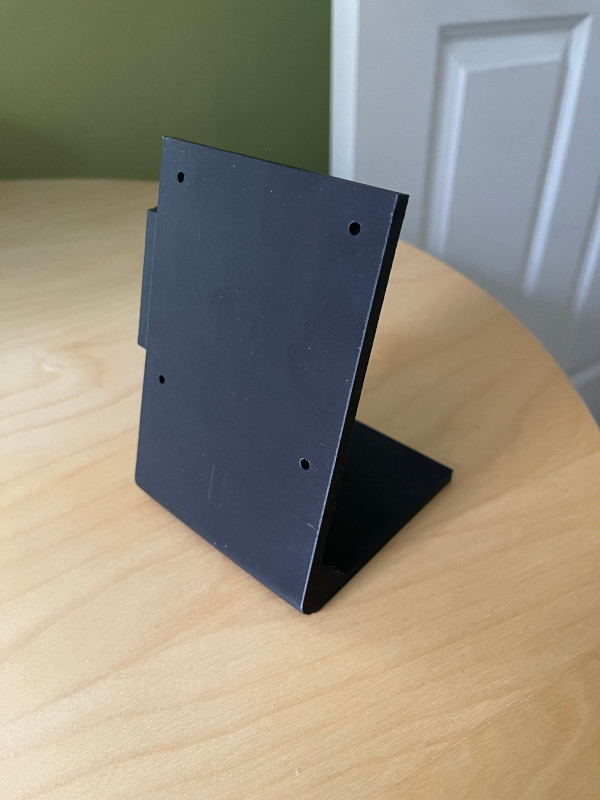

#### Front view
153
148
154
-
For some reason there was a glossy texture on the front of the stand when it was printed, something that looked like a thin film of plastic, the kind you often see as shipping protection, meant to be peeled off. It wouldn’t peel off, however, and it had some unattractive dimples and bubbles that made me want to remove it. I settled for sanding it off on the bottom of the stand.
155
-
156
-
149
+
157
150
158
151
<br>
159
152
160
153

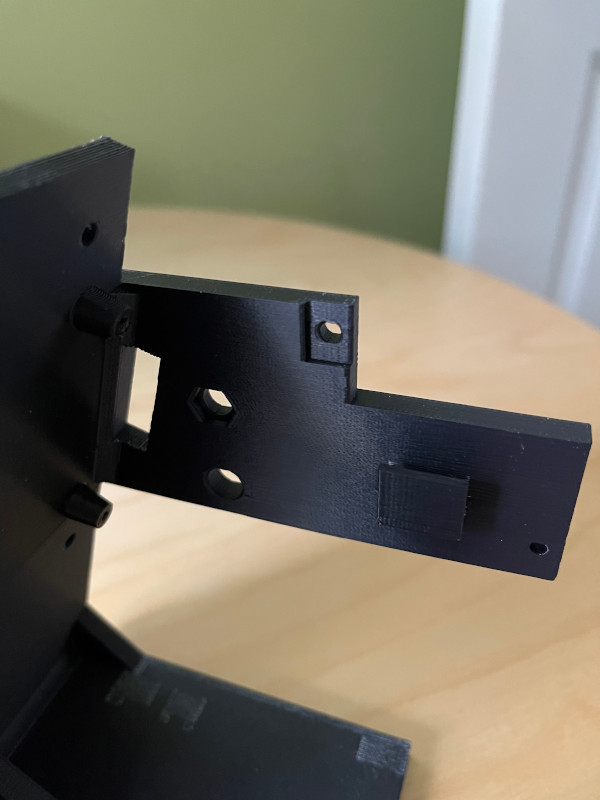

#### Side mounting panel
161
154
162
155
The side panel has a place to attach a quarter-wave 433 MHz antenna, a clip to hold a 433 MHz receiving module, a hole for a female SMA coaxial connector for GPS, and (on the reverse side) a mounting position for a DHT22/AM2302 temperature/humidity sensor.
163
156
164
-
157
+
165
158
166
159
<br>
167
160
168
161
#### Original monitor stand
169
162
170
163
This is the original stand that came with the 2560x1600 ELECROW 10.1" touchscreen monitor. It’s not a bad stand in general, but, with the Raspberry Pi attached to the back of the monitor, the cables and wires were an awkward fit. The stand had to be skewed off-center quite a bit for it to work at all.
The stand is attached using 4 M3 x 10 mm wafer-head machine screws. Please note that M4 is the typical size screw for a VESA mount of this size (75 mm square spacing), so it’s a little unusual M3s were needed instead.
179
172
180
-
173
+
181
174
182
175
<br>
183
176
184
177

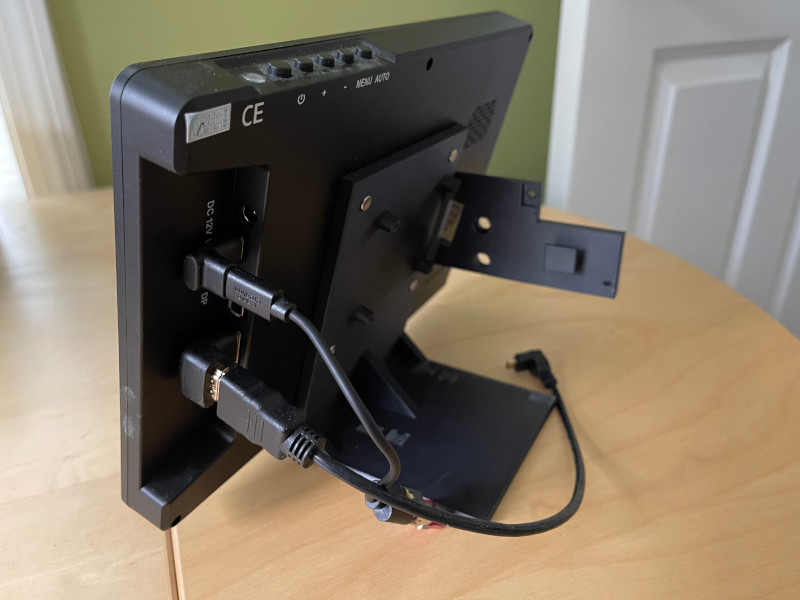

#### Stand attached to monitor, side view
185
178
186
-
179
+
187
180
188
181
<br>
189
182
190
183

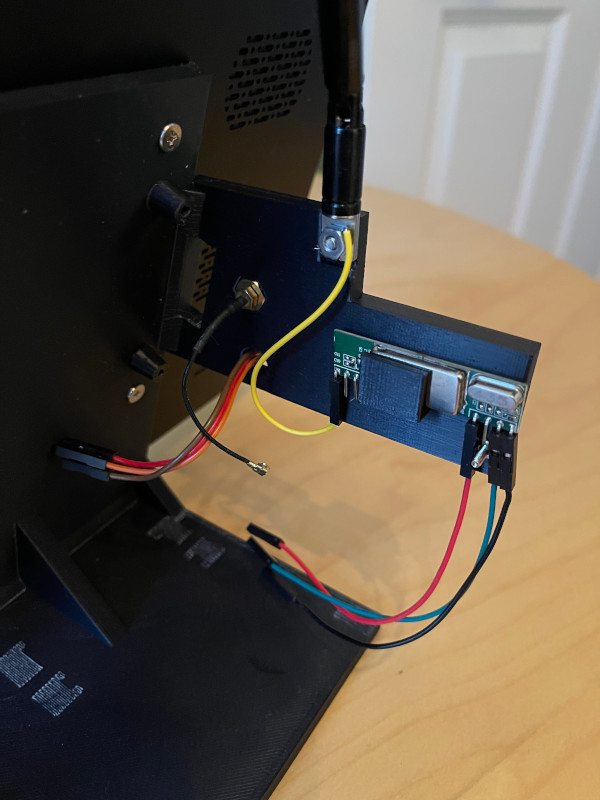

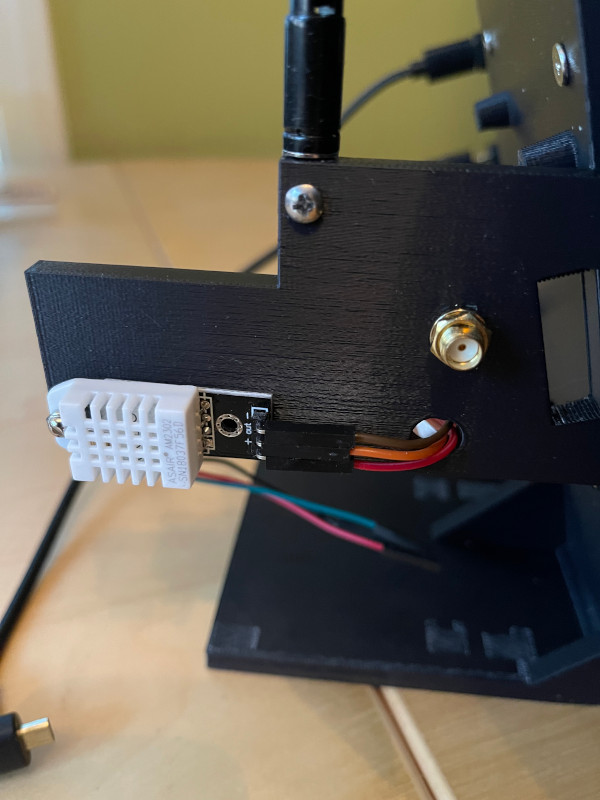

#### Side panel with components attached
191
184
192
185
The long arm that reaches out from the side panel is designed so the temperature/humidity sensor can be placed at a distance from the heat generated by the Raspberry Pi. The open design is also to prevent heat build-up that an enclosure might cause, which could also skew indoor temperature readings.
193
186
194
-
187
+
A small piece of non-conductive foam wedged behind the RF module helps keep the module in place.
188
+
189
+
<br>
190
+
195
191
196
192
<br>
197
193
198
194

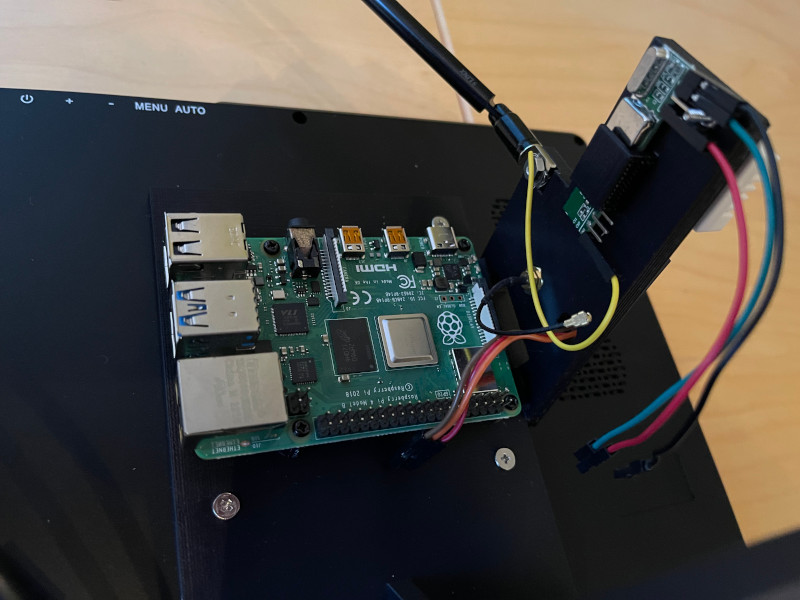

#### Raspberry Pi Model 4 attached to stand-offs
199
195
200
196
I was a bit uncertain how well machine screws would work with the stand-offs that I’d designed, since I wanted them to function like self-tapping screws. As it turned out, the four M2.5 x 6 mm pan-head machine screws fit quite nicely and snugly, without being difficult to turn. If the Pi were to be repeatedly removed and reattached, however, this design might not be durable enough. For my current purposes, it’s just fine.
201
197
202
-
198
+
203
199
204
200
<br>
205
201
206
202

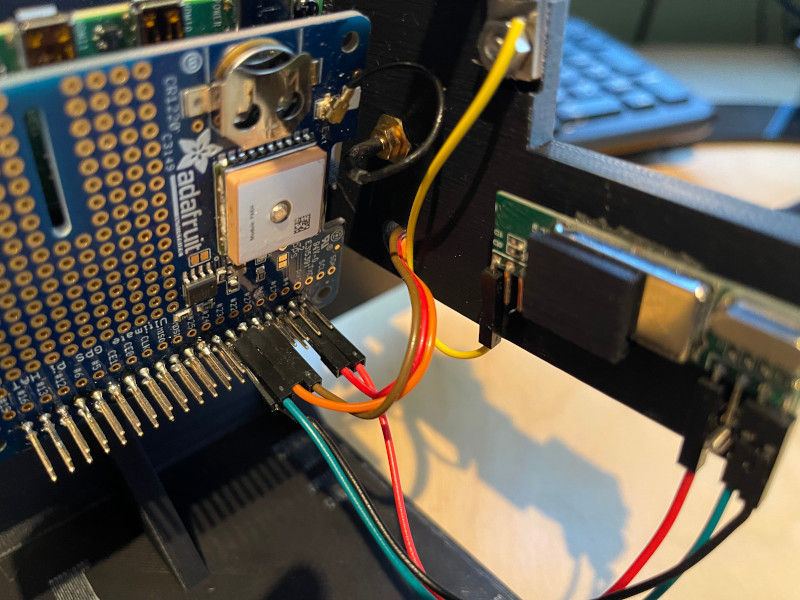

#### GPS HAT added, and components wired together
207
203
208
-
204
+
209
205
210
206
<br>
211
207
212
208

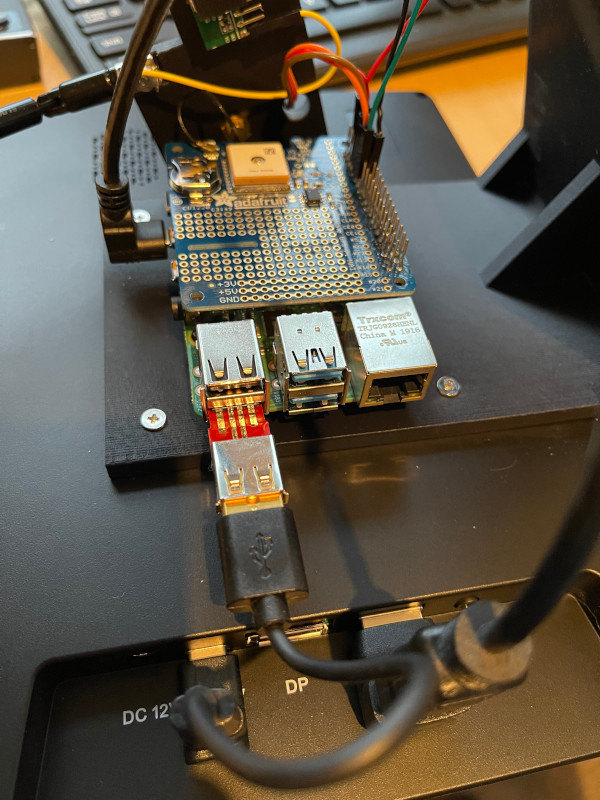

#### Monitor connections for HDMI video and USB touchscreen
213
209
214
-
I was able to find a [single, short HDMI cable](https://www.amazon.com/gp/product/B07BLX88H4/) with a 90°-down micro HDMI connector on one end. This is great for use with the Pi 4, replacing the two separate cables plugged together I started out with when I got the 4: a short dual HDMI male cable combined with an HDMI-to-micro-HDMI adapter cable.
210
+
I was able to find a [single, short HDMI cable](https://www.amazon.com/gp/product/B07BLX88H4/) with a 90°-down micro HDMI connector on one end. This is great for use with the Pi 4, replacing the two separate cables plugged together I started out with when I got the 4: a short dual HDMI male cable combined with an HDMI-to-micro-HDMI adapter cable. I added a full-sized HDMI right-angle adapter as well to improve cable management.
215
211
216
212
I couldn’t find a right-angle USB-C cable for hooking up the touchscreen, but I did find a [right-angle adapter](https://www.amazon.com/gp/product/B07JK1G6W2/) and a short [male USB C to male USB A 2.0 cable](https://www.amazon.com/gp/product/B012V56D2A/).
217
213
218
-
214
+
The odd reddish-brown object at the end of the USB cable is an adapter that blocks power flow, so the USB connection is a data-only connection. This was needed to because the monitor otherwise supplies power to the Raspberry PI over the USB connector.
215
+
216
+
While this would actually be a good thing if it meant I could hook up the clock with only one power cable, not two, the power from the monitor only keeps the Raspberry Pi running *after* the Pi has been separately powered up using its own power supply. The result is no simplification of the power connections, but merely making it harder to shut the clock down without adding this power isolating adapter.
