Replies: 2 comments 3 replies
-
|
In the following codes, it should be |
Beta Was this translation helpful? Give feedback.
1 reply
-
|

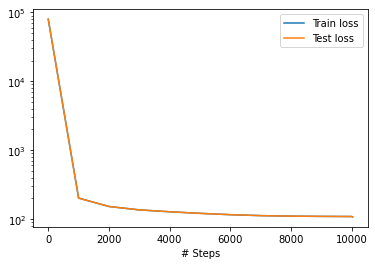

Thank you so much for your reply. After adding the tf.abs(), the code can be run. but I find the loss is still very large after training 10,000 epochs. the loss didn't change a lot during training except the first column. Do you have any ideas to deal with it?
|
Beta Was this translation helpful? Give feedback.
-
|
Beta Was this translation helpful? Give feedback.
2 replies
-
|
For unbalanced losses, try some coefficients. Also use Adam optmiser when these second order optimisers don’t work. |
Beta Was this translation helpful? Give feedback.
-
|
After seeing FAQ, I did some solutions like Use loss_weights for rescaling, Train with more iterations. I tried to use dde.config.set_default_float('float64'), but it showed en error. ##############parameters####################
C_s = 890 #[j/(kg*K)]
C_w = 4200 #[j/(kg*K)]
C_i = 2100 #[j/(kg*K)]
lamda_s = 1.38 #[W/(m*K)]
lamda_w = 0.63 #[W/(m*K)]
lamda_i = 2.31 #[W/(m*K)]
L = 334560 #[J/kg]
rho_i = 918 #[kg/m^3]
rho_w = 1000 #[kg/m^3]
rho_s = 1700 #[kg/m^3]
theta_s=0.25
theta_r = 0.08
T_f = 272.97 #[K]
B=0.55
k_s=1e-5 #[m/s]
l=0.5
m=0.5
a=2
S0=0.6
@tf.function
def k_r(S):
return tf.where(tf.math.less(S,1),tf.abs(S)**l*(1-tf.abs(1-tf.abs(S)**(1/m))**m)**2, 1)
@tf.function
def k(S):
k = k_s*k_r(S)
return k
@tf.function
def c(S):
return tf.where(tf.math.less(S,1),a*m/(1-m)*(theta_s-theta_r)*tf.abs(S)**(1/m)*tf.abs(1-tf.abs(S)**(1/m))**m,0.001)
@tf.function
def theta_w(S):
# theta_w = tf.where(tf.math.less(S,1) & tf.math.greater(S,0), (theta_s-theta_r)*S+theta_r,
# tf.where(tf.math.less_equal(S,0), theta_r, theta_s))
theta_w = tf.where(tf.math.less(S,1),tf.where(tf.math.less_equal(S,0),theta_r,(theta_s-theta_r)*S+theta_r),theta_s)
return theta_w
@tf.function
def Bi(T):
return tf.where(tf.math.less(T, T_f) , 1.1*tf.abs(T/T_f)**B-1.1, 0)
@tf.function
def theta_i(T,S):
return Bi(T)*theta_w(S)
@tf.function
def lz(T,S):
return 10**(-10*theta_i(T,S))
@tf.function
def D(T,S):
return k(S)/(c(S)*lz(T,S))
@tf.function
def lamda(T,S):
return theta_w(S)*lamda_w+theta_i(T,S)*lamda_i+(1-theta_s)*lamda_s
@tf.function
def rho_C(T,S):
return theta_w(S)*rho_w*C_w+theta_i(T,S)*rho_i*C_i+(1-theta_s)*rho_s*C_s
def PDE(x,y):
X, Y ,t=x[:,0:1],x[:,1:2], x[:,2:3]
T,S = y[:,0:1],y[:,1:2]
#########equations##########################
dT_t = dde.grad.jacobian(y, x, i=0, j=2)
dT_xx = dde.grad.hessian(y, x, component=0, i=0,j=0)
dT_yy = dde.grad.hessian(y, x, component=0, i=1,j=1)
dS_xx = dde.grad.hessian(y, x, component=1, i=0,j=0)
dS_yy = dde.grad.hessian(y, x, component=1, i=1,j=1)
dS_t = dde.grad.jacobian(y, x, i=1, j=2)
dBi_T = tf.where(tf.math.less(T,T_f),1.1*B*tf.abs(T/T_f)**(B-1)*1/T_f,0)
dBi_t = dBi_T*dT_t
#### temperature field ####
da_T = rho_C(T,S)-L*rho_i*((theta_s-theta_r)*S+theta_r)*dBi_T
c_T = lamda(T,S)
f_T = L*rho_i*(theta_s-theta_r)*Bi(T)*dS_t
eq1 = da_T*dT_t-c_T*(dT_xx+dT_yy)-f_T
#### water field ####
c_W = D(T,S)
a_W = rho_i/rho_w*dBi_t
f_W = -rho_i/rho_w*(theta_r/(theta_s-theta_r))*dBi_t
da_w = 1+rho_i/rho_w*Bi(T)
eq2 = da_w*dS_t - c_W*(dS_xx+dS_yy)+a_W*S - f_W
return [eq1,eq2]
geom = dde.geometry.Rectangle([0, 0], [0.1, 0.2])
timedomain = dde.geometry.TimeDomain(0, 72)
geomtime = dde.geometry.GeometryXTime(geom, timedomain)
### boundary condition ####
def left_boundary(x, on_boundary):
return on_boundary and np.isclose(x[0], 0)
def right_boundary(x, on_boundary):
return on_boundary and np.isclose(x[0], 0.1)
def bottom_boundary(x,on_boundary):
return on_boundary and np.isclose(x[1], 0)
def upper_boundary(x,on_boundary):
return on_boundary and np.isclose(x[1], 0.2)
def zero_(x):
return 0
def two_(x):
return 275.15
def Tu(x):
return 263.15
# return tf.where(tf.math.greater(x,0) & tf.math.less(x,1),2,
# tf.where(tf.math.greater(x,60) & tf.math.less(x,72),2,
# tf.where(tf.math.greater(x,24) & tf.math.less(x,36),-10,
# tf.where(tf.math.greater(x,1) & tf.math.less(x,24),-12/23*x+58/23, 7/6*x-344/7))))
bcT1 = dde.NeumannBC(geomtime,zero_,left_boundary,component=0)
bcT2 = dde.NeumannBC(geomtime,zero_,right_boundary,component=0)
bcT3 = dde.icbc.DirichletBC(geomtime,two_,bottom_boundary,component=0)
bcT4 = dde.icbc.DirichletBC(geomtime,Tu,upper_boundary,component=0)
bcS1 = dde.NeumannBC(geomtime,zero_,left_boundary,component=1)
bcS2 = dde.NeumannBC(geomtime,zero_,right_boundary,component=1)
bcS3 = dde.NeumannBC(geomtime,zero_,bottom_boundary,component=1)
bcS4 = dde.NeumannBC(geomtime,zero_,upper_boundary,component=1)
icT1 = dde.icbc.IC(geomtime, lambda x: 275.15, lambda _, on_initial: on_initial, component=0)
icS1 = dde.icbc.IC(geomtime, lambda x: S0, lambda _, on_initial: on_initial, component=1)
#bcT1,bcT2,bcT3,bcT4,bcS1,bcS2,bcS3,bcS4,icT1,icS1
data = dde.data.TimePDE(
geomtime, PDE, [bcT1,bcT2,bcT3,bcT4,bcS1,bcS2,bcS3,bcS4,icT1,icS1], num_domain=10000, num_boundary=3000, num_initial=2000,num_test=20000
)
net = dde.nn.FNN([3] + [50] * 3 + [2], "tanh", "Glorot normal")
# net.outputs_modify(lambda x, y: y * 100)
model = dde.Model(data, net)
model.compile("adam", lr=0.001)
losshistory, train_state = model.train(0)
initial_losses =losshistory.loss_train[0]
loss_weights = 1 / initial_losses
model.compile("adam", lr=1e-5,loss_weights=loss_weights)
# pde_residual_resampler = dde.callbacks.PDEResidualResampler(period=1)
model.train(epochs=50000)
model.compile("L-BFGS")
losshistory, train_state = model.train()
dde.saveplot(losshistory, train_state, issave=True, isplot=True)but the results continues to have nan after several training. The T, S range in this code should be T>0 and 0=<S<=1. What could I do to make sure the program know this? |
Beta Was this translation helpful? Give feedback.
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
Uh oh!
There was an error while loading. Please reload this page.
-
This is my code to solve a coupled temperature (T) and saturate (S) problem.
I got an nan when the epochs is 1000. and got an warning:
Rectangle boundary_normal called on vertices. You may use PDE(..., exclusions=...) to exclude the vertices.
Does anyone know how to deal with it?
