How can I get a better result in a simple invese problem?

[dopawei]

Dear Dr. Lu and the community

I have driven into PINN with a lot of passion when I first noticed it. I believe that it can solve a number of problems that cannot be addressed previously. But the passion has been generally destroyed by unexpected results.

I want to use PINN to identify the wave speed, i.e., c of a one-dimensional wave equation. I have tried lots of cases with a small range of domains, large numbers of training sets, and different lost weights. But my result told me that even the simplest c = 1.0. My problem is good results for identified data but bad for parameters. This is my code as follows.

`###############################################################################

Import modules

import deepxde as dde
import matplotlib.pyplot as plt
import numpy as np
from deepxde.backend import tf
import re

###############################################################################

alpha_true

alpha_true = 1

Data acquire

wvals = np.loadtxt("Euler_beam_inv.txt") # displacements

time

time_s = np.linspace(0, 1, 1001)

wavefileds

#uvals = -1 + (wvals - np.min(wvals)) * (1 - (-1)) / (np.max(wvals) -np.min(wvals))
uvals = wvals.T

length

loc_s = np.linspace(0, 1, 1001)
"""

Plot

fig, ax = plt.subplots()
ax.plot(loc_s, uvals[600,...], linewidth=2.0)
plt.gca().set_xlabel('$x$ (m)', fontdict={'family' : 'Times New Roman', 'size' : 16})

fig, ax = plt.subplots()
ax.plot(time_s, uvals[...,600], linewidth=2.0)
plt.gca().set_xlabel('$t$ (s)', fontdict={'family' : 'Times New Roman', 'size' : 16})

X, Y = np.meshgrid(loc_s, time_s)
fig = plt.figure(figsize = (8,6))
plt.pcolor(X, Y, uvals, cmap = 'jet')
plt.colorbar()
plt.gca().set_ylabel('$t$ (s)', fontdict={'family' : 'Times New Roman', 'size' : 16})
plt.gca().set_xlabel('$x$ (m)', fontdict={'family' : 'Times New Roman', 'size' : 16})

plt.show()
"""
###############################################################################

Calculate

x1 = 0.0
x2 = 1.0
t1 = 0.0
t2 = 1.0

Parameters to be identified

C1 = dde.Variable(np.random.rand())

def gen_traindata(num):
xvals = loc_s.reshape(-1, 1)
tvals = time_s.reshape(-1, 1)
X, T = np.meshgrid(xvals, tvals)
X = X.flatten()[:, None]
T = T.flatten()[:, None]
# training domain: X = [x1, x2] and T = [t1, t2]
data1 = np.concatenate([X, T, uvals.flatten()[:, None]], 1)
data2 = data1[:, :][data1[:, 1] <= t2]
data3 = data2[:, :][data2[:, 1] >= t1]
data4 = data3[:, :][data3[:, 0] <= x2]
data_domain = data4[:, :][data4[:, 0] >= x1]
# choose number of training points: num
idx = np.random.choice(data_domain.shape[0], num, replace=False)
x_train = data_domain[idx, 0:1]
t_train = data_domain[idx, 1:2]
u_train = data_domain[idx, 2:3]
return [x_train / x2, t_train / t2, -1 + (u_train - np.min(u_train)) * (1 - (-1)) / (np.max(u_train) -np.min(u_train))]

PDE residual

def pde(x, y):
du_tt = dde.grad.hessian(y, x, i=1, j=1)
du_xx = dde.grad.hessian(y, x, i=0, j=0)
du_xxxx = dde.grad.hessian(du_xx, x, i=0, j=0)
#return [C1 * du_xxxx + du_tt]
return [C1 * du_xx - du_tt]

training data

ob_x, ob_t, ob_u = gen_traindata(5000)
ob_xt = np.hstack((ob_x, ob_t))
observe_u = dde.icbc.PointSetBC(ob_xt, ob_u, component=0)

define a geometry

geom = dde.geometry.Interval(x1/x2, 1)
timedomain = dde.geometry.TimeDomain(t1/t2, 1)
geomtime = dde.geometry.GeometryXTime(geom, timedomain)

define PDE

data = dde.data.TimePDE(
geomtime,
pde,
[observe_u],
num_domain=5000,
anchors=ob_xt,
num_test=1000,
)

define networks

layer_size = [2] + [100] * 3 + [1]
activation = "tanh"
initializer = "Glorot uniform"
net = dde.nn.FNN(layer_size, activation, initializer)

build a model to train

model = dde.Model(data, net)

###############################################################################

callbacks for storing results

fnamevar = "variables.dat"
variable = dde.callbacks.VariableValue(C1, period=10, filename=fnamevar)

compile and train model

model.compile("adam", lr=0.0001, loss_weights = [1, 1000], external_trainable_variables=C1)
losshistory, train_state = model.train(epochs=10000, callbacks=[variable], display_every=1000, disregard_previous_best=True)
model.compile("L-BFGS-B", lr=0.0001, loss_weights = [1, 1000], external_trainable_variables=C1)
losshistory, train_state = model.train(epochs=20000, callbacks=[variable], display_every=1000, disregard_previous_best=True)

save data

dde.saveplot(losshistory, train_state, issave=True, isplot=True)

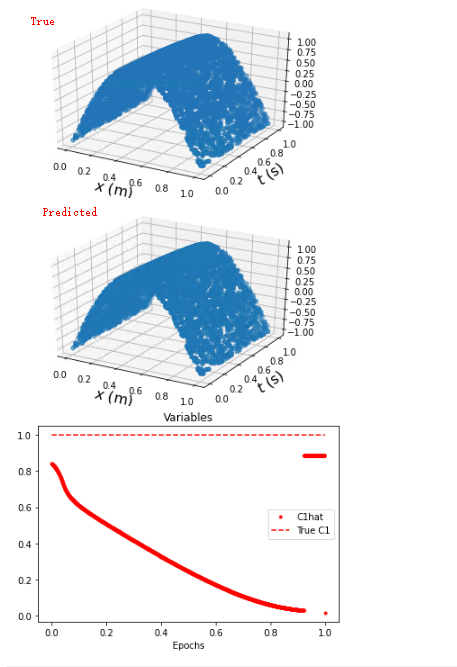

view results

X_test, T_test, y_true = gen_traindata(5000)
ob_xt = np.hstack((X_test, T_test))
y_pred = model.predict(ob_xt)

np.savetxt("test2.dat", np.hstack((X_test, y_true, y_pred)))

fig = plt.figure()
ax = plt.axes(projection='3d')
ax.scatter3D(X_test, T_test, y_true, label="u_true")
plt.gca().set_ylabel('$t$ (s)', fontdict={'family' : 'Times New Roman', 'size' : 16})
plt.gca().set_xlabel('$x$ (m)', fontdict={'family' : 'Times New Roman', 'size' : 16})
plt.show()

ax = plt.axes(projection='3d')
ax.scatter3D(X_test, T_test, y_pred, label="u_true")
plt.gca().set_ylabel('$t$ (s)', fontdict={'family' : 'Times New Roman', 'size' : 16})
plt.gca().set_xlabel('$x$ (m)', fontdict={'family' : 'Times New Roman', 'size' : 16})
plt.show()

Plot Variables:

reopen saved data using callbacks in fnamevar

lines = open(fnamevar, "r").readlines()

read output data in fnamevar

Chat = np.array(
[
np.fromstring(
min(re.findall(re.escape("[") + "(.*?)" + re.escape("]"), line), key=len),
sep=",",
)
for line in lines
]
)

l, c = Chat.shape
fig = plt.figure()
plt.plot(np.linspace(x1, x2, Chat[:, 0].size), Chat[:, 0], "r.")
plt.plot(np.linspace(x1, x2, Chat[:, 0].size), np.ones(Chat[:, 0].shape) * alpha_true, "r--")
plt.legend(["C1hat", "True C1"], loc="right")
plt.xlabel("Epochs")
plt.title("Variables")
plt.show()`

The loss is shown as follows.

Warning: epochs is deprecated and will be removed in a future version. Use iterations instead.
Initializing variables...
Training model...

Step Train loss Test loss Test metric
0 [1.47e-05, 5.09e+02] [1.42e-05, 5.09e+02] []
1000 [4.03e+01, 1.44e+01] [4.09e+01, 1.44e+01] []
2000 [1.74e+01, 9.79e+00] [1.80e+01, 9.79e+00] []
3000 [1.12e+01, 6.75e+00] [1.17e+01, 6.75e+00] []
4000 [7.11e+00, 4.39e+00] [7.39e+00, 4.39e+00] []
5000 [4.16e+00, 2.62e+00] [4.32e+00, 2.62e+00] []
6000 [2.13e+00, 1.35e+00] [2.21e+00, 1.35e+00] []
7000 [9.04e-01, 6.04e-01] [9.35e-01, 6.04e-01] []
8000 [2.92e-01, 2.24e-01] [3.01e-01, 2.24e-01] []
9000 [6.95e-02, 6.85e-02] [7.02e-02, 6.85e-02] []
10000 [1.83e-02, 2.60e-02] [1.76e-02, 2.60e-02] []

Best model at step 10000:
train loss: 4.43e-02
test loss: 4.36e-02
test metric: []

'train' took 104.251099 s

Compiling model...
Warning: For the backend tensorflow.compat.v1, external_trainable_variables is ignored, and all trainable tf.Variable objects are automatically collected.
Warning: learning rate is ignored for L-BFGS-B
'compile' took 1.542729 s

Warning: epochs is deprecated and will be removed in a future version. Use iterations instead.
Training model...

Step Train loss Test loss Test metric
10000 [1.83e-02, 2.60e-02] [1.76e-02, 2.60e-02] []
11000 [4.99e-05, 1.93e-04]
INFO:tensorflow:Optimization terminated with:
Message: CONVERGENCE: REL_REDUCTION_OF_F_<=_FACTR*EPSMCH
Objective function value: 0.000243
Number of iterations: 830
Number of functions evaluations: 1001
11001 [4.99e-05, 1.93e-04] [4.44e-05, 1.93e-04] []

Best model at step 11001:
train loss: 2.43e-04
test loss: 2.37e-04
test metric: []

'train' took 88.279585 s

Thank you!

[lululxvi]

What is the PDE?

[dopawei]

It is a one-dimensional wave equation or Euler-Bernoulli beam equation.

[dopawei]

Update! I have used more simple data for an analytic solution that can identify the parameter. Now, I have a new question about the data set. Is it better to have MxN time-space data in which M and N are very close? Thank you, Dr. Lu.

[riccardotomada]

I'm working on the inverse problem of the flow past a cylinder at low Re. From my experience the quality of the mesh you use to perform the high fidelity simulations is very important. It seems it is not that important to have a great resolution in time (0.1s is ok in my case), but the mesh must be very fine.

[dopawei]

Thank your reply and valuable experience. I will try finer mesh in my case.
