The weight attribute is ignored by default by centrality functions

[agila5]

Hi everyone! Maybe this is quite obvious for you, but I just found out that the centrality functions defined in tidygraph do not automatically infer the weight argument defined in the edges table.

# packages
library(sf)
#> Linking to GEOS 3.8.0, GDAL 3.0.4, PROJ 6.3.1
library(tidygraph)
#>
#> Attaching package: 'tidygraph'
#> The following object is masked from 'package:stats':
#>
#>     filter
library(sfnetworks)
library(tmap)

# create sfn object
sfn_roxel = as_sfnetwork(roxel, directed = FALSE)

# edge centrality measure
sfn_roxel <- sfn_roxel %E>%
  mutate(
    weight = edge_length(),
    # actual code
    v1 = centrality_edge_betweenness(),
    # intended code
    v2 = centrality_edge_betweenness(weights = weight, directed = FALSE)
  )

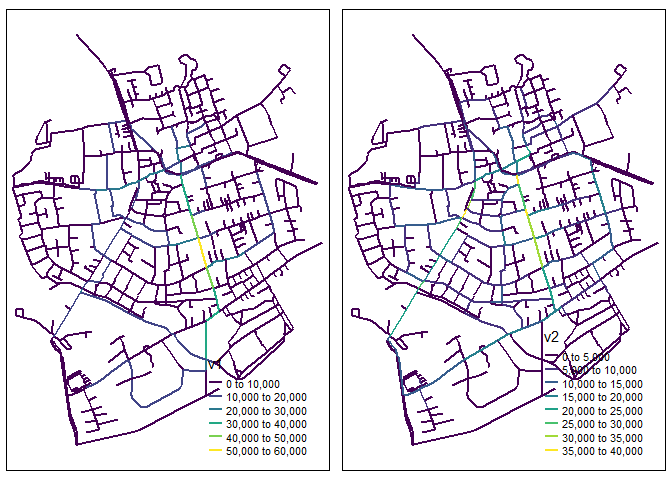

t1 <- tm_shape(sfn_roxel %E>% st_as_sf()) +
  tm_lines(col = "v1", palette = "viridis", lwd = 2, n = 6)

t2 <- tm_shape(sfn_roxel %E>% st_as_sf()) +
  tm_lines(col = "v2", palette = "viridis", lwd = 2, n = 6)

tmap_arrange(t1, t2)

^{Created on 2021-03-10 by the reprex package (v1.0.0)}

I know that this is more or less the same discussion as in #67 (comment) (and probably the default behaviour in tidygraph), but if you also easily forget about this behaviour, maybe we could add a note in one of the vignettes (otherwise this is just a discussion that will help me remember this fact 😅).

[luukvdmeer]

This is indeed quite confusing.. For now I included this line in the routing vignette after the section where we talk about edge weights:

sfnetworks/vignettes/routing.Rmd

Line 66 in 6fcd848

It is important to mention that `tidygraph` does not always comply with the default `igraph` behaviors as we described them above. For example, when using tidygraphs centrality functions, you *have* to explicity set `weights = weight` when you want to use your *weight* column as edge weights in the centrality calculation. If the `weights` argument is not set (i.e. `weights = NULL`) it will not use any edge weights.

Not sure if there are other parts of the docs where we should mention this, or we should even rethink our approach
