2313. Minimum Flips in Binary Tree to Get Result (Hard)

You are given the root of a binary tree with the following properties:

• Leaf nodes have either the value 0 or 1, representing false and true respectively.
• Non-leaf nodes have either the value 2, 3, 4, or 5, representing the boolean operations OR, AND, XOR, and NOT, respectively.

You are also given a boolean result, which is the desired result of the evaluation of the root node.

The evaluation of a node is as follows:

• If the node is a leaf node, the evaluation is the value of the node, i.e. true or false.
• Otherwise, evaluate the node's children and apply the boolean operation of its value with the children's evaluations.

In one operation, you can flip a leaf node, which causes a false node to become true, and a true node to become false.

Return the minimum number of operations that need to be performed such that the evaluation of root yields result. It can be shown that there is always a way to achieve result.

A leaf node is a node that has zero children.

Note: NOT nodes have either a left child or a right child, but other non-leaf nodes have both a left child and a right child.

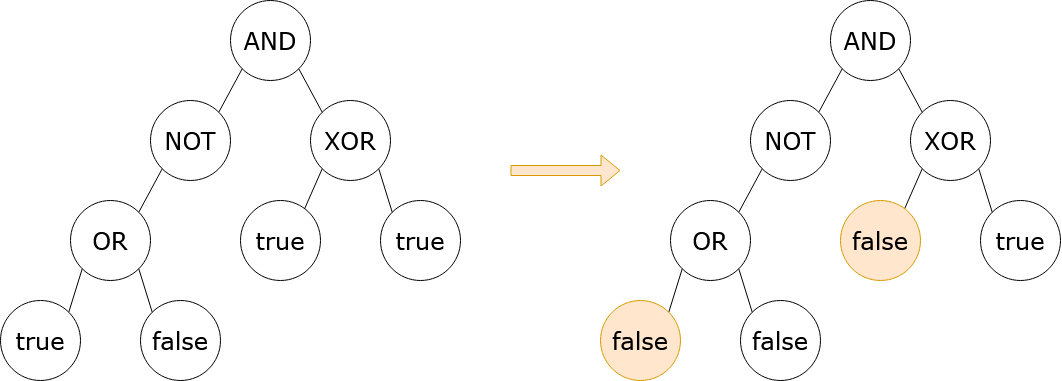

Example 1:

Input: root = [3,5,4,2,null,1,1,1,0], result = true
Output: 2
Explanation:
It can be shown that a minimum of 2 nodes have to be flipped to make the root of the tree
evaluate to true. One way to achieve this is shown in the diagram above.

Example 2:

Input: root = [0], result = false
Output: 0
Explanation:
The root of the tree already evaluates to false, so 0 nodes have to be flipped.



Constraints:

• The number of nodes in the tree is in the range [1, 105].
• 0 <= Node.val <= 5
• OR, AND, and XOR nodes have 2 children.
• NOT nodes have 1 child.
• Leaf nodes have a value of 0 or 1.
• Non-leaf nodes have a value of 2, 3, 4, or 5.

Companies: Google

Related Topics:
Dynamic Programming, Tree, Depth-First Search, Binary Tree

Similar Questions:

• Check If Two Expression Trees are Equivalent (Medium)
• Design an Expression Tree With Evaluate Function (Medium)
• Evaluate Boolean Binary Tree (Easy)

Hints:

• Try using tree DP to solve this problem.
• Find the minimum operations to change each subtree to true and to false separately.
• For nodes representing boolean operations, find the minimum operations by trying all combinations of values to which the child nodes can evaluate.

Solution 1. DP (Top-down)

// OJ: https://leetcode.com/problems/minimum-flips-in-binary-tree-to-get-result
// Author: github.com/lzl124631x
// Time: O(N)
// Space: O(N)
class Solution {
    unordered_map<TreeNode*, int> m[2];
public:
    int minimumFlips(TreeNode* root, bool result) {
        if (!root->left && !root->right) return result != root->val;
        if (m[result].count(root)) return m[result][root];
        int ans;
        if (root->val == 2) { // OR
            if (result) ans = min(minimumFlips(root->left, true), minimumFlips(root->right, true));
            else ans = minimumFlips(root->left, false) + minimumFlips(root->right, false);
        } else if (root->val == 3) { // AND
            if (result) ans = minimumFlips(root->left, true) + minimumFlips(root->right, true);
            else ans = min(minimumFlips(root->left, false), minimumFlips(root->right, false));
        } else if (root->val == 4) { // XOR
            if (result) ans = min(minimumFlips(root->left, true) + minimumFlips(root->right, false), minimumFlips(root->left, false) + minimumFlips(root->right, true));
            else ans = min(minimumFlips(root->left, true) + minimumFlips(root->right, true), minimumFlips(root->left, false) + minimumFlips(root->right, false));
        } else { // NOT
            auto node = root->left ? root->left : root->right;
            ans = minimumFlips(node, !result);
        }
        return m[result][root] = ans;
    }
};

Solution 2. Post-order Traversal

// OJ: https://leetcode.com/problems/minimum-flips-in-binary-tree-to-get-result
// Author: github.com/lzl124631x
// Time: O(N)
// Space: O(H)
class Solution {
    array<int, 2> dfs(TreeNode *root) { // minimum operations to get result `false` / `true`.
        if (!root) return {INT_MAX, INT_MAX};
        if (root->val <= 1) return {root->val, !root->val};
        auto [a, b] = dfs(root->left);
        auto [c, d] = dfs(root->right);
        if (root->val == 2) { // OR
            return {a + c, min(b, d)};
        } else if (root->val == 3) { // AND
            return {min(a, c), b + d};
        } else if (root->val == 4) { // XOR
            return {min(a + c, b + d), min(a + d, b + c)};
        } else { // NOT
            return {min(b, d), min(a, c)};
        }
    }
public:
    int minimumFlips(TreeNode* root, bool result) {
        return dfs(root)[result];
    }
};
