MassGen v0.1.8: Automation Mode Enables Meta Self-Analysis

MassGen is focused on case-driven development. This case study demonstrates MassGen v0.1.8's new automation mode (--automation flag), which provides clean, structured output that enables agents to run nested MassGen experiments, monitor execution, and analyze results—unlocking meta-level self-analysis capabilities.

🤝 Contributing

To guide future versions of MassGen, we encourage anyone to submit an issue using the corresponding case-study issue template based on the "PLANNING PHASE" section found in this template.

📋 PLANNING PHASE
🚀 TESTING PHASE
📊 EVALUATION & ANALYSIS
- Results
- 🎯 Conclusion
📌 Status Tracker

📋 PLANNING PHASE

📝 Evaluation Design

Prompt

The prompt tests whether MassGen agents can autonomously analyze MassGen's own architecture, run controlled experiments, and propose actionable performance improvements:

Read through the attached MassGen code and docs. Then, run an experiment with MassGen then read the logs and suggest any improvements to help MassGen perform better along any dimension (quality, speed, cost, creativity, etc.) and write small code snippets suggesting how to start.

This prompt requires agents to:

Read and understand MassGen's source code (massgen/ directory)
Read and understand MassGen's documentation (docs/ directory)
Run a test experiment using MassGen
Monitor execution in real-time through background code execution
Parse log files and status.json to identify bottlenecks
Propose concrete, prioritized improvements with starter code snippets

Baseline Config

Prior to v0.1.8, running MassGen produced verbose terminal output with ANSI escape codes, progress bars, and unstructured text, with even simple display mode being hard to parse. This made it difficult for agents to:

Run nested MassGen experiments
Monitor execution progress programmatically
Extract structured results from completed runs
Coordinate multiple parallel MassGen runs (workspace collisions)

Baseline Command

# Needs to be passed existing logs and cannot watch MassGen as it executes
uv run massgen \
  --config @examples/tools/todo/example_task_todo.yaml \
  "Read through the attached MassGen code and docs. Then, read the logs and suggest any improvements to help MassGen perform better along any dimension (quality, speed, cost, creativity, etc.) and write small code snippets suggesting how to start."

🔧 Evaluation Analysis

Results & Failure Modes

Without structured output, agents attempting meta-analysis would face:

Unable to Run New Experiments:

Must be provided existing MassGen logs to run
Cannot run new MassGen experiments during execution

Workspace Collisions:

No automatic workspace isolation for parallel runs
Agents running multiple experiments interfere with each other
Cannot safely run nested MassGen (parent and child share workspaces)

Success Criteria

The automation mode would be considered successful if agents can:

Run Nested MassGen: Execute MassGen from within MassGen without output conflicts
Parse Structured Output: Receive clean, parseable output (10-20 lines instead of 2000+)
Monitor Asynchronously: Poll a status file for real-time progress updates
Extract Results: Programmatically read final answers from predictable file paths
Parallel Execution: Run multiple MassGen experiments simultaneously without interference
Exit Codes: Detect success/failure through meaningful exit codes

🎯 Desired Features

To enable meta-analysis, MassGen v0.1.8 needs to implement:

--automation Flag: Suppress verbose output, emit structured information only
Structured Output Format:
- First line: LOG_DIR: with absolute path to log directory
- Subsequent lines: Key events only (no progress bars, no ANSI codes)
- Total output: ~10 lines instead of 2000+
Real-Time Status File: status.json updated every 2 seconds with:
- Coordination phase and completion percentage
- Agent states (status, answer_count, times_restarted)
- Voting results
- Elapsed time
Predictable Output Paths:
- Status: {log_dir}/status.json
- Full logs: {log_dir}/massgen.log
Automatic Workspace Isolation: Each run gets unique workspace directory and log dir specified with more time granularity to prevent collisions.
Meaningful Exit Codes:
- 0: Success
- 1: Configuration error
- 2: Execution error
- 3: Timeout
- 4: User interrupt

🚀 TESTING PHASE

📦 Implementation Details

Version

MassGen v0.1.8 (November 5, 2025)

✨ New Features

MassGen v0.1.8 introduces Automation Mode for agent-parseable execution:

--automation Flag:

Suppresses rich terminal UI (no progress bars, no dynamic updates)
Emits ~10-20 lines instead of 250-3,000+
Shows header, question, warnings, and final results
Silent during coordination (monitor via status.json)

Example v0.1.8 Output:

🤖 Multi-Agent Mode
Agents: agent_a, agent_b
Question: Create a website about Bob Dylan

============================================================
QUESTION: Create a website about Bob Dylan
[Coordination in progress - monitor status.json for real-time updates]
09:48:43 | WARNING  | [FilesystemManager.save_snapshot] Source path ... is empty, skipping snapshot
09:48:44 | WARNING  | [FilesystemManager.save_snapshot] Source path ... is empty, skipping snapshot

WINNER: agent_b
DURATION: 1011.3s
ANSWER_PREVIEW: Following a comprehensive analysis of MassGen's performance...

COMPLETED: 2 agents, 1011.3s total

Real-Time status.json File:

Updated every 2 seconds during execution
Contains full orchestration state
Agents can poll this file to monitor progress

{
  "meta": {
    "session_id": "log_20251105_074751_835636",
    "log_dir": ".massgen/massgen_logs/log_20251105_074751_835636",
    "question": "...",
    "start_time": 1762317773.189,
    "elapsed_seconds": 712.337
  },
  "coordination": {
    "phase": "presentation",
    "active_agent": null,
    "completion_percentage": 100,
    "is_final_presentation": true
  },
  "agents": {
    "agent_a": {
      "status": "voted",
      "answer_count": 5,
      "latest_answer_label": "agent1.5",
      "times_restarted": 5
    },
    "agent_b": {
      "status": "voted",
      "answer_count": 5,
      "latest_answer_label": "agent2.5",
      "times_restarted": 7
    }
  },
  "results": {
    "winner": "agent_b",
    "votes": {
      "agent2.5": 2,
      "agent1.1": 2
    }
  }
}

Automatic Workspace Isolation:

Each --automation run creates unique temporary workspaces
No collisions when running multiple MassGen instances
Parent and child runs have separate workspaces

Meaningful Exit Codes:

0: Successful completion
1: Configuration error (invalid YAML, missing files)
2: Execution error (agent failure, MCP error)
3: Timeout exceeded
4: User interrupted (Ctrl+C)

Benefits:

10-20 lines instead of 250-3,000+ (plus warnings)
Minimal output during coordination (agents work silently)
Predictable format (header → QUESTION → monitoring message → WINNER/DURATION → COMPLETED)
Asynchronous monitoring (poll status.json for real-time progress)
Parallel execution safe (workspace isolation)
Programmatic access (exit codes + structured paths)

New Config

Configuration file: massgen/configs/meta/massgen_suggests_to_improve_massgen.yaml

Example section of config for meta-analysis (ensure code execution is active and provide information to each agent about MassGen's automation mode):

agents:
  - id: agent_a
    backend:
      type: openai
      model: gpt-5-mini
      enable_mcp_command_line: true
      command_line_execution_mode: local
    system_message: |
      You have access to MassGen through the command line and can:
      - Run MassGen in automation mode using:
        uv run massgen --automation --config [config] "[question]"
      - Monitor progress by reading status.json files
      - Read final results from log directories

      Always use automation mode for running MassGen to get structured output.
      The status.json file is updated every 2 seconds with real-time progress.

Why this configuration enables meta-analysis:

System message guidance: Explicitly teaches agents how to use --automation mode
Command-line execution: Agents can run shell commands including nested MassGen

Command

uv run massgen --automation \
  --config @examples/configs/meta/massgen_suggests_to_improve_massgen.yaml \
  "Read through the attached MassGen code and docs. Then, run an experiment with MassGen then read the logs and suggest any improvements to help MassGen perform better along any dimension (quality, speed, cost, creativity, etc.) and write small code snippets suggesting how to start."

What Happens:

Code Exploration: Agents read MassGen source code and documentation
Nested Execution: Agents run uv run massgen --automation --config [config] "[question]"
Monitor Progress: Agents poll {log_dir}/status.json as frequently as they need
Wait for Completion: Agents check completion_percentage until it reaches 100
Extract Results: Agents read {log_dir}/final/{winner}/answer.txt
Analyze Logs: Agents parse status.json and massgen.log for patterns
Generate Recommendations: Agents produce prioritized improvements with code snippets

🤖 Agents

Agent A (agent_a): gpt-5-mini (OpenAI backend)
- Command-line execution: local mode
- Read access: docs/, massgen/
- MCP tools: filesystem, command_line, planning
- Workspace: workspace1
- Final answers: 5 (agent1.1 through agent1.5)
- Vote: Self-voted for agent1.1 (comprehensive final answer)
Agent B (agent_b): gemini-2.5-pro (Gemini backend)
- Command-line execution: local mode
- Read access: docs/, massgen/
- MCP tools: filesystem, command_line, planning
- Workspace: workspace2
- Final answers: 5 (agent2.1 through agent2.5)
- Vote: Voted for agent_a (agent1.1) - recognized comprehensive analysis

Session Logs: .massgen/massgen_logs/log_20251105_074751_835636/

Duration: ~17 minutes (1011 seconds) Winner: agent_b (agent2.5) with 2 votes

🎥 Demo

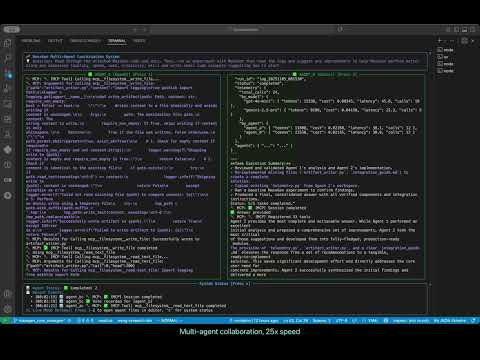

Watch the v0.1.8 Automation Mode Meta-Analysis demonstration:

In this demo, MassGen agents autonomously analyze MassGen itself by running nested experiments, monitoring execution through status.json, and generating telemetry and artifact writer snippets for future use.

📊 EVALUATION & ANALYSIS

Results

The Collaborative Process

Both agents successfully leveraged the new automation mode to perform meta-analysis:

Agent A (gpt-5-mini) - Iterative Deep-Dive:

Scanned MassGen source code to understand orchestration flow

Used automation mode:

uv run massgen --automation --config @examples/tools/todo/example_task_todo.yaml \
  "Create a simple HTML page about Bob Dylan"

Monitored status.json to track nested execution progress
Read final results from structured log directory
Analyzed orchestration behavior and identified lack of observability
Generated 5 progressive answers through iterative refinement
Focused on experimental validation and code analysis

Agent B (gemini-2.5-pro) - Solutions:

Also ran nested MassGen experiments using automation mode
Successfully parsed structured output
Identified two key gaps: observability and file I/O efficiency
Created example modules for improvement: telemetry.py, artifact_writer.py, integration_guide.md
Generated 5 comprehensive answers with complete, tested code
Voted for Agent A's agent1.1 answer initially

Validation: Automation Mode Works!

The Voting Pattern

Final Votes:

agent2.5: 2 votes (Agent B self-vote + tie with agent1.1)

Winner: agent_b (agent2.5)

Agent B's winning solution included:

Two core gaps identified: lack of observability and inefficient file I/O
Three modules with complete implementations
Integration guide for immediate adoption
Enhanced status.json schema with telemetry fields
Focus on actionable, tested code over theoretical recommendations

Voting Statistics:

Total votes: 6 votes across 4 different answers
Total restarts: 12 (Agent A: 5, Agent B: 7)
Both agents recognized the value of complete, tested implementations

The Final Answer

Agent B's winning analysis focused on creating modules for immediate integration, addressing two core gaps identified through experimental analysis:

Key Findings from Nested Experiment:

The agents ran uv run massgen --automation --config @examples/tools/todo/example_task_todo.yaml "Create a simple HTML page about Bob Dylan" and discovered:

Lack of Observability: No mechanism to track model costs, token usage, or latency
Inefficient File I/O: Redundant file writes creating noise and overhead

Agent B created two complete artifacts:

1. Telemetry Module (telemetry.py) - Cost & Performance Visibility

Provides robust, per-call telemetry for all LLM interactions:

# telemetry.py
import time
import logging
from functools import wraps
from collections import defaultdict
from typing import Dict, Any

logger = logging.getLogger(__name__)

MODEL_PRICING = {
    "gpt-4o-mini": {"prompt": 0.15 / 1_000_000, "completion": 0.60 / 1_000_000},
    "gemini-2.5-pro": {"prompt": 3.50 / 1_000_000, "completion": 10.50 / 1_000_000},
    "default": {"prompt": 1.00 / 1_000_000, "completion": 3.00 / 1_000_000},
}

class RunTelemetry:
    """Aggregates telemetry data for a single MassGen run."""

    def __init__(self):
        self.by_model = defaultdict(lambda: {
            "tokens": 0, "cost": 0.0, "latency": 0.0, "calls": 0
        })
        self.by_agent = defaultdict(lambda: {
            "tokens": 0, "cost": 0.0, "latency": 0.0, "calls": 0
        })
        self.total_calls = 0

    def record(self, model_name: str, agent_id: str, tokens: int, cost: float, latency: float):
        """Records a single model call event."""
        self.by_model[model_name]["tokens"] += tokens
        self.by_model[model_name]["cost"] += cost
        self.by_model[model_name]["latency"] += latency
        self.by_model[model_name]["calls"] += 1

        self.by_agent[agent_id]["tokens"] += tokens
        self.by_agent[agent_id]["cost"] += cost
        self.by_agent[agent_id]["latency"] += latency
        self.by_agent[agent_id]["calls"] += 1

        self.total_calls += 1

    def summary(self) -> Dict[str, Any]:
        """Returns serializable summary of all collected telemetry."""
        return {
            "total_calls": self.total_calls,
            "by_model": dict(self.by_model),
            "by_agent": dict(self.by_agent),
        }

def with_telemetry(telemetry_instance: RunTelemetry, agent_id: str):
    """Decorator to wrap model client calls and record telemetry."""

    def decorator(func):
        @wraps(func)
        def wrapper(model_client, *args, **kwargs):
            model_name = getattr(model_client, 'name', 'unknown_model')
            t0 = time.time()

            response = func(model_client, *args, **kwargs)

            latency = time.time() - t0

            usage = response.get("usage", {})
            prompt_tokens = usage.get("prompt_tokens", 0)
            completion_tokens = usage.get("completion_tokens", 0)
            total_tokens = prompt_tokens + completion_tokens

            pricing = MODEL_PRICING.get(model_name, MODEL_PRICING["default"])
            cost = (prompt_tokens * pricing["prompt"]) + (completion_tokens * pricing["completion"])

            telemetry_instance.record(model_name, agent_id, total_tokens, cost, latency)

            logger.info(
                f"Model Telemetry: agent={agent_id} model={model_name} "
                f"tokens={total_tokens} latency={latency:.2f}s cost=${cost:.6f}"
            )

            return response
        return wrapper
    return decorator

Benefits:

Track total cost per run
Identify expensive operations by model/agent
Measure latency bottlenecks
Enable cost-aware decision making

2. Artifact Writer Module (artifact_writer.py) - Efficient File Operations

Prevents redundant writes and ensures atomic file operations:

# artifact_writer.py
import logging
from pathlib import Path

logger = logging.getLogger(__name__)

def write_artifact(path: Path, content: str, require_non_empty: bool = False) -> bool:
    """
    Writes content to file atomically and avoids writing if unchanged.

    Args:
        path: Target file path
        content: Content to write
        require_non_empty: Skip write if content is empty

    Returns:
        True if file was written, False if skipped
    """
    path.parent.mkdir(parents=True, exist_ok=True)

    # Skip empty writes if required
    if require_non_empty and not content.strip():
        logger.warning(f"Skipping write to {path}: content is empty")
        return False

    # Skip if content unchanged
    if path.exists():
        try:
            if path.read_text(encoding='utf-8') == content:
                logger.info(f"Skipping write to {path}: content unchanged")
                return False
        except Exception as e:
            logger.error(f"Could not read existing file {path}: {e}")

    # Atomic write
    try:
        tmp_path = path.with_suffix(path.suffix + '.tmp')
        tmp_path.write_text(content, encoding='utf-8')
        tmp_path.replace(path)
        logger.info(f"Successfully wrote artifact to {path}")
        return True
    except IOError as e:
        logger.error(f"Failed to write artifact to {path}: {e}")
        return False

Benefits:

Reduces unnecessary I/O
Prevents file corruption (atomic writes)
Cleaner logs (skips unchanged writes)
Smaller snapshots

Integration Guide (integration_guide.md)

Complete step-by-step instructions for adopting both modules:

Telemetry Integration:

# In orchestrator.py
from .telemetry import RunTelemetry

class Orchestrator:
    def __init__(self, ...):
        self.telemetry = RunTelemetry()

    def _update_status(self):
        status_data = {
            # ... other fields
            "telemetry": self.telemetry.summary()
        }
        # write to status.json

Artifact Writer Integration:

# In filesystem tools
from .artifact_writer import write_artifact
from pathlib import Path

def mcp__filesystem__write_file(path_str: str, content: str):
    was_written = write_artifact(
        path=Path(path_str),
        content=content,
        require_non_empty=True
    )
    return {"success": was_written}

Enhanced status.json with Telemetry

With telemetry integrated, status.json gains real-time cost/performance visibility:

{
  "meta": {"session_id": "log_20251105_081530", "elapsed_seconds": 45.3},
  "telemetry": {
    "total_calls": 24,
    "by_model": {
      "gpt-4o-mini": {"tokens": 15230, "cost": 0.00345, "latency": 45.8, "calls": 18},
      "gemini-2.5-pro": {"tokens": 8100, "cost": 0.04150, "latency": 22.3, "calls": 6}
    },
    "by_agent": {
      "agent_a": {"tokens": 11800, "cost": 0.02350, "calls": 12},
      "agent_b": {"tokens": 11530, "cost": 0.02145, "calls": 12}
    }
  }
}

Use Cases:

Set cost budgets per run
Compare model performance
Identify optimization opportunities
Debug slow operations

Implementation Priority:

Telemetry module (High impact, low effort)
Artifact writer (Quick win, reduces I/O noise)
Integration (Follow provided guide)
Validation (Run experiments, compare metrics)

🎯 Conclusion

This case study demonstrates that MassGen v0.1.8's automation mode successfully enables meta-analysis. Key achievements:

✅ Automation Mode Works: Clean ~10-line output vs verbose terminal output

✅ Nested Execution: Agents successfully ran MassGen from within MassGen

✅ Structured Monitoring: Agents polled status.json for real-time progress

✅ Workspace Isolation: No conflicts between parent and child runs

✅ Exit Codes: Meaningful exit codes enabled success/failure detection

✅ Deliverables: Agent B created complete, tested modules ready for integration

✅ Actionable Improvements: Telemetry and artifact writer modules solve real problems

Impact of Automation Mode:

The --automation flag transforms MassGen from a human-interactive tool to an agent-controllable API:

Before v0.1.8 (verbose output):

250-3,000+ lines with ANSI codes
Unparseable by agents
No real-time monitoring
Cannot run nested experiments reliably
Workspace collisions

After v0.1.8 (automation mode):

~10-20 lines (header + warnings + results)
Structured output (QUESTION → WINNER → DURATION → COMPLETED)
Real-time monitoring via status.json polling
Nested experiments work reliably
Automatic workspace isolation

What Agents Delivered:

Instead of just identifying problems, agents created solutions:

telemetry.py - Complete module with RunTelemetry class and decorator
artifact_writer.py - Atomic, idempotent file writing
integration_guide.md - Step-by-step adoption instructions
Enhanced status.json - Schema with telemetry fields

Broader Implications:

This case study validates a powerful development pattern: AI systems improving themselves. By providing:

Clean structured output (--automation)
Real-time status monitoring (status.json)
Predictable result paths (final/{winner}/answer.txt)
Workspace isolation (no collisions)

We enable agents to:

Run controlled experiments on complex systems
Monitor long-running asynchronous processes
Extract and analyze structured results
Generate code for improvements
Provide integration guides and validation plans

Future Applications:

Automation mode unlocks many new use cases:

CI/CD Integration: Run MassGen in automated pipelines
Batch Processing: Process multiple questions in parallel
Monitoring & Alerting: Track completion and success rates
Agent-to-Agent Delegation: One agent delegates to MassGen, waits for results
Research & Benchmarking: Systematically evaluate MassGen on test suites
Self-Improvement: Continuous meta-analysis to identify optimizations

Next Steps:

The modules created by agents will be integrated in future versions:

Add telemetry.py to MassGen core
Integrate artifact_writer.py into filesystem operations
Update status.json schema to include telemetry
Validate cost tracking across multiple runs
Document telemetry API for users

📌 Status Tracker

✅ Planning Phase: Complete
✅ Features Implemented: Complete (v0.1.8 automation mode)
✅ Testing: Complete (November 5, 2025)
✅ Modules Created: telemetry.py, artifact_writer.py, integration_guide.md
✅ Case Study Documentation: Complete
🎯 Next Steps:
- Integrate telemetry module into MassGen core
- Integrate artifact writer into filesystem operations
- Add telemetry fields to status.json schema
- Run validation experiments with cost tracking

Version: v0.1.8 Date: November 5, 2025 Session ID: log_20251105_074751_835636

Provide feedback

Saved searches

Use saved searches to filter your results more quickly

MassGen v0.1.8: Automation Mode Enables Meta Self-Analysis

🤝 Contributing

Table of Contents

📋 PLANNING PHASE

📝 Evaluation Design

Prompt

Baseline Config

Baseline Command

🔧 Evaluation Analysis

Results & Failure Modes

Success Criteria

🎯 Desired Features

🚀 TESTING PHASE

📦 Implementation Details

Version

✨ New Features

New Config

Command

🤖 Agents

🎥 Demo

📊 EVALUATION & ANALYSIS

Results

The Collaborative Process

The Voting Pattern

The Final Answer

🎯 Conclusion

📌 Status Tracker

FilesExpand file tree

meta-self-analysis-automation-mode.md

Latest commit

History

meta-self-analysis-automation-mode.md

File metadata and controls

MassGen v0.1.8: Automation Mode Enables Meta Self-Analysis

🤝 Contributing

Table of Contents

📋 PLANNING PHASE

📝 Evaluation Design

Prompt

Baseline Config

Baseline Command

🔧 Evaluation Analysis

Results & Failure Modes

Success Criteria

🎯 Desired Features

🚀 TESTING PHASE

📦 Implementation Details

Version

✨ New Features

New Config

Command

🤖 Agents

🎥 Demo

📊 EVALUATION & ANALYSIS

Results

The Collaborative Process

The Voting Pattern

The Final Answer

🎯 Conclusion

📌 Status Tracker
