object-meta.md

Object Meta

Object Meta (or custom meta fields assigned to any Post, Taxonomy, User, or Settings object) is powered by the Advanced Custom Fields plugin. Within SquareOne, we've developed an abstraction methodology for registering Object Meta that is consistent across all of the available Object Types. This means that the process for registering any piece of meta will be the same, whether you're adding it to a Post, a User, a Taxonomy, or Settings Page (or all four!)

Registering Object Meta

The first step to setting up Object Meta is to create the Class that will define the fields for this particular Meta Group. Keep in mind that each Object Meta Class you register will function as an ACF Meta Group by default; it will be contained in a single metabox and formatted with standard ACF parameters such as position, priority, and layout. For advanced use-cases, this can be overridden by overwriting the base class's register_group() method to register more than one Meta Group/metabox.

Object Meta classes should all go in the core/src/Object_Meta directory. Since Object Meta can be (and often is) shared amongst multiple Post Types or even Object Types, it's always best practice to try to choose a name that is general enough to apply to each context it will be used, but specific enough to make it easy to tell what types of fields the Class holds.

Bad Name

Post_Department_Title_and_Meta.php

Better Name

Department_Information.php

An Object Meta class should extend Tribe\Libs\ACF\ACF_Meta_Group, and has 3 distinct pieces of information it must provide.

Constants

First, it's important to set up any strings you're going to use within the meta fields as constants. Using constants allows us to reference these strings throughout the rest of the codebase in a way that, if updated, will flow throughout the project without having to do a find/replace on multiple files.

The only required constant is NAME. This constant is used in the registration process and should be unique to this Object Meta.

Once you have a NAME, you'll want to add constants for any field name or other strings you need. Working from the Example.php class, we see the following:

const NAME = 'example_meta';

const ONE = 'example_object_meta_one';
const TWO = 'example_object_meta_two';

get_keys()

Every Object Meta Class needs to define a public get_keys() method. This method is used during registration and other areas to know exactly which keys this Object Meta makes available to the rest of the codebase. Any key you want to use should be listed here as an array. If you don't include it here, you'll get null whenever you try to access it from within a Controller. From Example.php again:

public function get_keys() {
	return [
		static::ONE,
		static::TWO,
	];
}

Note that we simply return an array of the constants we defined for our field keys. This will allow all of our keys to be exposed to other pieces of the codebase. Depending on your needs and what you wish to expose, you may wish to include only a subset of your meta keys in this array.

get_group_config()

The final step is adding a public get_group_config() method. This method handles actually instantiating the group, adding any parameters, and adding individual fields to the group.

The first step is instantiating the group and adding parameters:

$group = new ACF\Group( self::NAME, $this->object_types );
$group->set( 'title', __( 'Example Object Meta', 'tribe' ) );

Here we simply call a new instance of ACF\Group() and pass in our NAME constant as the first parameter and the property object_types as the second. This property is set up during registration; you don't need to explicitly define it in your class.

This is also where you would set any Group parameters available in ACF, such as position or priority.

Next, we begin adding fields to the Group. Typically, we encourage having separate methods for each field which return the field. This makes the class more organized and easier to maintain down the road. From Example.php:

$group->add_field( $this->get_field_one() );
$group->add_field( $this->get_field_two() );

We'll touch on the method to return a field a bit further on in the docs. For now, simply note that for each field, you call $group->add_field();

Finally, this method needs to return the get_attributes() method of the $group. Note that we aren't returning the $group variable itself, but rather the get_attributes() method specifically:

return $group->get_attributes();

So, putting it all together:

public function get_group_config() {
$group = new ACF\Group( self::NAME, $this->object_types );
$group->set( 'title', __( 'Example Object Meta', 'tribe' ) );

$group->add_field( $this->get_field_one() );
$group->add_field( $this->get_field_two() );

return $group->get_attributes();
}

Returning fields

If you use a distinct method for each field type, you'll need to follow two steps. First, you need to instantiate a new field. This field can be any ACF Field type. One thing to note is that you'll pass in a concatenated string for the parameter in the Field construct. This string should be your NAME constant for the class, followed by _, followed by the constant for the unique field name. For instance from Example.php:

$field = new ACF\Field( self::NAME . '_' . self::ONE );

Once you instantiate it, you'll call the set_attributes() method on the field and pass in an array of arguments for the field. Note that this supports any arguments that the field in ACF would support. One useful step can often be to use ACF's built-in export tool to get the PHP code for a field you built with the UI. You can then simply copy the arguments array from there and paste it into your method, cleaning out any extra arguments you aren't using.

Finally, you need to return your $field;

Altogether, it looks like so:

private function get_field_one() {
	$field = new ACF\Field( self::NAME . '_' . self::ONE );
	$field->set_attributes( [
		'label' => __( 'Example Object Meta #1', 'tribe' ),
		'name'  => self::ONE,
		'type'  => 'text',
	] );

	return $field;
}

Registering the Object Meta in the Container Definer

Now that you've created your Object_Meta class, it's time to register it with the Definer. First you'll want to find \Tribe\Project\Object_Meta\Object_Meta_Definer.

This is the Definer which handles identifying each Object Meta group and routing it to the correct Object Types. Registering a new Object Meta class here has a few steps.

Add class to the GROUPS array

The Definer sets an array of Object Meta classes under the key \Tribe\Libs\Object_Meta\Object_Meta_Definer::GROUPS. All classes listed here will register their settings when ACF initializes.

Add a class definition

Each Object Meta class should have a callback function to build the instance of the class. This callback allows us to configure which object types will use this meta group.

Your callback function should accept a container as the argument and return an instance of your Object Meta class. Example:

Example::class => static function ( ContainerInterface $container ) {
  return new Example( [ ] );
}

As it is, this doesn't actually associate the Meta with any particular Object types. To do this, we need to pass the array of Object types we want to reference via the argument for our Meta class (in this case, Example). There are 4 Object types which can be referenced:

• post_types
• taxonomies
• users
• settings_pages

You can add any of these to the array, and then specify which specific items within those object types you want to use. Each Object type requires a slightly different array of items:

Object Type	Parameters
post_types	Post Types are identified by their class's NAME constant. For instance: [ Post_Types\Page::NAME, Post_Types\Events::NAME ]
taxonomies	Taxonomies are identified by their class's NAME constant. For instance [ Taxonomies\Category\Category::NAME ]
users	Users does not take an array of items, but simply accepts either true or false
settings_pages	Settings pages are identified by the slug for any given Settings Page. This can be accessed like so: [ $container->get( Settings\General::class )->get_slug() ]
nav_menus	Menus are identified by the theme_location for any given menu. Passed in via ['location/menu_location_slug']
nav_menu_items	When adding meta to the nav items added to a menu, you would pass in a Menu Location or Menu term_id: ['location/menu_location_slug'] or [4] or all

Here's an example that adds values for several object types (in practice, you'll only want one—maybe two—of these):

Example::class => static function ( ContainerInterface $container ) {
  return new Example( [
    'post_types'     => [ Post_Types\Page\Page::NAME, Post_Types\Post\Post::NAME ],
    'taxonomies'     => [ Taxonomies\Category\Category::NAME ],
    'settings_pages' => [ $container->get( Settings\General::class )->get_slug() ],
    'users'          => true,
  ] );
}

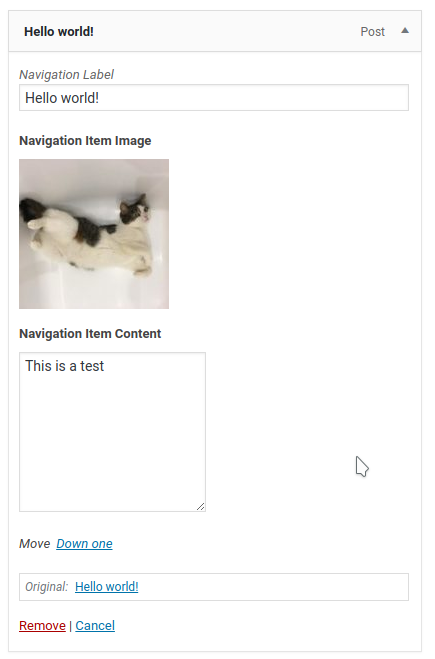

Here's an example for registering meta to the Primary Navigation which would display under each menu item under the menu set as the primary nav:

Example::class => static function ( ContainerInterface $container ) {
  return new Example( [
    'nav_menu_items'     => [ 'location/' . Nav_Menus_Definer::PRIMARY ],
  ] );
}

Accessing Object Meta on the Front End

The general pattern for accessing registered Object Meta is the following (shown here for a Post object). Imagine that we’ve registered an object meta with a class of Example_Meta which has a field in it referenced by the constant HEADER_IMAGE:

$post_object = Post::factory( $post_id );
$example_meta = $post_object->get_meta( Example_Meta::HEADER_IMAGE );

echo $example_meta.....

This code would echo out the value saved to the HEADER_IMAGE meta field for that post.

This same pattern works for taxonomy terms, using Term_Object instances that function much in the same way as a Post_Object. This allows us to grab meta from a Term in the same way that we would a Post. For example:

$term_object = Category::factory( $term_id );
$example_meta = $term_object->get_meta( Example_Meta::HEADER_IMAGE );

echo $example_meta.....

This would then echo out the value saved to the HEADER_IMAGE field, but for that specific term.

Post types, Taxonomies, and Users have the *_Object classes avaialable for retrieving the correct meta values using the previously-described patterns. Note that Post_Objects accept a $post_id, Term_Objects accept a $term_id, and User_Objects accept a $user_id.

At this time, Settings pages do not have those objects; the recommendation is to get meta values from those object types using ACF’s standard get_field() functionality.

For Settings:

$example_meta = get_field( Example_Meta::HEADER_IMAGE, 'option' );

echo $example_meta.....
