Bangle JS 1 vs Bangle JS 2 graphics difference

[espruino-discuss2]

Posted at 2022-06-08 by pranjal

Hello!
I am currently working on a project with Bangle JS 2, however, the image quality is really poor on Bangle JS 2 as I need to convert the image into 3-bit RGB. When I used the emulator for Bangle JS 1 it looks great!
Is there any way I can resolve this? Or is this down to the design of the system and there is nothing that can be done with Bangle JS 2.

I am attaching images in this post.
The second image is that on Bangle JS 2 and the third image is on Bangle JS 1

---

Attachments:

• Original image.png

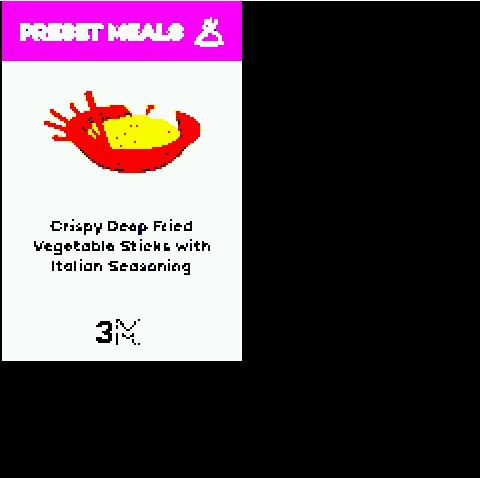

• Card(3_bit)[Bangle JS 2].jpg

• Card(4_bit)[Bangle JS 1].jpg

[espruino-discuss2]

Posted at 2022-06-08 by @halemmerich

The Bangle 2 can only display 8 colors without dithering. With dithering you can get a bit better results if you filter the image before converting it. I tried just sharpening the image a lot, which seems to have helped to make it at least readable. But especially for tiny text you are probably better off drawing the text using the drawString method and drawing dithered icons separately.

---

Attachments:

• test.png

---

Posted at 2022-06-09 by rigrig

The original image is 120x180, but the Bangle.js 2 only has a 176x176 screen, are you scaling it down on the watch itself?

What are you trying to achieve? As in: are you set on displaying this exact picture, have you (already) got a bunch of similar images to display, or could you draw a new one?
Asking because

1. scaling the image in a editor will probably look better than doing it on the watch
2. converting it to 4-bits and letting the watch dither might look better
3. for best results you could use a image in an editor, using the 3-bit palette from the start
