apiVersion: tekton.dev/v1beta1
kind: Task
metadata:
name: buildpacks
labels:
app.kubernetes.io/version: "0.6"
annotations:
tekton.dev/categories: Image Build
tekton.dev/pipelines.minVersion: "0.17.0"
tekton.dev/tags: image-build
tekton.dev/displayName: "Buildpacks"
tekton.dev/platforms: "linux/amd64"
spec:
description: >-
The Buildpacks task builds source into a container image and pushes it to a registry,
using Cloud Native Buildpacks.
workspaces:
- name: source
description: Directory where application source is located.
- name: cache
description: Directory where cache is stored (when no cache image is provided).
optional: true
- name: dockerconfig
description: >-
An optional workspace that allows providing a .docker/config.json file
for Buildpacks lifecycle binary to access the container registry.
The file should be placed at the root of the Workspace with name config.json.
optional: true
params:
- name: APP_IMAGE
description: The name of where to store the app image.
- name: BUILDER_IMAGE
description: The image on which builds will run (must include lifecycle and compatible buildpacks).
- name: SOURCE_SUBPATH
description: A subpath within the `source` input where the source to build is located.
default: ""
- name: ENV_VARS
type: array
description: Environment variables to set during _build-time_.
default: []
- name: PROCESS_TYPE
description: The default process type to set on the image.
default: "web"
- name: RUN_IMAGE
description: Reference to a run image to use.
default: ""
- name: CACHE_IMAGE
description: The name of the persistent app cache image (if no cache workspace is provided).
default: ""
- name: SKIP_RESTORE
description: Do not write layer metadata or restore cached layers.
default: "false"
- name: USER_ID
description: The user ID of the builder image user.
default: "1000"
- name: GROUP_ID
description: The group ID of the builder image user.
default: "1000"
- name: PLATFORM_DIR
description: The name of the platform directory.
default: empty-dir
results:
- name: APP_IMAGE_DIGEST
description: The digest of the built `APP_IMAGE`.
- name: APP_IMAGE_URL
description: The URL of the built `APP_IMAGE`.
stepTemplate:
env:
- name: CNB_PLATFORM_API
value: "0.9"
steps:
- name: prepare
image: docker.io/library/bash:5.1.4@sha256:b208215a4655538be652b2769d82e576bc4d0a2bb132144c060efc5be8c3f5d6
args:
- "--env-vars"
- "$(params.ENV_VARS[*])"
script: |
#!/usr/bin/env bash
set -e
if [[ "$(workspaces.cache.bound)" == "true" ]]; then
echo "> Setting permissions on '$(workspaces.cache.path)'..."
chown -R "$(params.USER_ID):$(params.GROUP_ID)" "$(workspaces.cache.path)"
fi
for path in "/tekton/home" "/layers" "$(workspaces.source.path)"; do
echo "> Setting permissions on '$path'..."
chown -R "$(params.USER_ID):$(params.GROUP_ID)" "$path"
if [[ "$path" == "$(workspaces.source.path)" ]]; then
chmod -R 777 "$(workspaces.source.path)"
fi
done
echo "> Parsing additional configuration..."
parsing_flag=""
envs=()
for arg in "$@"; do
if [[ "$arg" == "--env-vars" ]]; then
echo "-> Parsing env variables..."
parsing_flag="env-vars"
elif [[ "$parsing_flag" == "env-vars" ]]; then
envs+=("$arg")
fi
done
echo "> Processing any environment variables..."
ENV_DIR="/platform/env"
echo "--> Creating 'env' directory: $ENV_DIR"
mkdir -p "$ENV_DIR"
for env in "${envs[@]}"; do
IFS='=' read -r key value <<< "$env"
if [[ "$key" != "" && "$value" != "" ]]; then
path="${ENV_DIR}/${key}"
echo "--> Writing ${path}..."
echo -n "$value" > "$path"
fi
done
volumeMounts:
- name: layers-dir
mountPath: /layers
- name: $(params.PLATFORM_DIR)
mountPath: /platform
- name: create
image: $(params.BUILDER_IMAGE)
imagePullPolicy: Always
command: ["/cnb/lifecycle/creator"]
env:
- name: DOCKER_CONFIG
value: $(workspaces.dockerconfig.path)
args:
- "-app=$(workspaces.source.path)/$(params.SOURCE_SUBPATH)"
- "-cache-dir=$(workspaces.cache.path)"
- "-cache-image=$(params.CACHE_IMAGE)"
- "-uid=$(params.USER_ID)"
- "-gid=$(params.GROUP_ID)"
- "-layers=/layers"
- "-platform=/platform"
- "-report=/layers/report.toml"
- "-process-type=$(params.PROCESS_TYPE)"
- "-skip-restore=$(params.SKIP_RESTORE)"
- "-previous-image=$(params.APP_IMAGE)"
- "-run-image=$(params.RUN_IMAGE)"
- "$(params.APP_IMAGE)"
volumeMounts:
- name: layers-dir
mountPath: /layers
- name: $(params.PLATFORM_DIR)
mountPath: /platform
securityContext:
runAsUser: 1000
runAsGroup: 1000
- name: results
image: docker.io/library/bash:5.1.4@sha256:b208215a4655538be652b2769d82e576bc4d0a2bb132144c060efc5be8c3f5d6
script: |
#!/usr/bin/env bash
set -e
grep "digest" /layers/report.toml | cut -d'"' -f2 | cut -d'"' -f2 | tr -d '\n' | tee "$(results.APP_IMAGE_DIGEST.path)"
echo -n "$(params.APP_IMAGE)" | tee "$(results.APP_IMAGE_URL.path)"
volumeMounts:
- name: layers-dir
mountPath: /layers
- name: clean
image: docker.io/library/bash:5.1.4@sha256:b208215a4655538be652b2769d82e576bc4d0a2bb132144c060efc5be8c3f5d6
script: |
#!/usr/bin/env bash
set -e
for path in "/tekton/home" "/layers" "$(workspaces.source.path)"; do
echo "> Setting permissions on '$path'..."
chown -R "$(params.USER_ID):$(params.GROUP_ID)" "$path"
if [[ "$path" == "$(workspaces.source.path)" ]]; then
chmod -R 777 "$(workspaces.source.path)"
fi
done
volumeMounts:
- name: layers-dir
mountPath: /layers
- name: $(params.PLATFORM_DIR)
mountPath: /platform
- name: push-image
image: docker:stable
script: |
#!/usr/bin/env sh
docker login -u user -p password my-registory
echo "$(results.APP_IMAGE_URL.path)"
echo "$(params.APP_IMAGE)"
docker push "$(params.APP_IMAGE)"
volumeMounts:
- name: docker
mountPath: /var/run/docker.sock
volumes:
- name: empty-dir
emptyDir: {}
- name: layers-dir
emptyDir: {}
- name: docker
hostPath:
path: /var/run/docker.sock
reacted with thumbs up emoji reacted with thumbs down emoji reacted with laugh emoji reacted with hooray emoji reacted with confused emoji reacted with heart emoji reacted with rocket emoji reacted with eyes emoji
Uh oh!
There was an error while loading. Please reload this page.
-

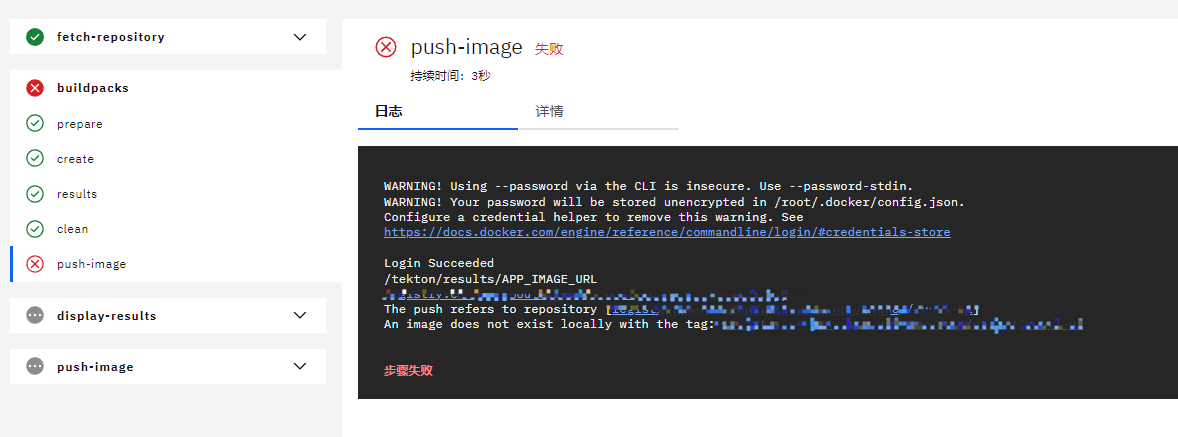

@andymoe @nebhale @ryanmoran @eddumelendez @sclevine I build a image in tekton buildpacks task, and i want to push the image to my private repo, but i get an error in step psuh-image:

The task buildpacks as follows:
