How to connect TiDB serverless in grafana with TLS?

[sykp241095]

原帖作者：jansu-dev\n原帖时间：2022-12-14 08:37:26.157099\n原帖ID/Slug：98 / how-to-connect-tidb-serverless-in-grafana-with-tls\n\n

Application environment:

PoC

Reproduction method:

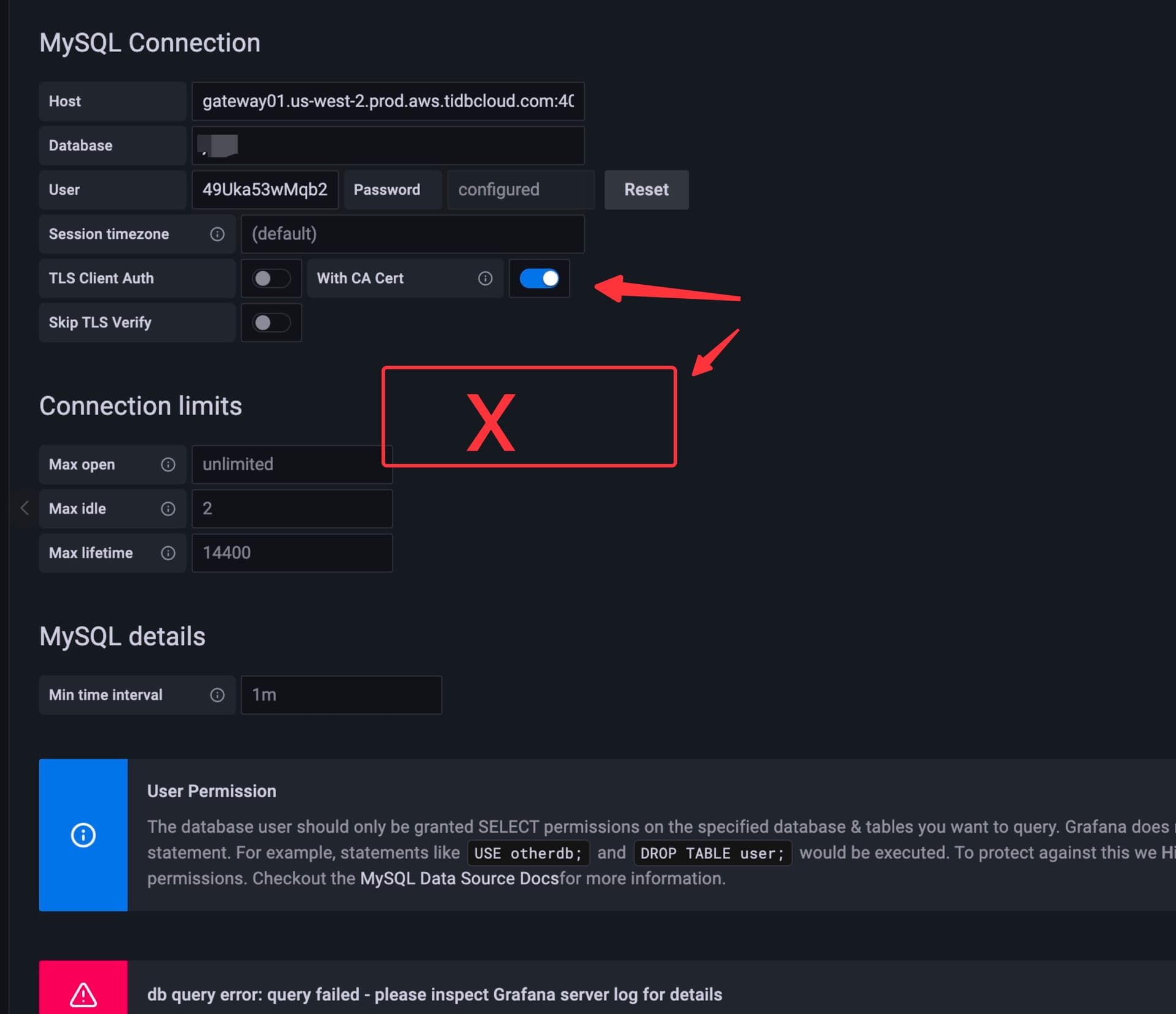

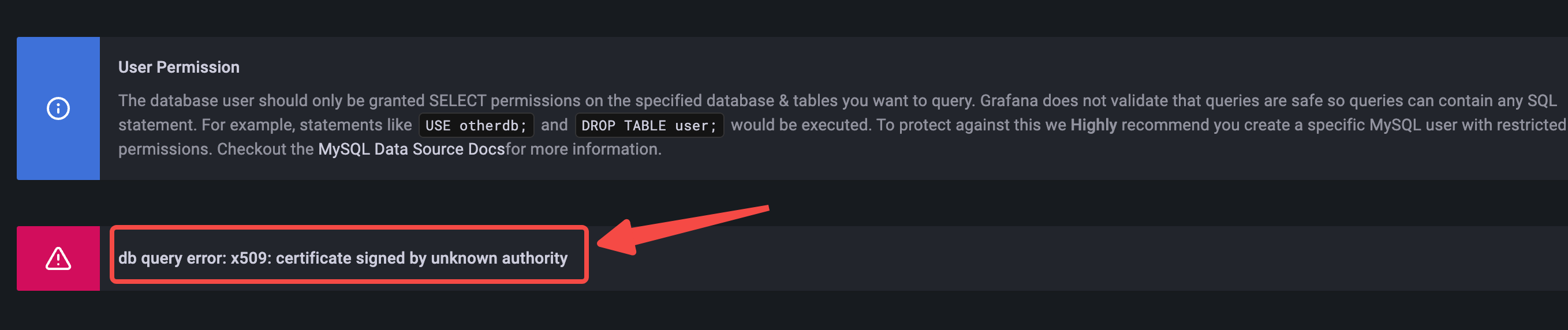

Problem:

image2716×572 71.4 KB

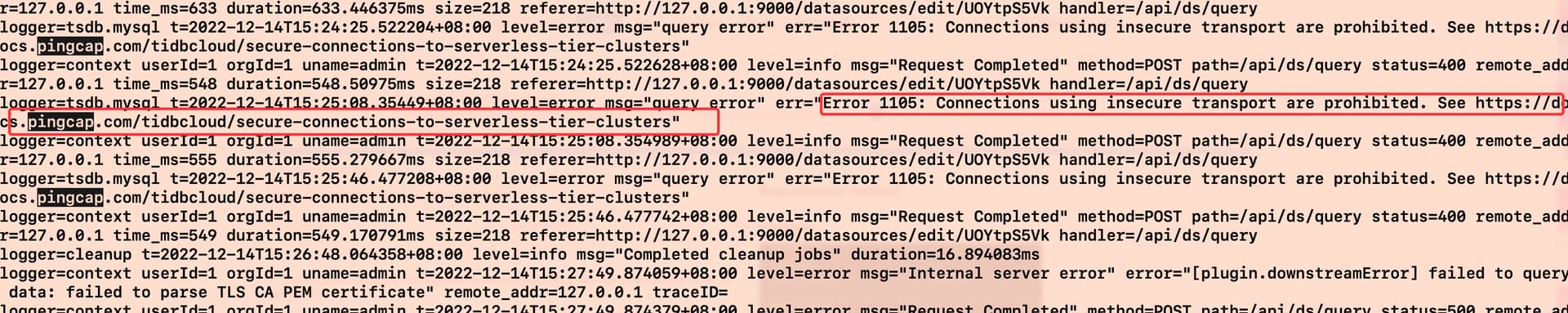

Resource allocation:

image1686×2008 221 KB

image1920×383 169 KB

…

Attachment:

[sykp241095]

原帖作者：CheeseWong\n原帖时间：2022-12-14 11:05:37.610006\n\n

Hi, we start to try to reproduce and check it.

May I know your deployment way for Grafana? Cloud or OP? If it’s OP, which OS?

[sykp241095]

原帖作者：jansu-dev\n原帖时间：2022-12-14 11:08:20.493533\n\n

thanks for your reply. Actually, now, it’s on my mac by brew install grafana.

[sykp241095]

原帖作者：Mini256\n原帖时间：2022-12-14 13:29:47.469634\n\n

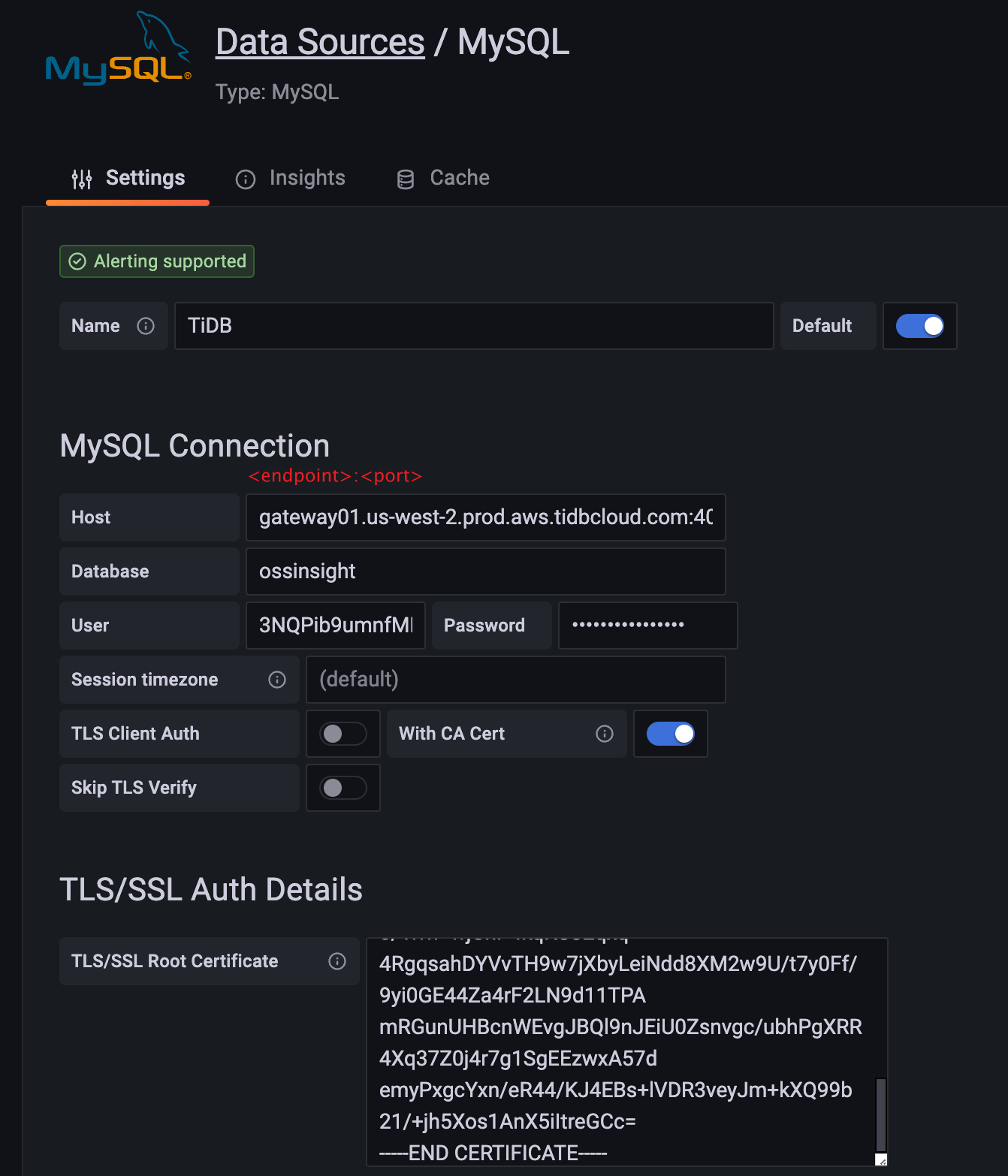

Try to use the With CA Cert option and copy this pem file to the textarea in the page.

image1342×1566 216 KB

[sykp241095]

原帖作者：Mini256\n原帖时间：2022-12-14 13:29:47.469634\n\n

Try to use the With CA Cert option and copy this pem file to the textarea in the page.

image1342×1566 216 KB

[sykp241095]

原帖作者：jansu-dev\n原帖时间：2022-12-14 14:23:38.847852\n\n

thanks

1. that way you specified could work.

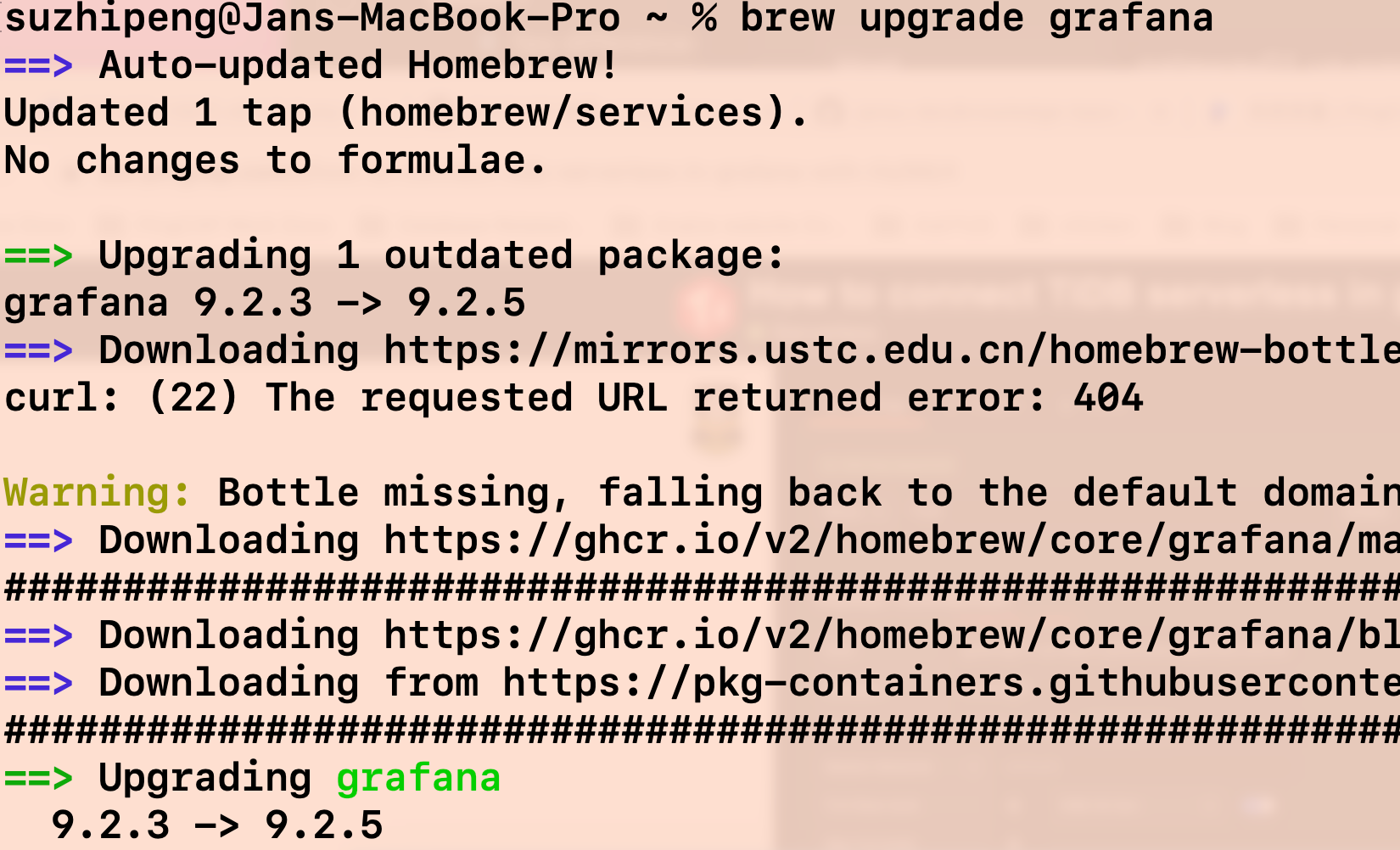

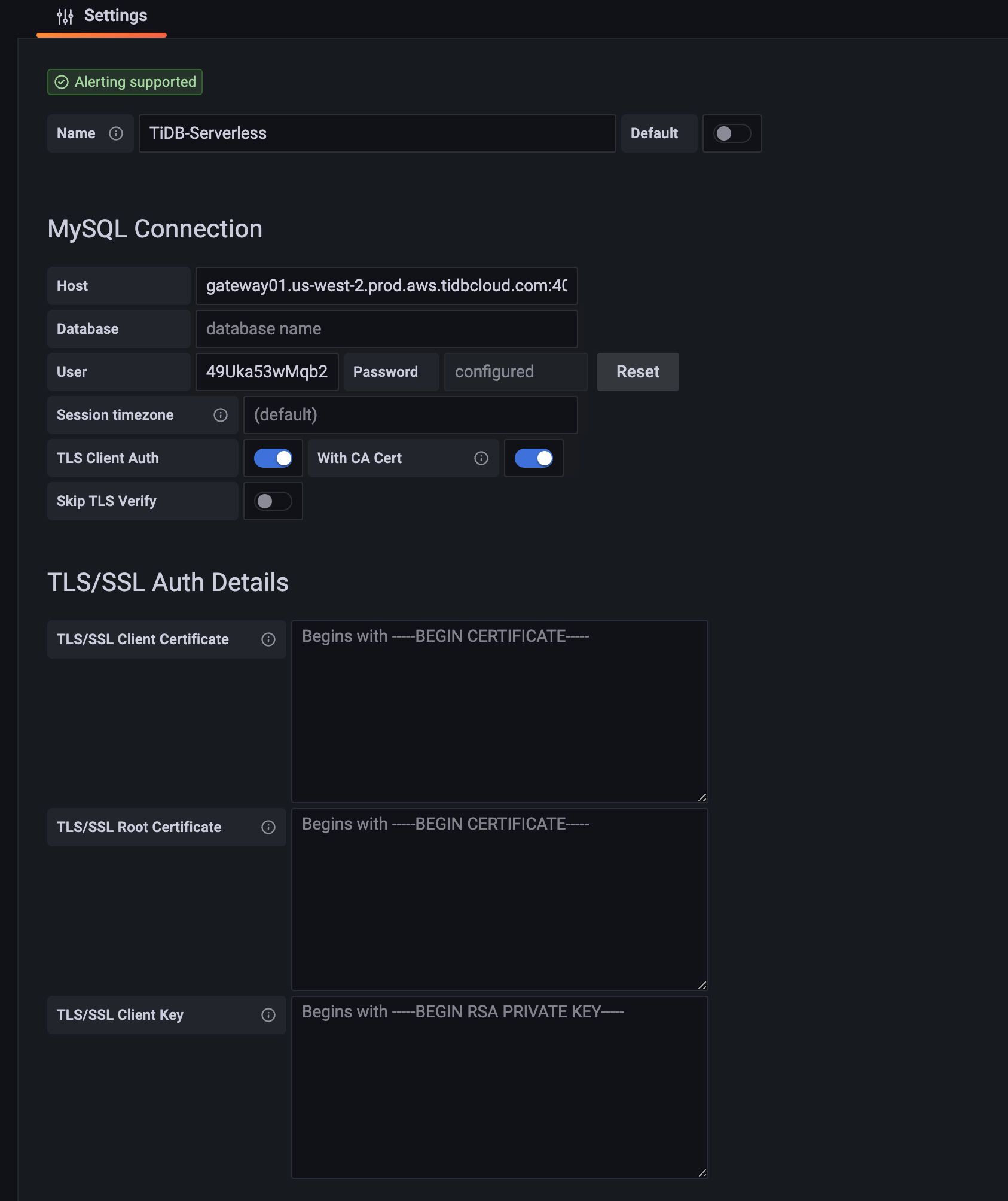

2. I also discover a weird thing about With CA Cert of grafana. And, it was resolved by upgrade and restart.



   image1920×1656 91 KB




   image1650×1002 264 KB
