How to make annotation_map_tile() work without geom_sf()? "Scale limits cannot be mapped onto spatial coordinates" error.

[jonovik]

In the reprex below, adding annotation_map_tile() as the only layer in a ggplot gives the error "Scale limits cannot be mapped onto spatial coordinates", suggesting setting lims_method = "geometry_bbox" or default_crs = NULL.

However, both of those options give errors too. How is this supposed to work? For my purposes it is okay to always include the geom_sf(), but I'm reporting this in case it is actually a bug.

The point object was made by dput()ing the first row of my spatial data frame. I do not have the expertise to check if it is malformed in some way, but hopefully someone else can check.

library(ggplot2)

point <-  structure(list(id = structure(1L, levels = c("fox_12", "fox_13",
"fox_14", "fox_15", "fox_16", "fox_19", "fox_20", "fox_21", "fox_22",
"fox_23", "fox_24", "fox_25", "fox_6", "fox_7", "fox_9"), class = "factor"),
    datetime = structure(1532720345, class = c("POSIXct", "POSIXt"
    ), tzone = "GMT"), geometry = structure(list(structure(c(10.7616530429933,
    59.6799649715049), class = c("XY", "POINT", "sfg"))), class = c("sfc_POINT",
    "sfc"), precision = 0, bbox = structure(c(xmin = 10.7616530429933,
    ymin = 59.6799649715049, xmax = 10.7616530429933, ymax = 59.6799649715049
    ), class = "bbox"), crs = structure(list(input = "EPSG:4326",
        wkt = "GEOGCRS[\"WGS 84\",\n    DATUM[\"World Geodetic System 1984\",\n        ELLIPSOID[\"WGS 84\",6378137,298.257223563,\n            LENGTHUNIT[\"metre\",1]]],\n    PRIMEM[\"Greenwich\",0,\n        ANGLEUNIT[\"degree\",0.0174532925199433]],\n    CS[ellipsoidal,2],\n        AXIS[\"geodetic latitude (Lat)\",north,\n            ORDER[1],\n            ANGLEUNIT[\"degree\",0.0174532925199433]],\n        AXIS[\"geodetic longitude (Lon)\",east,\n            ORDER[2],\n            ANGLEUNIT[\"degree\",0.0174532925199433]],\n    USAGE[\n        SCOPE[\"Horizontal component of 3D system.\"],\n        AREA[\"World.\"],\n        BBOX[-90,-180,90,180]],\n    ID[\"EPSG\",4326]]"), class = "crs"), n_empty = 0L)), sf_column = "geometry", agr = structure(c(id = NA_integer_,
datetime = NA_integer_), levels = c("constant", "aggregate",
"identity"), class = "factor"), row.names = "1", class = c("sf",
"data.frame"))

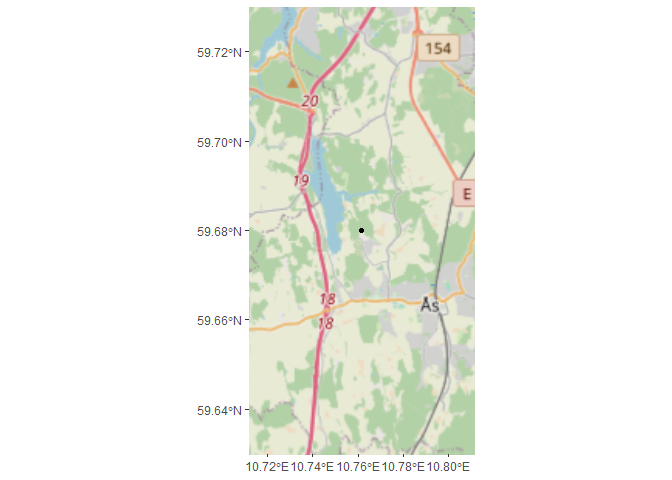

# This works
ggplot(data = point) + ggspatial::annotation_map_tile() + geom_sf()
#> Loading required namespace: raster
#> Zoom: 11
#> Fetching 4 missing tiles
#>   |                                                                              |                                                                      |   0%  |                                                                              |==================                                                    |  25%  |                                                                              |===================================                                   |  50%  |                                                                              |====================================================                  |  75%  |                                                                              |======================================================================| 100%
#> ...complete!

# These fail
ggplot(data = point) + ggspatial::annotation_map_tile()
#> Error in `calc_limits_bbox()`:
#> ! Scale limits cannot be mapped onto spatial coordinates in
#>   `coord_sf()`.
#> ℹ Consider setting `lims_method = "geometry_bbox"` or `default_crs = NULL`.
ggplot(data = point) + ggspatial::annotation_map_tile() + coord_sf(lims_method = "geometry_bbox")
#> Warning in min(x): no non-missing arguments to min; returning Inf
#> Warning in max(x): no non-missing arguments to max; returning -Inf
#> Warning in min(x): no non-missing arguments to min; returning Inf
#> Warning in max(x): no non-missing arguments to max; returning -Inf
#> Error in `ggspatial::annotation_map_tile()`:
#> ! Problem while converting geom to grob.
#> ℹ Error occurred in the 1st layer.
#> Caused by error in `seq.default()`:
#> ! 'from' must be a finite number
ggplot(data = point) + ggspatial::annotation_map_tile() + coord_sf(default_crs = NULL)
#> Error in `calc_limits_bbox()`:
#> ! Scale limits cannot be mapped onto spatial coordinates in
#>   `coord_sf()`.
#> ℹ Consider setting `lims_method = "geometry_bbox"` or `default_crs = NULL`.

^{Created on 2024-10-05 with reprex v2.1.1}
