Merge pull request #4 from coldacid/feature/databases

Add database shape

Author: RicardoNiepel

C4.puml

@@ -18,6 +18,11 @@ skinparam rectangle {
     shadowing false
 }

+skinparam database {
+    StereotypeFontSize 12
+    shadowing false
+}
+
 skinparam Arrow {
     Color #666666
     FontColor #666666

C4_Component.puml

@@ -22,6 +22,13 @@ skinparam rectangle<<component>> {
     BorderColor #78A8D8
 }

+skinparam database<<component>> {
+    StereotypeFontColor ELEMENT_FONT_COLOR
+    FontColor #000000
+    BackgroundColor COMPONENT_BG_COLOR
+    BorderColor #78A8D8
+}
+
 ' Layout
 ' ##################################

@@ -43,3 +50,6 @@ endlegend

 !define Component(e_alias, e_label, e_techn) rectangle "==e_label\n//<size:TECHN_FONT_SIZE>[e_techn]</size>//" <<component>> as e_alias
 !define Component(e_alias, e_label, e_techn, e_descr) rectangle "==e_label\n//<size:TECHN_FONT_SIZE>[e_techn]</size>//\n\n e_descr" <<component>> as e_alias
+
+!define ComponentDb(e_alias, e_label, e_techn) database "==e_label\n//<size:TECHN_FONT_SIZE>[e_techn]</size>//" <<component>> as e_alias
+!define ComponentDb(e_alias, e_label, e_techn, e_descr) database "==e_label\n//<size:TECHN_FONT_SIZE>[e_techn]</size>//\n\n e_descr" <<component>> as e_alias

C4_Container.puml

@@ -22,6 +22,13 @@ skinparam rectangle<<container>> {
     BorderColor #3C7FC0
 }

+skinparam database<<container>> {
+    StereotypeFontColor ELEMENT_FONT_COLOR
+    FontColor ELEMENT_FONT_COLOR
+    BackgroundColor CONTAINER_BG_COLOR
+    BorderColor #3C7FC0
+}
+
 ' Layout
 ' ##################################

@@ -43,6 +50,9 @@ endlegend
 !define Container(e_alias, e_label, e_techn) rectangle "==e_label\n//<size:TECHN_FONT_SIZE>[e_techn]</size>//" <<container>> as e_alias
 !define Container(e_alias, e_label, e_techn, e_descr) rectangle "==e_label\n//<size:TECHN_FONT_SIZE>[e_techn]</size>//\n\n e_descr" <<container>> as e_alias

+!define ContainerDb(e_alias, e_label, e_techn) database "==e_label\n//<size:TECHN_FONT_SIZE>[e_techn]</size>//" <<container>> as e_alias
+!define ContainerDb(e_alias, e_label, e_techn, e_descr) database "==e_label\n//<size:TECHN_FONT_SIZE>[e_techn]</size>//\n\n e_descr" <<container>> as e_alias
+
 ' Boundaries
 ' ##################################


C4_Context.puml

@@ -46,6 +46,20 @@ skinparam rectangle<<external_system>> {
     BorderColor #8A8A8A
 }

+skinparam database<<system>> {
+    StereotypeFontColor ELEMENT_FONT_COLOR
+    FontColor ELEMENT_FONT_COLOR
+    BackgroundColor SYSTEM_BG_COLOR
+    BorderColor #3C7FC0
+}
+
+skinparam database<<external_system>> {
+    StereotypeFontColor ELEMENT_FONT_COLOR
+    FontColor ELEMENT_FONT_COLOR
+    BackgroundColor EXTERNAL_SYSTEM_BG_COLOR
+    BorderColor #8A8A8A
+}
+
 ' Layout
 ' ##################################

@@ -75,6 +89,12 @@ endlegend
 !define System_Ext(e_alias, e_label) rectangle "==e_label" <<external_system>> as e_alias
 !define System_Ext(e_alias, e_label, e_descr) rectangle "==e_label\n\n e_descr" <<external_system>> as e_alias

+!define SystemDb(e_alias, e_label) database "==e_label" <<system>> as e_alias
+!define SystemDb(e_alias, e_label, e_descr) database "==e_label\n\n e_descr" <<system>> as e_alias
+
+!define SystemDb_Ext(e_alias, e_label) database "==e_label" <<external_system>> as e_alias
+!define SystemDb_Ext(e_alias, e_label, e_descr) database "==e_label\n\n e_descr" <<external_system>> as e_alias
+
 ' Boundaries
 ' ##################################


README.md

@@ -1,6 +1,6 @@
 # C4-PlantUML

-![Container diagram for Internet Banking System](http://www.plantuml.com/plantuml/png/bLN1Rjj83Bq7o3zmlOTD0IN60dlggOvjD6bZHusSfdiIg15j3pgQ4MP6Tet5_diviYHBSO3kwgIXoCT7yd7qmNcqlYhKvSLlKWjLvLHP1LllI_T-FBQulzb8lwsoof4LHdlI_aQOOlma1ThSB2MLfCRJlwvZXTe_Bnx61JfFbatfbFrHQh8tPPtX3wWqnnQC0NvBi3PAcRtK6r3i1QXp67oMrl6R0SuDoWXKwX10MgBmHehBYuV9tu_FgtJr6AUpnvSb1pIMIP8cd-UhwLtdytA_kaiVvX_dorc8zD8h1cqH8PUuiLWmJGltNBdLvE4MzVV0E3bmbKK8Yyawewz4vRmfo4OmxTv64sZDODPrKHd7Hx3dda9P1wAgRO12c4fxDteNG8_mwIsRShI7A_4dexqcCNe7_rnU03yTwQizPIcM9Nk_K0QJibGyA2-D7h7f4-umWgIqeOB5rscmpKZ97JEfsR4Ql1JG3BgUI31tYREs-dWIU0vJkvB1Hmb_LtGTuuP2-ZPj8gmiVGGJlQaKsc2EhTd9d1pmODzEisQz1Ewef3y49OYgRgQ3dSGG8YrmmP1PisTzdbCgJ2OLDGrPr8UMrFJt2BvXWToB8HaMOo4zvU2gp36PPd3_XPmxOtSa03djfA1pVZbwpD1Hc4Fp6iWaNnvWSFR6ChMmWs1f8vsto9b1QjPcKOytWYqxvu0LAqjOodb-4fMBWh38ELwW3H_8Yvjp6XcAxwHpxfCCeetltnREpB2RFSKD-lQB_eIMC738_MzFuFCV_eeAb2frjO4HvzSBFZSB5bAikFkoHkTTMKXXZJDh3_CVOekQLNQC3CWzq8R52PP1zPhNcLwjSA-_GOVDj0KRkafwRGRCJELFeuwwlOs0Xw8TrZNtEdrvyKIgTpkS5lJPaGlPxrQhE0ckGyVZElt2QI3mshTDcIv9RhQPwLq9HyHsuLkmsZfKG9iKtK6B23ubZylnW40_xVyBJM_P_SJjj013c2V2tC7QcgA-XFQMDvAlA1EW6-JPxVHKR43jjUMLf186Ta3NmLgZzBYyaj-GnZ2mSk7IxHWaYrNS8dK53UBFHDXs9m2CcnPzutzcrw4F7Ci_ify0 "Container diagram for Internet Banking System")
+![Container diagram for Internet Banking System](http://www.plantuml.com/plantuml/png/pPLlRzis4CRVwrCStBVsxAHjcXMEKVzfi1RrvatUMg0jYhDqbebGf43ISTobttqKJQjIQ2FTaAAJtzXtl8S_FZoTNsY3ognp7kah9WfKc4DAIrnpCwSRC-Gi4pa90ma9GwgsQgEmUCjIiuBJNgyMp_5cIbfZHZ7xJ73oj9vKb1WK6IVuEmBxn5QJfDaMT2c5sHMSkenUOIetJ6ImHAuf-b9J6IebDrvXBBbKyEZCFIvIAeNHklwNGqJz_aAkHOfgEnZiwPeCnuXxmGPtC9wunqL7KgMaZiLZi-K4AUeLfSSe2r9Q2iSOydZXI_TK665qXCbLfihp-bpl_Cdfir68s7lsU7HsUOp5TWWfWVpJzu4wEoy_8TJviFmSWz9RRIX_Q9QJaxFpqIHaUJn-TZdktMlGzu7wsJtVP52A1XUeVxm_5Sh_mvxmpX8hZaoGUcYS9u_F9vEd_yQY7qfZP056ma8Q8oqHAorYKaGhbXBe2YBYb958GR5iPQBR2sWyzlVSBeBRwBRlXyp0Ps0tD5pAl-fLQjyOzJM-nGPkmQvXNDnVSr1RN-DFkwkjBBKfIxxZZmmpd61SvLA6MNaLIwdWbIWboLWNXRsZ368d7LLT0wsBY_5QMwD8VH0V10mXyJz1Bi6i21Qsj0qRPbR-KCXT3319xBKOtOBQS4TT2JHt2L3UxrW-jg3-3-O4Jdp7D0JUqWA6HS5PWeP9ozhjzZNxJCzFJWVlN-CrjY4kLAay_MlyiTyjSuDkrvrgGfnTMqHt86siGEBS9640HUh25U1YxzLis89c8rku3Iq-OL64V34hltLcc5796VB5YMA5QSDGP6kEwWxYJCbhbf86vFmmpt8jN2CZPsOBHbgZdSyQhXcM9KoLTB1GSgD97M3N1ORSKxbW_03o-54Rtc6EYecZgC1PpWobeDSBRL7byflHTS2Uxq1IkcO9XVG-NvdlHuqxmyH_RvuW_lqDx3DtZX0RgKZ3MfC2HHdJHg7b0oQMKkMkmTgmidKfuDgi856KaZ0CkMwNZKzQ0vUP_K4c-Ic4hUX2luUpL_VryKGcLwIgT_fOgzpZixFMxXRIsVLs0v5QBvaTc0sybvqfCku7XTjklY9Wmi-cAKkKr79fuELDih9LvCTL2yA_HRSNvSZsaUPMTYEnL9ZJdV5Klo7aVDzLYGrK9wrT5A0T7-PhIxMhoTG6er1eT9xukphAwPNtf7ivw7G6-vSUdfVO5tzgqirh-sK-dyLVRwdLhDO5_hVAMilN15hH7gUXxMUSJTkOgwxTyj7zKMz5qeRNyM-_TWEMslOFebUziltE0R4_25CDIoLpDvCtYXdIO6Hp0wy_6OqFkMQLEusEyzen2QjDdJ9JQhQY-Y9R5G05HMlDH7Q89PxEPtMMkf1rhTbNeN4rhQvtxztqJMZU2wkvpddq3m00 "Container diagram for Internet Banking System")

 C4-PlantUML combines the benefits of [PlantUML](http://en.plantuml.com/) and the [C4 model](https://c4model.com/) for providing a simple way of describing and communicate software architectures - especially during up-front design sessions - with an intuitive language using open source and platform independent tools.

@@ -75,13 +75,13 @@ Rel(web_app, twitter, "Gets tweets from", "HTTPS")

 * System Context & System Landscape diagrams
   * Import: `!includeurl https://raw.githubusercontent.com/RicardoNiepel/C4-PlantUML/master/C4_Context.puml`
-  * Macros: `Person`, `Person_Ext`, `System`, `System_Ext`, `Boundary`, `System_Boundary`, `Enterprise_Boundary`
+  * Macros: `Person`, `Person_Ext`, `System`, `System_Ext`, `SystemDb`, `SystemDb_Ext`, `Boundary`, `System_Boundary`, `Enterprise_Boundary`
 * Container diagram
   * Import: `!includeurl https://raw.githubusercontent.com/RicardoNiepel/C4-PlantUML/master/C4_Container.puml`
-  * Additional Macros: `Container`, `Container_Boundary`
+  * Additional Macros: `Container`, `ContainerDb`, `Container_Boundary`
 * Component diagram
   * Import: `!includeurl https://raw.githubusercontent.com/RicardoNiepel/C4-PlantUML/master/C4_Component.puml`
-  * Additional Macros: `Component`
+  * Additional Macros: `Component`, `ComponentDb`

 Take a look at each of the [C4 Model Diagram Samples](samples/C4CoreDiagrams.md).

@@ -114,13 +114,13 @@ The core diagram samples from [c4model.com](https://c4model.com/#coreDiagrams) a

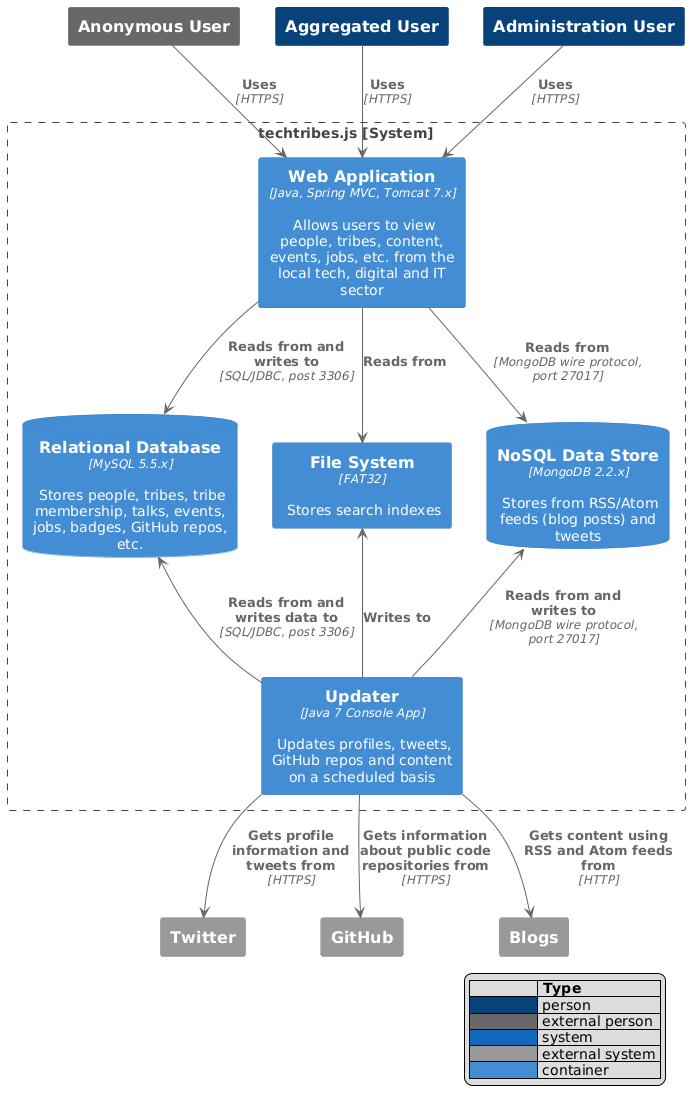

 Source: [C4_Container Diagram Sample - techtribesjs.puml](samples/C4_Container%20Diagram%20Sample%20-%20techtribesjs.puml)

-![techtribesjs](http://www.plantuml.com/plantuml/png/xLhxSnev4lwTlwAN_92u2h-Js9TrgEM1O-zXxEDnlhqaHOcP1hGPfBcHnfYxtFz-qWZaOUIfAI3hgglQSHLCfEwllswrMe_mYv0aal4iABs61Wzu9DJBgyAdLFh9np5b2ArswwRLwGylRzL7uxPzsuLNbybJKaWzkGWecso8sMyrhZe6iNVzpnOSdvHAuXjb8Od839GGYGFPnqTP2-Y4pP19yDG7HccnUKJ2U-hBAPmS7QNQP-Jn1eKW4-pHVoCSlpjAQqNeIS8c0S9_Ig2Uda95BXSXNd8cZSP9qYEcnETpvHoCII2mzDyqJ2sA-Dn0cB32g_V9axHeABSrRK23kPmkBaOyPZw95jNgYb-6HGxd8yT2XiVRv4bQwppoCSfhroEAu1CnHL_JV0rjik2nt6o80wuOjsk_tGxwmrflsFjhgz-uIhay8jwtIQITNV9ejLhrPYCbCINCdqTKIcGWenZT1D7UTSWCeTpWC-f1Zp01DxrooUGAZ3dNNnTZhlD7c_aOeL-z9n5JyVnmSQWxgj28a4ZqbNW4FXLUB0Jbh08CqHSWEOmG7aX0VIrL-WcP_-IYzNVbQ__sRjYylUyelJ3HvL9onPZgCLQmMVbswx8_x5v_kkf3W6EfLI8wcSgKXWfytMG5nGqdxqfnyGQ7oWCYAe33W8mms4jDXFB7ZylMCgnb816mr2i6r2yw8vy7Xi-czsk-1ULP5mEYNHPJ6cxeg58ThZWTLrQW9slqR4W_bijxi19ETrWz-A39sx1iP4QYDsKxsVl23WylX9h77pA5ilfv2V_rub3tLmyFosinKDp64PzLb1XFZVMIjjjLWVB-VhMyLuXX7NF1N1cBkXQtkfhoRuo2qNO9kdsQuSN-lcPO3ENoB12ou6le7LGpSCIZROAfl2x2sZwepyVKsjWok0gp27Bt86U9DxS9hYwiJeIRkuSs7vlFMJxH7DF542x3GZSouHji4xx1dUFWOFVWvI67-HJpw1S3EDm66uMjlKtOz1BjkDVUFN3vs3YM-KHpJ1T0v31iRnI-xZRXqviRryVkZubV3hWgNlaHpFMZ6CCbMUp9qmuQhZ08SUC3c5AsrI61vNlBMWlxdwVKzv5zRUud7MiwWmATmJCwtGATxZCwxGATzb8dEIvwFCGFK0D1ansYu6Cv9v5wMGY9imCbSXVH6OaMW07gWv_u0Fsf8mYKWT1OMgCNXo6Ff49CATqX3vK1mloihbZkhOC5U9mnzOO-I0womCmrayXy9KjYdoBpb1-j1umM8-ulAdgZFuLanAb7WiGkusp_gILC25KKfA2-8SPZcRppyRfn7nymuA7sH44I5PPj3-zthMxljZEiVrgTt8_EtvwSrMr_wn_zLhTJQmyTmVVd-iyAzdxhzLitgVxZu_VdzQOBv0Z-9NaslIl8EHxhwSDPjUeUtkr9rxslI4GB1UgP4sac8kx9-UZijFx-ClSaZu-A72F1y0Kvsr4e97zUqt-vv4twlmXdcp1vL4yRPvUDe-8ulo1dDzkBuxpxFShzTVzgs6vzQdMQfQck6yAwM0fmWimtTmUbxnzXxL7_xYiX-5xwVf79ZEfI0aoM9YBMkppPLSZJIfb8L1D1CoJhe5Om3zGgAOUCMywbosjecKA_SJrC26zm6s8yNBkfA0BJBpuABteUzGlxmbOIEHQoV8UjHxa1PpiZYibhv5qSA3HdxVMIKTt02pkTNV8MR2VYhWMNxxQHBoQ_Q-GBpMr_RMWfRdXx29-DNlubt_Pxm0PdaYXgaO0vbLFAGBxShj2pndFsWVtCBc-RJTxFIiaBObyJja8aygPKAZAYib9GB0okUZEtfOV2k0f2al5u-yrYGorwjUjEgvlQlRqzFMyst_sWtPkDuuiiqjQTuht5dylpvikpKd8ZR73jEFynYxYj1ROkEQTkfq1jVgyEwNnD5x5DUDY2lZkXJF5toUrUzgr3crT-gxfXyRTUv9NzMSYPVa-NVQjKMF3JwyQRueK3zo0COW7XTik49PkpJFJSigvjf2hxBiNxvkwseyfYgdYVlwlNBuz-KF6stkrMl5yT9KzEnRO-v5RiCtMUQfx_NrNiFoksdSP_UCLU6N8gjiFZvIjs3hbIvgS3fTVExoQUoTTIANM28uopnOp7OXWBZ2fGhgqQOA0QodjBuJTaCebmGYJwLjAsP4Nz6MLKIBF9jE9hhIkLKlR0u1qhMHqE6T4HYeFVHNdF50tzaLevvpWQaZ1KqlSuWbeO1jHBeCkgwLVoG2hG2oDTqs_-tgX0dyzKDvmTFEh-MX3mkG1DJUWY_41nRkzPZULAajh8P0NmGNsfXj_vI8-xz0uWkQZMfJlWUlEk2LV0fnCgbrUurtqGw4ckdSmmZp0O-YF5OlMh1QNI99ACY41DxcRH-riRtXsyCrnx2WI5moxvXXdEHig7ALM1KAQ_YIpR4V4dMlmJbLVn228C-T87bzYO1cYcl39xIOFLSKwpkAprJqzIT0JgfGWey_4HXOl5kFXNeCGxN3kZtGEjQHnKDO4twt1oS99sqGIrs-iTrgHw6IFw0jwC0Zu1HLgAlIImSeuedp4OXpwHIQODpDig3-1CImaUeCwIiXLG8OruudB5W6QYfAsjSW0u0mB2cw8V1-Yhg0ggEEZ597KebtCg3OM-ULCIgMwL7DDOZxknijwftHIghww_jNSbbHtEz7nA-e50eNsvwlVlUafUIwVdQB6uCqyBL18TsvrAOkAReKi2De-e3gtaMbKD_U6lpNgZaWmWd9uUlTUsqpZfd4jXPSLCEgKbqeaqfn7gqPJSuqegETAUd1qTdorf3mSsFOg8AobIm3u5b-5_RvrtvAm3UU7Qm9qdrAUC-uJI9ZHGDkRHp1HQEsUCrMmIM2YRdHff7M74OmbXF58L5ZpkevaVLFA8OW6gIMi3QYTJhBVmUg8dvEnaNuVIlfh_M3GZbWwrwle5cH_FWly1 "techtribesjs")
+![techtribesjs](http://www.plantuml.com/plantuml/png/pLLjRzis4FxkNt78lco04x-uYRCYDUeNk5sn3btihX_Q8g34iyIM8ZMIgkEk_U-ZICKJBGjRaHOT3KWGUVVSSm_lpe-r8SeK6U_ezqpaH94CA6v8mSqQRysKiqHaA0p4ze6gPhLL97_5g4bXsE_NzZDo-nor9Wcks4U4mNdzK65iY4WumbyTi6jbCL6QNOvBAOnt6BeJdH8gjqmai25SO-TpdI0n92BwVY1JfUIsGfXBBXNySE6MsocHchjr_C_7qhgwYcGXA56xoUIENSYXZN6_4U20nWEttEvCAeggRNzbTXo14fqYRMEPez9IU8uDFXNmqgs0HhWx8_7xH9NvLcVzomV3yQn9iJyUpIwMRLnicQ4IXDzy6r8Nb-MlIUfoMlxQIEcTDfXzRIw3mSNbRD7aCfgFb_F-lmhqRKZzx5QxGCt6-zxwX5J-9_A4TnPRSC84ggzDvy7eSh4u_nA9lYiR8tCm4Y9fZBICM2aHawAJCegWzoGw71CK51HBKjFvz0Y2PR_NrWW-TJvTLKDcKfs07nh-oBVw_kYkC08RNs8JP-0Bnk_xQsxu1ZO-M--xbzGUMUQUVsTV0N3owD5KIB7BPA7XfKPr0iT67T50xink2cjs094a2XDYaEun0jVzyJ5VcZ71j56aLFouVs1o1CDWd1h58jHdxpIyNZantfv0y3zdWUA1Bolt211UOGJJFESiTZ7UY5xlIhEF-70mdBn-HZwGBgnonKG2p_-OTs4jCsi8uxFRjrUzqcxIwxsnNZ3bN6urb1HrML4V66uXHvbpx8Ads7MNWi9q0J_Obzru9oFxH1EVmKR934oAm6LCE9IPTO6oX1dxHGI5NzQWBNDfLGexXcZOOdH3yjobLxMLo-uQkKlBGYogxJ33vxlLxx_2-Tbv8w6LZOIwaO9xGuPPX4gdBBSxXB_NXob5X2Qb-HDcdXOHACnbbUWHzWhv3OsQTxDazktlD6IzdAv7m-DyDH8Lfy04nLlKHu9jBAXlcePQlqahXXFAenr89KKY5pCOdWrRnF9tUBrQzQRbDDaWKWq_HbmcODCt-YTtZsQBQ8un4rB_oPiglCmjHrJDoeGnpANGacDPmGUCl9U6N4cNSRUA6rw98rHL9KW117IS8YquKh2gi6Cq2y_73i-0vdhBZ3aO8rvdxsRyUUZakRJw9CoaHHIwpAoSkjKZAayxuSY2qzF9NOV0GujXDTMeGq6VhjSlLlzeUDAfpQvxW0G3x1v0bODpzkrI-LuZeRxmt5rk5IjltSWGpzPrxzbYDk-wGeJHg7_HWbxhZqQ4mD2NQyFcUCzicSAo58sC9Iz9A0F3SNymhhEe2WjENxxuJrcwtltIL8CWpMHVtUaNMeRPjcj-_znjgAfJgc1FqEox69ZOI9MvOghD4aUbjO2Q0NnRrV13t4WM1l8YuYo6M5Bqeu8PgHX-QIpVaBLG-sbJQ2QISbYwHFO3ior07RygZTFNAQCKnTlhq_fKVuo25Xd_6m00 "techtribesjs")

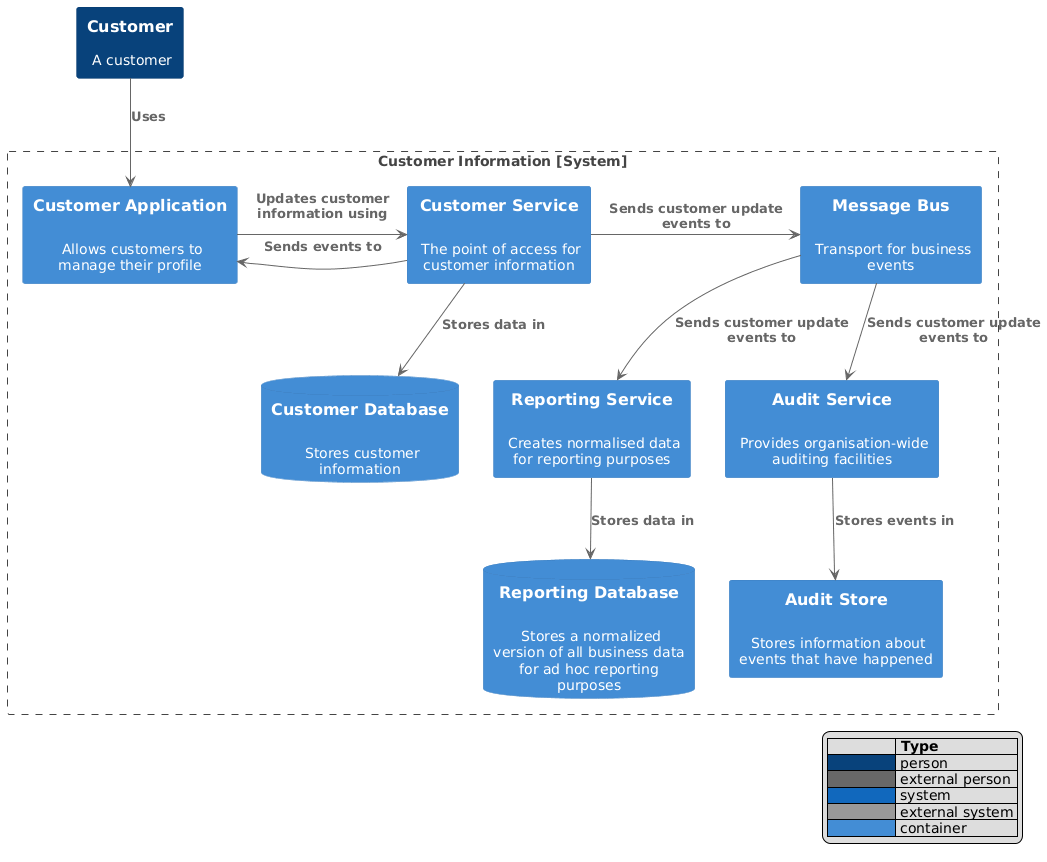

 ### Message Bus and Microservices

 Source: [C4_Container Diagram Sample - message bus.puml](samples/C4_Container%20Diagram%20Sample%20-%20message%20bus.puml)

-![messagebus](http://www.plantuml.com/plantuml/png/xLfjRziu4lwkNy5rFhG1d4tIbpRNIuprYz9art6obeFUNbiOj4JRH6LI8EcatklzznkADakR5WJPtG07h08a53dpp3D3SlWI_I8L5ce-IuDdgCrJBYGK3agV8FWf8MFA20gxuKtO6mmlR-5N-xPxsqS7b_aJ05Aa5YbbaugOWx1zrJE8qVM_GtJw8WZa5yeoBF0CWH2Ufsf0lgfcIYTiHfX2CVmYmXLx53ZxG1CrHIzEJfpw6VvwGwJ44nBHFmawVNtYQWaIAymcAK7_2H0y4Q0IhXOPkUHC6OqNUOkSueG_WdDeZ5D9Wl-wC4qX-AE1C6551s_o9w_HK7wjQq23-PpEpqTypX8i5et6Yjy6YmBE9vw53HwlyYUlRN6H455KhtkKe0JBAKaqpMUeYnTyhgfrSSg1SRVvn-tzODYCXj5luQ1zvRWyml6NYT3EBdc4OTZgj1s9AMR9ew1A4OQKc1D_W6ZlUdX6KAtDPpH64MOItKIrm8mLDEPS_paVSpr-j9aBGPB61omOnFFT-R5kQA2s85YH1CG5IgYCvr9Ipkg84P98f3WQ4VI0KvfegU0dmfBlBbf_LxuERk-6dTiFFT3BSbsk50V6LFSnm6xATyFBmR1__VvgW58oLbf5qCbKEHeG-9OP5PHKdBmhnSLpCWGFiAmZCapnYAI7paIeNLmiQsjeRGHYYPPwvO2we4VaTc3qqRH-BhO0dlL9YhNBSagpYew2wd35wRI-0dsnHi-6zA9MEqGhORV1wg5tchmDIoKpYiHJjfUzJ-pu-5p2F7wtaIWR7vVmdy-FTNlZ-BYs5WFWDXPyLWSnxlJrahRVL4UrewD6xR0KmphcW_ao5dKjRYsOyi-DWj7s2Vfjck7vqP5cM0xbyomHik1hw3q2Ct34nIx11AyBiVOFwjQOMXix1XSmIo3t3x8NuyukmTM9rOjmP__G5cFpHrP0jDYq3r7EiDIDZV3TxnA--plFmVlzWrU4d1LGB3Rh0vHpkwyKjkukOTDBjETUT__05MEJiIeWMcow0AA4ORTI-FgxX4zlRdmV-pyWViNWaBmA8rZiXuzHJhBSa-yxQ7H5qenKFe21iiqEEIm_HEOD7NsSqYGXx7FdA6zOqxalqRdVejClqUblqUcMw7INElbnCUOPUOUQID9yXoZvM3rY0OM5L6JsCuZS2Jh3Oe58IlJ1Jxv3WwadY2X3KcDfZMYUPLmeG7IKxWZFm01coQQkNEwjqmMAEMDG8WbI7AaICzTC4PQ0B9udbB0O_0WVY5YCUBAewut-5EKzJcESvdOPPqVVQxASK1qW9KqCCJvNUPcFruqdv86aFDEU02I6iEnwUByB-z5jRzXwlpgvdvozUl6sPTl3Vmt2Vg_P7Ng2RyxqZnMC_eW6uOtJVdhwvgpLyO4ymN_aJzMxWeBZiPu-d3KQ_k7TddJz-ufSj5IWjN4YtOY8Vt8-UVkozUQoy2HFlW8vXjFX4tAslL1A_gofVmh9c-7_59pjo2ga-hBzzh9zKXxd9-JiZ_RoEEz_Z_BXUd0rx8RlmrudcEgy8QsBGKecX2NcxY3uTe7M7dWVW13w5dmxtnWPZQK4CgCq5x7U5SckGkugRKIYaGkQBba7jO95e5O9739kUPSkpr1e4dtbV9WJhd0ROZnSkwae0zE5XCXOR4Vzn3wnbKIHXGqJm_2hgi3Popmkj8-yZmEbvgozAE_L2bxOwUoJjs1x4VSj-7ntZNmv-NqZNsPkZsj3Ix7YxI7wQFIAB_bstmEsELCOg0c97gcQKeRKq-qAOskyO1yusDZbxRB9-oSenIb00c4hX4KyfGh8oFfA0LWON2YPsz9ZQLn5Kk7nUFVDOXiMlUPrB-mxkxTNByywdTS_QFTcu_WaYxHrftnlyVVoN7rv1YK_mWRNzlDViuZRN63padVgzX9KzNjrv8vNDubLuM4J-lw4tEJlazihxNiELS_yLhLYyhTU5ANzMSQPBhjftogL9dnttNXUld2GGvIbSucotPO9IxPWcOZyjAvjE9bzd-HzStVRWxJe9E-prwtMvSaFIjxMk_sIzy59_XHaREj3OSP-2-Ufpjd_LSR-EsFRQVoNP-oL8JzZ-poUD6CNamisFXq8dddVJMmPhq6mF7x6SwduZ8WwQjjIhObMrVeVRvlR-VWKH5RIaAZ6NCpohMJj4AQsddFEseQpp9LkPbbAOoCDzR_Y1mpkqKpLKPDDvYaMkhgPflnHMX9IfyWPPdX2TAQa0cM2ZsbAWDs6kPNAK1BnG6FYsevCrSfk7KMPqEc-nRdIbVgYEEEKARtPnd5Cf4JWcwM1gEEgPtbcFXeQZkOIi6xC6shDfORkuz68gflVSpC2CwcNcXmSn2dJbiY3dXa-hY3BPSbngR-gSttgpqSB_TTya28HqrnJAac24gnmRis2eMmkCYx95eDwmL6EiQP-Tmsr3uv_xeK3NRmJ_84cO8oB2MPKvh4vUeGgbCEO3uzYca8HR1LtLp9oUwe3V4TOvjPk1OvJ_KbIhDyYnGMHPLtYXGxWtQYv-3UBwFUk0urNWVkJ9EY120dG-O18KzjPtmEA4pJbSPMuWXKdglfD6m-Xz-shvU9uX_28pzLob20rnGfDyGE1Nrb664d07YngVP8wCzhClNjWep6l1eExIDCo_tRA6xTCb_iCd2i8CTB-JpGObWiMrz6li1uThm5tlIcuuX4HbaZh0DSe7yWeul4Nea3RiFALdNbbGIotUKxM0Srnjg0u0ys6r_GYDOceqselNLYVoTkcNoa97yPqVXM87CEpxX3QweenlM7D7NbMmzWoEe7vvvrdROCt2Fu2lEUpz7y0 "messagebus")
+![messagebus](http://www.plantuml.com/plantuml/png/pPPjRzis4CVV-rCStBVnx3mqoOh4gEqaQukc3v67laY3W18l4X6P94ZAgRVqku-K55aofMx6MY0qOC2yq_z-l3iVzLeReaosI7lwdd5955a0nJkIfMQEtymaPJ5V83SGsIzKDQy7HUGNHaq2UwDHRNz1lbsYrYJ6WFs5iFkoRbGO6SBZ5E7l7jWLM4qKPYNnGd1JFB2NMtH2g7XWF8OxachiVQy34aD2el-Vo4GfyL0gp4Gg5Bmup5U-uvJytRh-zxPZdPo48kEKgDLu_4JNPEWY7da1DZ0EyfNlJeMYgBhs0xDA4IZH2T8kIebA2rumUZoby4M-AWn_TqgY-rYvyvQsqV71tj7KHnmTxKyFBxfOR9kXuYIz_JLGXyVkuqCTJzod2qgljC75psRPtJqydfxvBFkpeulPw5yJz6kWVizNTuByFzvpo4-9ydpIqwnPPCK9uwX-Dix1_l7PsSjjKlGCQBQuBvpH20b6G2YC4VOOpEML2TvB64NG5NalnHWv1SNYnFGUJw6nxE-vTOB7tkD9EPd6fGMAILEOYlbGcPwwgU5JzEKuToYwhDWlUiDxjk5JfAXujgg3DLdoWh-tlXJxfwUpJDj3e_hAltAOG5J-x4DjQ1DTxRS_36_vdL0Buh86rq5ESzE7nktaH7RBRcWNcKYPiiY9M9RXy4JR-hpQtHjVloDBeYF5fDc12O-pbAYRaw4pZuV30ZnDnSEQKhjoBWWdCO99a2cGIjon5FlGR4uBHQJy0LE0QiaYz7bs893AtR9J8Sm6pJn1a89n0-8EI1IXrc3pK-41MwVB9whSRdKHtCSh6nYccMwINP4mPERoyoQG8bnBeKoE4MQQSSU4I-H6jn0i2lrRw-a7lqAdP8_UdfohB5njX9yf90OrS7Veb6ca-Qp8OLIb9ZCbXSOsdigfEoMJZ3BJJZHxCVpjm_by0-gJ4aj6BPLGCU5CvzKOFDWj84whU8EAMCeCQuCgl1f0vG1iTj1PkTba-gX8bBhNhcW3Ap12eTwwLMZe4LHrwa2uN0MVtxT79sMfh8N24fMsqVDUJjDrzrGb91GI4MrRIHfs5j51D5dFbyXBGpjnBKr0Gf6Pihd19CH0GfPelwH4ZhIxb4xAtY5LxWS3QvKINZcsqpyrwYRLc_dyKx3cwVUSy-3gxHzlveEnzpT-af6Kc8uAWyjjt0n2z8f7E_0k-FXXw0NqOWpUdr_C6zW1SgghR8Yc-1SC0n7Te_cnQ7ca-bneg5TdoVB3hQErYTLJGyDIfoXZqLDiS_oVJMTrlZg5LVEdmtzayuIADjXIn8_UPEeuOh_NY5QFx_oQpvJX66yDTvqmIf7VN0qsPj9hovujqdy0 "messagebus")

 ## Background
