List of all the states

[jlpouffier]

Hello,

I am searching for a list of all the states that can be returned on the mqtt topic teslamate/cars/$car_id/state

Some example includes:

• online
• asleep
• etc

The docs (here) only mentions 3 exmaples.

I am looking for this list to be able to translate these status nicely on my home automation platform.

Thx !

[cwanja]

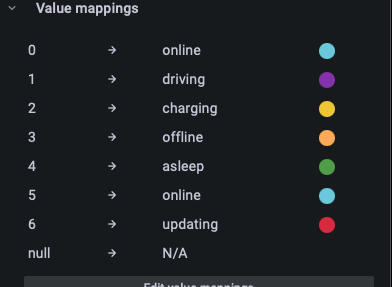

Here is the legend from the States Grafana dashboard.

[jlpouffier]

thx !
Checking grafana was smart :)

[jlpouffier]

I just marked your answer as "unanswered" because I just saw a state that is not part of this list on MQTT.
The value is suspended.

It happens when Teslamate decides to stop querying the car to avoid stopping the shutdown.

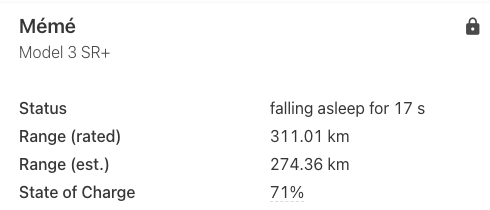

On Teslamate it looks like this:

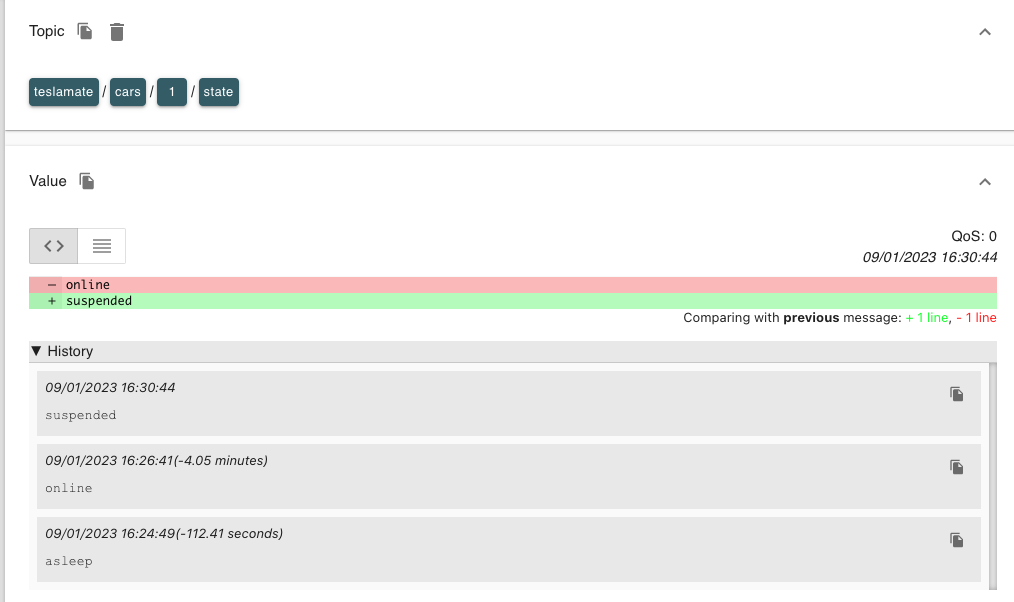

And on my MQTT explorer, like this:

So if you have a better idea where I can find a "definitive list" of all the state that can be returned on the topic teslamate/cars/$car_id/state that would be aaamazing :)

Thx !

[jlpouffier]

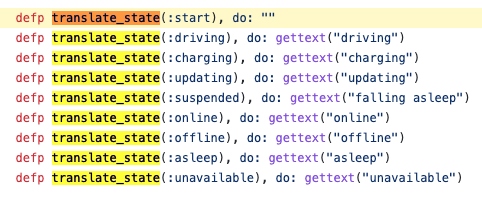

Maybe this file could be the answer?

I see 8 states:

• start
• driving
• charging
• updating
• suspended
• online
• offline
• asleep
• unavailable

[cwanja]

I just marked your answer as "unanswered" because I just saw a state that is not part of this list on MQTT.

The value is suspended.

It happens when Teslamate decides to stop querying the car to avoid stopping the shutdown.

On Teslamate it looks like this:

And on my MQTT explorer, like this:

So if you have a better idea where I can find a "definitive list" of all the state that can be returned on the topic teslamate/cars/$car_id/state that would be aaamazing :)

Thx !

That is because suspended is not a state that the OEM API reports. It's a 'hybrid' state, so to speak, that TeslaMate is in trying to let the car fall asleep. That is why you do not see 'suspended' as a logged state in Grafana. Because your car is still 'online', but TeslaMate has suspended polling to let it fall asleep. And when the API reports asleep, TeslaMate will report your car as asleep.

[jlpouffier]

Ok ! Understood !

Then I got my answer :)
Thx a bunch !

I translated everything I needed.

I'll mark this discussion as done :)
