diff --git a/packages/preview/pivot/0.2.0/CHANGELOG.md b/packages/preview/pivot/0.2.0/CHANGELOG.md
new file mode 100644
index 0000000000..3b9734fa44
--- /dev/null
+++ b/packages/preview/pivot/0.2.0/CHANGELOG.md
@@ -0,0 +1,42 @@
+# Changelog
+
+Notable changes to pivot, following
+[Keep a Changelog](https://keepachangelog.com/en/1.1.0/) and
+[Semantic Versioning](https://semver.org/). Pre-1.0, a breaking change can land in
+a minor release — each is flagged with a migration note.
+
+## [0.2.0] - 2026-07-03
+
+### Added
+

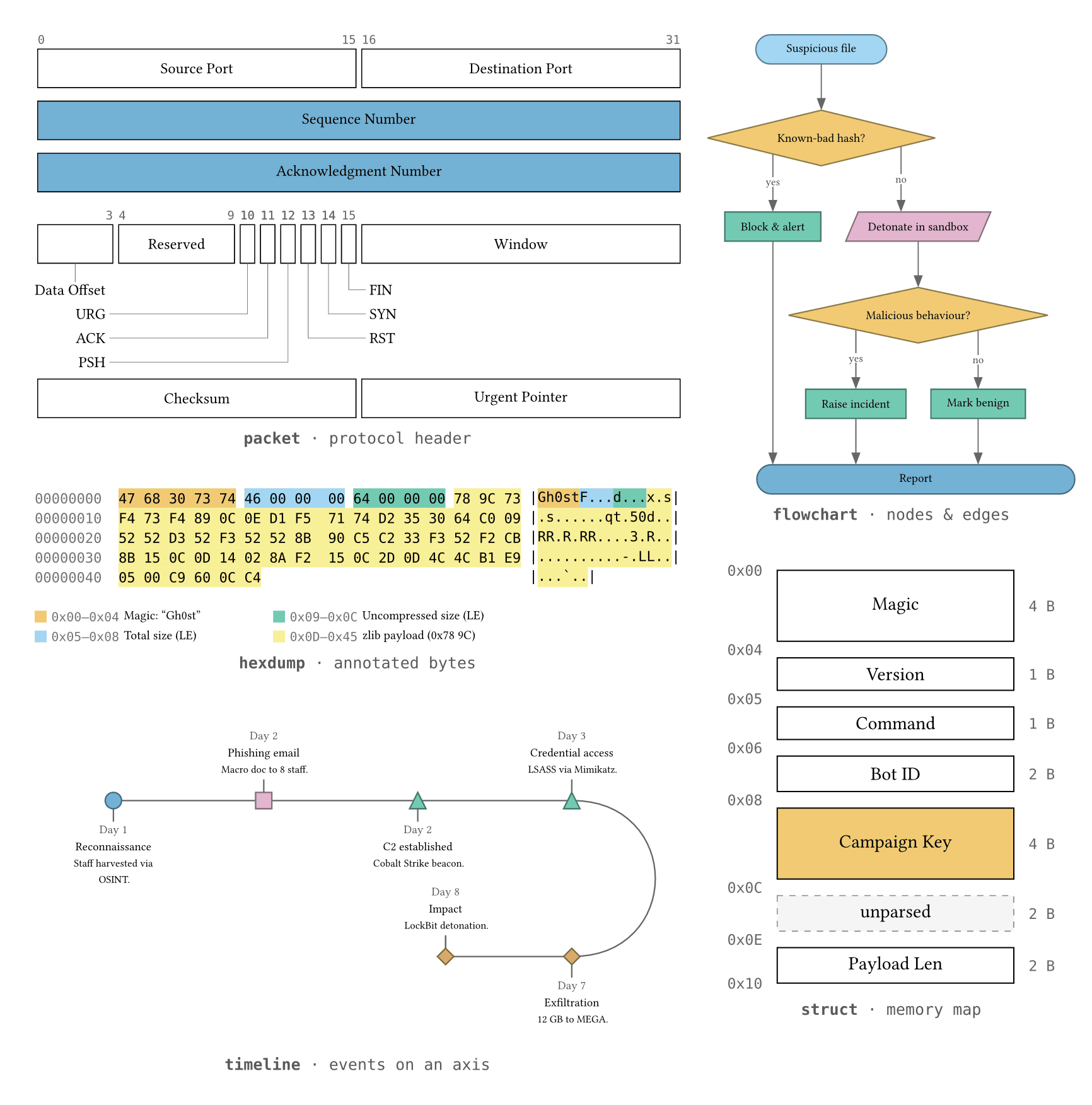

+- **`flowchart`** — nodes joined by directed edges, auto-laid-out in either vertical or
+ horizontal (`orientation: "horizontal"`). Built from `node(id, label, shape:, fill:)`
+ (shapes: rounded / rectangle / diamond / parallelogram) and `edge(from, to, label:)`.
+ Node colour is opt-in via `fill:`.
+- **`timeline`** — events on an ordered axis, in three orientations: horizontal,
+ vertical, and a snaked layout that wraps long runs into curved U-bends. Built
+ from `event(title, time:, description:, shape:, fill:)`; a sparse event is a
+ title only. A marker takes a shape (circle / square / triangle / diamond) and
+ `fill:`.
+
+## [0.1.0] - 2026-06-28
+
+First release: the byte-region family — three views over the same bytes, sharing
+one field model so they never disagree on where a field starts.
+
+### Added
+
+- **`packet`** — flat protocol-header view; fields auto-flow and wrap, narrow
+ labels become leader callouts, with a deduplicating bit ruler.
+- **`struct`** — vertical memory map; box height tracks byte size (oversized
+ fields capped with a break mark), hex offsets, sub-byte fields expand in place.
+- **`hexdump`** — real bytes + ASCII gutter; annotations you `fill:` are
+ highlighted in place, and every annotation is keyed in a byte-range legend.
+ `data:` takes `read(f, encoding: none)` or an int array.
+- Shared elements `bytes` / `bits` / `gap` / `reserved`, with `at:` (byte offset
+ on `bytes`, bit offset on `bits`) and `fill:`.
+- **`palette`** — Okabe–Ito colour-blind-safe highlight colours, for `fill:`.
+- Theming via a `theme:` dict; built on `@preview/cetz:0.5.2` (Typst ≥ 0.14).
+
+[Unreleased]: https://github.com/cybermallard/typst-pivot/compare/v0.1.0...HEAD
+[0.1.0]: https://github.com/cybermallard/typst-pivot/releases/tag/v0.1.0
diff --git a/packages/preview/pivot/0.2.0/LICENSE b/packages/preview/pivot/0.2.0/LICENSE
new file mode 100644
index 0000000000..d645695673
--- /dev/null
+++ b/packages/preview/pivot/0.2.0/LICENSE
@@ -0,0 +1,202 @@
+
+ Apache License
+ Version 2.0, January 2004
+ http://www.apache.org/licenses/
+
+ TERMS AND CONDITIONS FOR USE, REPRODUCTION, AND DISTRIBUTION
+
+ 1. Definitions.
+
+ "License" shall mean the terms and conditions for use, reproduction,
+ and distribution as defined by Sections 1 through 9 of this document.
+
+ "Licensor" shall mean the copyright owner or entity authorized by
+ the copyright owner that is granting the License.
+
+ "Legal Entity" shall mean the union of the acting entity and all
+ other entities that control, are controlled by, or are under common
+ control with that entity. For the purposes of this definition,
+ "control" means (i) the power, direct or indirect, to cause the
+ direction or management of such entity, whether by contract or
+ otherwise, or (ii) ownership of fifty percent (50%) or more of the
+ outstanding shares, or (iii) beneficial ownership of such entity.
+
+ "You" (or "Your") shall mean an individual or Legal Entity
+ exercising permissions granted by this License.
+
+ "Source" form shall mean the preferred form for making modifications,
+ including but not limited to software source code, documentation
+ source, and configuration files.
+
+ "Object" form shall mean any form resulting from mechanical
+ transformation or translation of a Source form, including but
+ not limited to compiled object code, generated documentation,
+ and conversions to other media types.
+
+ "Work" shall mean the work of authorship, whether in Source or
+ Object form, made available under the License, as indicated by a
+ copyright notice that is included in or attached to the work
+ (an example is provided in the Appendix below).
+
+ "Derivative Works" shall mean any work, whether in Source or Object
+ form, that is based on (or derived from) the Work and for which the
+ editorial revisions, annotations, elaborations, or other modifications
+ represent, as a whole, an original work of authorship. For the purposes
+ of this License, Derivative Works shall not include works that remain
+ separable from, or merely link (or bind by name) to the interfaces of,
+ the Work and Derivative Works thereof.
+
+ "Contribution" shall mean any work of authorship, including
+ the original version of the Work and any modifications or additions
+ to that Work or Derivative Works thereof, that is intentionally
+ submitted to Licensor for inclusion in the Work by the copyright owner
+ or by an individual or Legal Entity authorized to submit on behalf of
+ the copyright owner. For the purposes of this definition, "submitted"
+ means any form of electronic, verbal, or written communication sent
+ to the Licensor or its representatives, including but not limited to
+ communication on electronic mailing lists, source code control systems,
+ and issue tracking systems that are managed by, or on behalf of, the
+ Licensor for the purpose of discussing and improving the Work, but
+ excluding communication that is conspicuously marked or otherwise
+ designated in writing by the copyright owner as "Not a Contribution."
+
+ "Contributor" shall mean Licensor and any individual or Legal Entity
+ on behalf of whom a Contribution has been received by Licensor and
+ subsequently incorporated within the Work.
+
+ 2. Grant of Copyright License. Subject to the terms and conditions of
+ this License, each Contributor hereby grants to You a perpetual,
+ worldwide, non-exclusive, no-charge, royalty-free, irrevocable
+ copyright license to reproduce, prepare Derivative Works of,
+ publicly display, publicly perform, sublicense, and distribute the
+ Work and such Derivative Works in Source or Object form.
+
+ 3. Grant of Patent License. Subject to the terms and conditions of
+ this License, each Contributor hereby grants to You a perpetual,
+ worldwide, non-exclusive, no-charge, royalty-free, irrevocable
+ (except as stated in this section) patent license to make, have made,
+ use, offer to sell, sell, import, and otherwise transfer the Work,
+ where such license applies only to those patent claims licensable
+ by such Contributor that are necessarily infringed by their
+ Contribution(s) alone or by combination of their Contribution(s)
+ with the Work to which such Contribution(s) was submitted. If You
+ institute patent litigation against any entity (including a
+ cross-claim or counterclaim in a lawsuit) alleging that the Work
+ or a Contribution incorporated within the Work constitutes direct
+ or contributory patent infringement, then any patent licenses
+ granted to You under this License for that Work shall terminate
+ as of the date such litigation is filed.
+
+ 4. Redistribution. You may reproduce and distribute copies of the
+ Work or Derivative Works thereof in any medium, with or without
+ modifications, and in Source or Object form, provided that You
+ meet the following conditions:
+
+ (a) You must give any other recipients of the Work or
+ Derivative Works a copy of this License; and
+
+ (b) You must cause any modified files to carry prominent notices
+ stating that You changed the files; and
+
+ (c) You must retain, in the Source form of any Derivative Works
+ that You distribute, all copyright, patent, trademark, and
+ attribution notices from the Source form of the Work,
+ excluding those notices that do not pertain to any part of
+ the Derivative Works; and
+
+ (d) If the Work includes a "NOTICE" text file as part of its
+ distribution, then any Derivative Works that You distribute must
+ include a readable copy of the attribution notices contained
+ within such NOTICE file, excluding those notices that do not
+ pertain to any part of the Derivative Works, in at least one
+ of the following places: within a NOTICE text file distributed
+ as part of the Derivative Works; within the Source form or
+ documentation, if provided along with the Derivative Works; or,
+ within a display generated by the Derivative Works, if and
+ wherever such third-party notices normally appear. The contents
+ of the NOTICE file are for informational purposes only and
+ do not modify the License. You may add Your own attribution
+ notices within Derivative Works that You distribute, alongside
+ or as an addendum to the NOTICE text from the Work, provided
+ that such additional attribution notices cannot be construed
+ as modifying the License.
+
+ You may add Your own copyright statement to Your modifications and
+ may provide additional or different license terms and conditions
+ for use, reproduction, or distribution of Your modifications, or
+ for any such Derivative Works as a whole, provided Your use,
+ reproduction, and distribution of the Work otherwise complies with
+ the conditions stated in this License.
+
+ 5. Submission of Contributions. Unless You explicitly state otherwise,
+ any Contribution intentionally submitted for inclusion in the Work
+ by You to the Licensor shall be under the terms and conditions of
+ this License, without any additional terms or conditions.
+ Notwithstanding the above, nothing herein shall supersede or modify
+ the terms of any separate license agreement you may have executed
+ with Licensor regarding such Contributions.
+
+ 6. Trademarks. This License does not grant permission to use the trade
+ names, trademarks, service marks, or product names of the Licensor,
+ except as required for reasonable and customary use in describing the
+ origin of the Work and reproducing the content of the NOTICE file.
+
+ 7. Disclaimer of Warranty. Unless required by applicable law or
+ agreed to in writing, Licensor provides the Work (and each
+ Contributor provides its Contributions) on an "AS IS" BASIS,
+ WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or
+ implied, including, without limitation, any warranties or conditions
+ of TITLE, NON-INFRINGEMENT, MERCHANTABILITY, or FITNESS FOR A
+ PARTICULAR PURPOSE. You are solely responsible for determining the
+ appropriateness of using or redistributing the Work and assume any
+ risks associated with Your exercise of permissions under this License.
+
+ 8. Limitation of Liability. In no event and under no legal theory,
+ whether in tort (including negligence), contract, or otherwise,
+ unless required by applicable law (such as deliberate and grossly
+ negligent acts) or agreed to in writing, shall any Contributor be
+ liable to You for damages, including any direct, indirect, special,
+ incidental, or consequential damages of any character arising as a
+ result of this License or out of the use or inability to use the
+ Work (including but not limited to damages for loss of goodwill,
+ work stoppage, computer failure or malfunction, or any and all
+ other commercial damages or losses), even if such Contributor
+ has been advised of the possibility of such damages.
+
+ 9. Accepting Warranty or Additional Liability. While redistributing
+ the Work or Derivative Works thereof, You may choose to offer,
+ and charge a fee for, acceptance of support, warranty, indemnity,
+ or other liability obligations and/or rights consistent with this
+ License. However, in accepting such obligations, You may act only
+ on Your own behalf and on Your sole responsibility, not on behalf
+ of any other Contributor, and only if You agree to indemnify,
+ defend, and hold each Contributor harmless for any liability
+ incurred by, or claims asserted against, such Contributor by reason
+ of your accepting any such warranty or additional liability.
+
+ END OF TERMS AND CONDITIONS
+
+ APPENDIX: How to apply the Apache License to your work.
+
+ To apply the Apache License to your work, attach the following
+ boilerplate notice, with the fields enclosed by brackets "[]"
+ replaced with your own identifying information. (Don't include
+ the brackets!) The text should be enclosed in the appropriate
+ comment syntax for the file format. We also recommend that a
+ file or class name and description of purpose be included on the
+ same "printed page" as the copyright notice for easier
+ identification within third-party archives.
+
+ Copyright [yyyy] [name of copyright owner]
+
+ Licensed under the Apache License, Version 2.0 (the "License");
+ you may not use this file except in compliance with the License.
+ You may obtain a copy of the License at
+
+ http://www.apache.org/licenses/LICENSE-2.0
+
+ Unless required by applicable law or agreed to in writing, software
+ distributed under the License is distributed on an "AS IS" BASIS,
+ WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+ See the License for the specific language governing permissions and
+ limitations under the License.
diff --git a/packages/preview/pivot/0.2.0/NOTICE b/packages/preview/pivot/0.2.0/NOTICE
new file mode 100644
index 0000000000..7ffcb45117
--- /dev/null
+++ b/packages/preview/pivot/0.2.0/NOTICE
@@ -0,0 +1,15 @@
+pivot
+Copyright 2026 cybermallard and the pivot contributors
+
+Licensed under the Apache License, Version 2.0 (the "License"); see the LICENSE
+file in this repository for the full terms.
+
+---
+
+Third-party attribution
+
+pivot renders with CeTZ (https://github.com/cetz-package/cetz), licensed under
+the GNU Lesser General Public License v3.0 or later (LGPL-3.0-or-later). CeTZ is
+neither vendored nor modified by this package; the Typst compiler fetches it
+independently at build time. pivot calls CeTZ's public API only and contains no
+CeTZ source.
diff --git a/packages/preview/pivot/0.2.0/README.md b/packages/preview/pivot/0.2.0/README.md
new file mode 100644
index 0000000000..8746f18b14
--- /dev/null
+++ b/packages/preview/pivot/0.2.0/README.md
@@ -0,0 +1,193 @@
+# pivot
+
+
+
+
+
+
+
+Draw diagrams for Cyber Threat Intelligence (CTI) analysis.
+
+
+
+## Installation
+
+Import pivot from the preview namespace and the Typst compiler
+fetches it (and CeTZ) on first build. There's no manual install step:
+
+```typ
+#import "@preview/pivot:0.2.0": packet, struct, hexdump
+```
+
+## Using pivot
+
+Currently, there are five diagrams. Three — packet, struct, and hexdump — are
+byte-region views sharing one vocabulary: `bytes(n)`, `bits(n)`, `gap(n)`,
+`reserved(n)`, with `at:` (offset) and `fill:` (highlight). You describe the entity
+(widths and labels); pivot derives the offset, row, and ruler number. The other two
+stand alone: `timeline` plots `event(...)`s on an ordered axis — horizontal, vertical,
+or snaked — and `flowchart` draws `node(...)`s joined by `edge(...)`s, laid out
+automatically top-to-bottom or left-to-right.
+
+The gallery diagrams above are built from calls like these:
+
+A **`packet`** — the TCP header, with the sequence and acknowledgment numbers
+highlighted (the narrow flag bits become leader callouts automatically):
+
+```typ
+#import "@preview/pivot:0.2.0": packet, struct, hexdump, bytes, bits, gap, palette
+
+#packet(
+ bytes(2)[Source Port], bytes(2)[Destination Port],
+ bytes(4, fill: palette.blue)[Sequence Number],
+ bytes(4, fill: palette.blue)[Acknowledgment Number],
+ bits(4)[Data Offset], bits(6)[Reserved],
+ bits(1)[URG], bits(1)[ACK], bits(1)[PSH], bits(1)[RST], bits(1)[SYN], bits(1)[FIN],
+ bytes(2)[Window],
+ bytes(2)[Checksum], bytes(2)[Urgent Pointer],
+)
+```
+
+**`struct`** — a malware C2 beacon header as a memory map:
+
+```typ
+#struct(
+ bytes(4)[Magic],
+ bytes(1)[Version], bytes(1)[Command], bytes(2)[Bot ID],
+ bytes(4, fill: palette.orange)[Campaign Key],
+ gap(16)[unparsed], bytes(2)[Payload Len],
+)
+```
+
+**`hexdump`** — a Gh0st RAT C2 check-in, fields annotated in the captured bytes:
+
+```typ
+#hexdump(
+ data: read("ghost-checkin.bin", encoding: none),
+ bytes(5, at: 0x00, fill: palette.orange)[Magic: "Gh0st"],
+ bytes(4, at: 0x05, fill: palette.sky)[Total size (LE)],
+ bytes(4, at: 0x09, fill: palette.green)[Uncompressed size (LE)],
+ bytes(57, at: 0x0d, fill: palette.yellow)[zlib payload (0x78 9C)],
+)
+```
+
+A **`timeline`** — a ransomware intrusion on a snaked axis. In this example shape *and* colour mark
+a simplified attack-lifecycle, so each reads as a block of matching markers improving comprehension.
+Colour customisable but unfilled by default:
+
+```typ
+#import "@preview/pivot:0.2.0": timeline, event, palette
+
+#timeline(
+ orientation: "snaked",
+ wrap: 4,
+ event(time: "Day 1", fill: palette.blue, description: [Staff harvested via OSINT.])[Reconnaissance],
+ event(time: "Day 2", shape: "square", fill: palette.purple, description: [Macro doc to 8 staff.])[Phishing email],
+ event(time: "Day 2", shape: "triangle", fill: palette.green, description: [Cobalt Strike beacon.])[C2 established],
+ event(time: "Day 3", shape: "triangle", fill: palette.green, description: [LSASS via Mimikatz.])[Credential access],
+ event(time: "Day 7", shape: "diamond", fill: palette.vermillion, description: [12 GB to MEGA.])[Exfiltration],
+ event(time: "Day 8", shape: "diamond", fill: palette.vermillion, description: [LockBit detonation.])[Impact],
+)
+```
+
+A **`flowchart`** — a malware-triage flow, its outcome actions coloured (red for the
+malicious-path actions, green for benign). Node shape marks the role, and pivot ranks,
+aligns, and routes it:
+
+```typ
+#import "@preview/pivot:0.2.0": flowchart, node, edge, palette
+
+#flowchart(
+ node("in", [Suspicious file], shape: "rounded"),
+ node("hash", [Known-bad hash?], shape: "diamond"),
+ node("block", [Block & alert], fill: palette.vermillion),
+ node("det", [Detonate in sandbox], shape: "parallelogram"),
+ node("mal", [Malicious behaviour?], shape: "diamond"),
+ node("ir", [Raise incident], fill: palette.vermillion),
+ node("clear", [Mark benign], fill: palette.green),
+ node("out", [Report], shape: "rounded"),
+ edge("in", "hash"),
+ edge("hash", "block", label: [yes]), edge("hash", "det", label: [no]),
+ edge("det", "mal"),
+ edge("mal", "ir", label: [yes]), edge("mal", "clear", label: [no]),
+ edge("ir", "out"), edge("clear", "out"), edge("block", "out"),
+)
+```
+
+
+## Diagrams
+
+**Available Diagrams**
+
+| | |
+|---|---|
+| **`packet`** | Flat protocol-header view — fields wrap into rows under a bit ruler; narrow labels become leader callouts. |
+| **`struct`** | Vertical memory map — box height tracks byte size, hex offsets down the side, sub-byte fields expand in place. |
+| **`hexdump`** | Real bytes with an ASCII gutter, fields highlighted in place and keyed in a colour legend. |
+| **`timeline`** | Events on an ordered axis — horizontal, vertical, or a snaked layout that wraps long runs into curved rows. A marker's shape and colour can be customised. |
+| **`flowchart`** | Nodes joined by directed edges, auto-laid-out top-to-bottom or left-to-right. Shape can denote a node's role (rounded / rectangle / diamond / parallelogram). |
+
+The first three share one field vocabulary (`bytes` / `bits` / `gap` / `reserved`)
+over the same model, so views of the same bytes can't disagree. `timeline` and
+`flowchart` are their own families, built from `event(...)`s and
+`node(...)` / `edge(...)`s.
+
+**Diagram Roadmap**
+
+_Alphabetical order, i.e., not the order in which they will be released._
+
+| | |
+|---|---|
+| ATT&CK matrix | Technique coverage as a grid. |
+| Attack tree | A hierarchical representation of paths an adversary could take to achieve a goal. |
+| Bowtie | A event at the center, threats on the left, consequences on the right, annotated with preventive and mitigating barriers. |
+| Diamond Model | The four vertices: adversary, capability, infrastructure, victim. |
+| Knowledge graph | Typed entities as nodes joined by labelled edges. |
+| Pyramid of Pain | Indicator types ranked by adversary cost. |
+| Sequence | A time-ordered view of interactions between parties. |
+
+## Accessibility
+
+Readability is the default. Pivot exposes `palette.[colour]` allowing you to use the 8-colour [Okabe–Ito](https://jfly.uni-koeln.de/color/) colour-blind-safe
+palette:
+
+
+
+The rest of the defaults stay legible and adjustable:
+
+- **Inherits the document font.** Field labels use your document's font. The bit ruler
+ and hexdump grid pin to the bundled monospace (DejaVu Sans Mono) to keep columns aligned.
+- **Sizes are theme tokens.** `label-size`, `bit-size`, and `hexdump-size` scale
+ up for legibility, e.g. `theme: themes.default + (label-size: 12pt)`.
+
+## Documentation
+
+Full docs are in progress. For now,
+[`examples/`](https://github.com/cybermallard/typst-pivot/tree/v0.2.0/examples) has a
+runnable example for every diagram.
+
+### Adding a caption to a diagram
+
+Captions come from Typst's own `figure` function. The default caption gap is a little tight,
+a slightly wider `#set figure(gap: 1em)` reads better:
+
+```typ
+#set figure(gap: 1em) // a little more room than the 0.65em default
+
+#figure(
+ packet(
+ bytes(2)[Source Port], bytes(2)[Destination Port],
+ bytes(4)[Sequence Number],
+ ),
+ caption: [TCP header (excerpt)],
+)
+```
+
+## Built on CeTZ
+
+pivot renders with CeTZ, licensed under **LGPL-3.0-or-later**. CeTZ is neither
+vendored nor modified; the Typst compiler fetches it independently at build time.
+
+## License
+
+[Apache-2.0](LICENSE). See [NOTICE](NOTICE) for attribution.
diff --git a/packages/preview/pivot/0.2.0/lib.typ b/packages/preview/pivot/0.2.0/lib.typ
new file mode 100644
index 0000000000..594d31d8f4
--- /dev/null
+++ b/packages/preview/pivot/0.2.0/lib.typ
@@ -0,0 +1,16 @@
+// pivot — public API. Exports the deliberate, minimal surface.
+
+#import "src/field/elements.typ": bits, bytes, gap, reserved
+#import "src/packet/render.typ": packet
+#import "src/struct/render.typ": struct
+#import "src/hexdump/render.typ": hexdump
+#import "src/timeline/render.typ": timeline
+#import "src/timeline/elements.typ": event
+#import "src/flowchart/render.typ": flowchart
+#import "src/flowchart/elements.typ": node, edge
+
+// Named themes. Pass `theme: themes.default + (token: value, ...)` to customise.
+#import "src/theme.typ" as themes
+
+// The shared Okabe–Ito colour-blind-safe highlight palette, for `fill:`.
+#import "src/palette.typ": palette
diff --git a/packages/preview/pivot/0.2.0/src/field/elements.typ b/packages/preview/pivot/0.2.0/src/field/elements.typ
new file mode 100644
index 0000000000..a4b1a6f6e9
--- /dev/null
+++ b/packages/preview/pivot/0.2.0/src/field/elements.typ
@@ -0,0 +1,44 @@
+// Field element constructors — the byte-region cluster's shared vocabulary
+// (packet, struct, hexdump all build from these). Each returns a plain descriptor
+// dict that `model` consumes; the author supplies widths and labels, never bit
+// positions. Pure.
+// `at:` anchors a field to an absolute offset in the constructor's own unit:
+// `bytes(.., at: k)` is byte `k`, `bits(.., at: k)` is bit `k` (the model works
+// in bits, so `bytes` scales its anchor up by 8). This suits byte-oriented views
+// (hexdump/struct) without a separate `unit:`. `fill:` highlights a field. `gap`
+// is a dashed "unparsed" span; `reserved` is a plain empty field (reserved bits).
+// Labels are optional positional trailing content (as on `gap`/`reserved`): omit
+// to draw an unnamed field — e.g. `bytes(4, at: 0x10, fill: palette.orange)`
+// highlights a region without a legend row.
+
+#let bytes(n, ..rest, at: none, fill: none) = (
+ kind: "field",
+ width: n * 8,
+ label: rest.pos().at(0, default: none),
+ anchor: if at == none { none } else { at * 8 },
+ fill: fill,
+)
+
+#let bits(n, ..rest, at: none, fill: none) = (
+ kind: "field",
+ width: n,
+ label: rest.pos().at(0, default: none),
+ anchor: at,
+ fill: fill,
+)
+
+#let gap(n, ..rest) = (
+ kind: "gap",
+ width: n,
+ label: rest.pos().at(0, default: none),
+ anchor: none,
+ fill: none,
+)
+
+#let reserved(n, ..rest) = (
+ kind: "field",
+ width: n,
+ label: rest.pos().at(0, default: none),
+ anchor: none,
+ fill: none,
+)
diff --git a/packages/preview/pivot/0.2.0/src/field/layout.typ b/packages/preview/pivot/0.2.0/src/field/layout.typ
new file mode 100644
index 0000000000..fd9a4ca8bd
--- /dev/null
+++ b/packages/preview/pivot/0.2.0/src/field/layout.typ
@@ -0,0 +1,28 @@
+// layout: fields -> positioned segments, one field clipped to each row it
+// touches. Pure, no cetz. `col-start`/`col-end` are 0-based columns within the
+// row; `continued`/`continues` mark a field that arrived from / carries on to an
+// adjacent row. `kind` and `fill` carry through for the renderer.
+
+#let layout(fields, bits-per-row: 32) = {
+ let segments = ()
+ for f in fields {
+ let row-start = int(f.start / bits-per-row)
+ let row-end = int(f.end / bits-per-row)
+ for r in range(row-start, row-end + 1) {
+ let row-lo = r * bits-per-row
+ let bit-start = calc.max(f.start, row-lo)
+ let bit-end = calc.min(f.end, row-lo + bits-per-row - 1)
+ segments.push((
+ kind: f.kind,
+ row: r,
+ col-start: bit-start - row-lo,
+ col-end: bit-end - row-lo,
+ label: f.label,
+ fill: f.at("fill", default: none),
+ continued: r > row-start,
+ continues: r < row-end,
+ ))
+ }
+ }
+ segments
+}
diff --git a/packages/preview/pivot/0.2.0/src/field/model.typ b/packages/preview/pivot/0.2.0/src/field/model.typ
new file mode 100644
index 0000000000..f87e4abf7a
--- /dev/null
+++ b/packages/preview/pivot/0.2.0/src/field/model.typ
@@ -0,0 +1,44 @@
+// model: field descriptors -> fields with derived bit positions. Pure, no cetz.
+// Shared by the byte-region cluster (packet/struct/hexdump).
+// `end` is inclusive. Positions are derived from widths and `anchor`s, never
+// authored, so the ruler can't disagree with the boxes (veracity over
+// standard-conformance). An `anchor` past the running cursor leaves an implicit
+// `gap` field for the skipped span. `kind` and `fill` carry through unchanged.
+
+#let model(descriptors) = {
+ let fields = ()
+ let cursor = 0
+ for d in descriptors {
+ // width <= 0 can't be drawn; this `panic` names the field for the user.
+ // It is not unit-tested (Typst has no try/catch) — trusted by inspection.
+ assert(
+ d.width > 0,
+ message: "field " + repr(d.label) + ": width must be > 0",
+ )
+
+ let anchor = d.at("anchor", default: none)
+ let start = if anchor != none { anchor } else { cursor }
+ if start > cursor {
+ fields.push((
+ kind: "gap",
+ start: cursor,
+ end: start - 1,
+ label: none,
+ fill: none,
+ ))
+ }
+
+ let end = start + d.width - 1
+ fields.push((
+ kind: d.kind,
+ start: start,
+ end: end,
+ label: d.label,
+ fill: d.at("fill", default: none),
+ ))
+ // A backwards `anchor` (an intentional overlap) places one field without
+ // rewinding the flow — later auto-flow fields resume from the furthest point.
+ cursor = calc.max(cursor, end + 1)
+ }
+ fields
+}
diff --git a/packages/preview/pivot/0.2.0/src/flowchart/elements.typ b/packages/preview/pivot/0.2.0/src/flowchart/elements.typ
new file mode 100644
index 0000000000..9a7de59fb1
--- /dev/null
+++ b/packages/preview/pivot/0.2.0/src/flowchart/elements.typ
@@ -0,0 +1,24 @@
+// Flowchart element constructors. A flowchart is a set of `node`s joined by
+// directed `edge`s; both are passed together in one variadic `flowchart(..)` call
+// and the model sorts them out. A node has an id (referenced by edges), a label
+// (trailing content), a shape, and an opt-in fill. An edge names a source and a
+// target node id and an optional label — a branch condition like "yes" / "no".
+// Pure; no cetz.
+//
+// node("q", [Known-bad hash?], shape: "diamond")
+// edge("q", "block", label: [yes])
+
+#let node(id, label, shape: "rectangle", fill: none) = (
+ kind: "node",
+ id: id,
+ label: label,
+ shape: shape,
+ fill: fill,
+)
+
+#let edge(from, to, label: none) = (
+ kind: "edge",
+ from: from,
+ to: to,
+ label: label,
+)
diff --git a/packages/preview/pivot/0.2.0/src/flowchart/layout.typ b/packages/preview/pivot/0.2.0/src/flowchart/layout.typ
new file mode 100644
index 0000000000..1002701a96
--- /dev/null
+++ b/packages/preview/pivot/0.2.0/src/flowchart/layout.typ
@@ -0,0 +1,146 @@
+// layout: a validated graph -> ranked structure. Pure, no cetz. A DFS first marks
+// back-edges (those closing a cycle) so they can be reversed just for ranking,
+// keeping the ranking graph acyclic. Then longest-path ranking and a barycenter
+// sweep that orders each rank to cut crossings. Edges are classified, not split:
+// direct — one rank down; drawn straight/orthogonally between the two nodes.
+// long — more than one rank down; routed down a side channel by the renderer.
+// back — a reversed cycle edge; routed up a side channel.
+// Only direct edges shape the ordering and (later) the coordinates — long and back
+// edges keep clear of the body, so they don't distort the spine.
+//
+// Output: `cells` (one per node, with a `rank` and `order`) and `edges` (each with
+// `from`, `to`, `label`, `kind`).
+
+#let layout(graph) = {
+ let nodes = graph.nodes
+ let edges = graph.edges
+ let ids = graph.ids
+ let n = nodes.len()
+ if n == 0 { return (cells: (), edges: (), ranks: 0) }
+
+ // --- cycle removal: DFS, mark edges that close back onto the current stack ---
+ let succ-e = (:)
+ for (ei, e) in edges.enumerate() {
+ let u = str(ids.at(e.from))
+ succ-e.insert(u, succ-e.at(u, default: ()) + ((v: ids.at(e.to), ei: ei),))
+ }
+ let color = range(n).map(_ => 0) // 0 white, 1 on-stack, 2 done
+ let reversed = (:)
+ for start in range(n) {
+ if color.at(start) != 0 { continue }
+ color.at(start) = 1
+ let stack = ((node: start, si: 0),)
+ while stack.len() > 0 {
+ let ti = stack.len() - 1
+ let top = stack.at(ti)
+ let outs = succ-e.at(str(top.node), default: ())
+ if top.si < outs.len() {
+ stack.at(ti) = (node: top.node, si: top.si + 1)
+ let nx = outs.at(top.si)
+ if color.at(nx.v) == 1 {
+ reversed.insert(str(nx.ei), true)
+ } else if color.at(nx.v) == 0 {
+ color.at(nx.v) = 1
+ stack.push((node: nx.v, si: 0))
+ }
+ } else {
+ color.at(top.node) = 2
+ let _ = stack.pop()
+ }
+ }
+ }
+
+ // --- longest-path ranking on the DAG (back-edges reversed) ---
+ let succ = (:)
+ let indeg = (:)
+ for i in range(n) { indeg.insert(str(i), 0) }
+ for (ei, e) in edges.enumerate() {
+ let (fu, tv) = if reversed.at(str(ei), default: false) {
+ (ids.at(e.to), ids.at(e.from))
+ } else {
+ (ids.at(e.from), ids.at(e.to))
+ }
+ succ.insert(str(fu), succ.at(str(fu), default: ()) + (tv,))
+ indeg.insert(str(tv), indeg.at(str(tv)) + 1)
+ }
+ let rank = range(n).map(_ => 0)
+ let queue = range(n).filter(i => indeg.at(str(i)) == 0)
+ while queue.len() > 0 {
+ let u = queue.remove(0)
+ for v in succ.at(str(u), default: ()) {
+ rank.at(v) = calc.max(rank.at(v), rank.at(u) + 1)
+ indeg.insert(str(v), indeg.at(str(v)) - 1)
+ if indeg.at(str(v)) == 0 { queue.push(v) }
+ }
+ }
+ let ranks = calc.max(..rank) + 1
+
+ // --- classify edges; only direct (one-rank) edges feed the ordering ---
+ let up = (:)
+ let down = (:)
+ let epaths = ()
+ for (ei, e) in edges.enumerate() {
+ let u = ids.at(e.from)
+ let v = ids.at(e.to)
+ let kind = if reversed.at(str(ei), default: false) {
+ "back"
+ } else if rank.at(v) - rank.at(u) == 1 {
+ down.insert(str(u), down.at(str(u), default: ()) + (v,))
+ up.insert(str(v), up.at(str(v), default: ()) + (u,))
+ "direct"
+ } else {
+ "long"
+ }
+ epaths.push((from: u, to: v, label: e.label, kind: kind))
+ }
+
+ // --- order within ranks: initial declaration order, then barycenter sweeps ---
+ let order-in-rank = range(ranks).map(r => range(n).filter(i => (
+ rank.at(i) == r
+ )))
+ let posx = (:)
+ for r in range(ranks) {
+ for (k, i) in order-in-rank.at(r).enumerate() { posx.insert(str(i), k) }
+ }
+ for iter in range(6) {
+ let downward = calc.rem(iter, 2) == 0
+ let rseq = if downward {
+ range(1, ranks)
+ } else {
+ range(ranks - 2, -1, step: -1)
+ }
+ for r in rseq {
+ let adj = if downward { up } else { down }
+ let scored = order-in-rank
+ .at(r)
+ .map(i => {
+ let nb = adj.at(str(i), default: ())
+ let bc = if nb.len() > 0 {
+ nb.map(j => posx.at(str(j))).sum() / nb.len()
+ } else {
+ posx.at(str(i))
+ }
+ (i: i, bc: bc)
+ })
+ let sorted = scored.sorted(key: s => s.bc)
+ order-in-rank.at(r) = sorted.map(s => s.i)
+ for (k, s) in sorted.enumerate() { posx.insert(str(s.i), k) }
+ }
+ }
+
+ let order = (:)
+ for r in range(ranks) {
+ for (k, i) in order-in-rank.at(r).enumerate() { order.insert(str(i), k) }
+ }
+ let out-cells = nodes.map(nd => (
+ index: nd.index,
+ rank: rank.at(nd.index),
+ order: order.at(str(nd.index)),
+ id: nd.id,
+ label: nd.label,
+ shape: nd.shape,
+ fill: nd.fill,
+ ))
+
+ (cells: out-cells, edges: epaths, ranks: ranks)
+}
diff --git a/packages/preview/pivot/0.2.0/src/flowchart/model.typ b/packages/preview/pivot/0.2.0/src/flowchart/model.typ
new file mode 100644
index 0000000000..a7119bba33
--- /dev/null
+++ b/packages/preview/pivot/0.2.0/src/flowchart/model.typ
@@ -0,0 +1,51 @@
+// model: mixed node/edge descriptors -> a validated graph. Pure, no cetz.
+// Splits the argument list into nodes and edges, checks each node id is unique and
+// each edge references declared nodes, and names the offender on bad input.
+// Returns (nodes, edges, ids) — `ids` maps a node id to its position in `nodes`.
+
+#let shapes = ("rounded", "rectangle", "diamond", "parallelogram")
+
+#let model(items) = {
+ let nodes = ()
+ let edges = ()
+ let ids = (:)
+ for (i, it) in items.enumerate() {
+ assert(
+ type(it) == dictionary
+ and it.at("kind", default: none) in ("node", "edge"),
+ message: "flowchart: argument " + str(i) + " is not a node() or edge()",
+ )
+ if it.kind == "node" {
+ assert(
+ it.id not in ids,
+ message: "flowchart: duplicate node id " + repr(it.id),
+ )
+ assert(
+ shapes.contains(it.shape),
+ message: "node "
+ + repr(it.id)
+ + ": shape must be one of "
+ + shapes.join(", "),
+ )
+ ids.insert(it.id, nodes.len())
+ nodes.push((
+ index: nodes.len(),
+ id: it.id,
+ label: it.label,
+ shape: it.shape,
+ fill: it.fill,
+ ))
+ } else {
+ assert(
+ it.from in ids,
+ message: "flowchart: edge references unknown node " + repr(it.from),
+ )
+ assert(
+ it.to in ids,
+ message: "flowchart: edge references unknown node " + repr(it.to),
+ )
+ edges.push((from: it.from, to: it.to, label: it.label))
+ }
+ }
+ (nodes: nodes, edges: edges, ids: ids)
+}
diff --git a/packages/preview/pivot/0.2.0/src/flowchart/render.typ b/packages/preview/pivot/0.2.0/src/flowchart/render.typ
new file mode 100644
index 0000000000..bb36bb5f62
--- /dev/null
+++ b/packages/preview/pivot/0.2.0/src/flowchart/render.typ
@@ -0,0 +1,591 @@
+#import "@preview/cetz:0.5.2" as cetz
+#import "../theme.typ" as theme-mod
+#import "model.typ": model
+#import "layout.typ": layout
+
+// flowchart: nodes joined by directed edges, laid out in ranked layers. `layout`
+// fixes each node's rank and order; here we measure the labels, align a node with its
+// neighbours (a straight spine), then route: a direct (one-rank) edge runs straight
+// into a single-input target or fans into a shared one; a long or back edge takes a
+// side channel clear of the body. The engine works in a canonical vertical (top to
+// bottom) flow; `orientation: "horizontal"` is the same picture transposed at the draw
+// step. Node colour is opt-in (`fill:`). Returns content.
+#let flowchart(
+ ..items,
+ orientation: "vertical",
+ theme: theme-mod.default,
+) = context {
+ assert(
+ orientation in ("vertical", "horizontal"),
+ message: "flowchart: orientation must be \"vertical\" or \"horizontal\", got "
+ + repr(orientation),
+ )
+ let g = layout(model(items.pos()))
+ // An empty diagram has no nodes to place and no extent to measure — draw nothing.
+ if g.cells.len() == 0 { return none }
+
+ // Capture tokens before `import cetz.draw: *` shadows names like `line`/`fill`.
+ let pad-x = theme.flowchart-node-pad-x / 1cm
+ let pad-y = theme.flowchart-node-pad-y / 1cm
+ let min-w = theme.flowchart-node-min-width / 1cm
+ let node-gap = theme.flowchart-node-gap / 1cm
+ let rank-gap = theme.flowchart-rank-gap / 1cm
+ let back-margin = theme.flowchart-back-margin / 1cm
+ let back-gap = theme.flowchart-back-gap / 1cm
+ let edge-width = theme.flowchart-node-edge-width
+ let edge-darken = theme.flowchart-node-edge-darken
+ let node-outline = theme.flowchart-node-outline
+ let node-fill = theme.flowchart-node-fill
+ let label-size = theme.flowchart-label-size
+ let label-color = theme.flowchart-label-color
+ let dscale = theme.flowchart-decision-scale
+ let io-slant = theme.flowchart-io-slant / 1cm
+ let edge-stroke = theme.flowchart-edge-width + theme.flowchart-edge-color
+ let arrow-fill = theme.flowchart-edge-color
+ let arrow-scale = theme.flowchart-arrow-scale
+ let elabel-size = theme.flowchart-edge-label-size
+ let elabel-color = theme.flowchart-edge-label-color
+ let elabel-fill = theme.flowchart-edge-label-fill
+ let elabel-inset = theme.flowchart-edge-label-inset
+
+ // Measure each label and give the node a box per shape (a diamond grows to hold
+ // the label, a rounded rectangle rounds its corners, a parallelogram leans off vertical).
+ let sized = g.cells.map(c => {
+ let lbl = text(size: label-size, fill: label-color, c.label)
+ let m = measure(lbl)
+ let iw = calc.max(m.width / 1cm + 2 * pad-x, min-w)
+ let ih = m.height / 1cm + 2 * pad-y
+ // The router works in a canonical (cross, flow) space: `w` is the cross-axis
+ // extent (growable by a merge), `h` the flow-axis extent. Most shapes are a plain
+ // box that just swaps axes with the flow orientation; the parallelogram is
+ // special — its slant always runs along the cross axis (so its flow-entry/exit
+ // faces stay flat and edges attach flush), so the slant room is reserved in
+ // whichever extent is the cross one.
+ let (w, h) = if c.shape == "parallelogram" {
+ if orientation == "horizontal" { (ih + io-slant, iw) } else {
+ (iw + io-slant, ih)
+ }
+ } else {
+ let (bw, bh) = if c.shape == "diamond" {
+ (iw * dscale, ih * dscale)
+ } else if c.shape == "rounded" {
+ (iw + ih, ih)
+ } else {
+ (iw, ih)
+ }
+ if orientation == "horizontal" { (bh, bw) } else { (bw, bh) }
+ }
+ // `th` is the label-height thickness — the rounded rectangle's corner radius, so a
+ // merge target that grows keeps flat faces (rounded corners, not a bulging capsule).
+ (..c, lbl: lbl, w: w, h: h, th: ih)
+ })
+ let wof = (:)
+ let hof = (:)
+ for c in sized {
+ wof.insert(str(c.index), c.w)
+ hof.insert(str(c.index), c.h)
+ }
+
+ // Nodes of each rank, in order; rank height is its tallest node.
+ let order-in-rank = range(g.ranks).map(r => sized
+ .filter(c => c.rank == r)
+ .sorted(key: c => c.order)
+ .map(c => c.index))
+ let rank-h = order-in-rank.map(row => if row.len() > 0 {
+ calc.max(..row.map(a => hof.at(str(a))))
+ } else { 0 })
+ let rank-y = if g.ranks > 0 { (0,) } else { () }
+ for r in range(1, g.ranks) {
+ rank-y.push(
+ rank-y.at(r - 1) - (rank-h.at(r - 1) / 2 + rank-gap + rank-h.at(r) / 2),
+ )
+ }
+
+ // Neighbours across ranks, from the *direct* edges only (long/back edges route on
+ // the side and shouldn't tug nodes out of line).
+ let nbr = (:)
+ for e in g.edges {
+ if e.kind == "direct" {
+ nbr.insert(str(e.from), nbr.at(str(e.from), default: ()) + (e.to,))
+ nbr.insert(str(e.to), nbr.at(str(e.to), default: ()) + (e.from,))
+ }
+ }
+
+ // Direct and long inputs of each node. A merge widens to seat its direct inputs
+ // straight and to reach the entry column of each long (side-arriving) input.
+ let din = (:)
+ let lin = (:)
+ for (ei, e) in g.edges.enumerate() {
+ if e.kind == "direct" {
+ din.insert(str(e.to), din.at(str(e.to), default: ()) + (e.from,))
+ } else if e.kind == "long" {
+ lin.insert(
+ str(e.to),
+ lin.at(str(e.to), default: ()) + ((ei: ei, from: e.from),),
+ )
+ }
+ }
+ let median = xs => {
+ let s = xs.sorted()
+ let k = s.len()
+ if k == 0 { 0 } else if calc.rem(k, 2) == 1 {
+ s.at(calc.quo(k, 2))
+ } else {
+ (s.at(calc.quo(k, 2) - 1) + s.at(calc.quo(k, 2))) / 2
+ }
+ }
+
+ // Coordinate assignment: start centred by order, then relax each node toward the
+ // median of its neighbours (aligning chains) while a forward and a backward pass
+ // hold each rank's separation. Both preserve the minimum gap, so their average
+ // does too — the spine straightens without nodes ever overlapping.
+ let relax = widths => {
+ let x = (:)
+ for r in range(g.ranks) {
+ let row = order-in-rank.at(r)
+ let total = (
+ row.map(a => widths.at(str(a))).sum(default: 0)
+ + calc.max(row.len() - 1, 0) * node-gap
+ )
+ let cx = -total / 2
+ for a in row {
+ x.insert(str(a), cx + widths.at(str(a)) / 2)
+ cx += widths.at(str(a)) + node-gap
+ }
+ }
+ for pass in range(12) {
+ let seq = if calc.rem(pass, 2) == 0 {
+ range(g.ranks)
+ } else {
+ range(g.ranks - 1, -1, step: -1)
+ }
+ for r in seq {
+ let row = order-in-rank.at(r)
+ let k = row.len()
+ if k == 0 { continue }
+ let want = row.map(a => {
+ let ns = nbr.at(str(a), default: ())
+ if ns.len() > 0 { median(ns.map(nn => x.at(str(nn)))) } else {
+ x.at(str(a))
+ }
+ })
+ let sep = i => (
+ widths.at(str(row.at(i))) / 2
+ + node-gap
+ + widths.at(str(row.at(i + 1))) / 2
+ )
+ let xf = (want.at(0),)
+ for i in range(1, k) {
+ xf.push(calc.max(want.at(i), xf.at(i - 1) + sep(i - 1)))
+ }
+ let xb = range(k).map(_ => 0)
+ xb.at(k - 1) = want.at(k - 1)
+ for i in range(k - 2, -1, step: -1) {
+ xb.at(i) = calc.min(want.at(i), xb.at(i + 1) - sep(i))
+ }
+ for i in range(k) {
+ x.insert(str(row.at(i)), (xf.at(i) + xb.at(i)) / 2)
+ }
+ }
+ }
+ x
+ }
+
+ let shapeof = (:)
+ let rankof = (:)
+ for c in sized {
+ shapeof.insert(str(c.index), c.shape)
+ rankof.insert(str(c.index), c.rank)
+ }
+
+ // The clearest vertical corridor for a long edge u -> v under the current widths:
+ // the candidate x that no node in the crossed ranks blocks, chosen closest to the
+ // source's own column so the edge drops straight when that column is clear (and
+ // only jogs when it isn't). Candidates are the endpoints (or, for a side exit, the
+ // source's flanks), the gaps just outside each crossed rank, and just outside the
+ // diagram — the last is always clear, so a corridor always exists. With `side-exit`
+ // (a decision leaving by a side vertex) the corridor must sit outside the source,
+ // its run at u.y clear of u's rank-mates; returns none if none does (caller falls
+ // back to a bottom exit).
+ let corridor = (ui, vi, side-exit, x, w) => {
+ let ur = rankof.at(str(ui))
+ let vr = rankof.at(str(vi))
+ let ux = x.at(str(ui))
+ let uw = w.at(str(ui))
+ let vx = x.at(str(vi))
+ let m = node-gap / 2
+ let minx = calc.min(..sized.map(c => (
+ x.at(str(c.index)) - w.at(str(c.index)) / 2
+ )))
+ let maxx = calc.max(..sized.map(c => (
+ x.at(str(c.index)) + w.at(str(c.index)) / 2
+ )))
+ let occupied = ()
+ let cands = (vx, minx - back-margin, maxx + back-margin)
+ cands += if side-exit { (ux - uw / 2 - m, ux + uw / 2 + m) } else { (ux,) }
+ for r in range(calc.min(ur, vr) + 1, calc.max(ur, vr)) {
+ let row = order-in-rank.at(r)
+ for a in row {
+ occupied.push((
+ x.at(str(a)) - w.at(str(a)) / 2 - m,
+ x.at(str(a)) + w.at(str(a)) / 2 + m,
+ ))
+ }
+ if row.len() > 0 {
+ cands.push(
+ calc.min(..row.map(a => x.at(str(a)) - w.at(str(a)) / 2)) - m,
+ )
+ cands.push(
+ calc.max(..row.map(a => x.at(str(a)) + w.at(str(a)) / 2)) + m,
+ )
+ }
+ }
+ let clear = cx => occupied.all(iv => cx <= iv.at(0) or cx >= iv.at(1))
+ let ok = cx => {
+ if not clear(cx) { return false }
+ if not side-exit { return true }
+ if cx > ux - uw / 2 - m and cx < ux + uw / 2 + m { return false }
+ let vx2 = if cx < ux { ux - uw / 2 } else { ux + uw / 2 }
+ order-in-rank
+ .at(ur)
+ .filter(a => a != ui)
+ .all(a => (
+ x.at(str(a)) + w.at(str(a)) / 2 <= calc.min(vx2, cx)
+ or x.at(str(a)) - w.at(str(a)) / 2 >= calc.max(vx2, cx)
+ ))
+ }
+ cands
+ .filter(ok)
+ // Prefer the source's own column (straight drop); break ties toward the target.
+ .sorted(key: c => (calc.abs(ux - c), calc.abs(c - vx)))
+ .at(0, default: none)
+ }
+
+ // A long edge's route under the current widths: the corridor x, whether a decision
+ // takes a side exit, and where it enters the target's top. The entry sits on the
+ // corridor (a straight drop) unless that would crowd the target's direct inputs, in
+ // which case it steps just outside them.
+ let route-long = (from, to, x, w) => {
+ let side = shapeof.at(str(from)) == "diamond"
+ let cx = if side { corridor(from, to, true, x, w) } else { none }
+ let side-ok = cx != none
+ if not side-ok { cx = corridor(from, to, false, x, w) }
+ let din-xs = din.at(str(to), default: ()).map(s => x.at(str(s)))
+ let entry = cx
+ if din-xs.len() > 0 {
+ let dmin = calc.min(..din-xs)
+ let dmax = calc.max(..din-xs)
+ if entry > dmin - node-gap and entry < dmax + node-gap {
+ entry = if entry <= x.at(str(to)) { dmin - node-gap } else {
+ dmax + node-gap
+ }
+ }
+ }
+ (cx: cx, side-ok: side-ok, entry: entry)
+ }
+
+ // Widths may grow: relax, then widen each node to span its merging direct inputs
+ // and to reach every long edge's entry column, and re-relax so the wider node still
+ // fits. A few rounds settle the mutual dependence (entries depend on the widths).
+ let w = wof
+ let x = relax(w)
+ for round in range(3) {
+ let ent = (:)
+ for c in sized {
+ for it in lin.at(str(c.index), default: ()) {
+ ent.insert(str(it.ei), route-long(it.from, c.index, x, w).entry)
+ }
+ }
+ for c in sized {
+ let d = din.at(str(c.index), default: ())
+ let l = lin.at(str(c.index), default: ())
+ let cxn = x.at(str(c.index))
+ // A lone direct input fans in without widening; two or more merge, so the node
+ // grows to span them. A long input always pulls the node out to its entry.
+ let merge-xs = if d.len() >= 2 { d.map(s => x.at(str(s))) } else { () }
+ let xs = merge-xs + l.map(it => ent.at(str(it.ei)))
+ if xs.len() == 0 { continue }
+ let lo = calc.min(cxn, ..xs)
+ let hi = calc.max(cxn, ..xs)
+ let reach = calc.max(cxn - lo, hi - cxn)
+ w.insert(str(c.index), calc.max(
+ wof.at(str(c.index)),
+ 2 * reach + 2 * pad-x,
+ ))
+ }
+ x = relax(w)
+ }
+
+ // Final placement (with the possibly-widened widths).
+ let pos = (:)
+ for c in sized {
+ pos.insert(str(c.index), (
+ x: x.at(str(c.index)),
+ y: rank-y.at(c.rank),
+ rank: c.rank,
+ w: w.at(str(c.index)),
+ h: c.h,
+ th: c.th,
+ shape: c.shape,
+ fill: c.fill,
+ lbl: c.lbl,
+ ))
+ }
+ // How many *direct* children each node fans out to. A node with one direct child
+ // drops that edge straight down; a genuine fork spreads toward each target. Long and
+ // back edges route on the side, so they don't count as fan-out.
+ let fanout = (:)
+ for e in g.edges {
+ if e.kind == "direct" {
+ fanout.insert(str(e.from), fanout.at(str(e.from), default: 0) + 1)
+ }
+ }
+
+ // Each long edge's route for drawing. The widen loop above only needed `.entry`
+ // each round; now that widths have settled, compute the full route once (corridor +
+ // side-ok + entry) — a straight drop, stepped aside only to clear direct inputs.
+ let route = (:)
+ for c in sized {
+ for it in lin.at(str(c.index), default: ()) {
+ route.insert(str(it.ei), route-long(it.from, c.index, x, w))
+ }
+ }
+
+ cetz.canvas({
+ import cetz.draw: *
+
+ // Two x-coordinates within this are treated as the same column (a straight run).
+ let straight-eps = 0.02
+
+ // Everything below is computed in the canonical downward-flow space; a horizontal
+ // flow is that picture transposed. `map` sends a canonical point to the canvas
+ // (identity for a vertical flow), and is applied to every drawn coordinate — so
+ // lines and boxes rotate but text, placed at `map(centre)`, stays upright.
+ let map = if orientation == "horizontal" {
+ p => (-p.at(1), -p.at(0))
+ } else {
+ p => p
+ }
+
+ // A node's outline for its shape, centred at (x, y). Border, as on the timeline
+ // markers: a filled node is ringed by a deeper shade of its own fill; an unfilled
+ // one takes the neutral outline. (Any non-colour paint has no `.darken`, so fall
+ // back to the fill itself rather than panic.)
+ let draw-node = p => {
+ // The outline is the node's canonical box `map`ped onto the canvas (so lines and
+ // corners transpose with the flow), while the label is placed upright at the
+ // mapped centre — text never rotates. Because the parallelogram's slant is kept
+ // along the cross axis and drawn in canonical space, its flow faces stay flat under the
+ // map; the rounded-box radius is capped by `th` so a grown merge keeps flat faces.
+ let (x, y, w, h) = (p.x, p.y, p.w, p.h)
+ let fc = if p.fill == none { node-fill } else { p.fill }
+ let edge = (
+ edge-width
+ + if p.fill == none {
+ node-outline
+ } else if type(p.fill) == color {
+ p.fill.darken(edge-darken)
+ } else {
+ p.fill
+ }
+ )
+ if p.shape == "rounded" {
+ rect(
+ map((x - w / 2, y - h / 2)),
+ map((x + w / 2, y + h / 2)),
+ radius: calc.min(w, h, p.th) / 2,
+ fill: fc,
+ stroke: edge,
+ )
+ } else if p.shape == "diamond" {
+ line(
+ map((x, y + h / 2)),
+ map((x + w / 2, y)),
+ map((x, y - h / 2)),
+ map((x - w / 2, y)),
+ close: true,
+ fill: fc,
+ stroke: edge,
+ )
+ } else if p.shape == "parallelogram" {
+ line(
+ map((x - w / 2, y - h / 2)),
+ map((x + w / 2 - io-slant, y - h / 2)),
+ map((x + w / 2, y + h / 2)),
+ map((x - w / 2 + io-slant, y + h / 2)),
+ close: true,
+ fill: fc,
+ stroke: edge,
+ )
+ } else {
+ rect(
+ map((x - w / 2, y - h / 2)),
+ map((x + w / 2, y + h / 2)),
+ fill: fc,
+ stroke: edge,
+ )
+ }
+ content(map((x, y)), p.lbl)
+ }
+
+ // A point on a node's outline (top/bottom), nudged `toward` a target x — a
+ // diamond's faces slope, so its ports ride up toward the sides. `spread` caps
+ // how far along the face a port may sit.
+ let attach = (p, toward, top, spread) => {
+ let a = p.w / 2
+ let b = p.h / 2
+ let dx = calc.max(calc.min(toward - p.x, spread * a), -spread * a)
+ let ey = if p.shape == "diamond" {
+ let rise = b * (1 - calc.abs(dx) / a)
+ if top { p.y + rise } else { p.y - rise }
+ } else if top { p.y + b } else { p.y - b }
+ (p.x + dx, ey)
+ }
+ // Place a branch label on the midpoint of the path's longest vertical run. A
+ // label reads cleanly sitting on a vertical line (like the yes/no branches), but
+ // its knockout box breaks up a short horizontal stub and looks like a gap in the
+ // line. Fall back to the longest segment only if the path has no vertical run.
+ let edge-label = (lbl, pts) => {
+ let anchor = none
+ let best = -1
+ for i in range(pts.len() - 1) {
+ let (ax, ay) = pts.at(i)
+ let (bx, by) = pts.at(i + 1)
+ let vertical = calc.abs(ax - bx) < straight-eps
+ let score = (
+ calc.abs(ay - by)
+ + calc.abs(ax - bx)
+ + if vertical { 1000 } else { 0 }
+ )
+ if score > best {
+ best = score
+ anchor = ((ax + bx) / 2, (ay + by) / 2)
+ }
+ }
+ if anchor != none {
+ content(
+ map(anchor),
+ box(
+ fill: elabel-fill,
+ inset: elabel-inset,
+ text(size: elabel-size, fill: elabel-color, lbl),
+ ),
+ )
+ }
+ }
+
+ // Diagram extent; back-edges climb a side channel, long edges take a corridor.
+ let min-x = calc.min(..pos.values().map(p => p.x - p.w / 2))
+ let max-x = calc.max(..pos.values().map(p => p.x + p.w / 2))
+ let center-x = (min-x + max-x) / 2
+ let left-i = 0
+ let right-i = 0
+
+ // Edges first, so nodes sit over the line ends.
+ for (ei, e) in g.edges.enumerate() {
+ let s = pos.at(str(e.from))
+ let t = pos.at(str(e.to))
+ if e.kind == "direct" {
+ let forks = fanout.at(str(e.from), default: 0) >= 2
+ let pts = if (
+ orientation == "horizontal" and s.shape == "diamond" and forks
+ ) {
+ // A horizontal-flow decision that forks leaves through its cross faces (the
+ // diamond's top and bottom points, in the final picture): out the vertex on
+ // the child's side, then flow into the child — cleaner than crowding the
+ // single flow vertex with both branches. (A lone child is the flow
+ // continuing, so it falls through and exits straight on.) This assumes the
+ // usual two-way split; 3+ children on one cross side would share a vertex.
+ let side = if t.x > s.x { 1 } else { -1 }
+ let exit = (s.x + side * s.w / 2, s.y)
+ let entry = attach(t, t.x, true, 1.0)
+ if calc.abs(t.x - s.x) >= s.w / 2 {
+ // Child sits beyond the vertex: straight down the flank, then flow in.
+ if calc.abs(exit.at(0) - entry.at(0)) < straight-eps {
+ (exit, entry)
+ } else {
+ (exit, (entry.at(0), s.y), entry)
+ }
+ } else {
+ // Child sits within the diamond's span: leave the vertex perpendicular (a
+ // short stub past the point, so it reads as a right-angle exit like the
+ // clear case), then flow along and drop into the child's column below the
+ // diamond, so the run never cuts back through the body.
+ let out = s.x + side * (s.w / 2 + node-gap / 2)
+ let clear-y = s.y - s.h / 2 - rank-gap / 2
+ (exit, (out, s.y), (out, clear-y), (entry.at(0), clear-y), entry)
+ }
+ } else {
+ // Leave at the source's x (a multi-output node spreads toward each target)
+ // and run straight into the target's flow-entry face; bend only if the
+ // source overhangs the target.
+ let exit = attach(
+ s,
+ if fanout.at(str(e.from), default: 0) == 1 { s.x } else { t.x },
+ false,
+ 0.7,
+ )
+ let entry = attach(t, exit.at(0), true, 1.0)
+ if calc.abs(exit.at(0) - entry.at(0)) < straight-eps {
+ (exit, entry)
+ } else {
+ let my = (exit.at(1) + entry.at(1)) / 2
+ (exit, (exit.at(0), my), (entry.at(0), my), entry)
+ }
+ }
+ line(
+ ..pts.map(map),
+ stroke: edge-stroke,
+ mark: (end: ">", fill: arrow-fill, scale: arrow-scale),
+ )
+ if e.label != none { edge-label(e.label, pts) }
+ } else if e.kind == "back" {
+ // A loop climbs a side channel: out of the source's side, up, into the target's.
+ let left = s.x <= center-x
+ let ch = if left {
+ min-x - back-margin - left-i * back-gap
+ } else {
+ max-x + back-margin + right-i * back-gap
+ }
+ if left { left-i += 1 } else { right-i += 1 }
+ let sx = if left { s.x - s.w / 2 } else { s.x + s.w / 2 }
+ let tx = if left { t.x - t.w / 2 } else { t.x + t.w / 2 }
+ let pts = ((sx, s.y), (ch, s.y), (ch, t.y), (tx, t.y))
+ line(
+ ..pts.map(map),
+ stroke: edge-stroke,
+ mark: (end: ">", fill: arrow-fill, scale: arrow-scale),
+ )
+ if e.label != none { edge-label(e.label, pts) }
+ } else {
+ // A long edge drops down its corridor into the target's top — the corridor,
+ // vertical run, and entry share one x, so the drop is straight whenever the
+ // source's column is clear. A decision exits by the side vertex facing the
+ // corridor (kept outside the diamond, so the run leads away from it); any
+ // other shape (or a boxed-in diamond) exits its bottom centre and drops
+ // clear before jogging across only when the column is blocked.
+ let r = route.at(str(ei))
+ let cx = r.cx
+ let side-ok = r.side-ok
+ let entry = attach(t, r.entry, true, 1.0)
+ let ay = entry.at(1) + rank-gap / 2
+ let head = if side-ok {
+ let sx = if cx < s.x { s.x - s.w / 2 } else { s.x + s.w / 2 }
+ ((sx, s.y), (cx, s.y))
+ } else {
+ let dy = s.y - s.h / 2 - rank-gap / 2
+ ((s.x, s.y - s.h / 2), (s.x, dy), (cx, dy))
+ }
+ let pts = head + ((cx, ay), (entry.at(0), ay), entry)
+ line(
+ ..pts.map(map),
+ stroke: edge-stroke,
+ mark: (end: ">", fill: arrow-fill, scale: arrow-scale),
+ )
+ if e.label != none { edge-label(e.label, pts) }
+ }
+ }
+
+ for p in pos.values() { draw-node(p) }
+ })
+}
diff --git a/packages/preview/pivot/0.2.0/src/hexdump/layout.typ b/packages/preview/pivot/0.2.0/src/hexdump/layout.typ
new file mode 100644
index 0000000000..874f3f7c4b
--- /dev/null
+++ b/packages/preview/pivot/0.2.0/src/hexdump/layout.typ
@@ -0,0 +1,65 @@
+// layout: raw bytes -> rows for a hex dump, plus the pure formatting leaves the
+// renderer needs. No cetz. A hex dump is byte-granular: each row carries its
+// byte offset and the byte values that fall in it; the renderer formats the hex
+// and ASCII columns and (later) overlays field annotations. `per` is the row
+// width in bytes (16 is the classic xxd / `hexdump -C` width).
+
+#let to-bytes(data) = {
+ // Accept Typst `bytes` (e.g. `read(file, encoding: none)`) or an int array.
+ if type(data) == bytes { array(data) } else { data }
+}
+
+#let rows(data, per: 16) = {
+ let b = to-bytes(data)
+ let out = ()
+ let r = 0
+ while r * per < b.len() {
+ let lo = r * per
+ out.push((offset: lo, bytes: b.slice(lo, calc.min(lo + per, b.len()))))
+ r += 1
+ }
+ out
+}
+
+// Two upper-case hex digits, zero-padded: 13 -> "0D", 255 -> "FF".
+#let hex-byte(n) = {
+ let s = upper(str(n, base: 16))
+ "0" * (2 - s.len()) + s
+}
+
+// Zero-padded upper-case hex offset of a fixed digit width (default 8).
+#let hex-offset(n, width: 8) = {
+ let s = upper(str(n, base: 16))
+ "0" * calc.max(0, width - s.len()) + s
+}
+
+// Printable ASCII renders as itself; everything else as a placeholder dot.
+#let printable(n) = n >= 0x20 and n <= 0x7e
+#let ascii(n) = if printable(n) { str.from-unicode(n) } else { "." }
+
+// Lay `n` legend entries into balanced columns: aim for `per-col` a column, but
+// never exceed `max-cols` (so 1 column up to `per-col`, 2 up to `2*per-col`, 3
+// beyond — then columns just grow taller). Sizes differ by at most one, filled
+// top-down then left-to-right, so there's no lonely trailing column. Returns
+// `(cols, rows, positions)` where `positions.at(k) = (col, row)` for entry `k`.
+#let legend-columns(n, per-col: 3, max-cols: 3) = {
+ if n <= 0 {
+ (cols: 0, rows: 0, positions: ())
+ } else {
+ let cols = calc.min(max-cols, calc.ceil(n / per-col))
+ let base = int(n / cols)
+ let extra = calc.rem(n, cols)
+ let positions = ()
+ let c = 0
+ let r = 0
+ for _i in range(0, n) {
+ positions.push((c, r))
+ r += 1
+ if r >= base + (if c < extra { 1 } else { 0 }) {
+ c += 1
+ r = 0
+ }
+ }
+ (cols: cols, rows: calc.ceil(n / cols), positions: positions)
+ }
+}
diff --git a/packages/preview/pivot/0.2.0/src/hexdump/render.typ b/packages/preview/pivot/0.2.0/src/hexdump/render.typ
new file mode 100644
index 0000000000..940207a019
--- /dev/null
+++ b/packages/preview/pivot/0.2.0/src/hexdump/render.typ
@@ -0,0 +1,202 @@
+#import "@preview/cetz:0.5.2" as cetz
+#import "../theme.typ" as theme-mod
+#import "../field/model.typ": model
+#import "../field/layout.typ": layout
+#import "layout.typ": ascii, hex-byte, hex-offset, legend-columns, rows
+
+// hexdump: the byte-region cluster's annotation view — real bytes laid out
+// `per` to a row with an ASCII gutter, with field annotations highlighted in
+// place and named in a legend below. `data` is Typst `bytes` (typically
+// `read(file, encoding: none)`) or a plain int array; annotations are the shared
+// `bytes`/`bits` constructors, their byte ranges rounded to whole cells. Returns
+// content.
+#let hexdump(
+ ..annotations,
+ data: none,
+ per: 16,
+ theme: theme-mod.default,
+) = context {
+ assert(
+ data != none,
+ message: "hexdump: `data:` is required (e.g. read(file, encoding: none))",
+ )
+ let rs = rows(data, per: per)
+
+ // Annotations -> fields -> per-row segments (a range crossing a row break
+ // splits into one segment per row).
+ let fields = model(annotations.pos())
+ let segs = layout(fields, bits-per-row: per * 8)
+ // In-grid highlighting is opt-in: a field is drawn only when it has a `fill:`.
+ // A hexdump has no per-field box to fall back on (unlike `packet`/`struct`), so
+ // colour is the sole in-grid marker. The fill is honoured whether or not the
+ // field is labelled (the label only names it in the legend); an unfilled field
+ // isn't dropped either — it's still listed in the legend below.
+ let field-segs = segs.filter(s => s.kind == "field" and s.fill != none)
+
+ // One legend entry per distinct annotated field, first-appearance order,
+ // carrying its byte range and its `fill:` colour. The colour may be `none`: an
+ // unfilled annotation is still listed (we never drop what the author passed) —
+ // it just gets no swatch here and no in-grid highlight above.
+ let legend = ()
+ for f in fields {
+ let is-new = (
+ f.kind == "field"
+ and f.label != none
+ and legend.find(e => e.label == f.label) == none
+ )
+ if is-new {
+ legend.push((
+ label: f.label,
+ color: f.fill,
+ lo: int(f.start / 8),
+ hi: int(f.end / 8),
+ ))
+ }
+ }
+
+ let mono = theme.hexdump-font
+ let size = theme.hexdump-size
+ let legend-size = theme.hexdump-legend-size
+ let line-h = theme.hexdump-line / 1cm
+ let off-fill = theme.hexdump-offset-color
+ let text-fill = theme.hexdump-text-color
+ let legend-gap = theme.hexdump-legend-gap / 1cm
+ let swatch = theme.hexdump-swatch / 1cm
+ let label-pad = theme.label-pad / 1cm
+ let per-col = theme.hexdump-legend-rows
+ let max-cols = theme.hexdump-legend-cols
+ let legend-col-gap = theme.hexdump-legend-col-gap / 1cm
+
+ // The grid is monospace, so one glyph advance sizes every column; measure it
+ // once. `mono-text` is captured before the canvas so `text` stays the builtin.
+ let char-w = measure(text(font: mono, size: size, "0")).width / 1cm
+ let mono-text = (body, fill) => text(font: mono, size: size, fill: fill, body)
+ // Legend is set a notch smaller than the grid (its own size token).
+ let mono-legend = (body, fill) => text(
+ font: mono,
+ size: legend-size,
+ fill: fill,
+ body,
+ )
+
+ // Compact hex byte range for a legend row: "0x00–0x01" (single byte: "0x3C").
+ // `range-w` reserves a column so the names line up after the ranges.
+ let range-of = e => {
+ let lo = "0x" + hex-offset(e.lo, width: 2)
+ if e.lo == e.hi { lo } else { lo + "–0x" + hex-offset(e.hi, width: 2) }
+ }
+ let range-w = calc.max(
+ 0,
+ ..legend.map(e => measure(mono-legend(range-of(e), off-fill)).width / 1cm),
+ )
+ // Widest name, so a wrapped second column starts past the first's labels.
+ let label-w = calc.max(
+ 0,
+ ..legend.map(e => measure(text(size: legend-size, e.label)).width / 1cm),
+ )
+
+ // Lay the legend into balanced columns, capped at `max-cols` (see layout.typ).
+ let leg-pos = legend-columns(
+ legend.len(),
+ per-col: per-col,
+ max-cols: max-cols,
+ ).positions
+
+ // A byte's trailing separator: none after the last, a wider gap every 8 bytes.
+ let sep = j => if j == per - 1 { "" } else if calc.rem(j + 1, 8) == 0 {
+ " "
+ } else { " " }
+ // Glyph column where byte `j`'s hex pair starts, within the hex block.
+ let hpos = j => range(0, j).map(k => 2 + sep(k).len()).sum(default: 0)
+
+ // Column origins, in glyph advances from the left: the offset column (as wide
+ // as `hex-offset` renders) then a two-glyph gap. The hex block is padded to a
+ // full row so the ASCII column never shifts on a short final row.
+ let hex-x = (hex-offset(0).len() + 2) * char-w
+ let full-hex = range(0, per).map(j => "00" + sep(j)).join()
+ let ascii-x = hex-x + (full-hex.len() + 1) * char-w
+
+ cetz.canvas({
+ import cetz.draw: *
+
+ // Highlights first, behind the glyphs. A byte range covers whole hex cells
+ // (with the separators between them) and the matching ASCII chars; a
+ // multi-row range tiles across the row bands.
+ let half = line-h / 2
+ for s in field-segs {
+ let y = -s.row * line-h
+ let a = int(s.col-start / 8)
+ let b = int(s.col-end / 8)
+ let col = s.fill
+ rect(
+ (hex-x + hpos(a) * char-w, y - half),
+ (hex-x + (hpos(b) + 2) * char-w, y + half),
+ fill: col,
+ stroke: none,
+ )
+ rect(
+ (ascii-x + (1 + a) * char-w, y - half),
+ (ascii-x + (2 + b) * char-w, y + half),
+ fill: col,
+ stroke: none,
+ )
+ }
+
+ // The dump rows, on top of the highlights.
+ for (i, row) in rs.enumerate() {
+ let y = -i * line-h
+ content(
+ (0, y),
+ mono-text(hex-offset(row.offset), off-fill),
+ anchor: "west",
+ )
+ let cells = range(0, per)
+ .map(j => (
+ (
+ if j < row.bytes.len() { hex-byte(row.bytes.at(j)) } else { " " }
+ )
+ + sep(j)
+ ))
+ .join()
+ content((hex-x, y), mono-text(cells, text-fill), anchor: "west")
+ let glyphs = row.bytes.map(ascii).join()
+ content(
+ (ascii-x, y),
+ mono-text("|" + glyphs + "|", text-fill),
+ anchor: "west",
+ )
+ }
+
+ // Legend: colour swatch + byte range + field name. Entries fill a column
+ // top-down, then wrap into the next column after `per-col` (e.g. >3 -> two
+ // columns of three), so a long field list stays compact.
+ let base-y = -rs.len() * line-h - legend-gap
+ let label-x = swatch + label-pad + range-w + label-pad
+ let col-width = label-x + label-w + legend-col-gap
+ for (k, e) in legend.enumerate() {
+ let (ci, ri) = leg-pos.at(k)
+ let lx = ci * col-width
+ let ly = base-y - ri * line-h
+ // A swatch only for a filled field; an unfilled one still lists its range
+ // and label, the swatch column left blank so the columns stay aligned.
+ if e.color != none {
+ rect(
+ (lx, ly - swatch / 2),
+ (lx + swatch, ly + swatch / 2),
+ fill: e.color,
+ stroke: none,
+ )
+ }
+ content(
+ (lx + swatch + label-pad, ly),
+ mono-legend(range-of(e), off-fill),
+ anchor: "west",
+ )
+ content(
+ (lx + label-x, ly),
+ text(size: legend-size, fill: text-fill, e.label),
+ anchor: "west",
+ )
+ }
+ })
+}
diff --git a/packages/preview/pivot/0.2.0/src/packet/render.typ b/packages/preview/pivot/0.2.0/src/packet/render.typ
new file mode 100644
index 0000000000..fdd8a34dee
--- /dev/null
+++ b/packages/preview/pivot/0.2.0/src/packet/render.typ
@@ -0,0 +1,340 @@
+#import "@preview/cetz:0.5.2" as cetz
+#import "../theme.typ" as theme-mod
+#import "../field/model.typ": model
+#import "../field/layout.typ": layout
+
+// packet: the entry function. Collects element descriptors, runs the pure
+// model -> layout pipeline, and draws the segments with cetz. Returns content.
+//
+// `callout` controls where narrow fields' labels go:
+// "gap" — fanned into the enlarged gap below their row (orthogonal leaders)
+// "left" — left-aligned column, leaders fanning left/right (orthogonal)
+// `ruler` controls the bit-edge numbers:
+// "dedup" — a boundary number is shown only the first time (top-down) it
+// appears; repeats are hidden and rows that introduce no new boundary
+// lose their number strip and tuck closer (default)
+// "full" — every box edge is numbered on every row
+#let packet(
+ ..args,
+ bits-per-row: 32,
+ callout: "left",
+ ruler: "dedup",
+ theme: theme-mod.default,
+) = context {
+ let fields = model(args.pos())
+ let segments = layout(fields, bits-per-row: bits-per-row)
+
+ // Capture tokens into differently-named locals BEFORE `import cetz.draw: *`.
+ let cell-stroke = theme.stroke
+ let cell-fill = theme.fill
+ let gap-stroke = theme.gap-stroke
+ let gap-fill = theme.gap-fill
+ let leader-stroke = theme.leader-stroke
+ let bit-w = theme.bit-width / 1cm
+ let row-h = theme.row-height / 1cm
+ let row-gap = theme.row-gap / 1cm
+ let col-gap = theme.col-gap / 1cm
+ let strip = theme.strip / 1cm
+ let label-size = theme.label-size
+ let bit-size = theme.bit-size
+ let bit-fill = theme.bit-color
+ let bit-font = theme.bit-font
+ let label-pad = theme.label-pad / 1cm
+ let callout-drop = theme.callout-drop / 1cm
+ let callout-bottom = theme.callout-bottom / 1cm
+ let callout-spacing = theme.callout-spacing / 1cm
+ let callout-gap = theme.callout-gap / 1cm
+ let line-h = theme.callout-line-height / 1cm
+ let stub = theme.callout-stub / 1cm
+ let side-gap = theme.callout-side-gap / 1cm
+ let label-gap = theme.callout-label-pad / 1cm
+ let gap-drop = theme.callout-gap-drop / 1cm
+ let lane-top = theme.callout-gap-lane-top / 1cm
+ let lane-bot = theme.callout-gap-lane-bot / 1cm
+ let gap-leader = theme.callout-gap-leader / 1cm
+
+ // Measure each segment's label once. "narrow" (label wider than its box -> it
+ // needs a callout) and the label width are then O(1) lookups, reused by the
+ // filters, the crowding check, the callout list, and the draw loop below.
+ let meas = (:)
+ for s in segments {
+ let w = if s.kind == "gap" or s.label == none {
+ 0.0
+ } else {
+ measure(text(size: label-size, s.label)).width / 1cm
+ }
+ let box-w = (s.col-end - s.col-start + 1) * bit-w - col-gap - 2 * label-pad
+ meas.insert(
+ str(s.row) + "/" + str(s.col-start),
+ (w: w, narrow: s.kind != "gap" and s.label != none and w > box-w),
+ )
+ }
+ let is-narrow = s => meas.at(str(s.row) + "/" + str(s.col-start)).narrow
+ let width-of = s => meas.at(str(s.row) + "/" + str(s.col-start)).w
+ let callout-rows = segments.filter(is-narrow).map(s => s.row).dedup()
+ let max-row = calc.max(0, ..segments.map(s => s.row))
+ let count-in = r => segments.filter(s => s.row == r and is-narrow(s)).len()
+
+ // A narrow field's horizontal centre (independent of the vertical layout).
+ let cx-of = s => (s.col-start + s.col-end + 1) * bit-w / 2
+
+ // The compact split's LEFT label column: hug the leftmost field, but clamp so
+ // the widest label can't cross the frame's left edge (x = 0). Shared by the
+ // crowding test and the layout so both reason about the same geometry. `lg` is
+ // a non-empty list of items with `.cx` (field centre) and `.w` (label width).
+ let left-col-x = lg => calc.max(
+ calc.min(..lg.map(c => c.cx)) - side-gap,
+ calc.max(..lg.map(c => c.w)) + label-gap,
+ )
+
+ // Per callout row: would the compact left/right split cross a label? It does
+ // when a left-column field's drop falls within a higher label's text — i.e. the
+ // row is crowded with thin segments. Such rows switch to a single column placed
+ // OUTSIDE the frame (the struct layout), crossing-free by construction.
+ let crowded = (:)
+ for r in callout-rows {
+ let info = segments
+ .filter(s => s.row == r and is-narrow(s))
+ .sorted(key: s => s.col-start)
+ .map(s => (cx: cx-of(s), w: width-of(s)))
+ let left = info.slice(0, calc.ceil(info.len() / 2))
+ // Predict the compact-split LEFT layout: labels right-aligned at
+ // `lx - label-gap`; a field left of `lx` drops a short straight stub. Such a
+ // stub crosses an earlier label when the field's centre falls within that
+ // label's text span. (A field right of `lx` turns in from beyond every label,
+ // and the right group's labels sit beyond every field, so neither can cross.)
+ // A row that would cross switches to the crowded single-column layout below.
+ let cross = false
+ if left.len() >= 2 {
+ let lx = left-col-x(left)
+ let label-right = lx - label-gap
+ for j in range(1, left.len()) {
+ if left.at(j).cx < lx {
+ for i in range(0, j) {
+ if (
+ left.at(j).cx >= label-right - left.at(i).w
+ and left.at(j).cx <= label-right
+ ) { cross = true }
+ }
+ }
+ }
+ }
+ crowded.insert(str(r), cross)
+ }
+
+ // Height of the annotation band below a callout row. A crowded row uses one
+ // tall column; otherwise the taller of the split's two columns sets the height.
+ let band = r => {
+ if callout != "left" {
+ callout-gap
+ } else if crowded.at(str(r), default: false) {
+ callout-drop + (count-in(r) - 1) * line-h + callout-bottom
+ } else {
+ let half = calc.ceil(count-in(r) / 2)
+ let lanes = calc.max(half, count-in(r) - half)
+ callout-drop + (lanes - 1) * line-h + callout-bottom
+ }
+ }
+
+ // Ruler de-duplication. A boundary is keyed by (position, number) so a right
+ // edge `15` and a left edge `16` near the same x stay distinct. In "dedup"
+ // mode a key is shown only the first time it appears top-down; later repeats
+ // hide, and a row that introduces none keeps no number strip. "full" shows all.
+ let seen = ()
+ let show-num = (:)
+ let row-has-num = (:)
+ for r in range(0, max-row + 1) {
+ let any = false
+ for s in segments.filter(s => s.row == r).sorted(key: s => s.col-start) {
+ let lk = (s.col-start, s.col-start)
+ let rk = (s.col-end + 1, s.col-end)
+ let sl = ruler == "full" or not seen.contains(lk)
+ let sr = ruler == "full" or not seen.contains(rk)
+ if not seen.contains(lk) { seen.push(lk) }
+ if not seen.contains(rk) { seen.push(rk) }
+ show-num.insert(str(r) + "/" + str(s.col-start), (left: sl, right: sr))
+ any = any or sl or sr
+ }
+ row-has-num.insert(str(r), any)
+ }
+
+ // Precompute each row's box-top y (rows stack downward; up is positive). A row
+ // with no visible ruler numbers needs no top strip, so it tucks closer.
+ let box-tops = ()
+ let row-pad = ()
+ let yacc = 0.0
+ for r in range(0, max-row + 1) {
+ let pad = if row-has-num.at(str(r)) { strip } else { 0.0 }
+ row-pad.push(pad)
+ box-tops.push(-(yacc + pad))
+ let gap-below = if callout-rows.contains(r) { band(r) } else { row-gap }
+ yacc += pad + row-h + gap-below
+ }
+
+ // Geometry of a segment's box, and the narrow ones' callout data (widths
+ // measured here, in `context`, so leaders can stop just past each label).
+ let seg-box = s => {
+ let x0 = s.col-start * bit-w + col-gap / 2
+ let x1 = (s.col-end + 1) * bit-w - col-gap / 2
+ let top = box-tops.at(s.row)
+ (x0: x0, x1: x1, top: top, bot: top - row-h)
+ }
+ let callouts = segments
+ .filter(is-narrow)
+ .map(s => {
+ let b = seg-box(s)
+ (
+ row: s.row,
+ cx: (b.x0 + b.x1) / 2,
+ by: b.bot,
+ label: s.label,
+ w: width-of(s),
+ )
+ })
+
+ cetz.canvas({
+ import cetz.draw: *
+
+ for s in segments {
+ let b = seg-box(s)
+ let is-gap = s.kind == "gap"
+ let box-stroke = if is-gap { gap-stroke } else { cell-stroke }
+ let box-fill = if is-gap { gap-fill } else if s.fill != none {
+ s.fill
+ } else { cell-fill }
+ rect((b.x0, b.bot), (b.x1, b.top), stroke: box-stroke, fill: box-fill)
+
+ if (not is-gap) and s.label != none and not is-narrow(s) {
+ content(((b.x0 + b.x1) / 2, (b.top + b.bot) / 2), text(
+ size: label-size,
+ s.label,
+ ))
+ }
+
+ let ny = b.top + row-pad.at(s.row) / 2
+ let sn = show-num.at(str(s.row) + "/" + str(s.col-start))
+ if sn.left {
+ content(
+ (b.x0, ny),
+ text(size: bit-size, font: bit-font, fill: bit-fill, str(
+ s.col-start,
+ )),
+ anchor: "west",
+ )
+ }
+ if sn.right {
+ content(
+ (b.x1, ny),
+ text(size: bit-size, font: bit-font, fill: bit-fill, str(s.col-end)),
+ anchor: "east",
+ )
+ }
+ }
+
+ for r in callouts.map(c => c.row).dedup() {
+ let group = callouts.filter(c => c.row == r).sorted(key: c => c.cx)
+ let n = group.len()
+ let row-bot = box-tops.at(r) - row-h
+
+ if callout == "left" and crowded.at(str(r), default: false) {
+ // Crowded row: one column OUTSIDE the frame (the struct layout). Labels
+ // right-aligned just left of the leftmost field, drops stay inside the
+ // frame, so a drop can never cut a label; leftmost field on top keeps the
+ // orthogonal leaders un-crossed.
+ let gutter = calc.min(..group.map(c => c.cx)) - side-gap
+ for (i, c) in group.enumerate() {
+ let y = row-bot - callout-drop - i * line-h
+ line((c.cx, c.by), (c.cx, y), (gutter, y), stroke: leader-stroke)
+ content(
+ (gutter - label-gap, y),
+ text(size: label-size, c.label),
+ anchor: "east",
+ )
+ }
+ } else if callout == "left" {
+ // Compact split into two columns, each anchored to its OWN fields: the
+ // left half fans left to just past the leftmost field, the right half
+ // fans right past the rightmost — so neither group strands its labels at
+ // the frame edge. Lane order (outermost field on top per side) keeps the
+ // orthogonal leaders un-crossed. Used when the row would not crowd.
+ let mid = calc.ceil(n / 2)
+ let left-grp = group.slice(0, mid)
+ let right-grp = group.slice(mid)
+
+ // Left column (see `left-col-x`): hug the leftmost field, clamped to the
+ // frame edge. A field hard against the edge then gets a straight stub
+ // rather than a leader turning rightward through its own label.
+ let left-x = left-col-x(left-grp)
+ for (i, c) in left-grp.enumerate() {
+ let y = row-bot - callout-drop - i * line-h
+ // A field to the right of the column turns left onto its label; a field
+ // sitting over its own label (clamped column) gets a short straight
+ // stub instead, so the leader never runs through the text.
+ if c.cx >= left-x {
+ line((c.cx, c.by), (c.cx, y), (left-x, y), stroke: leader-stroke)
+ } else {
+ line((c.cx, c.by), (c.cx, y + stub), stroke: leader-stroke)
+ }
+ content(
+ (left-x - label-gap, y),
+ text(size: label-size, c.label),
+ anchor: "east",
+ )
+ }
+
+ // Right half — empty when the row has a single narrow field (it falls in
+ // `left-grp`), so guard against `calc.max` of nothing. Unlike the left, it
+ // extends outward unclamped: a long label on a far-right field may spill
+ // past the frame's right edge, the accepted fallback when a label has
+ // nowhere else to go.
+ if right-grp.len() > 0 {
+ let right-x = calc.max(..right-grp.map(c => c.cx)) + side-gap
+ let right-n = right-grp.len()
+ for (i, c) in right-grp.enumerate() {
+ let y = row-bot - callout-drop - (right-n - 1 - i) * line-h
+ line((c.cx, c.by), (c.cx, y), (right-x, y), stroke: leader-stroke)
+ content(
+ (right-x + label-gap, y),
+ text(size: label-size, c.label),
+ anchor: "west",
+ )
+ }
+ }
+ } else {
+ // In-gap fan: orthogonal Z leaders, label row near the band's bottom.
+ let centroid = group.map(c => c.cx).sum() / n
+ let start-lx = centroid - (n - 1) * callout-spacing / 2
+ let items = group
+ .enumerate()
+ .map(((i, c)) => (
+ cx: c.cx,
+ by: c.by,
+ label: c.label,
+ lx: start-lx + i * callout-spacing,
+ ))
+ let label-y = row-bot - callout-gap + gap-drop
+ let lane-hi = row-bot - lane-top
+ let lane-lo = label-y + lane-bot
+ let order = items
+ .enumerate()
+ .sorted(key: ((j, it)) => -calc.abs(it.lx - centroid))
+ for (rank, (j, it)) in order.enumerate() {
+ let t = if n <= 1 { 0 } else { rank / (n - 1) }
+ let lane = lane-lo + t * (lane-hi - lane-lo)
+ line(
+ (it.cx, row-bot),
+ (it.cx, lane),
+ (it.lx, lane),
+ (it.lx, label-y + gap-leader),
+ stroke: leader-stroke,
+ )
+ content(
+ (it.lx, label-y),
+ text(size: label-size, it.label),
+ anchor: "north",
+ )
+ }
+ }
+ }
+ })
+}
diff --git a/packages/preview/pivot/0.2.0/src/palette.typ b/packages/preview/pivot/0.2.0/src/palette.typ
new file mode 100644
index 0000000000..f380b75e25
--- /dev/null
+++ b/packages/preview/pivot/0.2.0/src/palette.typ
@@ -0,0 +1,16 @@
+// palette: the shared Okabe–Ito colour-blind-safe qualitative palette, lightened
+// into highlight backgrounds that keep black text legible. One source of truth
+// for field-highlight colour across all three diagrams — reach for a colour by
+// name in an explicit `fill:`, e.g. `fill: palette.orange`. Timeline markers fill
+// with these and rim them with a darker shade of the same hue (see render). Pure.
+
+#let palette = (
+ orange: rgb("#E69F00").lighten(45%),
+ sky: rgb("#56B4E9").lighten(45%),
+ green: rgb("#009E73").lighten(45%),
+ yellow: rgb("#F0E442").lighten(45%),
+ blue: rgb("#0072B2").lighten(45%),
+ vermillion: rgb("#D55E00").lighten(45%),
+ purple: rgb("#CC79A7").lighten(45%),
+ grey: rgb("#000000").lighten(80%),
+)
diff --git a/packages/preview/pivot/0.2.0/src/struct/layout.typ b/packages/preview/pivot/0.2.0/src/struct/layout.typ
new file mode 100644
index 0000000000..8ea3e6df65
--- /dev/null
+++ b/packages/preview/pivot/0.2.0/src/struct/layout.typ
@@ -0,0 +1,91 @@
+// struct/layout.typ — field model -> vertically stacked entries for the struct
+// (memory-map) renderer. Pure: no cetz, no theme.
+//
+// Two entry types:
+// "box" — a whole-byte-aligned field: one vertical box, height proportional
+// to byte size (floored to `min-height`, capped at `max-height`;
+// `clamped` flags the cap for a break mark).
+// "bits" — a byte-run carved into sub-byte fields: one strip the height of its
+// byte-run, holding `cells` for the renderer to subdivide
+// horizontally. Consecutive fields are grouped until the run returns
+// to a byte boundary, so a field that straddles a byte (and any whole
+// bytes it pulls in) stays in one strip — true to real layouts like
+// IPv4's 3 flag bits + 13-bit fragment offset.
+//
+// `scale`/`min-height`/`max-height`/`gap` are canvas units from the renderer.
+// `start`/`size` stay in bits; offset formatting is the renderer's job.
+
+#let _box-height(bits, scale, min-height, max-height) = {
+ let raw = (bits / 8) * scale
+ (
+ height: calc.max(min-height, calc.min(max-height, raw)),
+ clamped: raw > max-height,
+ )
+}
+
+#let layout(
+ fields,
+ scale: 0.3,
+ min-height: 0.55,
+ max-height: 2.2,
+ gap: 0.0,
+) = {
+ let entries = ()
+ let top = 0.0
+ let i = 0
+ let n = fields.len()
+ while i < n {
+ let f = fields.at(i)
+ let whole = calc.rem(f.start, 8) == 0 and calc.rem(f.end + 1, 8) == 0
+ if whole {
+ let size = f.end - f.start + 1
+ let h = _box-height(size, scale, min-height, max-height)
+ entries.push((
+ type: "box",
+ kind: f.kind,
+ label: f.label,
+ fill: f.at("fill", default: none),
+ start: f.start,
+ size: size,
+ top: top,
+ height: h.height,
+ clamped: h.clamped,
+ ))
+ top += h.height + gap
+ i += 1
+ } else {
+ // accumulate a bit-group until the run returns to a byte boundary
+ let group-start = calc.quo(f.start, 8) * 8
+ let cells = ()
+ while i < n {
+ let g = fields.at(i)
+ cells.push((
+ kind: g.kind,
+ label: g.label,
+ fill: g.at("fill", default: none),
+ start: g.start,
+ size: g.end - g.start + 1,
+ ))
+ i += 1
+ if calc.rem(g.end + 1, 8) == 0 { break }
+ }
+ let last = cells.last()
+ let size = last.start + last.size - group-start
+ // bit-strips are never height-capped: a multi-byte bit-run is rare, and a
+ // break mark across a subdivided strip would be awkward — so they render at
+ // true (floored) height. Model and renderer agree: bits never clamp.
+ let height = calc.max(min-height, (size / 8) * scale)
+ entries.push((
+ type: "bits",
+ start: group-start,
+ size: size,
+ top: top,
+ height: height,
+ clamped: false,
+ cells: cells,
+ ))
+ top += height + gap
+ }
+ }
+ entries
+}
diff --git a/packages/preview/pivot/0.2.0/src/struct/render.typ b/packages/preview/pivot/0.2.0/src/struct/render.typ
new file mode 100644
index 0000000000..34008b9a63
--- /dev/null
+++ b/packages/preview/pivot/0.2.0/src/struct/render.typ
@@ -0,0 +1,266 @@
+#import "@preview/cetz:0.5.2" as cetz
+#import "../theme.typ" as theme-mod
+#import "../field/model.typ": model
+#import "layout.typ": layout
+
+// Hex string for a non-negative integer (no "0x" prefix). Typst markup has no
+// built-in int -> hex, so build it.
+#let _hex(n) = {
+ if n == 0 {
+ return "0"
+ }
+ let digits = "0123456789ABCDEF"
+ let s = ""
+ let v = n
+ while v > 0 {
+ s = digits.at(calc.rem(v, 16)) + s
+ v = calc.quo(v, 16)
+ }
+ s
+}
+
+// struct: the byte-region cluster's vertical "memory map" view. Fields stack
+// top-down with box height proportional to byte size (see struct/layout); byte
+// offsets run down the left edge, sizes down the right. Same element vocabulary
+// as packet (`bytes`/`bits`/`gap`/`reserved`); no row-wrapping. Returns content.
+#let struct(..args, theme: theme-mod.default) = context {
+ let fields = model(args.pos())
+
+ // Capture tokens into renamed locals BEFORE `import cetz.draw: *` shadows them.
+ let cell-stroke = theme.stroke
+ let cell-fill = theme.fill
+ let gap-stroke = theme.gap-stroke
+ let gap-fill = theme.gap-fill
+ let label-size = theme.label-size
+ let meta-size = theme.bit-size
+ let meta-fill = theme.bit-color
+ let meta-font = theme.bit-font
+ let box-w = theme.struct-width / 1cm
+ let scale = theme.struct-byte-height / 1cm
+ let min-h = theme.struct-min-height / 1cm
+ let max-h = theme.struct-max-height / 1cm
+ let side-gap = theme.struct-offset-gap / 1cm
+ let row-gap = theme.row-gap / 1cm
+ let col-gap = theme.col-gap / 1cm
+ let break-amp = theme.struct-break-amp / 1cm
+ let break-pitch = theme.struct-break-pitch / 1cm
+ let label-pad = theme.label-pad / 1cm
+ let leader-stroke = theme.leader-stroke
+ let callout-drop = theme.callout-drop / 1cm
+ let callout-line-h = theme.callout-line-height / 1cm
+ let callout-bottom = theme.callout-bottom / 1cm
+
+ let entries = layout(
+ fields,
+ scale: scale,
+ min-height: min-h,
+ max-height: max-h,
+ gap: row-gap,
+ )
+ // Pad offsets to the width of the largest (the struct's end) so they read as
+ // aligned addresses: 0x00, 0x04, ... 0x10.
+ let pad-width = if entries.len() > 0 {
+ _hex(calc.quo(entries.last().start + entries.last().size, 8)).len()
+ } else {
+ 1
+ }
+
+ cetz.canvas({
+ import cetz.draw: *
+ let x0 = 0.0
+ let x1 = box-w
+
+ // a byte offset, formatted hex with a `:bit` suffix for sub-byte starts
+ let off-label = bitpos => {
+ let byte = calc.quo(bitpos, 8)
+ let bit = calc.rem(bitpos, 8)
+ let h = _hex(byte)
+ while h.len() < pad-width { h = "0" + h }
+ "0x" + h + if bit != 0 { ":" + str(bit) } else { "" }
+ }
+
+ let extra = 0.0
+ for (i, e) in entries.enumerate() {
+ let top = -(e.top + extra)
+ let bot = -(e.top + e.height + extra)
+
+ if e.type == "box" {
+ let is-gap = e.kind == "gap"
+ let box-stroke = if is-gap { gap-stroke } else { cell-stroke }
+ let box-fill = if is-gap {
+ gap-fill
+ } else if e.fill != none {
+ e.fill
+ } else {
+ cell-fill
+ }
+ // A clamped (oversized) field is capped below its true size, so its
+ // bottom edge becomes a torn zigzag "break mark" — the height is drawn
+ // short on purpose, and this says so. The size label still shows true size.
+ if e.clamped {
+ let n = 2 * int(calc.max(2, calc.round((x1 - x0) / break-pitch)))
+ let step = (x1 - x0) / n
+ let zig = range(0, n + 1).map(k => (
+ x1 - k * step,
+ if calc.rem(k, 2) == 0 { bot } else { bot + break-amp },
+ ))
+ line(
+ (x0, top),
+ (x1, top),
+ ..zig,
+ close: true,
+ stroke: box-stroke,
+ fill: box-fill,
+ )
+ } else {
+ rect((x0, bot), (x1, top), stroke: box-stroke, fill: box-fill)
+ }
+ // Label placement, in order of preference: centred on one line if it
+ // fits; wrapped to at most two lines inside the box if it doesn't; and
+ // only when even two lines won't fit (too long, or too tall for the box)
+ // does it move to a leader callout centred BELOW the box. The callout
+ // label is centred on its leader, so the diagram itself stays centred and
+ // the offset column stays put on the left.
+ if e.label != none {
+ let cx = (x0 + x1) / 2
+ let mid-y = (top + bot) / 2
+ let avail-w = (x1 - x0) - 2 * label-pad
+ let nat-w = measure(text(size: label-size, e.label)).width / 1cm
+ if nat-w <= avail-w {
+ content((cx, mid-y), text(size: label-size, e.label))
+ } else {
+ // wrap to the box width and see if it lands within two lines and the
+ // box height; a reference two-line block sets the line-count ceiling.
+ // Disable justification: a wrapped label must not inherit the
+ // document's `par(justify: true)`, which would stretch a line with
+ // few break points into huge inter-word gaps.
+ let wrapped = box(width: avail-w * 1cm, {
+ set par(justify: false)
+ align(center, text(size: label-size, e.label))
+ })
+ let wh = measure(wrapped).height / 1cm
+ let two-line = (
+ measure(box(
+ width: avail-w * 1cm,
+ text(size: label-size)[A\ A],
+ )).height
+ / 1cm
+ )
+ let avail-h = (top - bot) - 2 * label-pad
+ if wh <= two-line + 0.01 and wh <= avail-h {
+ content((cx, mid-y), wrapped)
+ } else {
+ // too long even for two lines: drop a leader and hang the same
+ // wrapped block (centred, box width) below the box, so the callout
+ // stays contained and centred rather than sprawling as one line.
+ let ly = bot - callout-drop
+ line((cx, bot), (cx, ly), stroke: leader-stroke)
+ content((cx, ly), wrapped, anchor: "north")
+ extra += callout-drop + wh + callout-bottom
+ }
+ }
+ }
+ } else {
+ // a bit-carved byte-run: one strip subdivided horizontally into cells.
+ // A cell shows its name inline if it fits, else its bit number and a
+ // leader callout below (a 1-bit cell can't hold a name).
+ let callouts = ()
+ let last-j = e.cells.len() - 1
+ for (j, c) in e.cells.enumerate() {
+ let fcx0 = x0 + (c.start - e.start) / e.size * (x1 - x0)
+ let fcx1 = x0 + (c.start + c.size - e.start) / e.size * (x1 - x0)
+ // float the cells by `col-gap`, but keep the strip's outer edges flush
+ // with the boxes above/below (only inset the internal boundaries).
+ let cx0 = fcx0 + if j == 0 { 0.0 } else { col-gap / 2 }
+ let cx1 = fcx1 - if j == last-j { 0.0 } else { col-gap / 2 }
+ let cgap = c.kind == "gap"
+ rect(
+ (cx0, bot),
+ (cx1, top),
+ stroke: if cgap { gap-stroke } else { cell-stroke },
+ fill: if cgap { gap-fill } else if c.fill != none { c.fill } else {
+ cell-fill
+ },
+ )
+ let mid = ((cx0 + cx1) / 2, (top + bot) / 2)
+ let fits = (
+ c.label != none
+ and measure(text(size: label-size, c.label)).width / 1cm
+ <= (cx1 - cx0) - 2 * label-pad
+ )
+ if fits {
+ content(mid, text(size: label-size, c.label))
+ } else {
+ content(
+ mid,
+ text(size: meta-size, font: meta-font, fill: meta-fill, str(
+ c.start - e.start,
+ )),
+ )
+ if c.label != none {
+ callouts.push((cx: (cx0 + cx1) / 2, label: c.label))
+ }
+ }
+ }
+ // names that did not fit: stacked in a band below the strip, ordered
+ // left-to-right so the orthogonal drop-then-turn leaders never cross.
+ let m = callouts.len()
+ if m > 0 {
+ // labels live OUTSIDE the frame (left of x0, right-aligned at the same
+ // gutter as the offsets); leaders drop inside the frame then turn out
+ // to them. Drops stay at x >= x0, labels at x < x0, so a drop can never
+ // cut through a label's text.
+ let gutter = x0 - side-gap
+ for (k, c) in callouts.sorted(key: it => it.cx).enumerate() {
+ let ly = bot - callout-drop - k * callout-line-h
+ line((c.cx, bot), (c.cx, ly), (gutter, ly), stroke: leader-stroke)
+ content(
+ (gutter, ly),
+ text(size: label-size, c.label),
+ anchor: "east",
+ )
+ }
+ extra += callout-drop + (m - 1) * callout-line-h + callout-bottom
+ }
+ }
+
+ // offset at the boundary it marks (left column): centred in the gap above
+ // each entry, except the first, which has no gap and sits at its top edge.
+ let off-y = if i == 0 { top } else { top + row-gap / 2 }
+ content(
+ (x0 - side-gap, off-y),
+ text(size: meta-size, font: meta-font, fill: meta-fill, off-label(
+ e.start,
+ )),
+ anchor: "east",
+ )
+
+ // size, centred on the box (right column)
+ let size-str = if calc.rem(e.size, 8) == 0 {
+ str(calc.quo(e.size, 8)) + " B"
+ } else {
+ str(e.size) + " b"
+ }
+ content(
+ (x1 + side-gap, (top + bot) / 2),
+ text(size: meta-size, font: meta-font, fill: meta-fill, size-str),
+ anchor: "west",
+ )
+ }
+
+ // closing offset: the byte just past the last field (the struct's end)
+ if entries.len() > 0 {
+ let last = entries.last()
+ content(
+ (x0 - side-gap, -(last.top + last.height + extra)),
+ text(
+ size: meta-size,
+ font: meta-font,
+ fill: meta-fill,
+ off-label(last.start + last.size),
+ ),
+ anchor: "east",
+ )
+ }
+ })
+}
diff --git a/packages/preview/pivot/0.2.0/src/theme.typ b/packages/preview/pivot/0.2.0/src/theme.typ
new file mode 100644
index 0000000000..a9d22bbd4b
--- /dev/null
+++ b/packages/preview/pivot/0.2.0/src/theme.typ
@@ -0,0 +1,106 @@
+// Style tokens. Render code reads tokens from a theme dict; no style literals
+// live in draw code. `default` is the typeset baseline: monochrome line-art
+// (RFC style), which is colour-blind-safe by construction — colour only enters
+// when the author sets an explicit `fill:` on a field.
+
+#let default = (
+ bit-width: 0.42cm, // width of one bit column
+ row-height: 0.8cm, // height of a field box
+ row-gap: 0.28cm, // vertical space between rows (floating boxes)
+ col-gap: 0.12cm, // horizontal space between adjacent fields (floating boxes)
+ strip: 0.4cm, // band above each row, holding the bit-edge numbers
+ stroke: 0.6pt + black, // box border
+ fill: none, // box fill (overridden per-field by `fill:`)
+ gap-stroke: (paint: luma(55%), thickness: 0.5pt, dash: "dashed"), // gap border
+ gap-fill: luma(96%), // gap (unparsed-span) fill
+ label-size: 9pt, // field-label text size
+ bit-size: 7pt, // bit-ruler number size
+ bit-color: luma(40%), // bit-ruler number colour
+ // The ruler is pinned to an embedded monospace so it stays aligned regardless
+ // of the document's label font (which field labels inherit). Embedded = present
+ // on every Typst install; override only with a font you know consumers have.
+ bit-font: "DejaVu Sans Mono",
+ // A field whose label is wider than its box (by more than this padding) gets
+ // an exploded callout instead of an inline label.
+ label-pad: 0.12cm, // inner breathing room when testing if a label fits its box
+ callout-drop: 0.55cm, // headroom from the row down to the first callout label
+ callout-bottom: 0.35cm, // space below the last callout label before the next row
+ callout-spacing: 1.7cm, // horizontal spacing between callout labels (gap mode)
+ callout-gap: 2.3cm, // enlarged inter-row gap below a row that has callouts
+ callout-line-height: 0.5cm, // vertical pitch of stacked callout labels (left mode)
+ callout-stub: 0.16cm, // left mode: short straight stub for a field over its own label
+ callout-side-gap: 0.35cm, // gap between the fields and a label column (each side)
+ callout-label-pad: 0.08cm, // gap between a leader's end and its label text
+ callout-gap-drop: 0.45cm, // gap mode: label row offset up from the band bottom
+ callout-gap-lane-top: 0.22cm, // gap mode: topmost leader lane below the row
+ callout-gap-lane-bot: 0.28cm, // gap mode: bottom leader lane above the labels
+ callout-gap-leader: 0.18cm, // gap mode: leader end just above the label
+ leader-stroke: 0.4pt + luma(50%), // the leader line
+ // struct (vertical memory-map) view
+ struct-width: 4cm, // width of a struct field box
+ struct-byte-height: 0.3cm, // box height per byte, before clamping
+ struct-min-height: 0.55cm, // floor so small fields stay legible
+ struct-max-height: 2.2cm, // ceiling so a huge field can't run off the page
+ struct-offset-gap: 0.25cm, // gap between the offset/size columns and the box
+ struct-break-amp: 0.1cm, // break-mark zigzag amplitude (clamped/oversized field)
+ struct-break-pitch: 0.26cm, // break-mark zigzag tooth width
+ // hexdump (annotated byte dump) view
+ hexdump-font: "DejaVu Sans Mono", // grid is monospace, pinned like the bit ruler
+ hexdump-size: 10pt, // hex/ASCII grid text (mono)
+ hexdump-legend-size: 9pt, // legend text (mono range + name), smaller than the grid
+ hexdump-line: 0.5cm, // vertical pitch between dump rows
+ hexdump-text-color: black, // hex + ASCII glyphs
+ hexdump-offset-color: luma(45%), // the dimmer left offset column
+ // Field highlights are opt-in: a hexdump colours only the annotations the
+ // author gives a `fill:` (e.g. `palette.orange`); there's no auto-cycle.
+ hexdump-legend-gap: 0.5cm, // gap from the dump down to the legend
+ hexdump-swatch: 0.3cm, // legend colour-swatch size
+ hexdump-legend-rows: 3, // target entries per column (drives the 1->2->3 switch)
+ hexdump-legend-cols: 3, // hard cap on legend columns
+ hexdump-legend-col-gap: 0.7cm, // horizontal gap between legend columns
+
+ // timeline view (events on an axis)
+ timeline-margin: 0.5cm, // breathing room above and below the whole diagram
+ timeline-axis-stroke: 1.1pt + luma(40%), // the axis rule and the stems
+ timeline-pitch: 3.4cm, // spacing between consecutive events along the axis
+ timeline-row-height: 4.2cm, // snaked: vertical pitch between wrapped rows
+ timeline-turn-bulge: 3cm, // snaked: how far the U-bend curves out (control offset)
+ timeline-edge-nudge: 0.1cm, // snaked: optical inset for a marker flush at an edge
+ timeline-marker-size: 0.22cm, // marker radius
+ timeline-marker-edge-width: 1.1pt, // marker rim / outline weight
+ timeline-marker-edge-darken: 40%, // filled marker: rim = the fill darkened by this (>=3:1)
+ timeline-marker-outline: luma(30%), // unfilled (default) marker: a hollow outline
+ timeline-marker-fill: white, // hollow marker interior: knocks out the axis behind it (not transparent)
+ timeline-stem: 0.35cm, // gap from the marker out to its label
+ timeline-text-width: 2.9cm, // wrap width of the time/title/description block
+ timeline-text-gap: 0.1cm, // gap between the stem end and the label text
+ timeline-time-size: 9pt, // the time/date line (matches the title size)
+ timeline-title-size: 9pt, // the event title
+ timeline-desc-size: 8pt, // the description
+ timeline-time-color: luma(35%), // dimmer time/date (7:1 on white, AA)
+ timeline-text-color: black, // title + description
+
+ // flowchart (nodes joined by directed edges)
+ flowchart-node-pad-x: 0.45cm, // horizontal padding around a node label
+ flowchart-node-pad-y: 0.3cm, // vertical padding around a node label
+ flowchart-node-min-width: 1.5cm, // floor width so small labels still read as boxes
+ flowchart-node-gap: 0.7cm, // horizontal gap between nodes sharing a rank
+ flowchart-rank-gap: 1.3cm, // vertical gap between ranks (layers)
+ flowchart-back-margin: 0.6cm, // gap from the diagram to a long/back edge's side channel
+ flowchart-back-gap: 0.45cm, // spacing between stacked back-edge channels
+ flowchart-node-edge-width: 1.1pt, // node border weight (matches timeline marker rim)
+ flowchart-node-edge-darken: 40%, // filled node: border = the fill darkened by this
+ flowchart-node-outline: luma(25%), // unfilled node: border colour
+ flowchart-node-fill: none, // node fill (opt-in per node via fill:)
+ flowchart-label-size: 9.5pt, // node label text
+ flowchart-label-color: black, // node label
+ flowchart-decision-scale: 1.9, // a diamond grows this much around its label
+ flowchart-io-slant: 0.35cm, // parallelogram lean (io nodes)
+ flowchart-edge-width: 0.9pt, // edge line weight
+ flowchart-edge-color: luma(40%), // edge line + arrowhead
+ flowchart-arrow-scale: 1.4, // arrowhead size
+ flowchart-edge-label-size: 8.5pt, // branch-label text on an edge
+ flowchart-edge-label-color: luma(30%), // branch label
+ flowchart-edge-label-fill: white, // knockout behind a branch label, so it reads over the line
+ flowchart-edge-label-inset: (x: 3pt, y: 1pt), // padding inside that knockout
+)
diff --git a/packages/preview/pivot/0.2.0/src/timeline/elements.typ b/packages/preview/pivot/0.2.0/src/timeline/elements.typ
new file mode 100644
index 0000000000..c7b612cfe5
--- /dev/null
+++ b/packages/preview/pivot/0.2.0/src/timeline/elements.typ
@@ -0,0 +1,23 @@
+// Timeline element constructor. An `event` is one marked point on the axis: a
+// required title (the trailing content, the anchor) plus optional time and
+// description, a marker shape, and an optional `fill:` — a colour makes a filled
+// marker (otherwise it's a hollow outline), so shape + fill can encode a stage.
+// Sparse is just a title; richer events add time and a description. Pure; no cetz.
+//
+// event[Initial access]
+// event(time: "09:32Z", description: [Phishing macro executed.])[Initial access]
+
+#let event(
+ title,
+ time: none,
+ description: none,
+ shape: "circle",
+ fill: none,
+) = (
+ kind: "event",
+ title: title,
+ time: time,
+ description: description,
+ shape: shape,
+ fill: fill,
+)
diff --git a/packages/preview/pivot/0.2.0/src/timeline/layout.typ b/packages/preview/pivot/0.2.0/src/timeline/layout.typ
new file mode 100644
index 0000000000..bfe31beeb9
--- /dev/null
+++ b/packages/preview/pivot/0.2.0/src/timeline/layout.typ
@@ -0,0 +1,11 @@
+// layout: ordered events -> placement. Pure, no cetz.
+// `slot` is the ordinal position along the axis (the renderer scales it by the
+// pitch token); `side` alternates +1 / -1 so consecutive labels sit on opposite
+// sides of the axis and don't stack on top of each other. Text measurement and
+// the pixel geometry happen in `render` (it needs `context`).
+
+#let layout(events) = events.map(e => (
+ ..e,
+ slot: e.index,
+ side: if calc.rem(e.index, 2) == 0 { 1 } else { -1 },
+))
diff --git a/packages/preview/pivot/0.2.0/src/timeline/model.typ b/packages/preview/pivot/0.2.0/src/timeline/model.typ
new file mode 100644
index 0000000000..a6f5f23e6a
--- /dev/null
+++ b/packages/preview/pivot/0.2.0/src/timeline/model.typ
@@ -0,0 +1,36 @@
+// model: event descriptors -> validated, ordered events. Pure, no cetz.
+// The timeline is ordinal: events keep author order and the renderer spaces them
+// evenly. The model only checks each item is an `event` with a known shape, and
+// names the offender otherwise (errors on bad input name the field).
+
+#let shapes = ("circle", "square", "triangle", "diamond")
+
+#let model(items) = (
+ items
+ .enumerate()
+ .map(((i, e)) => {
+ assert(
+ type(e) == dictionary and e.at("kind", default: none) == "event",
+ message: "timeline: argument " + str(i) + " is not an event()",
+ )
+ assert(
+ e.title != none,
+ message: "timeline: event " + str(i) + " has no title (it is required)",
+ )
+ assert(
+ shapes.contains(e.shape),
+ message: "event "
+ + repr(e.title)
+ + ": shape must be one of "
+ + shapes.join(", "),
+ )
+ (
+ index: i,
+ title: e.title,
+ time: e.time,
+ description: e.description,
+ shape: e.shape,
+ fill: e.fill,
+ )
+ })
+)
diff --git a/packages/preview/pivot/0.2.0/src/timeline/render.typ b/packages/preview/pivot/0.2.0/src/timeline/render.typ
new file mode 100644
index 0000000000..bad7bdce2d
--- /dev/null
+++ b/packages/preview/pivot/0.2.0/src/timeline/render.typ
@@ -0,0 +1,257 @@
+#import "@preview/cetz:0.5.2" as cetz
+#import "../theme.typ" as theme-mod
+#import "model.typ": model
+#import "layout.typ": layout
+
+// timeline: events along an axis, in one of three orientations:
+// "horizontal" — a rule, markers spaced left-to-right, labels above/below.
+// "vertical" — a rule top-to-bottom, labels left/right.
+// "snaked" — horizontal rows that wrap and reverse direction (boustrophedon),
+// joined by orthogonal turns; pick it for long timelines (`wrap`
+// events per row).
+// Each event is a shaped marker with its time / title / description as plain text
+// (no boxes), joined by a short stem. Colour is opt-in: a marker with a `fill:` is
+// a light fill ringed by a same-hue rim, otherwise a hollow outline — so shape and
+// colour can together encode a stage. Returns content.
+#let timeline(
+ ..events,
+ orientation: "horizontal",
+ wrap: 5,
+ theme: theme-mod.default,
+) = context {
+ assert(
+ orientation in ("horizontal", "vertical", "snaked"),
+ message: "timeline: orientation must be \"horizontal\", \"vertical\", or \"snaked\", got "
+ + repr(orientation),
+ )
+ let evs = layout(model(events.pos()))
+
+ // Capture tokens before `import cetz.draw: *` shadows names like `line`/`fill`.
+ let margin = theme.timeline-margin
+ let axis-stroke = theme.timeline-axis-stroke
+ let pitch = theme.timeline-pitch / 1cm
+ let row-h = theme.timeline-row-height / 1cm
+ let turn-bulge = theme.timeline-turn-bulge / 1cm
+ let edge-nudge = theme.timeline-edge-nudge / 1cm
+ let m = theme.timeline-marker-size / 1cm
+ let edge-width = theme.timeline-marker-edge-width
+ let edge-darken = theme.timeline-marker-edge-darken
+ let stem = theme.timeline-stem / 1cm
+ let text-w = theme.timeline-text-width / 1cm
+ let text-gap = theme.timeline-text-gap / 1cm
+ let marker-outline = theme.timeline-marker-outline
+ let marker-fill = theme.timeline-marker-fill
+ let time-size = theme.timeline-time-size
+ let title-size = theme.timeline-title-size
+ let desc-size = theme.timeline-desc-size
+ let time-fill = theme.timeline-time-color
+ let text-fill = theme.timeline-text-color
+
+ // An event's label: time / title / description, centred and wrapped to a width
+ // (no drawn box). Justification off so a wrapped description isn't stretched.
+ let label-of = e => {
+ let parts = ()
+ if e.time != none {
+ parts.push(text(size: time-size, fill: time-fill, e.time))
+ }
+ parts.push(text(
+ size: title-size,
+ fill: text-fill,
+ weight: "medium",
+ e.title,
+ ))
+ if e.description != none {
+ parts.push(text(size: desc-size, fill: text-fill, e.description))
+ }
+ box(width: text-w * 1cm, {
+ set par(justify: false)
+ align(center, parts.join(linebreak()))
+ })
+ }
+
+ let n = evs.len()
+
+ // Pad the finished canvas top and bottom so the diagram doesn't crowd whatever
+ // sits above and below it in a document.
+ pad(y: margin, cetz.canvas({
+ import cetz.draw: *
+
+ // A marker of event `e` at (x, y). Colour is opt-in, like the field diagrams:
+ // given a `fill:` it's a light fill ringed by a deeper same-hue rim (the rim
+ // carries the WCAG non-text contrast a light fill can't); with no fill it's a
+ // hollow outline, so a default timeline stays monochrome line-art. A solid
+ // colour can be darkened for the rim; any other paint (gradient/tiling) has no
+ // `.darken`, so fall back to the fill itself rather than panic.
+ let marker = (x, y, e) => {
+ let edge = (
+ edge-width
+ + if e.fill == none {
+ marker-outline
+ } else if type(e.fill) == color {
+ e.fill.darken(edge-darken)
+ } else {
+ e.fill
+ }
+ )
+ // A hollow marker's interior is opaque, not transparent, so it knocks out the
+ // axis line passing beneath it rather than letting it strike through.
+ let mfill = if e.fill == none { marker-fill } else { e.fill }
+ if e.shape == "circle" {
+ circle((x, y), radius: m, fill: mfill, stroke: edge)
+ } else if e.shape == "square" {
+ rect((x - m, y - m), (x + m, y + m), fill: mfill, stroke: edge)
+ } else if e.shape == "diamond" {
+ line(
+ (x, y + m),
+ (x + m, y),
+ (x, y - m),
+ (x - m, y),
+ close: true,
+ fill: mfill,
+ stroke: edge,
+ )
+ } else if e.shape == "triangle" {
+ line(
+ (x, y + m),
+ (x + m, y - m),
+ (x - m, y - m),
+ close: true,
+ fill: mfill,
+ stroke: edge,
+ )
+ }
+ }
+
+ if orientation == "vertical" {
+ line((0, 0), (0, -calc.max((n - 1) * pitch, 0)), stroke: axis-stroke)
+ for e in evs {
+ let y = -e.slot * pitch
+ marker(0, y, e)
+ let end-x = e.side * (m + stem)
+ line((e.side * m, y), (end-x, y), stroke: axis-stroke)
+ content(
+ (end-x + e.side * text-gap, y),
+ label-of(e),
+ anchor: if e.side > 0 { "west" } else { "east" },
+ )
+ }
+ } else if orientation == "snaked" {
+ let rows = calc.ceil(n / wrap)
+ let full-w = (wrap - 1) * pitch
+ // A symmetric cubic U-bend peaks at 3/4 of its control offset beyond its
+ // endpoints — that's how far the curve actually reaches. Inset the turns by
+ // this (not the full offset) so the bend meets the diagram edge and the
+ // flush start/end markers line up with the curve, not poke past it.
+ let bulge-depth = 3 / 4 * turn-bulge
+ let right-edge = full-w + 2 * bulge-depth // left edge is 0
+ let cnt-of = r => calc.min((r + 1) * wrap, n) - r * wrap
+
+ // A row's x-span [lx, rx]. An end is flush with a diagram edge (0 or
+ // `right-edge`) only when it carries the timeline's first or last marker;
+ // otherwise it insets by the bulge so its turn curves out *to* the edge, not
+ // past it. The markers then fill that span — so the start sits flush at the
+ // left edge (and a full final row at the right) instead of the U-bends
+ // pushing the box out and leaving the start indented.
+ let span-of = r => {
+ let even = calc.rem(r, 2) == 0
+ let start-flush = r == 0
+ let end-flush = r == rows - 1
+ let left-flush = if even { start-flush } else { end-flush }
+ let right-flush = if even { end-flush } else { start-flush }
+ (
+ if left-flush { 0.0 } else { bulge-depth },
+ if right-flush { right-edge } else { right-edge - bulge-depth },
+ )
+ }
+
+ // x of slot `s`: a row fills its span evenly; a partial final row keeps the
+ // nominal pitch from its start and just ends where it ends (half-way is fine).
+ let x-of = s => {
+ let r = calc.quo(s, wrap)
+ let c = calc.rem(s, wrap)
+ let even = calc.rem(r, 2) == 0
+ let cnt = cnt-of(r)
+ let (lx, rx) = span-of(r)
+ let x = if r == rows - 1 and cnt < wrap {
+ if even { lx + c * pitch } else { rx - c * pitch }
+ } else {
+ let step = if cnt > 1 { (rx - lx) / (cnt - 1) } else { 0.0 }
+ if even { lx + c * step } else { rx - c * step }
+ }
+ // Optical nudge: the first marker sits flush at the left edge, where its
+ // disc overshoots the curve's tangent — ease it a hair inward so it reads
+ // as on the edge. Only the start; the end runs into the next row's turn or
+ // just stops, so it has no edge to overshoot.
+ if s == 0 {
+ x + edge-nudge
+ } else {
+ x
+ }
+ }
+ // Row rules, drawn to each row's actual event extent.
+ for r in range(0, rows) {
+ let xs = range(r * wrap, calc.min((r + 1) * wrap, n)).map(x-of)
+ line(
+ (calc.min(..xs), -r * row-h),
+ (calc.max(..xs), -r * row-h),
+ stroke: axis-stroke,
+ )
+ }
+ // Turns: a smooth U-bend from a row's inset end out to the edge and down to
+ // the next row's inset start. Even rows bend right (to `right-edge`), odd
+ // rows left (to 0); both bezier handles point straight out, so the curve
+ // leaves and rejoins the horizontal rows tangentially.
+ for r in range(0, rows - 1) {
+ let even = calc.rem(r, 2) == 0
+ let x-turn = if even { right-edge - bulge-depth } else { bulge-depth }
+ let out = if even { turn-bulge } else { -turn-bulge }
+ let y0 = -r * row-h
+ let y1 = -(r + 1) * row-h
+ bezier(
+ (x-turn, y0),
+ (x-turn, y1),
+ (x-turn + out, y0),
+ (x-turn + out, y1),
+ stroke: axis-stroke,
+ )
+ }
+ // Label side: anchor each row's last marker above the rule (and alternate
+ // back from there). A turn joins one row's last marker to the next row's
+ // first, both at the same x in the gap between the rows; if both pointed in
+ // they'd overlap. Anchoring the last marker out (above) keeps that gap clear
+ // regardless of `wrap` parity — the global +/- alternation can't.
+ let side-of = e => {
+ let p = calc.rem(e.slot, wrap)
+ let cnt = cnt-of(calc.quo(e.slot, wrap))
+ if calc.rem(cnt - 1 - p, 2) == 0 { 1 } else { -1 }
+ }
+ for e in evs {
+ let x = x-of(e.slot)
+ let y = -calc.quo(e.slot, wrap) * row-h
+ let side = side-of(e)
+ marker(x, y, e)
+ let end-y = y + side * (m + stem)
+ line((x, y + side * m), (x, end-y), stroke: axis-stroke)
+ content(
+ (x, end-y + side * text-gap),
+ label-of(e),
+ anchor: if side > 0 { "south" } else { "north" },
+ )
+ }
+ } else {
+ // horizontal (default)
+ line((0, 0), (calc.max((n - 1) * pitch, 0), 0), stroke: axis-stroke)
+ for e in evs {
+ let x = e.slot * pitch
+ marker(x, 0, e)
+ let end-y = e.side * (m + stem)
+ line((x, e.side * m), (x, end-y), stroke: axis-stroke)
+ content(
+ (x, end-y + e.side * text-gap),
+ label-of(e),
+ anchor: if e.side > 0 { "south" } else { "north" },
+ )
+ }
+ }
+ }))
+}
diff --git a/packages/preview/pivot/0.2.0/typst.toml b/packages/preview/pivot/0.2.0/typst.toml
new file mode 100644
index 0000000000..5aadb47cf2
--- /dev/null
+++ b/packages/preview/pivot/0.2.0/typst.toml
@@ -0,0 +1,28 @@
+[package]
+name = "pivot"
+version = "0.2.0"
+entrypoint = "lib.typ"
+authors = ["cybermallard "]
+license = "Apache-2.0"
+description = "Draw diagrams for Cyber Threat Intelligence (CTI) analysis."
+
+repository = "https://github.com/cybermallard/typst-pivot"
+
+keywords = ["cti", "threat-intelligence", "cybersecurity", "security", "protocol", "packet", "struct", "hexdump", "timeline", "flowchart"]
+categories = ["visualization"]
+
+# Minimum Typst version. CeTZ 0.5.2 requires >= 0.14.0, and the test runner
+# tytanic 0.3.4 embeds Typst 0.14.2 (it compiles the visual-regression
+# references), so the toolchain is pinned to 0.14.x. Floor is 0.14.0; CI pins
+# Typst 0.14.2 to match tytanic. (Revisit when a tytanic on Typst 0.15 ships.)
+compiler = "0.14.0"
+
+# Keep the published bundle lean. Never exclude README/LICENSE/NOTICE.
+# manual.pdf is a GitHub release asset, not bundle weight.
+exclude = [
+ "tests",
+ "examples",
+ "docs",
+ ".github",
+ "scripts",
+]
