This section is dedicated to compute related things, from Xen to GPU/vGPU or PCI passthrough.
:::warning Ensure VT-d/IOMMU Support Is Enabled :::
In order to use PCI passthrough your host system must have VT-d/IOMMU functionality enabled. This should be more commonly enabled by default on enterprise hardware than on consumer hardware. It can be enabled in the BIOS/UEFI of systems with CPUs and chipsets which support it. For Intel platforms the feature is typically referred to as VT-d (Intel Virtualization Technology for Directed I/O); on AMD platforms it is typically listed as IOMMU or AMD-Vi. Please note that this is not the same as VT-x/AMD-v virtualisation support, and so these options are often listed separately.
Consult your system or motherboard manual for instructions on where to find the setting in your BIOS/UEFI. In addition, system BIOS updates may reset the feature to its default state, which may require you to re-enable it.
If you attempt to perform PCI passthrough on a system which does not have VT-d/IOMMU enabled, you may encounter the following error when you start the target virtual machine:
Internal error: xenopsd internal error: Device.PCI.Cannot_add(_, _)
:::warning You may not be able to passthrough USB controllers :::
When attempting to enable PCI passthrough on USB controllers, you may see an error when starting the VM in your logs similar to
Internal error: xenopsd internal error: Cannot_add(0000:00:1d.0, Xenctrlext.Unix_error(30, "1: Operation not permitted"))
and an error in /var/log/xen/hypervisor.log
[2020-08-22 10:09:03] (XEN) [ 297.542134] [VT-D] It's disallowed to assign 0000:08:00.0 with shared RMRR at 7ba77000 for Dom32753.
[2020-08-22 10:09:03] (XEN) [ 297.542136] d[IO]: assign (0000:08:00.0) failed (-1)
This indicates that your device is using RMRR. Intel IOMMU does not allow DMA to these devices and therefore PCI passthrough is not supported.
1. Find your devices ID (B/D/F) on the PCI bus using one of the following methods:
Method 1: List PCI Devices with lspci
This method is the easiest way to find devices.
[root@xen ~]# lspci
...
04:01.0 Ethernet controller: Intel Corporation 82541PI Gigabit Ethernet Controller (rev 05)
Method 2: List System Device Classes with find
This method works best for finding the device ID by class. The example below the class is net and shows how to find the device ID of a specific network interface.
[root@xen ~]# find /sys/class/net -exec readlink {} +
../../devices/virtual/net/lo
../../devices/pci0000:00/0000:04:01.0/net/eth1
Add the xen-pciback.hide parameter to the kernel boot parameters:
/opt/xensource/libexec/xen-cmdline --set-dom0 "xen-pciback.hide=(0000:04:01.0)"You can hide multiple devices. If you wanted to add another device at
00:19.0just append it to the parameter.
/opt/xensource/libexec/xen-cmdline --set-dom0 "xen-pciback.hide=(0000:04:01.0)(0000:00:19.0)"
To remove any passthrough devices from dom0:
/opt/xensource/libexec/xen-cmdline --delete-dom0 xen-pciback.hide:::tip This kernel parameter is not retained when you upgrade an XCP-ng host using the installation ISO. Remember to re-do this step after the upgrade. :::
[root@xen ~]# reboot
[root@xen ~]# xl pci-assignable-list
0000:04:01.0
[root@xen ~]# xe vm-param-setother-config:pci=0/0000:04:01.0uuid=<vm uuid>
You can also pass through multiple devices. If you wanted to pass through another device at
00:19.0just append it to the parameter.
[root@xen ~]# xe vm-param-setother-config:pci=0/0000:04:01.0,0/0000:00:19.0uuid=<vm uuid>
[root@xen ~]# xe vm-start uuid=<vm uuid>
:::warning NVIDIA consumer grade GPUs won't work due to a driver limitation (on purpose). AMD chips will work perfectly. :::
:::tip No need to tinker any file manually :::
It's fairly easy using xe CLI:
[root@xenserver ~]# xe pusb-list
uuid ( RO) : 9c14c8b3-f30b-b5b8-2b01-201f703d2497
path ( RO): 2-1.6
vendor-id ( RO): 1f75
vendor-desc ( RO): Innostor Technology Corporation
product-id ( RO): 0903
product-desc ( RO):
serial ( RO): 000000000000000244
version ( RO): 2.10
description ( RO): Innostor Technology Corporation_000000000000000244
uuid ( RO) : 10fbec89-4472-c215-5d55-17969b473ee6
path ( RO): 2-1.1
vendor-id ( RO): 0781
vendor-desc ( RO): SanDisk Corp.
product-id ( RO): 5591
product-desc ( RO):
serial ( RO): 4C530001151223117134
version ( RO): 2.10
description ( RO): SanDisk Corp._4C530001151223117134
Find your USB device there, and note the uuid. Then enable passthrough:
[root@xenserver ~]# xe pusb-param-set uuid=10fbec89-4472-c215-5d55-17969b473ee6 passthrough-enabled=true
Then, shut down the target guest VM that you want to pass the USB device through since hot plug is not supported. Attach the USB device to the VM, run the following command:
[root@xenserver ~]# xe vusb-create usb-group-uuid=<usb_group_uuid> vm-uuid=<vm_uuid>
Check the following as an example, firstly get usb-group uuid from command usb-group-list and then attach the device to target VM through command vusb-create:
[root@xenserver ~]# xe usb-group-list PUSB-uuids=10fbec89-4472-c215-5d55-17969b473ee6
uuid ( RO) : 1f731f6a-6025-8858-904d-c98548f8bb23
name-label ( RW): Group of 0781 5591 USBs
name-description ( RW):
...
[root@xenserver ~]# xe vusb-create usb-group-uuid=1f731f6a-6025-8858-904d-c98548f8bb23 vm-uuid=4feeb9b2-2176-b69d-b8a8-cf7289780a3f
aac4a96f-3fd9-0150-7138-fbd5a80e068a
Finally, start the target guest VM:
[root@xenserver ~]# xe vm-start uuid=<vm_uuid>
:::warning Due to a proprietary piece of code in XenServer, XCP-ng doesn't have (yet) support for NVIDIA vGPUs. :::
AMD GPU are trivial using industry standard. Version 2.0 of the mxgpu iso should work on any 8.X version of XCP-ng
- Enable SR-IOV in the server's BIOS
- Install XCP-ng
- Download Citrix XenServer from AMD's Drivers & Support page. (Currently version 2.0.0 for XenServer 8.1)
- Copy the
mxgpu-2.0.0.amd.isoto the host - Install the supplemental pack:
cd /tmp
xe-install-supplemental-pack mxgpu-2.0.0.amd.iso
- Reboot the XCP-ng
- Assign an MxGPU to the VM from the VM properties page. Go to the GPU section. From the Drop down choose how big of a slice of the GPU you want on the VM and click OK
Start the VM and log into the guest OS and load the appropriate guest driver from AMD's Drivers & Support page.
Known working cards:
- S7150x2
This feature is available via Xen Orchestra, and its plugin "Load balancer":
When using a virtualization platform, you have multiple physical hosts, which runs your virtual machines (VMs). Each host has a limited set of resources: CPU, RAM, network bandwidth etc.
:::tip Maybe you already heard about VMWare DRS (Distributed Resource Scheduler): that's the same principle here, but for XCP-ng. :::
So the first objective is to adapt your VM placement in live (without service interruption), depending of the load. Let's take a simple example:
These 2 hosts are running 6 VMs:
Let's say both hosts are using only 5% of all their CPUs
Suddenly, one of your VM starts to have a very high CPU load (in yellow): performance of other VMs on this same host could be impacted negatively (in pink):
Host 1 still using 5% of its CPUs, but host 2 is now a 95%.
We are detecting it and now move others VM to the other host, like this:
Host 1 has a slightly increased load, but host 2 can be fully used for the "problematic" VM without disrupting service of other VMs.
This way, the impact of your high load usage on one VM doesn't penalize everyone.
But it's not the only way to see this: there is multiple possibilities to "optimize" your existing resource usage:
- maybe you want to spread the VM load on the maximum number of server, to get the most of your hardware? (previous example)
- maybe you want to reduce power consumption and migrate your VMs to the minimum number of hosts possible? (and shutdown useless hosts)
- or maybe both, depending of your own schedule?
Those ways can be also called modes: "performance" for 1, "density" for number 2 and "mixed" for the last.
We started to work on the "performance" mode inside Xen Orchestra. Our first objectives were:
- to provide an easy way to create "plans" to supervise load balancing with simple rules
- to work only on the host CPU usage
- to start a detection every 2 minutes
- to work across various pools
- to be able to exclude hosts

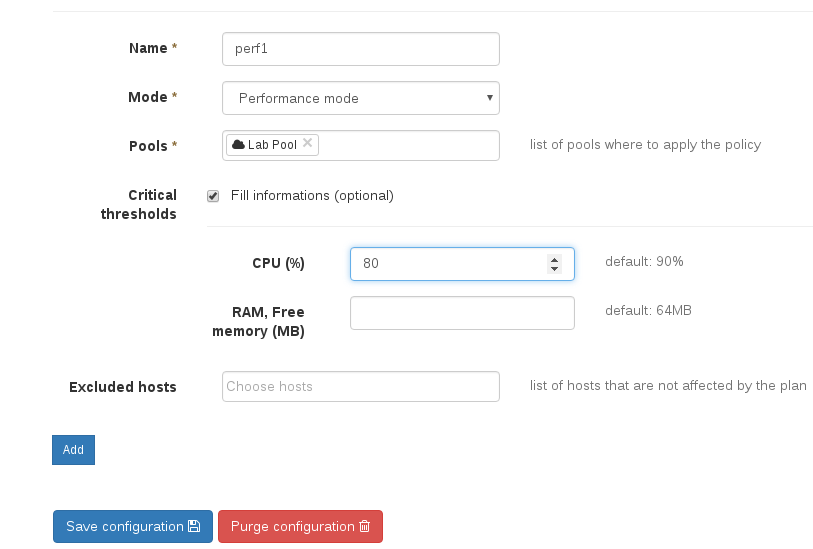

Creating a plan is the first step. In our example, we want to create a plan called "perf1", using "performance mode", and acting only on one pool, labelled "Lab Pool":
By default, the CPU threshold is 90%, but it could be set manually (here at 80%):
Here is the initial situation:
4x VMs on 2 hosts, lab1 and lab2
CPU usage on both hosts is very low:
CPU usage on lab1

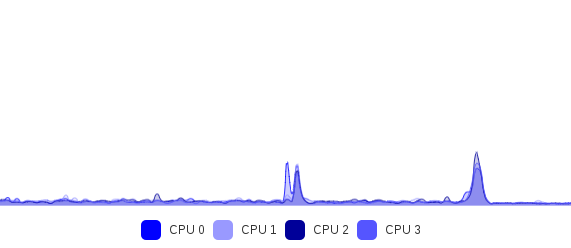

CPU usage on lab2
Let's trigger a very high CPU load on the VM "Windows Server NFS Share" (using Prime95), which is on lab1:
lab1 starts to work at 100% on all it's CPUs
Both "nfs share" and "Salt Master" VMs will suffer this concurrent CPU usage and won't have enough power to deliver if necessary. And when the average on last 2 minutes hits the threshold (80% here), actions are taken:
lab1 is now working a full speed with the only the VM using all it's CPUs.
Let's check the new CPU load on lab2:
Load is only slightly increased due to 2 new VMs
With this simple but first initial algorithm, we managed to mitigate automatically an issue of VM resource usage. Of course, it works also in cases when you have to really spread the load on all your servers (i.e. when the sum of all VM usage is higher than the threshold): that's the exact same principle.
You have more than 2 hosts? Again, same idea, it will also work.
VM anti-affinity is a feature that prevents VMs with the same user tags to run on the same host. To use this functionality, feel free to read the Xen Orchestra documentation: Xen Orchestra VM anti-affinity.
On multi-socket and MCM systems, the NUMA affinity may benefit memory-bound applications by restricting a VM to a specific NUMA node. That way, memory and cache accesses are kept local.
The Xen scheduler implements two types of affinity: soft and hard. By default, it uses soft, a best effort algorithm which tries to achieve the memory locality. Since there's no guarantee, if the sysadmin wants to make sure that a VM will only run on a certain node, he needs to configure the hard affinity through the VCPUs-params:mask VM attribute.
Taking a 8C/16T dual socket as example, the topology would be:
node0: 0-7
node1: 8-15
If we run xl list --numa, it'll return all as the node affinity. This indicates that the VM can run on any available nodes and cores. Now, change the VM affinity to node1 (VM reboot required):
xe vm-param-set uuid=[VM-UUID] VCPUs-params:mask=8,9,10,11,12,13,14,15`
Check the new affinity. It'll now display 1 instead of all, indicating that the VM will only be allowed to run on node1 cores:
xl list --numa
In order to reset the config, just remove the attribute (VM reboot required):
xe vm-param-remove uuid=[VM-UUID] param-name=VCPUs-params param-key=mask`
Other useful commands for listing the VM core affinity and cores per NUMA node(s):
xl vcpu-list
xenpm get-cpu-topology
xl info --numa
Other ways control the vCPUs placement, using the xl CLI:
xl vcpu-pin <Domain> <vcpu id> <cpu id>
xl vcpu-pin "Domain 0" all 2-5
You can use the domain name or the domain ID you can obtain from the xl list command.
Or using the CPUPool functionality:
xl cpupool-numa-split # Will create a cpupool by NUMA node
xl cpupool-migrate <VM> <Pool> # Will migrate a VM to the given pool
:::warning
Be careful, the changes done using xl only affect vCPU at the moment, the memory of the VM will not be moved between node nor the pinning stay after a reboot. You need to use xe for it to be taken into account at the VM startup.
:::
You can see the current memory scheme of the VM using the debug-key interface with the u key. e.g. xl debug-key u; xl dmesg.
