led_set_brightness() is not setting brightness after led_blink() for STM32U575

[bhavikbhansali]

Description
I am trying to blink an LED using PWM. I came across the 2 inbuild function mentioned and used in led_pwm example. This 2 functions are led_blink() and led_set_brightness(). When I am reading more about this function I came across one details which were mentioned is that if we call led_set_brightness() after led_blink() it will not affect led blinking. I am testing that and checked that it is not true. So just want to know and understand below things.

1. Is it something where if we call led_blink() function first and call led_set_brightness() after to that it will blink the led with led blink timing where led brightness is as per led_set_brightness() ?

2. Is it something where it is saying that if we call led_blink() for pin 1 and led_set_brightness() for pin 2 it will not affect each other working?

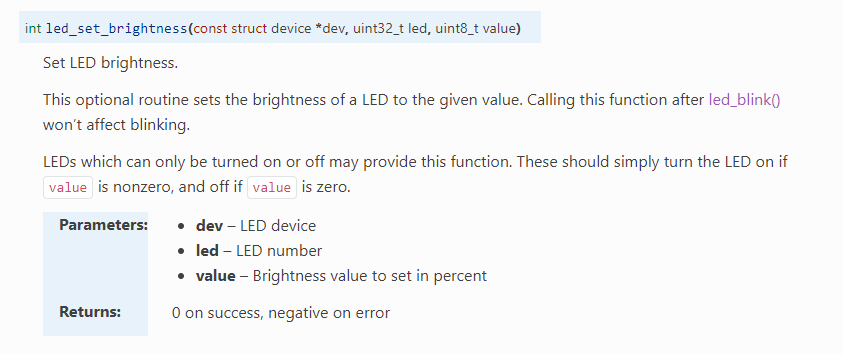

image of the function

Kindly Note that I am trying to use the same pin and calling the function one after another.

• Target platform on which I am trying it Nucleo U575ZI Q
• What have you tried to diagnose or workaround this issue? No
• I am using Normal LED to test this.
• Zephyr 3.2.0

To Reproduce
Steps to reproduce the behavior:

1. Take a led_pwm example from zephyr 3.2.0
2. Make sure appropriate board overlay is available
3. compile a code
4. run it and see the output

Expected behavior
As per understanding if we call led_blink() followed by led_set_brightness() led need to blink as per defined time and during the one time LED brightness need to be same as we define in led_set_brightness() function.

Impact
It is blocking my implemetition.

Code
In main I am using below code instead of actual example code.
led_blink(lew_pwm, 0, 200, 800);
led_blink(lew_pwm, 1, 200, 800);
k_sleep(K_MSEC(5000));
led_set_brightness(lew_pwm, 0, 75);
led_set_brightness(lew_pwm, 1, 25);

[FRASTM]

Seems there is a conflict in the DTS on the same pin being declared (example of a disco_l475i_iot1)for the PWM output

	pwm2: pwm {
		status = "okay";
		pinctrl-0 = <&tim2_ch1_pa5>;
	};

and being declared in the DTS of the board

		green_led_1: led_1 {
			gpios = <&gpioa 5 GPIO_ACTIVE_HIGH>;
			label = "User LD1";
		};

--> this one should be removed when the pin pa5 is for pwm output

[FRASTM]

Please have a look at PR #54019

[bhavikbhansali]

Hello @FRASTM I check that for nucleo_u575zi_q and in my project configuration we are using only PWM no LED or GPIO.
But still it is not working. Any other suggestion or update?
