Add performance profiling as a standard zstash test

[forsyth2]

Summary

#414 introduced some early performance profiling for zstash, but these changes were not ultimately included in main. However, performance is becoming an ever more important feature of zstash, as that work showed. Other issues relating to performance: #402/#424, #249.

Objectives:

• Test zstash runtimes on various combinations of variables:
  • create, update, extract
  • extract sequential vs parallel mode (especially relevant for Add Python 3.14 support #402/Fix Python 3.14 compatibility: AbsoluteLinkError, pickling errors, config propagation, HPSS hang, and print_all_contents deadlock in extract.py and parallel.py #424)
  • --hpss as "none", an HPSS path, or a Globus path

Select one: This pull request is...

• a bug fix: increment the patch version
• a small improvement: increment the minor version
• a new feature: increment the minor version
• an incompatible (non-backwards compatible) API change: increment the major version

Small Change

• To merge, I will use "Squash and merge". That is, this change should be a single commit.
• Logic: I have visually inspected the entire pull request myself.
• Pre-commit checks: All the pre-commits checks have passed.

[forsyth2]

Action items:

• Actually run these scripts and confirm visualizations and workflows are working properly
• Run this code on main and on Add Python 3.14 support #402 and on Fix Python 3.14 compatibility: AbsoluteLinkError, pickling errors, config propagation, HPSS hang, and print_all_contents deadlock in extract.py and parallel.py #424 to compare the effects of parallelism changes needed for Python 3.14

[forsyth2]

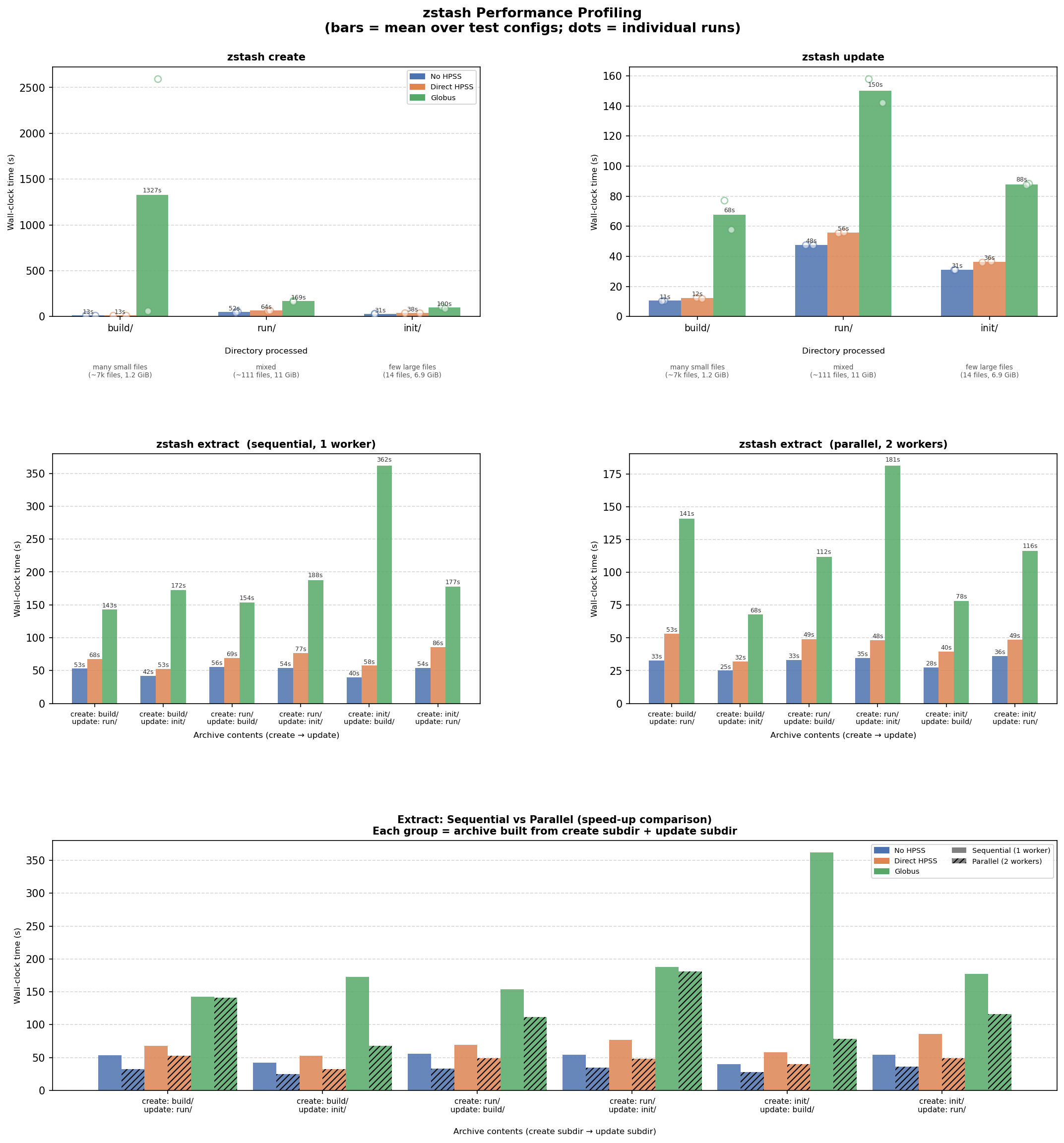

Results from running on 2026-04-02:

Notes:

• Globus runtimes are definitely pretty variable. Notice the two wall clock times for zstash create with Globus differ substantially for instance.
• Next time we run this, we can run against these results to get some comparison between runs.
• If those look ok, we can probably merge this and try to do weekly performance testing on zstash's main branch.

Setup

cd ~/ez/zstash
git status
# On branch force-fork-parallel
# nothing to commit, working tree clean
git checkout add-performance-profiling
git log --oneline | head -n 10
# 9d6d15f Fixes made comparing pr402 and pr424
# a6cbc12 Update parameters
# 7467b68 Improve plots
# def78ac Fixes to generate plots
# ee61184 Add ability to configure hpss options
# c3ead41 Add regression testing
# 8662955 Send output to web server
# 8c3c555 Apply changes from Claude
# ee2dda7 Add performance profiling as a standard zstash test
# c14b8ee Add AGENTS.md (#423)

# Good, matches https://github.com/E3SM-Project/zstash/pull/427/commits
nersc_conda
rm -rf build
conda clean --all --y
conda env create -f conda/dev.yml -n zstash-pr427-performance-profile-20260402
conda activate zstash-pr427-performance-profile-20260402
pre-commit run --all-files
python -m pip install .
cd tests/performance
emacs generate_performance_data.bash # Edit parameters
git diff # Check diff
./generate_performance_data.bash
# ~2-3 hours to run, note there is the manual step to paste an auth code

# [SUCCESS] All tests completed. Results saved to: /pscratch/sd/f/forsyth/zstash_performance/performance_20260402/results.csv
# [INFO] Now edit IO paths and run: python visualize_performance.py

emacs visualize_performance.py # Edit parameters
git diff # Check diff
pre-commit run --all-files
git add -A
python visualize_performance.py
# Figure 1 (overview) saved to: /global/cfs/cdirs/e3sm/www/forsyth/zstash_performance/performance__20260402_pr427.png
#   Accessible at: https://portal.nersc.gov/cfs/e3sm/forsyth/zstash_performance/performance__20260402_pr427.png
