Stateless vs stateful authentication

What is session based authentication (stateful) vs token based authentication (stateless)?

Both authentications use cookies to identify the user.

you can also hash a normal cookie, but jwt is an established cookie-signing standard.

1. Session based authentication
After authentication, a session id is stored in the cookie, and that id is cross referenced with a database which contains all the user information, such as username, access privileges(claims), etc

2. Token based authentication
With token based authentication, claims of the user are stored in a jwt, and there is no need to cross reference a database which stored details about the user's session, as its all in the jwt.

N.B. sensitive information should still not be stored in a jwt.

Draw flow diagrams to show the steps involved in each process

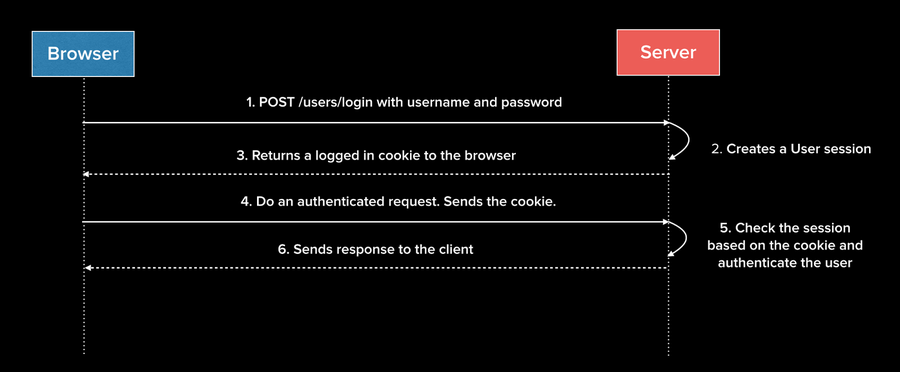

1. Session based authentication

2. Token based authentication

What are the advantages and disadvantages of each?

1. Session based authentication

advantages :

• More detailed data can be referenced to a session ID in a cookie.

disadvantages :

• Requires big database.
• Difficult to scale when more than one server.

2. Token based authentication

advantages :

• Light-weight
• Do not need database of session IDs.
• You do not need to append database
• you can still set max-age and then on verify it will not approve if it's expired

disadvantages :

• Header and payload are only encoded, not encrypted.
• For more sophisticated websites, you may still need to store session IDs to reference session activity.
