ua-client

A native OPC UA browser/inspector in Rust. Connect to a server, browse the address space, inspect node attributes and references, and call methods.

Ships two front-ends sharing the same MVU core:

• ua-tui — terminal UI built on cursive. Built by default. Currently the focus of development.
• ua-client — egui/eframe desktop GUI. Opt-in via the egui feature; lagging behind the TUI feature-wise.

Both are built on async-opcua.

Features

• Endpoint URL bar with Connect/Disconnect, history dropdown of past successful connections (persisted across restarts).
• Server endpoint picker (Connect → discovery dialog showing every advertised security policy / mode and supported identity tokens).
• Authentication: Anonymous, Username/Password, X.509 Certificate. Username and certificate/key paths are persisted per URL; passwords are not.
• Per-URL persistence of the last-used auth mode, security mode and credentials so each saved server reopens with its own settings.

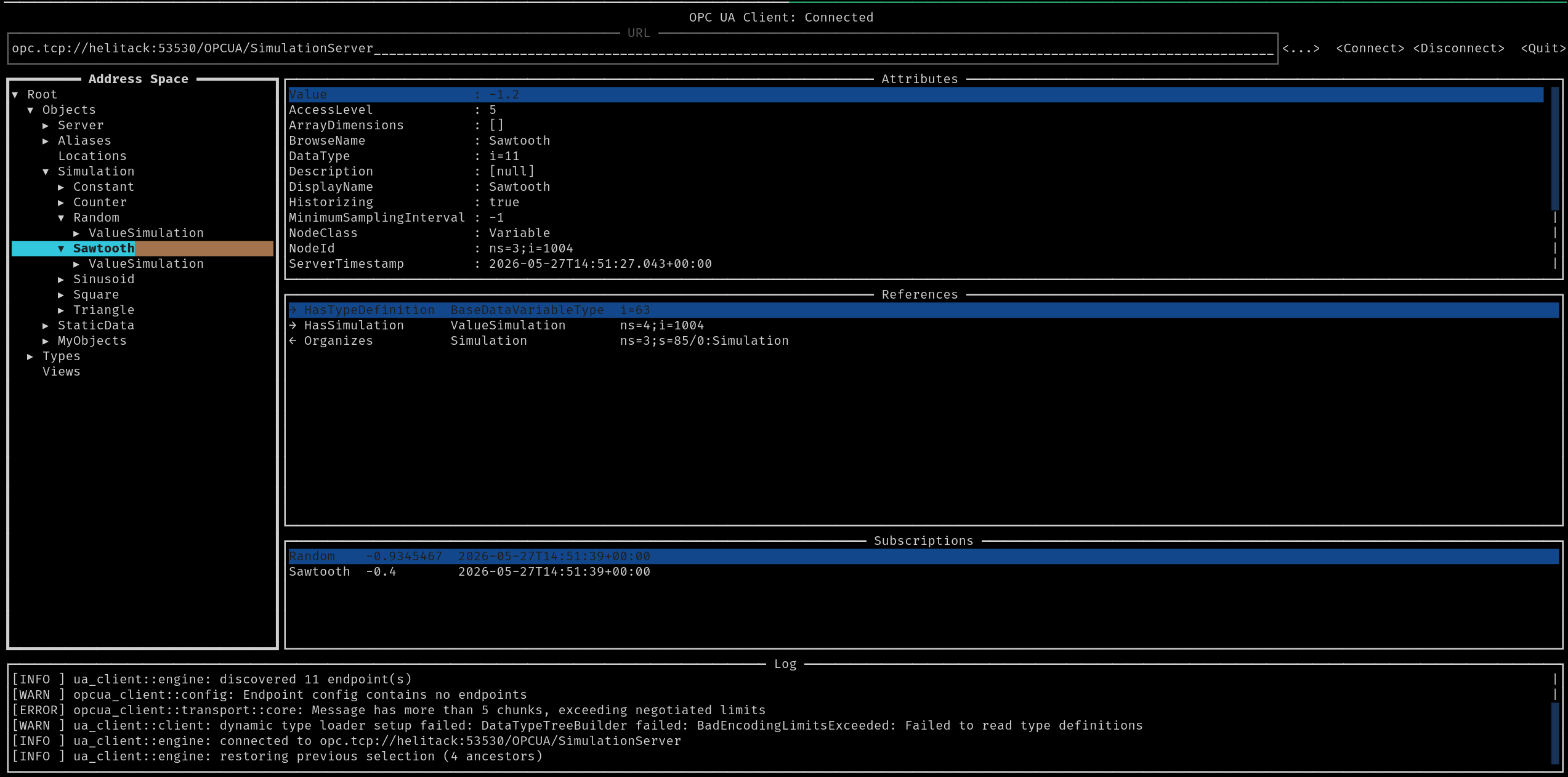

• Address-space tree on the left with lazy-load expansion. Root is expanded automatically on connect; the last selected node per URL is restored on reconnect.
• Selected-node panels: identity (NodeId, BrowseName, DisplayName, NodeClass, Description), all attributes one-per-line with aligned Name : value columns, plus a References panel (forward + inverse, all reference types, aligned columns).
• Method calls: press c on a Method node, the dialog reads InputArguments/OutputArguments, lets you fill scalar or comma-separated array inputs typed against the OPC UA data type, then renders the output values with their types.
• Bottom log panel fed by tracing.

Build & run

The TUI is the only front-end built by default. The egui GUI is gated behind the egui feature so the default build stays lean.

# TUI (default)
cargo run --bin ua-tui

# egui GUI (opt-in)
cargo run --features egui --bin ua-client

Set RUST_LOG to control verbosity; the default is info,opcua=info,ua_client=debug.

To exercise it end-to-end, start the simple-server sample from async-opcua in another terminal and connect to opc.tcp://localhost:4855:

git clone https://github.com/freeopcua/async-opcua
cd async-opcua && cargo run -p async-opcua-simple-server

ua-tui command-line flags

ua-tui [--url <URL>] [--path <PATH>]

• --url opc.tcp://host:port — auto-connect on startup.
• --path /Objects/Server/ServerStatus — after connecting, navigate to this path. Segments may use ns=N:Name for non-default namespaces. Implies auto-connect. When combined with --url, overrides the URL's saved last-selected node.

ua-tui keyboard reference

Navigation:

Key	Action
Tab / Shift+Tab	Move focus between widgets
Arrows / j / k	Move within the focused widget
Enter	Select node (and expand/collapse if it has children)
Esc	Clear current selection / close dialog
r	Refresh selected node
q / Ctrl+C	Quit (disconnects cleanly first)
?	In-app help

Copy to clipboard (acts on the selected node):

Key	Copies
p	Browse path (/Objects/Server)
n	NodeId (ns=1;i=1234)
v	Value attribute

Method:

Key	Action
c	Call selected Method (opens input dialog)

Subscriptions (acts on the selected tree node):

Key	Action
s	Subscribe — live value appears in the Subscriptions pane
Shift+s	Unsubscribe

Attribute editing (acts on the row under the Attributes pane cursor):

Key	Action
e	Open the edit dialog. Writable: Value, DisplayName, Description, BrowseName, Historizing, Executable, UserExecutable, IsAbstract, Symmetric, ContainsNoLoops, WriteMask, UserWriteMask, AccessLevelEx, AccessLevel, UserAccessLevel, EventNotifier, MinimumSamplingInterval, ValueRank.

Resize (focus-dependent — moves the boundary of the focused pane):

Key	Effect
Alt+Left / Alt+Right	Tree pane width
Alt+Up / Alt+Down	Attributes/References split (when attrs or refs is focused)
Alt+Up / Alt+Down	Log height (when log is focused)

Encrypted connections

For any security policy other than None, the first connection attempt typically fails with BadSecurityChecksFailed / BadCertificateUntrusted. This is expected: the server has no reason to trust the freshly generated client certificate yet.

1. Run the client once. A self-signed client keypair is created at pki/own/cert.der + pki/private/private.pem next to the working directory.
2. Try Connect with the desired encrypted endpoint. It will fail.
3. Find your client cert in the server's "rejected certificates" folder (server-specific path — e.g. for Prosys UA Simulation Server it's <server>/USERS_PKI/rejected/certs/) and move it into the corresponding "trusted certs" folder.
4. Connect again — it should succeed.

The log panel prints the cert path on every encrypted connection attempt and a hint when the server rejects it.

Insecure default: server-certificate checks (time validity, hostname, application-URI) are disabled by default so that real-world certificates (Beckhoff TwinCAT, NAT'd deployments, etc.) connect on first try. A warning is logged on startup. Acceptable on trusted networks only.

Status

Working in ua-tui: browse, read attributes / references, Anonymous / Username / X.509 identity tokens, Method.Call, encrypted (Sign and SignAndEncrypt) endpoints, data-change subscriptions (live Subscriptions pane), attribute writes for the built-in primitive types.

Not yet implemented: event subscriptions, ArrayDimensions / role-permission edits, custom-type editing for method inputs and Value writes that aren't built-in primitives.

The ua-client (egui) front-end is lagging behind the TUI; build it with --features egui if you want to try it.

License

MIT — see LICENSE.
