LucidStatus

A self-hosted Hetrixtools alternative

---

Screenshots

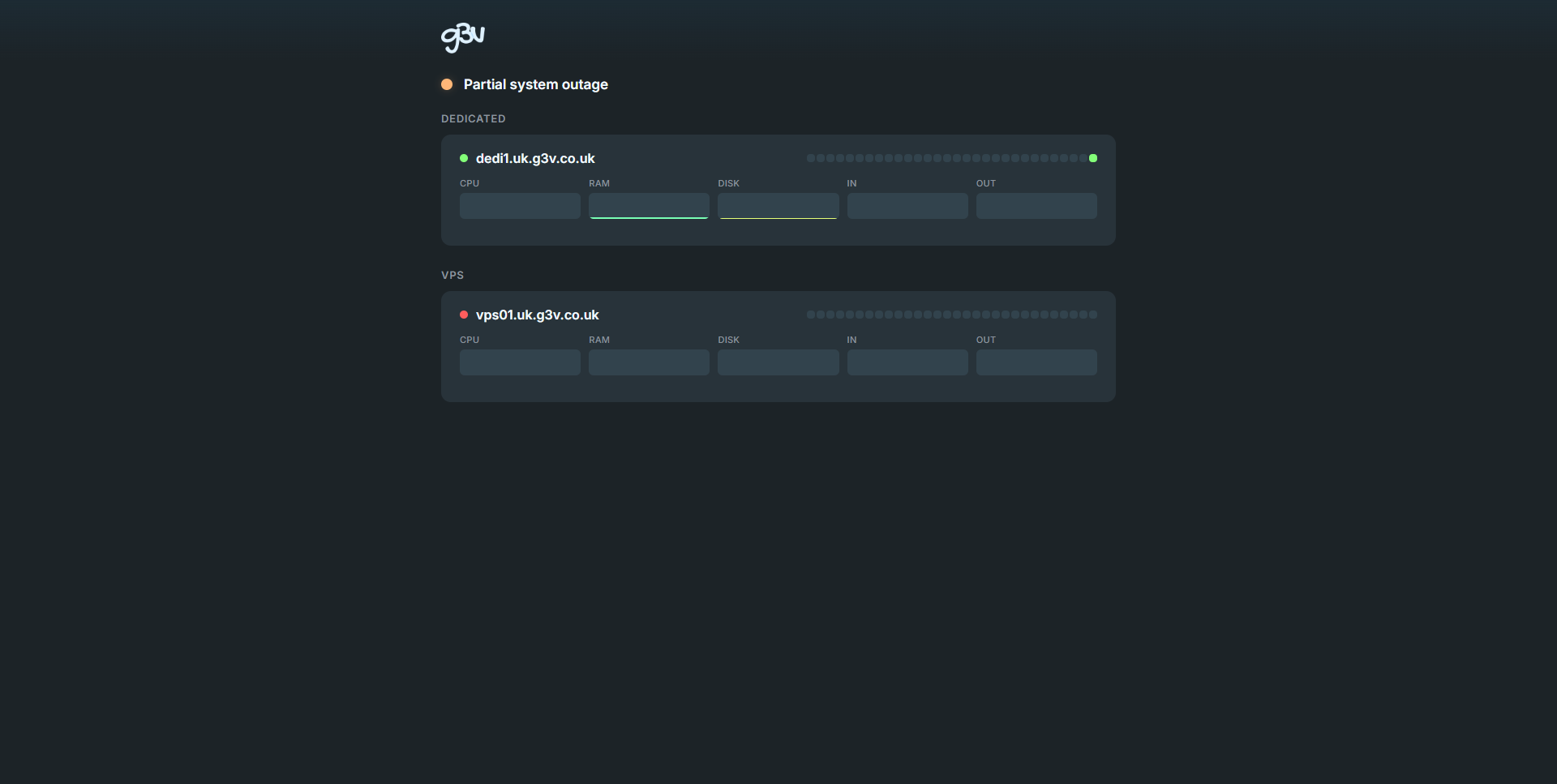

The main page, showing all your servers and a preview of their usage, with uptime.

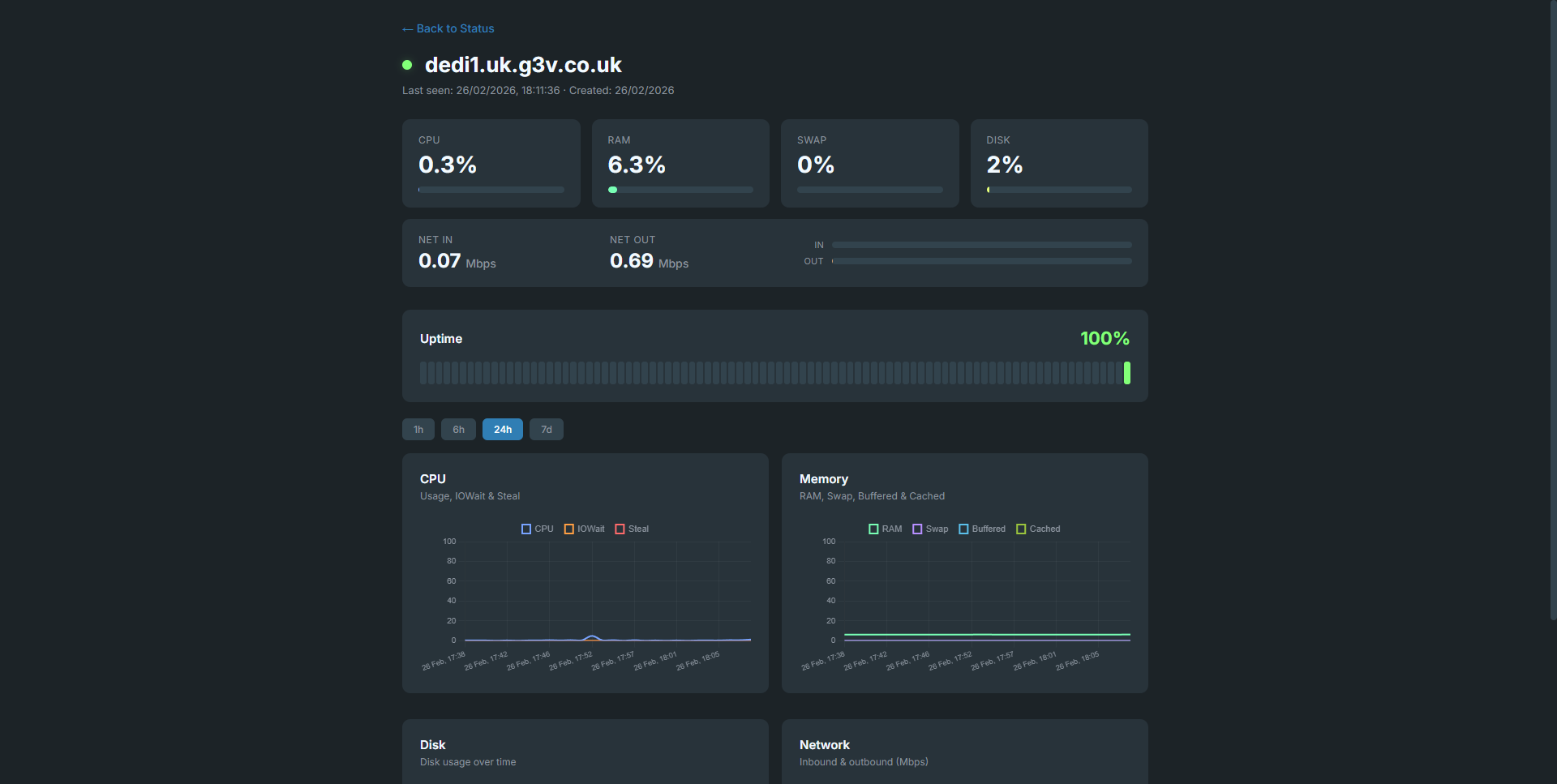

Server Detail

The advanced view, shown when clicking onto a server on the main page.

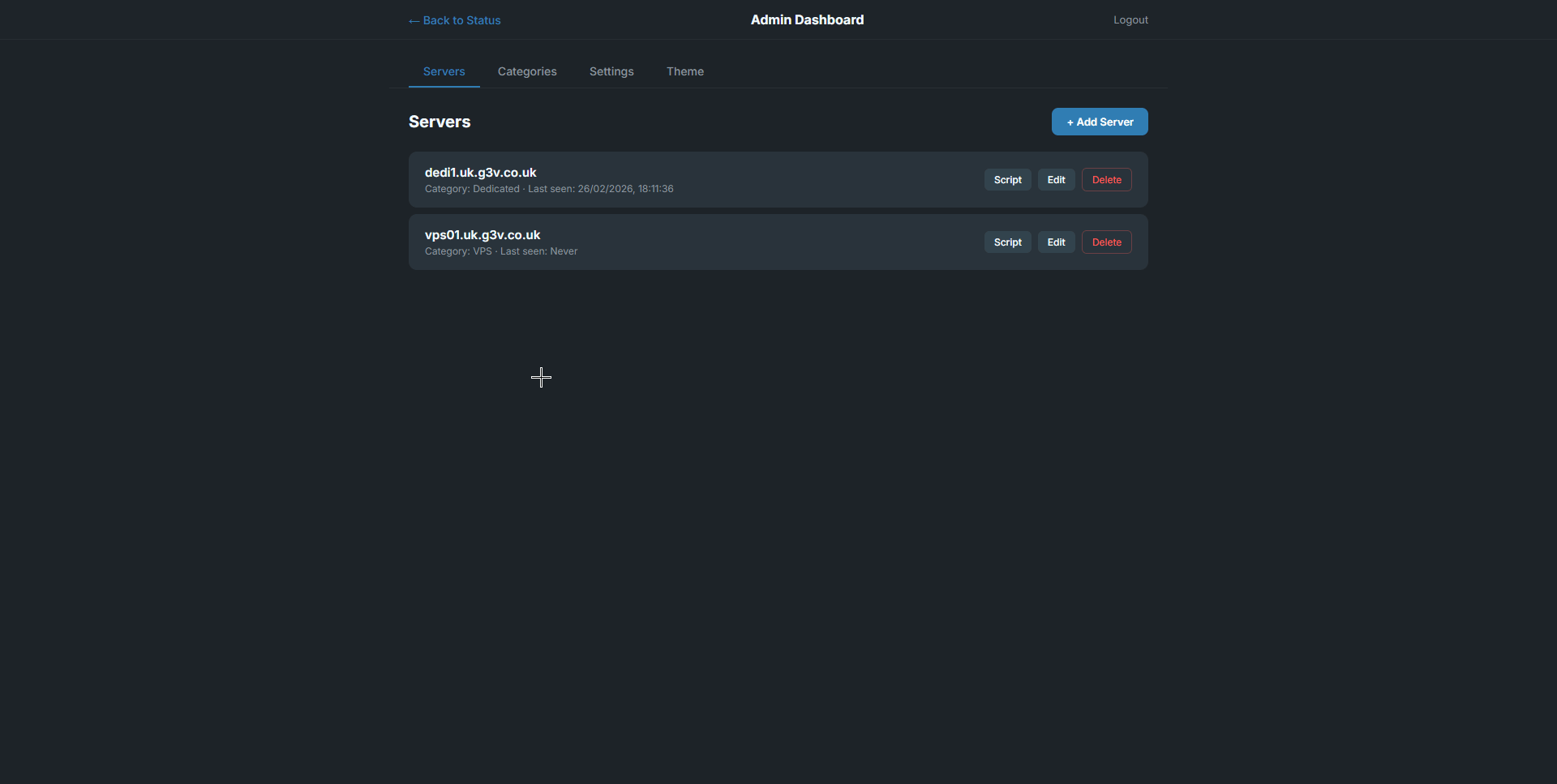

Admin Panel — Servers

Admin panel, allowing you to set categories and add servers, alongside giving you a bash command to track statistics.

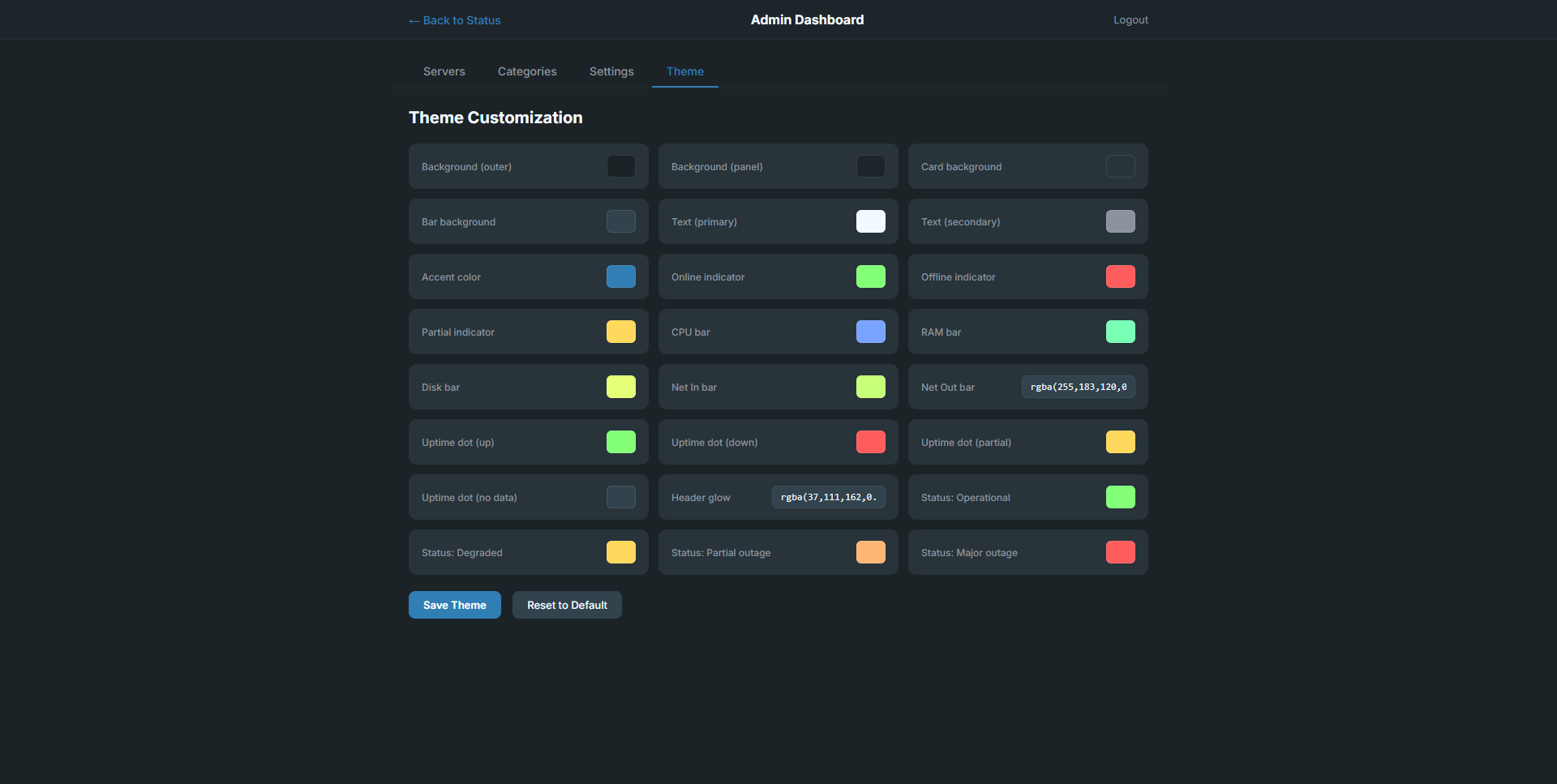

Admin Panel — Theme Editor

The status page is fully customisable, with every single little thing having a colour that you can change.

---

Features

• Real-time monitoring — CPU, RAM, Swap, Disk, Network IN/OUT with live-updating bars
• 90-day uptime dots — Visual uptime history, PER server
• Admin panel — Easily accessible interface to add, edit and remove servers
• Theme editor — A bunch of colours to customize your status page
• Bash monitoring agent — One-command install via auto-generated bash script with systemd service

---

Quick Start

1. Clone the repository

git clone https://github.com/G3VV/lucidstatus.git
cd lucidstatus

2. Install dependencies

pip install -r requirements.txt

3. Configure environment

Create a .env file in the project root:

# Server port
PORT=5000

# Enable debug mode (true/false)
DEBUG=false

# Secret key (leave empty to auto-generate)
SECRET_KEY=

4. Run the app

python app.py

The status page will be available at http://localhost:5000.

---

Admin Panel

Navigate to /admin to access the admin panel.

Default password: admin (change this in settings).

The admin panel has four tabs:

Tab	Description
Servers	Add, edit, delete servers. Copy the auto-generated install script for each server.
Categories	Create and reorder categories to group your servers.
Settings	Change site name, upload a logo, update admin password.
Theme	Customize every color on the status page with live color pickers.

---

Installing the Monitoring Agent

LucidStatus uses a lightweight bash agent that runs as a systemd service on each monitored server.

From the Admin Panel

1. Go to /admin → Servers tab
2. Click + Add Server, give it a name and category
3. Click the Script button next to the server
4. Copy the install command and run it on the target server:

curl -sS 'https://your-domain.com/agent/SERVER_API_KEY' | sudo bash

What the agent does

• Installs as a systemd service called lucidstatus
• Collects CPU, IOWait, Steal, RAM, Swap, Buffered, Cached, Disk, and Network stats every 30 seconds
• Reports metrics to your LucidStatus instance via a simple HTTP POST
• Auto-starts on boot, auto-restarts on failure

Agent management commands

# Check status
sudo systemctl status lucidstatus

# View logs
sudo journalctl -u lucidstatus -f

# Restart the agent
sudo systemctl restart lucidstatus

# Stop the agent
sudo systemctl stop lucidstatus

# Uninstall
sudo systemctl stop lucidstatus
sudo systemctl disable lucidstatus
sudo rm /etc/systemd/system/lucidstatus.service
sudo rm /opt/lucidstatus-agent.sh
sudo systemctl daemon-reload

---

API Endpoints

Public

Method	Endpoint	Description
GET	/api/status	All servers with current stats, uptime dots & theme
GET	/api/server/<id>?hours=24	Single server detail with stat history

Agent

Method	Endpoint	Description
POST	/api/report	Submit server metrics (requires api_key in body)

Admin (requires login)

Method	Endpoint	Description
GET/POST	/admin/api/settings	Get/update site settings
GET/POST	/admin/api/theme	Get/update theme colors
GET/POST	/admin/api/categories	List/create categories
PUT/DELETE	/admin/api/categories/<id>	Update/delete a category
GET/POST	/admin/api/servers	List/create servers
PUT/DELETE	/admin/api/servers/<id>	Update/delete a server
GET	/admin/api/servers/<id>/script	Get install script for a server

---

Tech Stack

• Backend: Python 3.10+, Flask 3.0, SQLAlchemy, SQLite
• Frontend: Vanilla JS, CSS custom properties, Chart.js 4
• Agent: Bash, systemd, cURL
• Fonts: Inter (Google Fonts)

---

License

MIT
