NITHmouseController

An application for hands-free mouse control and emulation using a webcam (and NITHsensors)

Overview

NITHmouseController is an application which provides a series of tools and experimental methods for hands-free mouse control through NITH sensors. Thus it is suitable for users with motor disabilities such as quadriplegia. It provides a way for moving the mouse as well as pressing the buttons, using:

• Head rotation (for cursor movement)
• Eye blinking or mouth aperture (for button clicking)

Requirements and installation

Sensors

NITHmouseController requires some sensors able to detect the cursor movements.

You can use a normal laptop webcam in order to do it all, but we strongly recommend using a dedicated sensor for head tracking to achieve more precision, such as the NITHheadTracker, which you can easily build by yourself by following the instructions provided in the link.

For webcam control, which is required either way, you can download and use our NITHwebcamWrapper. Please follow all the instructions provided in the link for downloading and using it. It will require to download and install Python, as indicated.

Computer and software requirements

At the present moment, NITHmouseController is only compatible with Windows operating system. Apart from that, you can use it on any machine, provided you have a webcam.

Download and run

In order to download and use NITHmouseController, you can download the latest release, or clone the entire repository. In either case, you should run NITHmouseController.exe. If you cloned the repo, you will find it in the bin/release folder.

Usage

To start using the application, please follow these steps:

1. Run the Application
   Launch NITHmouseController.exe. Make sure NITHwebcamWrapper is running in the background.

2. Authorize Connection
   When prompted by a Windows popup, grant authorization to allow NITHmouseController to listen for connections. Once authorized, the application will automatically connect and receive data from NITHwebcamWrapper.

3. USB Head Tracker
   If you are using a USB head tracker compatible with NITH (e.g. NITHheadTracker):

   • Click Scan to detect the device through the USB ports.
   • Upon recognition, the head tracker will automatically connect to the application.

4. Calibration
   Follow these steps to calibrate your system:

   • Click Center to calibrate the head tracker while keeping your head facing the screen.
   • With your eyes and mouth at their full aperture, click Open within the calibration controls.
   • Then, close both your eyes and mouth and click Closed.
     This process allows the application to understand the full range of your movements.

5. Adjust Settings

   • Cursor Sensitivity: Use the Sensitivity control to adjust how fast the cursor moves.
   • Movement Smoothing: Adjust the Movement filter control to smooth out cursor movements.

Interaction Methods

Head rotation along the pitch and yaw axes controls the movement of the mouse cursor. The application supports two distinct methods for simulating mouse clicks:

• Blink Clicking:
  A left eye blink triggers a left mouse button click. You can also hold the click by keeping your eye closed.
• Mouth Clicking:
  • Move your head using the roll axis to select either the left or right mouse button.
  • Return your head to the center once the button is selected.
  • Opening your mouth past a certain threshold will trigger a click for the selected button.
    You can maintain the click by keeping your mouth open.

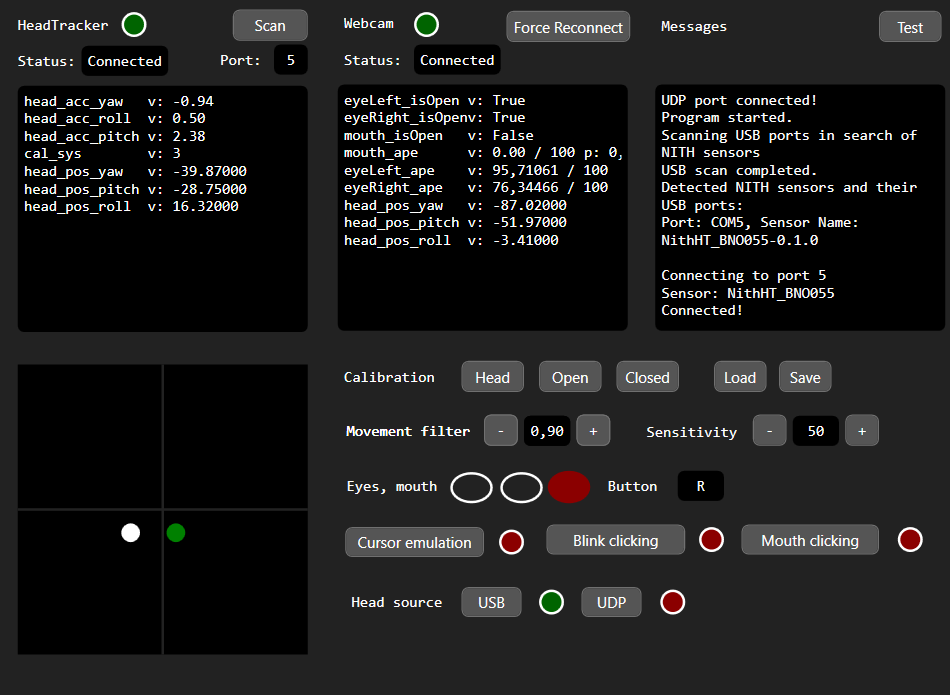

GUI

The graphical user interface of the application contains 3 console output screens, in black.

• The leftmost outputs raw data from the USB NITH head tracker (or any compatible sensor correctly connected through USB);
• The central one outputs raw data from the NITHwebcamWrapper (or any compatible sensor correctly connected through UDP);
• The rightmost outputs general debug messages.

On the bottom left corner, there's a head position indicator which provides feedback on head rotation. The white dot reflects the movement on pitch/yaw axes, the green dot reflects the movement on the pitch/roll axes.

Contribute

You are absolutely free and welcome to contribute to the development of this program! You can clone and fork this repo as you wish. Please raise an issue for any question.

The application is written in C# using Microsoft Visual Studio. We recommend using the same IDE: you can clone this repo and open the .sln solution file. In order to compile the source code, you need to clone and place the repositories of the following libraries next to NITHmouseController's root folder.

• NITHlibrary, which is the main library for interfacing with NITH sensors and wrappers
• NITHemulation, which provides emulation capabilities for standard I/O devices (mouse and keyboard)

License

This software is licensed through the GNU GPL-v3.0 Free Software license.
