refactor(perps): simplify TAT-3016 payment-token inference + agentic cycle validation cp-7.72.2

[abretonc7s]

Description

Small cleanup on top of Matt's TAT-3016 hotfix, plus an agentic validation harness that proves the fix contract holds end-to-end.

Matt's hotfix surfaces availableToTradeBalance = withdrawable + spot USDC for order-entry while keeping availableBalance = withdrawable for the withdraw path. #29150 introduced that change but carried a lot of incidental churn — a state machine for payment-token sources, a wrapper helper that only added noise, and a 215-line refactor of useDefaultPayWithTokenWhenNoPerpsBalance. None of those were part of the fix contract. This PR strips them and inlines a simpler inference: clear the saved payment token only when the user now has native buying power and the saved token matches the auto-fallback candidate.

Net production-code delta vs the base hotfix: −182 lines.

Validation harness

One recipe drives the shared Trading account (currently in the exact "Unified Mode + spot-only" state that broke orders) through three phases — capture initial state, flip HL abstraction to Standard via userSetAbstraction, capture, flip back to Unified, capture. Setup closes open positions (HL rejects abstraction flips while positions are open); teardown restores Unified.

Three small additions make this composable for future perps PRs:

• A testID on PerpsWithdrawView's available-balance text so automation can read what users see.
• HyperLiquidProvider.getExchangeClient() — narrow escape hatch that lets admin/test flows drive any SDK action without growing a controller method per operation. Not on the PerpsProvider interface.
• Two reusable flows: hl-balance-validation (captures AccountState + PerpsMarketListView balance + PerpsWithdrawView balance + PerpsOrderView Pay-with symbol, asserts the fold invariant and no-fold-leak on withdraw) and hl-provision-fixture (wraps userSetAbstraction + usdClassTransfer).

Every timing gate is a wait_for polling a deterministic condition. No arbitrary wait: Nms.

Out of scope (deliberate)

• No contract reshape (availableBalance → spendableBalance / withdrawableBalance) — that's TAT-3047.
• No withdraw-path logic edits. availableBalance semantics preserved.
• No MYX logic beyond the trivial availableToTradeBalance = availableBalance field.
• No upstream @metamask/perps-controller changes.
• Mode-aware fold gating (honour Unified vs Standard on the mobile side) — also TAT-3047.
• Cross-account selectedPaymentToken reset — pre-existing bug discovered while validating, filed as TAT-3050. Not this PR's problem.

Changelog

CHANGELOG entry: null

Related issues

Fixes: TAT-3016

Context:

• Supersedes: #29150 (credit to @geositta)
• Prior merged fix (complementary): #29110
• Follow-up (contract reshape): TAT-3047
• Follow-up (pre-existing pay-with leak): TAT-3050

Manual testing steps

The useful path is automated. To reproduce locally run the recipe against the shared Trading account with bash scripts/perps/agentic/validate-recipe.sh evidence. Per-phase assertions:

Feature: TAT-3016 HL abstraction cycle

  Scenario: Spot-funded Trading account cycled through Unified / Standard / Unified
    Given the Trading account (0x316B…01fA) is in Unified Mode with spot USDC collateral
    And all open positions have been closed

    When the recipe captures AccountState + PerpsMarketListView balance + PerpsWithdrawView balance + PerpsOrderView Pay-with
    And flips HL abstraction to Standard via userSetAbstraction
    And re-captures
    And flips back to Unified
    And captures once more

    Then availableToTradeBalance >= availableBalance in every phase
    And PerpsMarketListView shows the fold (≈ $100.76) in every phase
    And PerpsWithdrawView shows "Available Perps balance: $0" in every phase
    And PerpsOrderView Pay-with row shows "Perps balance" in every phase
    And teardown leaves the account in Unified Mode

Observed values on the shared Trading account (last run: 105/105 PASS):

Phase	availableBalance	availableToTradeBalance	Market-list balance	Withdraw balance	Order-form Pay-with
Initial (Unified)	$0.00	$100.75	$100.76	Available Perps balance: $0	Perps balance
After flip → Standard	$0.00	$100.75	$100.76	Available Perps balance: $0	Perps balance
Restored (Unified)	$0.00	$100.75	$100.76	Available Perps balance: $0	Perps balance

Identical balances across Unified / Standard flips are intentional per #29150's product assumption: "spot USDC is treated as interchangeable with Perps trading collateral for the markets we currently surface." HL's HIP-3 / non-USDC markets are deferred to TAT-3047.

Full recipe source

{
  "title": "TAT-3016 validation: single-account HL abstraction-mode cycle on Trading — capture AccountState + withdraw + market-details balance readouts before/after Unified toggle",
  "description": "Uses the shared Trading account (0x316BDE155acd07609872a56Bc32CcfB0B13201fA). Setup closes all open positions and cancels all open orders because HL rejects userSetAbstraction while positions/orders/TWAPs exist. Workflow cycles HL abstraction: Unified (initial) -> disabled (Standard) -> Unified (restored). At each phase perps/hl-balance-validation captures and asserts (a) PerpsController.state.accountState (availableBalance, availableToTradeBalance, fold invariant), (b) PerpsMarketDetails balance text (perps-market-available-balance-text), (c) PerpsWithdraw balance text (perps-withdraw-available-balance-text) which must never leak the spot fold. Teardown restores Unified mode as a safety net. DESTRUCTIVE to Trading's position book — positions are NOT reopened.",
  "initial_conditions": {
    "testnet": false
  },
  "validate": {
    "workflow": {
      "pre_conditions": [],
      "setup": [
        {
          "id": "login-detect-route",
          "action": "eval_sync",
          "expression": "(function(){try{var r=globalThis.__AGENTIC__&&globalThis.__AGENTIC__.getRoute();return JSON.stringify({route:r?r.name:'unknown'})}catch(e){return JSON.stringify({route:'unknown'})}})()",
          "assert": { "operator": "not_null", "field": "route" }
        },
        {
          "id": "select-trading",
          "action": "select_account",
          "address": "0x316BDE155acd07609872a56Bc32CcfB0B13201fA"
        },
        {
          "id": "wait-provider",
          "action": "wait_for",
          "expression": "(function(){try{var ctrl=Engine.context.PerpsController;var ready=!!(ctrl&&ctrl.state&&ctrl.state.activeProvider);return JSON.stringify({ready:ready})}catch(e){return JSON.stringify({ready:false})}})()",
          "assert": { "operator": "eq", "field": "ready", "value": true },
          "timeout_ms": 20000
        },
        {
          "id": "prime-provider-clients",
          "action": "wait_for",
          "expression": "Engine.context.PerpsController.getAccountState().then(function(r){return JSON.stringify({primed:true,availableBalance:r.availableBalance})}).catch(function(e){return JSON.stringify({primed:false,error:String(e&&e.message||e)})})",
          "assert": { "operator": "eq", "field": "primed", "value": true },
          "timeout_ms": 30000
        },
        {
          "id": "clear-stale-payment-token",
          "action": "eval_async",
          "expression": "(function(){try{var ctrl=Engine.context.PerpsController;if(ctrl.setSelectedPaymentToken)ctrl.setSelectedPaymentToken(null);if(ctrl.clearPendingTradeConfiguration)ctrl.clearPendingTradeConfiguration();return Promise.resolve(JSON.stringify({cleared:true,selectedPaymentToken:ctrl.state&&ctrl.state.selectedPaymentToken}))}catch(e){return Promise.resolve(JSON.stringify({cleared:false,error:String(e)}))}})()",
          "assert": { "operator": "eq", "field": "cleared", "value": true },
          "timeout_ms": 5000
        },
        {
          "id": "close-all-positions",
          "action": "eval_async",
          "expression": "Engine.context.PerpsController.getPositions().then(function(ps){if(ps.length===0){return JSON.stringify({closed:0})}var calls=ps.map(function(p){return Engine.context.PerpsController.closePosition({symbol:p.symbol}).catch(function(e){return {err:String(e&&e.message||e),symbol:p.symbol}})});return Promise.all(calls).then(function(){return JSON.stringify({closed:ps.length,symbols:ps.map(function(p){return p.symbol})})})})",
          "assert": { "operator": "not_null", "field": "closed" },
          "timeout_ms": 60000
        },
        {
          "id": "wait-positions-cleared",
          "action": "wait_for",
          "expression": "Engine.context.PerpsController.getPositions().then(function(ps){return JSON.stringify({positionsLeft:ps.length,cleared:ps.length===0})})",
          "assert": { "operator": "eq", "field": "cleared", "value": true },
          "timeout_ms": 60000
        },
        {
          "id": "cancel-all-orders",
          "action": "eval_async",
          "expression": "Engine.context.PerpsController.getOpenOrders().then(function(os){if(os.length===0){return JSON.stringify({cancelled:0})}var calls=os.map(function(o){return Engine.context.PerpsController.cancelOrder({orderId:o.orderId,symbol:o.symbol}).catch(function(e){return {err:String(e&&e.message||e),orderId:o.orderId}})});return Promise.all(calls).then(function(){return JSON.stringify({cancelled:os.length})})})",
          "assert": { "operator": "not_null", "field": "cancelled" },
          "timeout_ms": 30000
        },
        {
          "id": "wait-orders-cleared",
          "action": "wait_for",
          "expression": "Engine.context.PerpsController.getOpenOrders().then(function(os){return JSON.stringify({ordersLeft:os.length,cleared:os.length===0})})",
          "assert": { "operator": "eq", "field": "cleared", "value": true },
          "timeout_ms": 30000
        }
      ],
      "entry": "assert-mainnet",
      "nodes": {
        "assert-mainnet": {
          "action": "eval_sync",
          "expression": "JSON.stringify({isTestnet:Engine.context.PerpsController.state&&Engine.context.PerpsController.state.isTestnet===true})",
          "assert": { "operator": "eq", "field": "isTestnet", "value": false },
          "next": "phase1-initial-unified"
        },
        "phase1-initial-unified": {
          "action": "call",
          "ref": "perps/hl-balance-validation",
          "params": {
            "expectedMode": "unified",
            "phaseLabel": "initial-unified"
          },
          "next": "flip-to-standard"
        },
        "flip-to-standard": {
          "action": "call",
          "ref": "perps/hl-provision-fixture",
          "params": {
            "abstraction": "disabled",
            "transferDirection": "none"
          },
          "next": "refresh-post-flip-standard"
        },
        "refresh-post-flip-standard": {
          "action": "wait_for",
          "expression": "Engine.context.PerpsController.getAccountState().then(function(r){return JSON.stringify({ok:true,availableBalance:r.availableBalance,availableToTradeBalance:r.availableToTradeBalance})}).catch(function(e){return JSON.stringify({ok:false,error:String(e)})})",
          "assert": { "operator": "eq", "field": "ok", "value": true },
          "timeout_ms": 30000,
          "next": "phase2-after-flip-standard"
        },
        "phase2-after-flip-standard": {
          "action": "call",
          "ref": "perps/hl-balance-validation",
          "params": {
            "expectedMode": "standard",
            "phaseLabel": "after-flip-standard"
          },
          "next": "flip-back-to-unified"
        },
        "flip-back-to-unified": {
          "action": "call",
          "ref": "perps/hl-provision-fixture",
          "params": {
            "abstraction": "unifiedAccount",
            "transferDirection": "none"
          },
          "next": "refresh-post-flip-unified"
        },
        "refresh-post-flip-unified": {
          "action": "wait_for",
          "expression": "Engine.context.PerpsController.getAccountState().then(function(r){return JSON.stringify({ok:true,availableBalance:r.availableBalance,availableToTradeBalance:r.availableToTradeBalance})}).catch(function(e){return JSON.stringify({ok:false,error:String(e)})})",
          "assert": { "operator": "eq", "field": "ok", "value": true },
          "timeout_ms": 30000,
          "next": "phase3-restored-unified"
        },
        "phase3-restored-unified": {
          "action": "call",
          "ref": "perps/hl-balance-validation",
          "params": {
            "expectedMode": "unified",
            "phaseLabel": "restored-unified"
          },
          "next": "done"
        },

        "done": {
          "action": "end",
          "status": "pass"
        }
      },
      "teardown": [
        {
          "id": "teardown-select-trading",
          "action": "select_account",
          "address": "0x316BDE155acd07609872a56Bc32CcfB0B13201fA"
        },
        {
          "id": "teardown-wait-trading",
          "action": "wait_for",
          "expression": "Engine.context.PerpsController.getAccountState().then(function(r){return JSON.stringify({ready:true,availableToTradeBalance:r.availableToTradeBalance})}).catch(function(e){return JSON.stringify({ready:false,error:String(e)})})",
          "assert": { "operator": "eq", "field": "ready", "value": true },
          "timeout_ms": 20000
        },
        {
          "id": "teardown-restore-unified",
          "action": "eval_async",
          "expression": "(function(){try{var ctrl=Engine.context.PerpsController;var provider=ctrl.getActiveProvider();var accs=Engine.context.AccountsController.state.internalAccounts;var user=accs.accounts[accs.selectedAccount].address;return provider.getExchangeClient().then(function(client){return client.userSetAbstraction({user:user,abstraction:'unifiedAccount'})}).then(function(r){return JSON.stringify({ok:true,restored:'unifiedAccount'})}).catch(function(e){return JSON.stringify({ok:false,error:String(e&&e.message||e),note:'Trading may be left in Standard mode; re-flip manually on HL web if needed'})})}catch(e){return JSON.stringify({ok:false,error:String(e)})}})()",
          "assert": { "operator": "not_null", "field": "ok" },
          "timeout_ms": 30000
        }
      ]
    }
  }
}

The flows perps/hl-balance-validation and perps/hl-provision-fixture this recipe composes are committed under scripts/perps/agentic/teams/perps/flows/.

</details>

Screenshots/Recordings

Before

This PR layers on top of Matt's already-landing hotfix; the user-visible behavior does not change. The harness below demonstrates the hotfix contract is preserved across the cleanup.

After

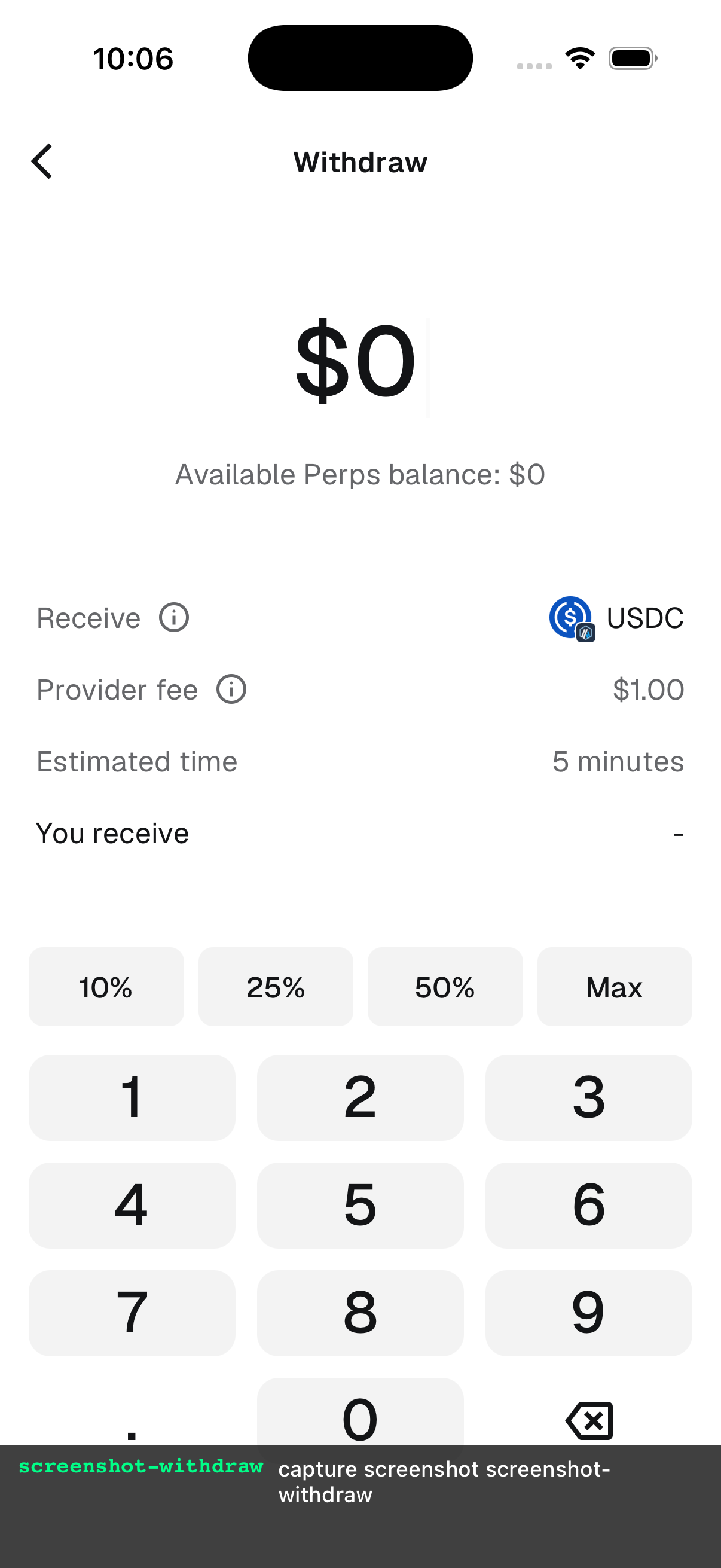

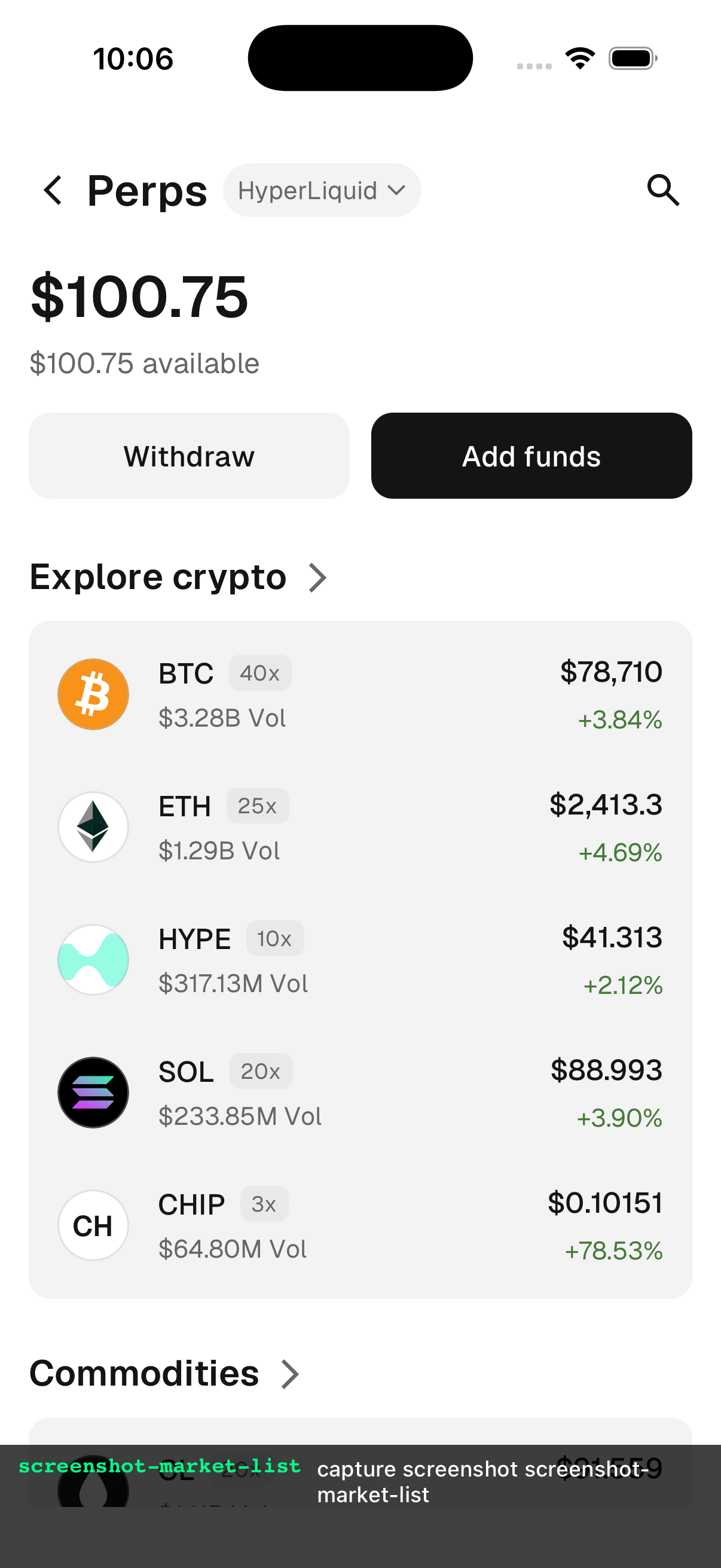

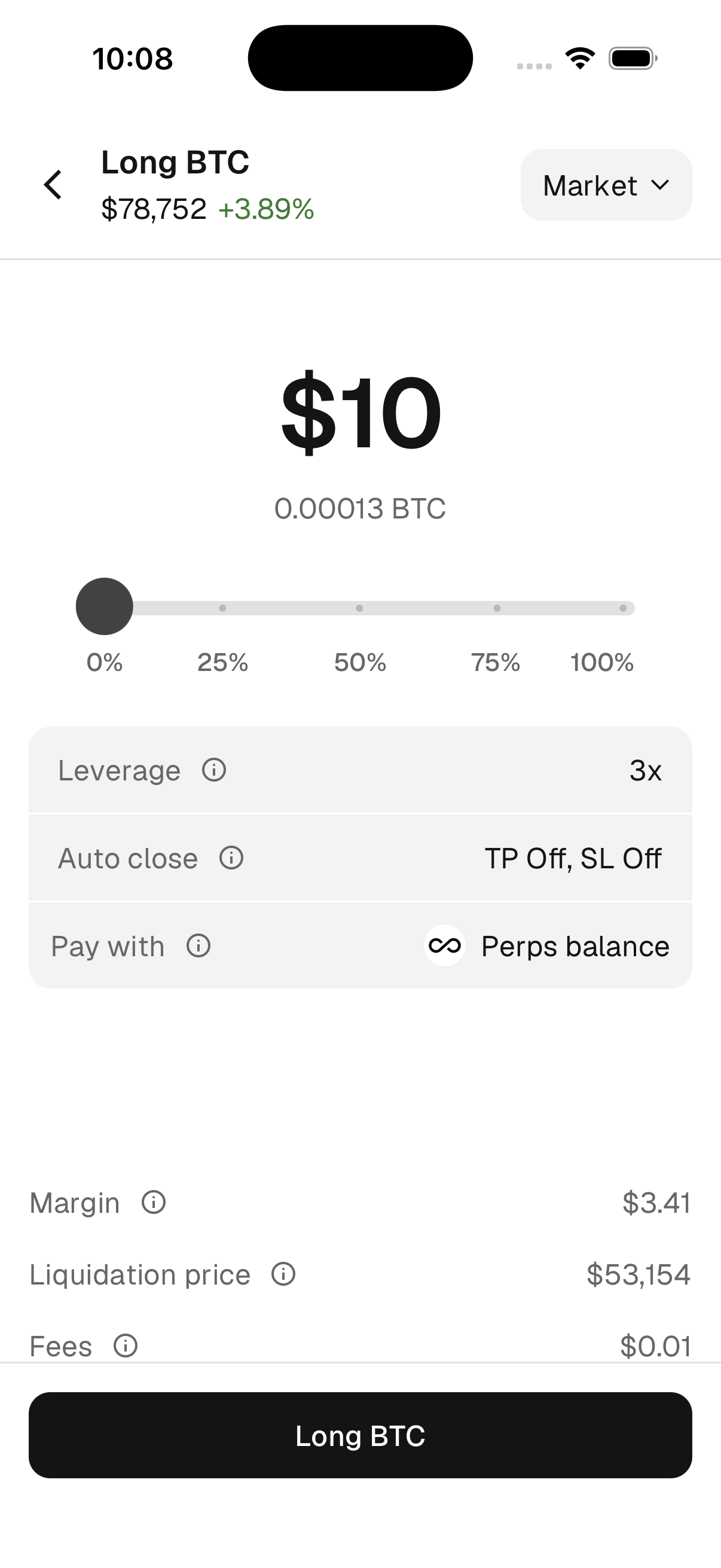

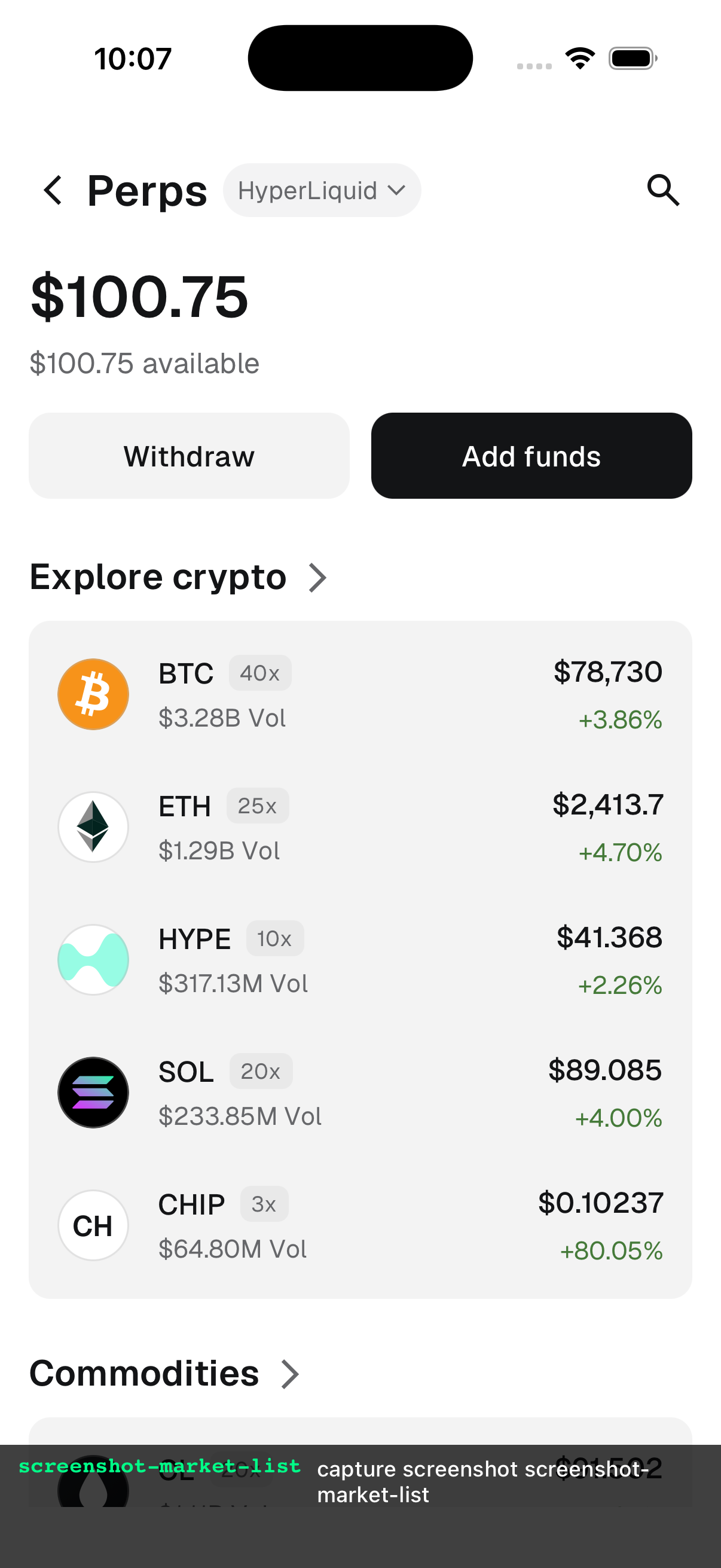

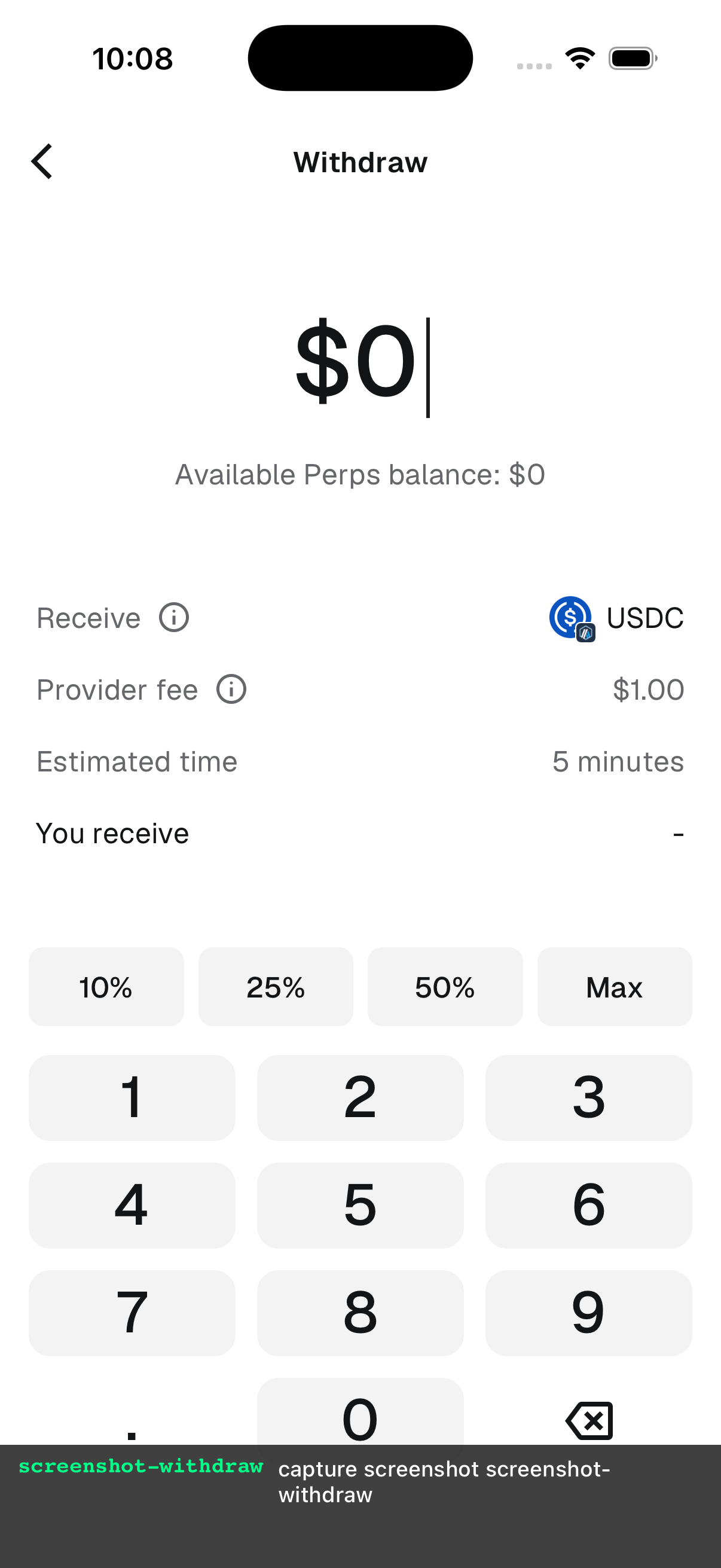

Three-phase cycle evidence. Each phase captures market-list balance (shows fold), withdraw balance (shows withdrawable-only), and order-form Pay-with (shows Perps balance by default).

	Market list	Withdraw	Order form (Pay-with)
Initial (Unified)
After flip → Standard
Restored (Unified)

Pre-merge author checklist

• I've followed MetaMask Contributor Docs and MetaMask Mobile Coding Standards.
• I've completed the PR template to the best of my ability
• I've included tests if applicable
• I've documented my code using JSDoc format if applicable
• I've applied the right labels on the PR (see labeling guidelines). Not required for external contributors.

Performance checks (if applicable)

• I've tested on Android
• I've tested with a power user scenario
• I've instrumented key operations with Sentry traces for production performance metrics

Pre-merge reviewer checklist

• I've manually tested the PR (e.g. pull and build branch, run the app, test code being changed).
• I confirm that this PR addresses all acceptance criteria described in the ticket it closes and includes the necessary testing evidence such as recordings and or screenshots.
