Framer

Framer is a great layout framework which wraps manually calculation frames with a nice-chaining syntax.

It's also available for Swift but with another name - Framezilla

Installation with CocoaPods

CocoaPods is a dependency manager for Swift and Objective-C Cocoa projects. It has over eighteen thousand libraries and can help you scale your projects elegantly. You can install it with the following command:

$ sudo gem install cocoapods

To install Framer, simply add the following line to your Podfile:

pod "Framer"

then add

#import <Framer/Framer.h>

USAGE

You can configure relations with superview very fast and convenient:

    [self.view1 installFrames:^(NUIFramer * _Nonnull framer) {
        framer.top(10).and.bottom(10);
        framer.right(10).and.left(10);
    }];

... or just

    [self.view1 installFrames:^(NUIFramer * _Nonnull framer) {
        framer.edges(UIEdgeInsetsMake(10, 10, 10, 10));
    }];

For example, you just want to centered subview relative superview with constant width and height.

So easy to do it with Framer :

    [self.view1 installFrames:^(NUIFramer * _Nonnull framer) {
        framer.width(100).and.height(100);
        framer.super_centerX(0);
        framer.super_centerY(0);
    }];

Relation between two views:

    [self.view1 installFrames:^(NUIFramer * _Nonnull framer) {
        framer.width(100).and.height(100);
        framer.super_centerX(0);
        framer.super_centerY(0);
    }];

    [self.view2 installFrames:^(NUIFramer * _Nonnull framer) {
        framer.width(50).and.height(50);
        framer.bottom_to(self.view1.nui_top, 0);
        framer.left_to(self.view1.nui_right, 0);
    }];

... or maybe so?

    [self.view1 installFrames:^(NUIFramer * _Nonnull framer) {
        framer.width(100);
        framer.height(100);
        framer.super_centerX(0).and.super_centerY(0);
    }];

    [self.view2 installFrames:^(NUIFramer * _Nonnull framer) {
        framer.top(10);
        framer.bottom(10);
        framer.left(10);
        framer.width_to(self.view2.nui_height, 0.5); // height*0.5
    }];

NOTE

That's important to point out relations for two views.

Incorrect:

    [self.view1 installFrames:^(NUIFramer * _Nonnull framer) {
        framer.bottom_to(self.view1, 0);
    }];

Correct:

    [self.view1 installFrames:^(NUIFramer * _Nonnull framer) {
        framer.bottom_to(self.view1.nui_top, 0);
    }];

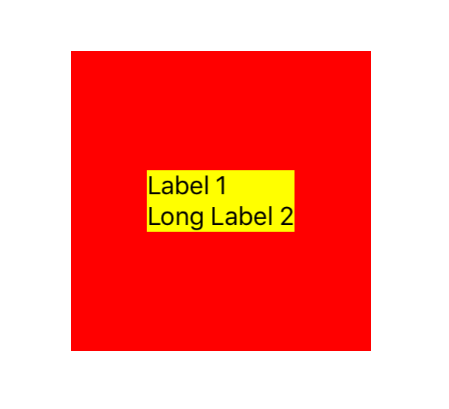

Container relation:

NOTE

At first you should configurate all subviews and then configure container.

    [self.view1 installFrames:^(NUIFramer * _Nonnull framer) {
        framer.width(200).and.height(200);
        framer.super_centerX(0);
        framer.super_centerY(0);
    }];

    [self.label1 installFrames:^(NUIFramer * _Nonnull framer) {
        framer.top(0).and.left(0);
        framer.sizeToFit();
    }];

    [self.label2 installFrames:^(NUIFramer * _Nonnull framer) {
        framer.top_to(self.label1.nui_bottom, 0).and.left(0);
        framer.sizeToFit();
    }];

    [self.container installFrames:^(NUIFramer * _Nonnull framer) {
        framer.container();
        framer.super_centerX(0);
        framer.super_centerY(0);
    }];

States:

It's very convenient use many states for animations, because you can just configure all states in one place and when needed change frame for view - just apply needed state! Awesome, is'n it?

- (void)viewDidLayoutSubviews {
    [super viewDidLayoutSubviews];

    /* Configure frame for '0' state */
    [self.view1 installFrames:^(NUIFramer * _Nonnull framer) {
        framer.width(10);
        framer.height(10);
        framer.super_centerX(0).and.super_centerY(0);
    }];

    [self.view1 installFrames:^(NUIFramer * _Nonnull framer) {
        framer.width(40);
        framer.height(40);
        framer.super_centerX(0).and.super_centerY(0);
    } forState:@1];

    [self.view1 installFrames:^(NUIFramer * _Nonnull framer) {
        framer.width(100);
        framer.height(100);
        framer.super_centerX(0).and.super_centerY(0);
    } forState:@2];
}

set new state and animate it:

/* Next time when viewDidLayoutSubviews will be called, self.view1 configure frame for state 2. */
    self.view1.nui_state = @2;
    [self.view setNeedsLayout];
    [UIView animateWithDuration:1.0 animations:^{
        [self.view layoutIfNeeded];
    }];

Macroses:

    CGFloat width = NUI_WIDTH(view);
    CGFloat midX = NUI_MID_X(view);

Updates:

v1.5

• Updated documentation.
• Added widthToFit and heightToFit.

v1.4

• Added macroses for getting width, height etc.

v1.3

• Added centerX and centerY methods for just setting center point.
• Added width_to and height_to for configure height/width relatively specific view.

v1.1

• Added 'nui' prefix to relations(left, right etc).
• Added possibility to configure frame for special state.

v1.0

• First release version. Configure frame blocks.

TODO

• Other platforms support
• Swift support
• More tests

Author

Nikita Ermolenko, [email protected]

License

Framer is available under the MIT license. See the LICENSE file for more info.
