BeamNG Level Importer & BeamNG Modding Tools

BeamNG Level Importer is a Blender add-on that imports BeamNG levels into Blender with correct position, rotation, and scale. All assets are brought in with their materials and texture maps properly assigned.

BeamNG Modding Tools is a Lua extension for BeamNG.drive that converts legacy TorqueScript (.cs) material files to modern JSON format.

Many features of BeamNG Modding Tools are now integrated into the game under World Editor → Window → Resources Checker.

---

Features

BeamNG Level Importer

• Default time-of-day (TOD) setup using Multiscatter/Nishita sky
• Full support for Terrain Materials v0 and v1.5
• Materials v0 support
• Materials v1.5 support
• Water material support
• Support for relative textures
• Support for common /art folder
• Support for /asset folder and asset system
• Support for asset linking
• Custom COLLADA and DTS/CDAE importing that supports "locked" models or OpenCollada exports and other problematic mesh files
• TerrainBlock importing
• WaterBlock importing
• SpotLight and PointLight importing
• WaterPlane importing
• DecalData and decal instance importing
• River importing
• Groundcover importing
• Decal road importing
• Mesh road importing
• Camera bookmark importing
• Sound emitter importing
• Ground plane importing
• All other classes and their properties importing
• SceneTree folder structure recreation
• Forest item importing and placement via Geometry Nodes instances
• Ability to realize TSStatic and Forest instances
• Importing BeamNG material files
• Importing BeamNG vehicles state

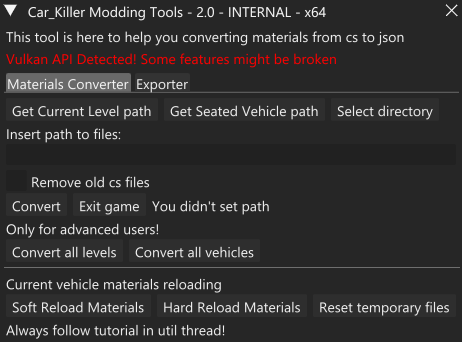

BeamNG Modding Tools

• Integration with the in-game World Editor
• Standalone mode
• Conversion of legacy TorqueScript (.cs) materials to JSON
• Cleanup of TorqueScript (.cs) materials
• Batch conversion support
• DDS → PNG texture exporter (reverse of Texture Cooker)
• Game mesh → COLLADA exporter
• Game mesh → Wavefront OBJ exporter
• Soft reloading of vehicle materials
• Hard reloading of vehicle materials
• Removal of temporary files for vehicles
• Exporting BeamNG vehicles state

---

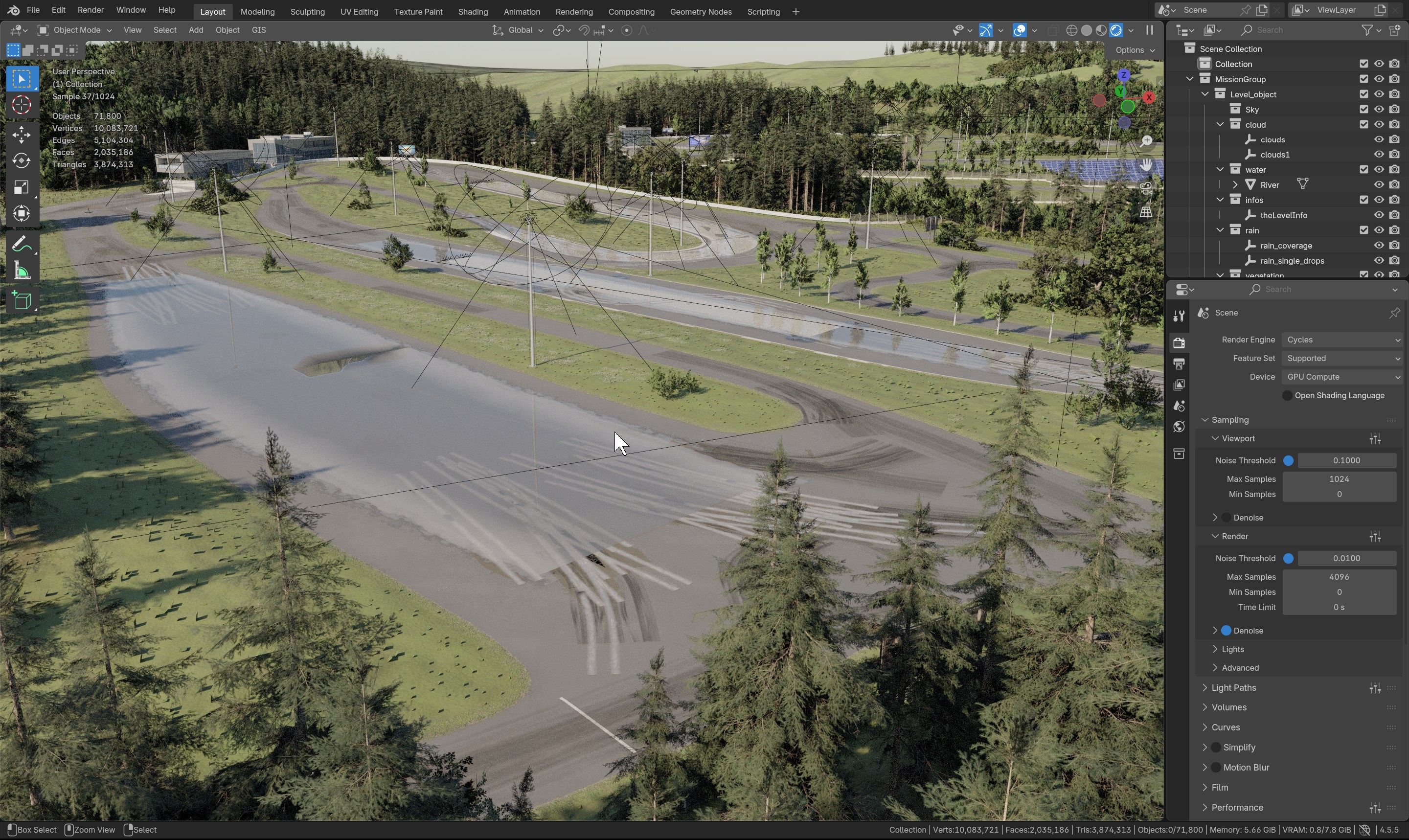

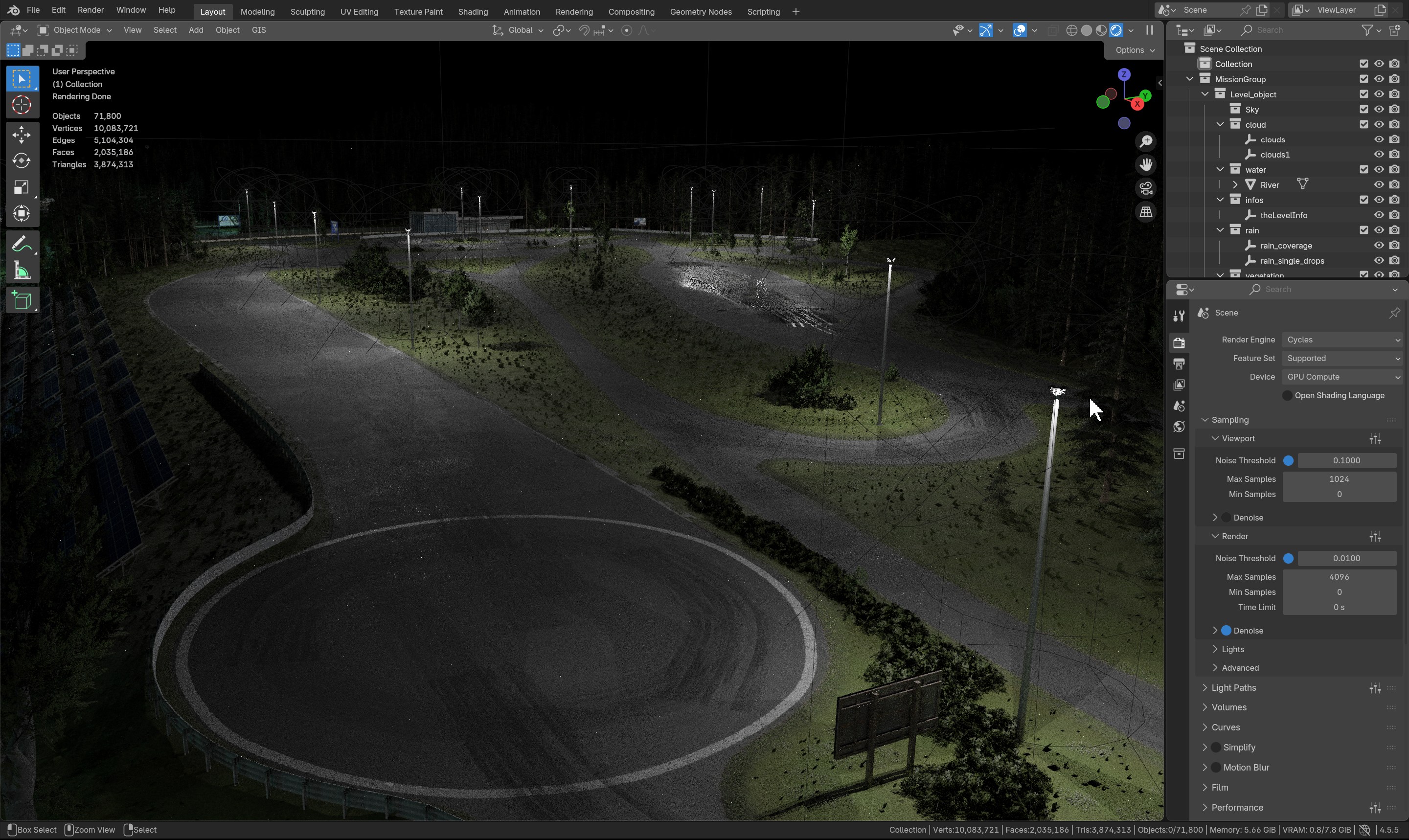

Screenshots

---

Roadmap

BeamNG Level Importer

Planned features:

• Importing levels and materials defined in TorqueScript
• Editing levels directly in Blender and saving changes back
• Particle emitter support

---

Known Issues

BeamNG Level Importer

• There may be additional issues that have not yet been discovered or documented

BeamNG Modding Tools

• The game may crash when removing old .cs materials if a level is already loaded
• COLLADA and Wavefront exports from the game engine may produce unexpected results

---

Requirements

BeamNG Level Importer

• Operating system:
  • Windows (x64 or ARM64)
  • Linux (x64 or ARM64)
  • macOS (ARM64)
• Blender:
  • minimum working version: 3.3 LTS
  • supported versions: 4.5 LTS or 5.0 recommended, 3.6 LTS

BeamNG Modding Tools

• Operating system: Windows or Linux (x64)
• Game: BeamNG.drive v0.38 or newer

---

Installation

BeamNG Level Importer (Blender Add-on)

1. Make sure your system meets the requirements above.
2. Download the Blender add-on from the Releases page.
   • Important: Download the Blender add-on file, not the source code or the BeamNG extension.
3. Open Blender.
4. Go to Edit → Preferences → Add-ons → Install…
5. Select the downloaded .zip and install it.
6. Enable the add-on in the Add-ons list if it is not enabled automatically.

BeamNG Modding Tools (BeamNG Extension)

1. Make sure your system meets the requirements above.
2. Download the BeamNG extension from the Releases page.
   • Important: Download the BeamNG extension, not the source code or Blender add-on.
3. Copy the downloaded .zip file into your BeamNG mods folder.

---

Usage

BeamNG Level Importer

Importing a Level into Blender

1. In Blender, open the Sidebar (usually with the N key).
2. Go to the BeamNG Level Importer panel.
3. Set the paths to:
   • Your BeamNG game install folder
   • Your BeamNG user folder
4. Click Scan to detect available levels.
5. Select a level from the list.
6. Click Import Level.

---

BeamNG Modding Tools

Converting Old Mods to New Material System

1. Start BeamNG.drive.
2. Open the Modding Tools interface (depending on installation, this may be under the World Editor or a dedicated UI).
3. Enter the path to your mod’s folder that you want to convert.
4. Click Convert.
5. After conversion:
   • Copy the generated .json material files from your BeamNG user folder back into your mod’s source folder.
   • Delete all materials.cs (or other .cs material) files from the mod.
   • Clear your mod’s cache so the game uses the new JSON-based materials.

Exporting Textures or Meshes

1. Start BeamNG.drive.
2. Open the Modding Tools interface.
3. Enter the path to the mod folder whose assets you want to export.
4. Go to the Exporter tab.
5. Click the export function you want to use (e.g., DDS → PNG, mesh → COLLADA, mesh → OBJ).
6. The exported files will appear in your BeamNG user folder at: userfolder/temp/exported/

---

FAQ / Troubleshooting

The game crashes when converting .cs materials

• Try running the conversion from the main menu, before loading any level. This reduces memory usage and can prevent crashes or long hangs during conversion.

---

Credits

Special thanks to @thomatoes50 for help with cleaning up the Lua code and for providing the original Resource Explorer code that greatly assisted work on the Polish Roads project.

Additional thanks for testing, feedback, and ideas to: @AgentMooshroom5, @bob.blunderton, @DankMemeBunny, @falefee, @Nekkit.

---

License

This project is licensed under the MIT License. See the LICENSE file for full details.
