Urban Facility Placement Optimization

---

Overview

This project addresses the urban facility placement problem using Mixed-Integer Programming (MIP). The goal is to optimally place multiple types of facilities on a 2D grid so that:

1. Every grid location is within a maximum Manhattan distance T from at least one facility of each type.
2. Facility placements do not overlap and respect maximum allowed counts per type.
3. Total facilities used are minimized once the minimum feasible T is found.

The model is implemented in Python using Gurobi for optimization and Matplotlib for visualization. The framework also includes sensitivity analysis to study how variations in T affect feasibility and required resources.

---

Supported Facility Types

• School
• Hospital
• Police Station
• Fire Station
• Convenience Store
• Park
• Bank
• Gym
• Library
• Post Office

Each type can have a configurable maximum number of facilities.

---

How It Works

1. Binary Search on T
   Finds the smallest T such that all locations are covered by all facility types.

2. Sensitivity Analysis
   Evaluates T* ± 1 and T* ± 2 to observe how the number of facilities changes with distance constraints.

3. Facility Minimization
   Given T_min, the total number of facilities is minimized while maintaining coverage.

4. Visualization
   Facility locations and sensitivity results are plotted for intuitive analysis.

---

Results

Optimal Maximum Manhattan Distance (T_min): 3
Total Facilities Required: 70

Cutting Planes Used:

• Gomory: 17
• MIR: 6
• Flow Cover: 35
• Zero Half: 13

Solver Statistics:

• Explored Nodes: 32,902
• Simplex Iterations: 10,613,473
• Runtime: 128.86 s (376.54 work units)
• Threads: 10

Solution Range: 70–81 facilities

---

Selected Facility Placements

• School: (1,7), (2,3), (4,9), (5,3), (8,6), (10,1), (10,10)
• Convenience: (1,4), (3,9), (5,1), (6,5), (8,10), (9,2), (10,5)
• Hospital: (1,1), (2,8), (4,5), (6,3), (7,10), (9,3), (9,7)
• Park: (1,5), (3,10), (4,1), (5,8), (8,4), (9,9), (10,3)
• Fire: (2,2), (2,6), (2,10), (5,6), (7,2), (8,9), (10,4)
• Police: (1,3), (2,9), (4,3), (5,7), (8,1), (9,5), (9,10)
• Library: (1,2), (1,9), (4,6), (6,9), (7,1), (8,3), (10,8)
• Gym: (1,10), (2,1), (2,5), (6,8), (7,3), (9,8), (10,2)
• Bank: (1,6), (3,2), (4,10), (6,6), (8,5), (9,1), (10,9)
• Post Office: (1,8), (3,1), (3,4), (5,5), (6,10), (8,2), (10,7)

---

Sensitivity Analysis

T	Status	Minimum Facilities
2	Infeasible	-
3	Feasible	70
4	Feasible	45
5	Feasible	40

Observation: Increasing T reduces the number of facilities required but increases the maximum distance any location is from a facility.

---

Visualization

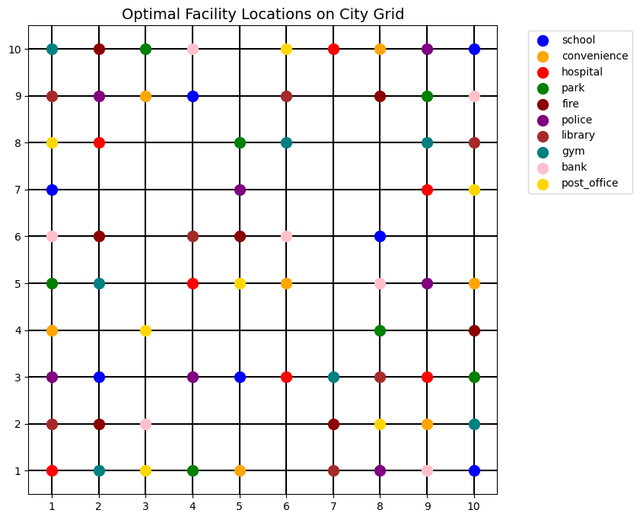

Facility Placement Visualized:

Sensitivity Plot:
Feasible vs. Infeasible points showing the trade-off between T and total facilities.

---

Installation

pip install gurobipy matplotlib

Requires an academic or commercial license for Gurobi.

Usage

from facility_placement import addPoint

# Add a custom point
addPoint(2, 3, 'blue')

Run the main script to compute T_min, optimal facility placements, and generate plots:

python facility_placement.py

---

Contributors

This project was developed by:

• Jack Rose – Algorithm design, optimization modeling, and Jupyter setup.
• Samuel Gadkar – Data visualization, sensitivity analysis, and file uploads.
• Noah Mudrick – Final report, slideshow, video, and project formulation.

---

License

Academic Use Only – Gurobi Academic License
