Redux DevTools for Unity3D

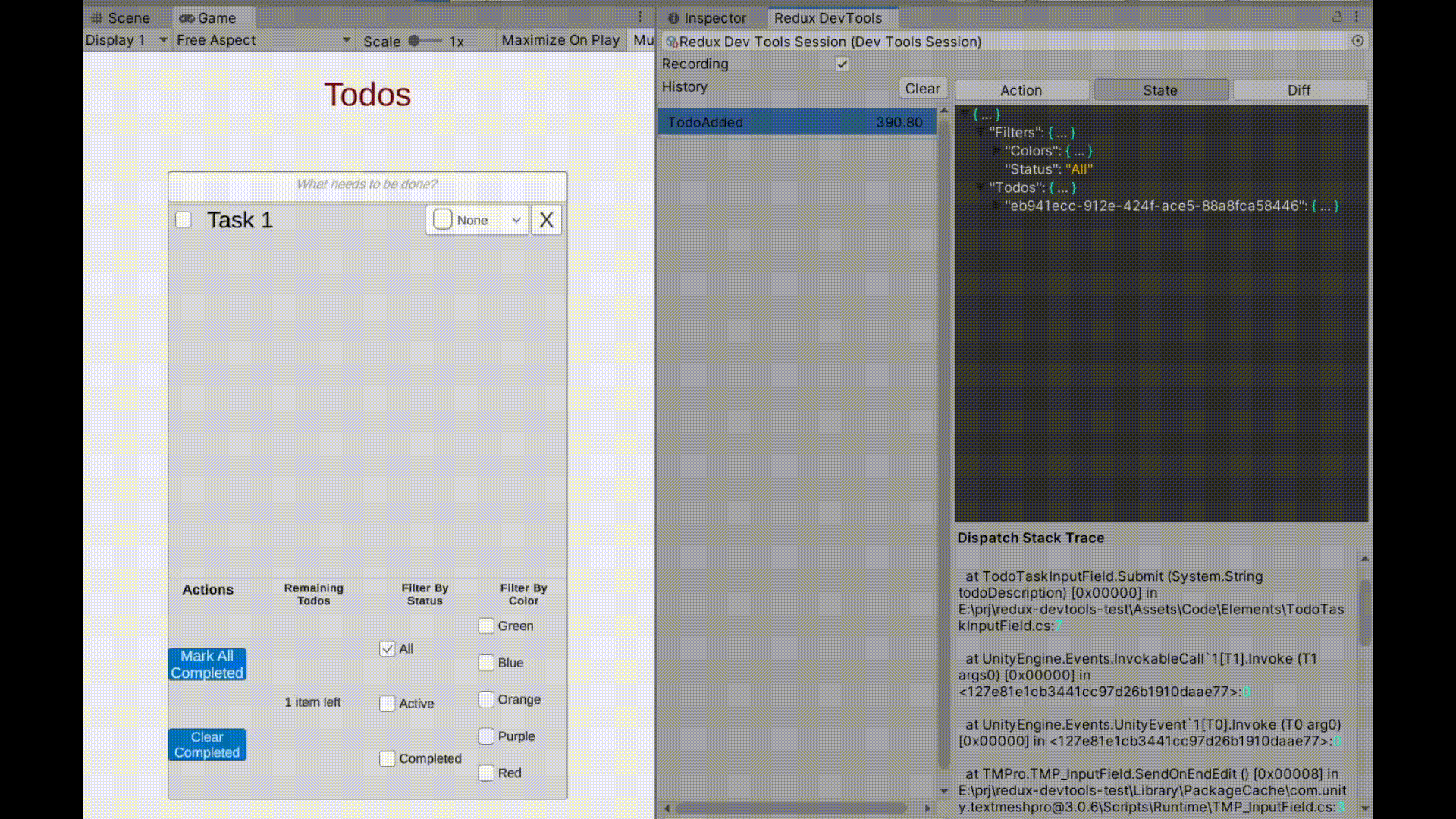

A demonstration of Redux DevTools with a simple Todo App

A partial reimplementation of Redux DevTools, a diagnostic tool for applications that use Redux as a state management solution. This tool works with a slightly modified version of Redux.NET, which is included in this package.

Features

  • Recorded history list of all dispatched actions
  • Collapsible, JSON-formatted action, state, and diff views for each recorded action
  • Stack trace listing for each history step
  • Dispatcher that takes JSON text and serializes it to defined action objects

Installation

You can install this package through Unity's Package Manager via Git URL.

From Window > Package Manager...

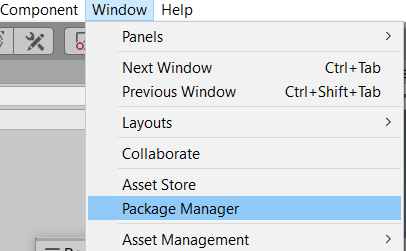

Location of the Package Manager menu option

Click the '+' symbol in the upper-left, and select "Add package from git URL":

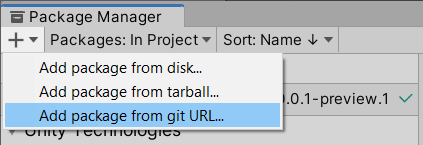

Adding a Git package from the Unity Package Manager

In the resulting text field, paste the following URL:

https://github.com/RolandMQuiros/redux-dev-tools

After recompiling, Redux DevTools should be listed in your installed packages:

The Redux DevTools package successfully installed

Usage

Navigate to Window > Analysis > Redux DevTools to open the DevTools dialog.

Where to find the Redux DevTools menu option

If you do not have a Redux.DevTools.DevToolsSession asset in your project, opening the dialog from the above menu will create on in your root Assets/ folder. We'll be using this to attach to your store later.

The Redux DevTools dialog

Wherever you instantiate your Store object, for example in a MonoBehaviour or ScriptableObject, include DevToolsSession.Install<TState>() as one of the additional middleware parameters:

[SerializeField] private DevToolsSession _session = null;
public IStore<State> Store;

// ...

Store = new Store<State>(
    MainReducer.Reduce,
    new State(),
    _session.Install<State>()
);

Afterwards, every call to Store<TState>.Dispatch will be recorded in the DevToolsSession history.

Dependencies
