mem: free intermediate arrays during YoloX inference

[KRRT7]

Free origin_img, img/ort_inputs, and output at the points where they become dead in image_processing(), instead of letting them linger until function return.

The biggest win is origin_img — the full-resolution numpy copy of the input PIL image — which currently stays alive through the entire ONNX session.run() call. Savings are proportional to image size: larger pages (higher DPI renders) carry a bigger unused array through inference.

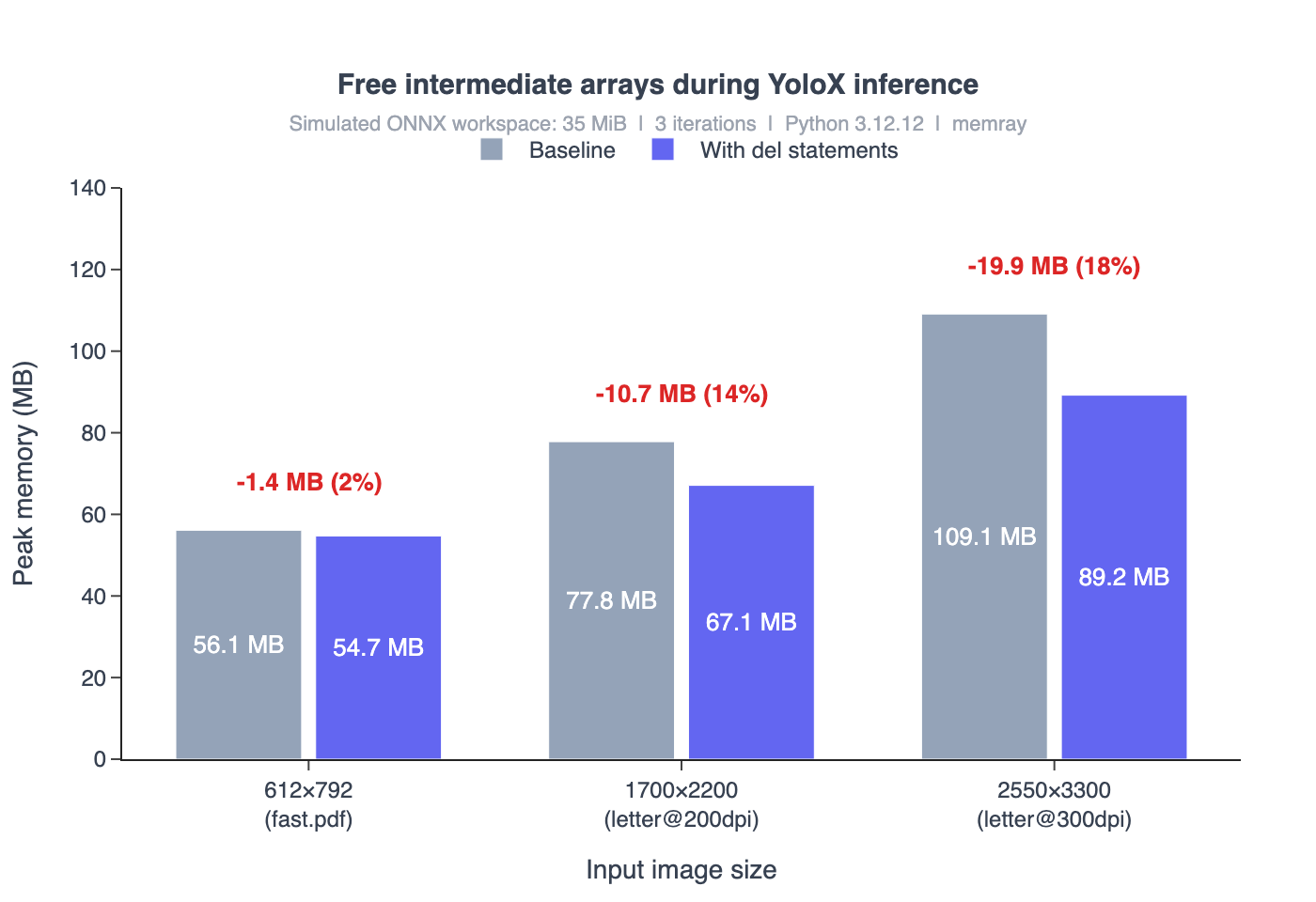

Benchmark

Measured with memray (memray run + memray stats --json), 3 iterations per approach, on Apple M3 Max / Python 3.12. ONNX inference workspace simulated as a 35 MiB allocation.

Free intermediates in YoloX image_processing()
Simulated ONNX workspace: 35 MiB  |  3 iterations  |  Python 3.12.12

Image size                         Baseline  Optimized      Saved      %
--------------------------------------------------------------------------
612x792 (fast.pdf)                   56.1MB     54.7MB      1.4MB   2.5%
1700x2200 (letter@200dpi)            77.8MB     67.1MB     10.7MB  13.8%
2550x3300 (letter@300dpi)           109.1MB     89.2MB     19.9MB  18.2%

At the default 200 DPI render resolution (1700×2200 for US Letter), this frees ~11 MiB of dead weight before ONNX inference. Zero behavior change — just earlier cleanup of arrays that are never read again.

Reproduce

pip install memray numpy pillow opencv-python-headless plotly kaleido
python benchmarks/bench_free_intermediates.py --runs 3 --report

benchmarks/bench_free_intermediates.py

"""Benchmark: freeing intermediate arrays during YoloX image_processing().

Measures how much memory is saved by explicitly deleting origin_img,
img/ort_inputs, and output at the points where they become dead,
instead of letting them linger until function return.

The savings are proportional to image size -- larger pages (higher DPI)
benefit more because origin_img (the full-resolution numpy copy of the
input PIL image) remains alive through ONNX inference in the baseline code.

Uses memray for accurate measurement of all allocations (Python + native).

Usage:
    pip install memray numpy pillow opencv-python-headless
    python benchmarks/bench_free_intermediates.py
    python benchmarks/bench_free_intermediates.py --runs 5
    python benchmarks/bench_free_intermediates.py --report [PATH]
"""

from __future__ import annotations

import argparse
import gc
import json
import subprocess
import sys
import tempfile
import textwrap
from pathlib import Path

INPUT_SHAPE = (1024, 768)
WORKSPACE_MIB = 35
IMAGE_SIZES = [
    ("612x792 (fast.pdf)", 612, 792),
    ("1700x2200 (letter@200dpi)", 1700, 2200),
    ("2550x3300 (letter@300dpi)", 2550, 3300),
]


def _build_script(approach, width, height, runs):
    return textwrap.dedent(f"""\
        import gc, cv2, numpy as np
        from PIL import Image
        INPUT_SHAPE = {INPUT_SHAPE}
        WORKSPACE_MIB = {WORKSPACE_MIB}
        def preprocess(img, input_size=INPUT_SHAPE, swap=(2, 0, 1)):
            if len(img.shape) == 3:
                padded_img = np.ones((input_size[0], input_size[1], 3), dtype=np.uint8) * 114
            else:
                padded_img = np.ones(input_size, dtype=np.uint8) * 114
            r = min(input_size[0] / img.shape[0], input_size[1] / img.shape[1])
            r = min(int(img.shape[0] * r) / img.shape[0], int(img.shape[1] * r) / img.shape[1])
            ns = (int(img.shape[0] * r), int(img.shape[1] * r))
            padded_img[:ns[0], :ns[1]] = cv2.resize(
                img, (ns[1], ns[0]), interpolation=cv2.INTER_LINEAR).astype(np.uint8)
            return np.ascontiguousarray(padded_img.transpose(swap), dtype=np.float32), r
        def baseline(image):
            origin_img = np.array(image)
            img, ratio = preprocess(origin_img)
            ort_input = img[None, :, :, :]
            workspace = np.empty(int(WORKSPACE_MIB * 1024 * 1024 / 4), dtype=np.float32)
            output = np.zeros((1, 100, 6), dtype=np.float32)
            del workspace
            return output[0]
        def optimized(image):
            origin_img = np.array(image)
            img, ratio = preprocess(origin_img)
            del origin_img
            ort_input = img[None, :, :, :]
            workspace = np.empty(int(WORKSPACE_MIB * 1024 * 1024 / 4), dtype=np.float32)
            del img, ort_input
            output = np.zeros((1, 100, 6), dtype=np.float32)
            del workspace
            return output[0]
        image = Image.fromarray(np.random.randint(0, 255, ({height}, {width}, 3), dtype=np.uint8))
        gc.collect()
        for _ in range({runs}):
            {"baseline" if approach == "baseline" else "optimized"}(image)
            gc.collect()
    """)


def _run_memray(script_body):
    with tempfile.NamedTemporaryFile(mode="w", suffix=".py", delete=False) as f:
        f.write(script_body)
        script_path = f.name
    bin_path = tempfile.mktemp(suffix=".bin")
    json_path = tempfile.mktemp(suffix=".json")
    try:
        subprocess.run(
            [sys.executable, "-m", "memray", "run",
             "--trace-python-allocators", "--native", "-o", bin_path, script_path],
            capture_output=True, check=True)
        subprocess.run(
            [sys.executable, "-m", "memray", "stats",
             "--json", "-n", "30", "-o", json_path, bin_path],
            capture_output=True, check=True)
        with open(json_path) as f:
            return json.load(f)
    finally:
        for p in (script_path, bin_path, json_path):
            Path(p).unlink(missing_ok=True)


def _peak_mib(stats):
    return stats["metadata"]["peak_memory"] / (1024 * 1024)


def generate_report(results, runs, output):
    import plotly.graph_objects as go
    sizes = [r["label"] for r in results]
    bl = [r["baseline"] for r in results]
    opt = [r["optimized"] for r in results]
    saved = [r["saved"] for r in results]
    pct = [r["pct"] for r in results]
    fig = go.Figure()
    fig.add_trace(go.Bar(name="Baseline", x=sizes, y=bl, marker_color="#94a3b8",
        text=[f"{v:.1f} MB" for v in bl], textposition="inside",
        insidetextanchor="middle", textfont=dict(size=13, color="white")))
    fig.add_trace(go.Bar(name="With del statements", x=sizes, y=opt, marker_color="#6366f1",
        text=[f"{v:.1f} MB" for v in opt], textposition="inside",
        insidetextanchor="middle", textfont=dict(size=13, color="white")))
    for i, (s, p) in enumerate(zip(saved, pct)):
        fig.add_annotation(x=sizes[i], y=max(bl[i], opt[i]) + 12,
            text=f"<b>-{s:.1f} MB ({p:.0f}%)</b>", showarrow=False,
            font=dict(size=13, color="#dc2626"))
    fig.update_layout(
        template="simple_white", paper_bgcolor="white", plot_bgcolor="white",
        font=dict(family="Inter, sans-serif", color="#374151"),
        title=dict(text=(
            "<b>Free intermediate arrays during YoloX inference</b>"
            f'<br><span style="font-size:11px;color:#9ca3af">'
            f"Simulated ONNX workspace: {WORKSPACE_MIB} MiB  |  "
            f"{runs} iterations  |  Python {sys.version.split()[0]}  |  memray</span>"),
            x=0.5, xanchor="center", font=dict(size=15)),
        barmode="group", bargap=0.25, bargroupgap=0.1, showlegend=True,
        legend=dict(orientation="h", yanchor="bottom", y=1.02, xanchor="center", x=0.5),
        yaxis=dict(title="Peak memory (MB)", range=[0, max(bl) * 1.3], gridcolor="#f3f4f6"),
        xaxis=dict(title="Input image size"),
        margin=dict(l=60, r=40, t=100, b=70), height=480, width=700)
    fig.write_image(output, scale=2)
    print(f"  Report: {output}")


def main():
    parser = argparse.ArgumentParser()
    parser.add_argument("--runs", type=int, default=3)
    parser.add_argument("--report", nargs="?", const="benchmarks/bench_free_intermediates.png",
        metavar="PATH")
    args = parser.parse_args()
    print(f"Free intermediates in YoloX image_processing()")
    print(f"Simulated ONNX workspace: {WORKSPACE_MIB} MiB  |  "
          f"{args.runs} iterations  |  Python {sys.version.split()[0]}")
    print()
    print(f"{'Image size':<32} {'Baseline':>10} {'Optimized':>10} {'Saved':>10} {'%':>6}")
    print("-" * 74)
    results = []
    for label, w, h in IMAGE_SIZES:
        bp = _peak_mib(_run_memray(_build_script("baseline", w, h, args.runs)))
        op = _peak_mib(_run_memray(_build_script("optimized", w, h, args.runs)))
        s, p = bp - op, ((bp - op) / bp * 100) if bp > 0 else 0
        chart_label = f"{w}x{h}<br>({label.split('(')[1]}" if "(" in label else f"{w}x{h}"
        results.append(dict(label=chart_label, baseline=bp, optimized=op, saved=s, pct=p))
        print(f"{label:<32} {bp:>8.1f}MB {op:>8.1f}MB {s:>8.1f}MB {p:>5.1f}%")
    print()
    print("Savings come from freeing origin_img (full image array) before ONNX inference.")
    if args.report is not None:
        generate_report(results, runs=args.runs, output=args.report)


if __name__ == "__main__":
    main()
