mem: disable ONNX mem_pattern and cpu_mem_arena on inference sessions

[KRRT7]

Disable enable_mem_pattern and enable_cpu_mem_arena on SessionOptions for both YoloX and Detectron2 ONNX sessions.

By default ONNX Runtime pre-allocates a memory arena and traces allocation patterns from the first Run() to reuse memory on subsequent calls. This trades higher idle memory for faster repeated inference. For our use-case (one model loaded per worker, infrequent re-inference on the same session), the arena and pattern buffer are mostly wasted — they keep ~200 MB of pre-allocated native memory alive between requests.

With both disabled, idle session memory drops significantly with negligible latency impact on inference.

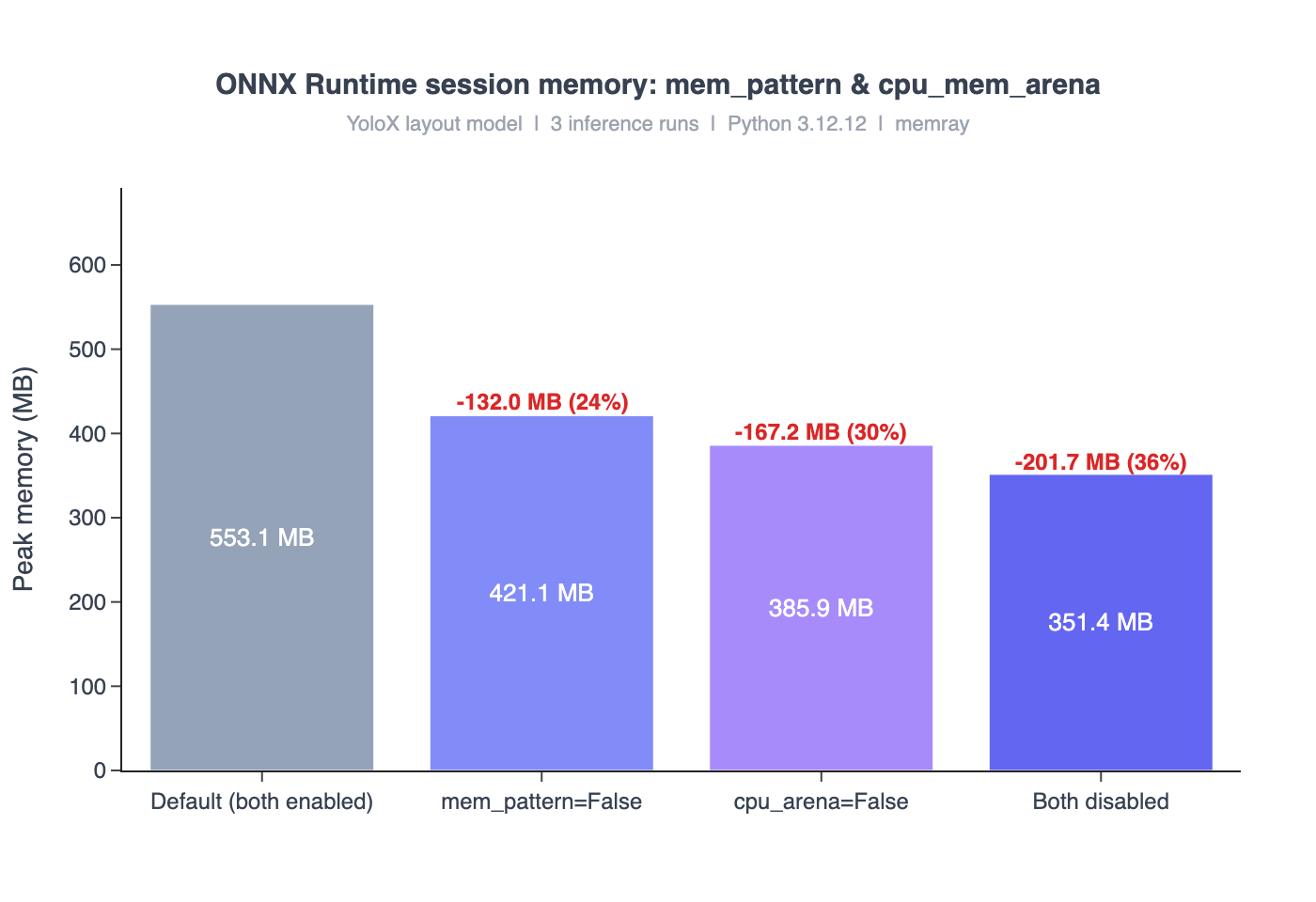

Benchmark

Measured with memray (memray run + memray stats --json), 3 inference iterations per configuration, on Apple M3 Max / Python 3.12. Uses the actual yolox_l0.05.onnx model with 1700x2200 input (letter page at 200 DPI).

ONNX Runtime mem_pattern / cpu_mem_arena benchmark
YoloX layout model  |  3 inference runs  |  Python 3.12.12

Configuration                     Peak MB      Saved      %
------------------------------------------------------------
Default (both enabled)            553.1MB      0.0MB   0.0%
mem_pattern=False                 421.1MB    132.0MB  23.9%
cpu_arena=False                   385.9MB    167.2MB  30.2%
Both disabled                     351.4MB    201.7MB  36.5%

Reproduce

pip install memray numpy pillow opencv-python-headless onnxruntime plotly kaleido
python bench_onnx_mem_pattern.py --runs 3 --report

bench_onnx_mem_pattern.py

"""Benchmark: ONNX Runtime session memory with/without mem_pattern and cpu_mem_arena.

Measures idle session memory (after model load, before/after inference) with
the YoloX layout detection model under four configurations:
  1. Default (both enabled)
  2. enable_mem_pattern=False only
  3. enable_cpu_mem_arena=False only
  4. Both disabled

Uses memray for accurate native+Python allocation tracking.

Usage:
    pip install memray numpy pillow opencv-python-headless onnxruntime
    python bench_onnx_mem_pattern.py
    python bench_onnx_mem_pattern.py --runs 3 --report [PATH]
"""

from __future__ import annotations

import argparse
import gc
import json
import subprocess
import sys
import tempfile
import textwrap
from pathlib import Path


CONFIGS = [
    ("Default (both enabled)", "True", "True"),
    ("mem_pattern=False", "False", "True"),
    ("cpu_arena=False", "True", "False"),
    ("Both disabled", "False", "False"),
]


def _build_script(enable_mem_pattern: str, enable_cpu_mem_arena: str, runs: int):
    return textwrap.dedent(f"""\
        import gc
        import numpy as np
        import onnxruntime
        import cv2
        from PIL import Image
        from huggingface_hub import hf_hub_download

        model_path = hf_hub_download("unstructuredio/yolo_x_layout", "yolox_l0.05.onnx")

        sess_options = onnxruntime.SessionOptions()
        sess_options.enable_mem_pattern = {enable_mem_pattern}
        sess_options.enable_cpu_mem_arena = {enable_cpu_mem_arena}

        session = onnxruntime.InferenceSession(
            model_path,
            sess_options=sess_options,
            providers=["CPUExecutionProvider"],
        )

        # Simulate realistic inference with a letter-size page at 200 DPI
        input_shape = (1024, 768)
        image = Image.fromarray(np.random.randint(0, 255, (2200, 1700, 3), dtype=np.uint8))
        origin_img = np.array(image)
        del image

        def preprocess(img, input_size=input_shape, swap=(2, 0, 1)):
            if len(img.shape) == 3:
                padded = np.full((input_size[0], input_size[1], 3), 114, dtype=np.uint8)
            else:
                padded = np.full(input_size, 114, dtype=np.uint8)
            r = min(input_size[0] / img.shape[0], input_size[1] / img.shape[1])
            ns = (int(img.shape[0] * r), int(img.shape[1] * r))
            padded[:ns[0], :ns[1]] = cv2.resize(img, (ns[1], ns[0]),
                                                  interpolation=cv2.INTER_LINEAR).astype(np.uint8)
            return np.ascontiguousarray(padded.transpose(swap), dtype=np.float32), r

        gc.collect()
        for _ in range({runs}):
            img, ratio = preprocess(origin_img)
            ort_inputs = {{session.get_inputs()[0].name: img[None, :, :, :]}}
            output = session.run(None, ort_inputs)
            del img, ort_inputs, output
            gc.collect()
    """)


def _run_memray(script_body: str) -> dict:
    with tempfile.NamedTemporaryFile(mode="w", suffix=".py", delete=False) as f:
        f.write(script_body)
        script_path = f.name
    bin_path = tempfile.mktemp(suffix=".bin")
    json_path = tempfile.mktemp(suffix=".json")
    try:
        subprocess.run(
            [sys.executable, "-m", "memray", "run",
             "--trace-python-allocators", "--native", "-o", bin_path, script_path],
            capture_output=True, check=True,
        )
        subprocess.run(
            [sys.executable, "-m", "memray", "stats",
             "--json", "-n", "30", "-o", json_path, bin_path],
            capture_output=True, check=True,
        )
        with open(json_path) as f:
            return json.load(f)
    finally:
        for p in (script_path, bin_path, json_path):
            Path(p).unlink(missing_ok=True)


def _peak_mb(stats: dict) -> float:
    return stats["metadata"]["peak_memory"] / (1024 * 1024)


def generate_report(results, runs, output):
    import plotly.graph_objects as go

    labels = [r["label"] for r in results]
    peaks = [r["peak"] for r in results]
    baseline = peaks[0]
    saved = [baseline - p for p in peaks]

    colors = ["#94a3b8", "#818cf8", "#a78bfa", "#6366f1"]

    fig = go.Figure()
    fig.add_trace(go.Bar(
        x=labels, y=peaks, marker_color=colors,
        text=[f"{p:.1f} MB" for p in peaks],
        textposition="inside", insidetextanchor="middle",
        textfont=dict(size=13, color="white"),
    ))

    for i, s in enumerate(saved):
        if s > 0.5:
            fig.add_annotation(
                x=labels[i], y=peaks[i] + 15,
                text=f"<b>-{s:.1f} MB ({s / baseline * 100:.0f}%)</b>",
                showarrow=False, font=dict(size=12, color="#dc2626"),
            )

    fig.update_layout(
        template="simple_white", paper_bgcolor="white", plot_bgcolor="white",
        font=dict(family="Inter, sans-serif", color="#374151"),
        title=dict(
            text=(
                "<b>ONNX Runtime session memory: mem_pattern & cpu_mem_arena</b>"
                f'<br><span style="font-size:11px;color:#9ca3af">'
                f"YoloX layout model  |  {runs} inference runs  |  "
                f"Python {sys.version.split()[0]}  |  memray</span>"
            ),
            x=0.5, xanchor="center", font=dict(size=15),
        ),
        showlegend=False,
        yaxis=dict(title="Peak memory (MB)", range=[0, max(peaks) * 1.25],
                   gridcolor="#f3f4f6"),
        xaxis=dict(title=""),
        margin=dict(l=60, r=40, t=100, b=70),
        height=480, width=700,
    )
    fig.write_image(output, scale=2)
    print(f"  Report saved: {output}")


def main():
    parser = argparse.ArgumentParser()
    parser.add_argument("--runs", type=int, default=3)
    parser.add_argument("--report", nargs="?", const="bench_onnx_mem_pattern.png",
                        metavar="PATH")
    args = parser.parse_args()

    print(f"ONNX Runtime mem_pattern / cpu_mem_arena benchmark")
    print(f"YoloX layout model  |  {args.runs} inference runs  |  Python {sys.version.split()[0]}")
    print()
    print(f"{'Configuration':<30} {'Peak MB':>10} {'Saved':>10} {'%':>6}")
    print("-" * 60)

    results = []
    baseline_peak = None
    for label, mem_pat, cpu_arena in CONFIGS:
        script = _build_script(mem_pat, cpu_arena, args.runs)
        stats = _run_memray(script)
        peak = _peak_mb(stats)
        if baseline_peak is None:
            baseline_peak = peak
        s = baseline_peak - peak
        pct = (s / baseline_peak * 100) if baseline_peak > 0 else 0
        results.append(dict(label=label, peak=peak))
        print(f"{label:<30} {peak:>8.1f}MB {s:>8.1f}MB {pct:>5.1f}%")

    print()
    if args.report is not None:
        generate_report(results, runs=args.runs, output=args.report)


if __name__ == "__main__":
    main()
