⚠ Warning: The Timetable Extension Turbo Mode is currently not stable. You may experience unexpected behavior or crashes. Use it at your own risk. We are actively working on improvements!

Universiti Malaya Timetable Software Development Kit

Credits to Joshua: https://github.com/damnitjoshua/um-timeedit-timetable-toolkit

This SDK provides a foundation for students and developers to build innovative timetable applications for Universiti Malaya (UM). By leveraging data from the UM TimeEdit system, this tool aims to democratize access to timetable information and foster the creation of user-friendly and customized scheduling solutions.

Table of Contents

• Installation
• Building Blocks for Timetable Applications
• Getting Started with the UM TimeEdit Toolkit Turbo Extension
  • Prerequisites
  • Installation Steps
  • Using the Extension
• Troubleshooting
• Development
• Note on Turbo Mode
• Phase 2: Data Structuring with cleaner.js (Node.js Environment)
• Contributing to the UM Timetable Ecosystem
• License
• Acknowledgements
• Author

Installation & Setup

1. Select the latest release, install the dist.zip and unzip it.
2. Go to extensions by chrome://extensions and click on Load unpacked.
3. Select the unzipped /dist folder from (1) to load it.
4. Navigate to https://cloud.timeedit.net/my_um/web/students/ and the extension should popup when loaded successfully.

Building Blocks for Timetable Applications

This toolkit interacts with the TimeEdit API to provide essential data for timetable software development. It offers the following key functionalities:

1. Comprehensive Module Catalog Retrieval: Fetches an exhaustive list of all modules available within the UM TimeEdit system. This includes courses, events and other relevant entities, providing a complete inventory for application development.
2. Detailed Module Information Acquisition: Retrieves in-depth specifications for each module. This encompasses crucial details like module codes, descriptions, and any other pertinent metadata necessary for enriching timetable applications.
3. Event Data Extraction: Gathers all scheduled events (reservations) linked to each module. This core functionality provides the raw timetable data, including timings, dates, locations, and event types (e.g., Lecture, Tutorial), essential for building scheduling features.
4. Raw Data Export (JSON): Facilitates the download of all extracted data into a single course_events_with_details.json file directly within the browser environment. This raw JSON output serves as the initial dataset for further processing and application integration.
5. Structured Data Refinement (Node.js): Includes a cleaner.js script (Node.js) to transform the raw JSON data into a more organized and application-ready timetable_data.json file. This process restructures the data for efficient programmatic access and simplifies the development of timetable functionalities.

Getting Started with the UM TimeEdit Toolkit Turbo Extension

This guide will help you get the UM TimeEdit Toolkit Turbo extension up and running in your Chrome browser for development and testing.

Prerequisites

• Google Chrome Engine Browsers: This extension is designed for Chrome Engine browsers (Ms Edge, Chrome etc...).
• Node.js and npm: You'll need Node.js and npm (Node Package Manager) installed to build the extension. Download them from https://nodejs.org/.
• A Text Editor or IDE: Choose your preferred code editor (e.g., VS Code, Sublime Text, Atom).

Installation Steps

1. Clone the Repository:

   git clone https://github.com/a7m-1st/um-timeedit-toolkit-turbo-extension.git
   cd um-timeedit-toolkit-turbo-extension/sch-ext

2. Install Dependencies:

   npm install

   This command installs all the necessary packages defined in the package.json file.

3. Build the Extension:

   npm run build

   This command uses webpack (configured in webpack.config.js) to bundle the extension's code into the dist directory.

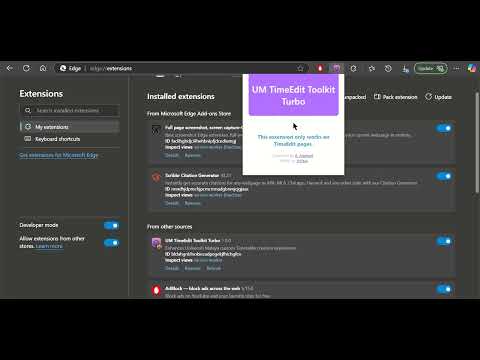

4. Load the Extension in Chrome:

   a. Open Browser and go to chrome://extensions.

   b. Enable "Developer mode" in the top right corner.

   c. Click "Load unpacked" and select the dist directory inside um-timeedit-toolkit-turbo-extension/sch-ext. (The full path will look something like C:/Users/ASUS/Desktop/Personal Projects/um-timeedit-toolkit-turbo-extension/sch-ext/dist)

5. Using the Extension:

   a. Navigate to the Universiti Malaya TimeEdit website (https://cloud.timeedit.net/my_um/web/students/).

   b. Log in with your UM credentials.

   c. The extension should now be active. Click the extension icon in the Chrome toolbar to open the popup.

   d. Enter the desired number of items to fetch and click "Fetch Courses".

   e. Upon successful script completion, the browser will automatically download a file named course_events_with_details.json to your browser's default download directory. This file contains the raw, extracted data in JSON format, ready for the next phase.

Troubleshooting

• "Could not load extension" error: Double-check that you selected the dist directory when loading the unpacked extension. Also, ensure that your manifest.json file is correctly formatted.
• Extension not working on TimeEdit website: Make sure you are logged in to the correct TimeEdit URL (https://cloud.timeedit.net/my_um/web/students/). Also, verify that the host_permissions in your manifest.json include this URL.
• Content script not injecting: Check the background script (scripts/background.ts) and content script (scripts/contentScript.ts) for any errors. Use console.log statements to debug. Also, ensure that the content script is correctly specified in the web_accessible_resources section of manifest.json.

Development

• Automatic Rebuilds: Run npm run watch to automatically rebuild the extension whenever you make changes to the source code. You'll need to manually reload the extension in Chrome (chrome://extensions) to see the updates.

Note on Turbo Mode

1. When turboMode is disabled (false), concurrency is applied only between batches. Therefore, modules within each batch are not sorted.
2. When turboMode is enabled (true), full concurrency is applied, and the extracted modules are not sorted.

Phase 2: Data Structuring with cleaner.js (Node.js Environment)

To facilitate efficient application development, the raw data from Phase 1 requires structuring. The cleaner.js script, executed using Node.js, transforms course_events_with_details.json into a more developer-friendly timetable_data.json file.

timetable_data.json Structure for Application Development:

timetable_data.json is designed to be module-centric, grouping events by module code. This structure simplifies data access and manipulation within your timetable applications. Within each module, activities are further categorized by type (e.g., "Lecture," "Tutorial"). Each activity type then contains an array of scheduled events, including time, day, and room details. This hierarchical structure is optimized for building features such as module-based timetable views, conflict detection, and personalized scheduling tools.

Execution Instructions for cleaner.js:

1. Node.js Requirement: Ensure you have Node.js installed on your system.

2. Run cleaner.js in Terminal: Open your terminal or command prompt, navigate to the directory containing cleaner.js and course_events_with_details.json, and execute the following command:

   node cleaner.js course_events_with_details.json

   This command will process the raw data and generate timetable_data.json in the same directory, providing you with the structured data ready for integration into your UM timetable application.

   Example of json data:

   {
     "moduleName": "INTRODUCTION TO DATA SCIENCE",
     "moduleCode": "WIE2003",
     "credit": 3,
     "yearPeriod": "2024/S2",
     "overallTargetStudent": 100,
     "level": "BACHELOR",
     "faculty": "FACULTY OF COMPUTER SCIENCE AND INFORMATION TECHNOLOGY",
     "continuousAssessmentWeightage": "60~40",
     "examDuration": 7200,
     "levelCode": 3,
     "activities": {
       "LEC": [
         {
           "dayOfWeek": "Tuesday",
           "startTime": "10:00",
           "endTime": "12:00",
           "room": "DK1",
           "occurrences": [
             "1",
             "2"
           ]
         }
       ],
       "EXAM": [
         {
           "dayOfWeek": "Thursday",
           "startTime": "08:30",
           "endTime": "10:30",
           "room": "EXAM_HOLD_G",
           "startDate": "10/07/2025",
           "endDate": "10/07/2025",
           "activityTypeExam": "Physical",
           "occurrences": [
             "1",
             "2"
           ]
         }
       ],
       "TUT": [
         {
           "dayOfWeek": "Thursday",
           "startTime": "13:00",
           "endTime": "14:00",
           "room": "BK",
           "occurrences": [
             "1"
           ]
         },
         {
           "dayOfWeek": "Thursday",
           "startTime": "14:00",
           "endTime": "15:00",
           "room": "BK",
           "occurrences": [
             "2"
           ]
         }
       ],
       "LAB": [],
       "ONL": [],
       "REPROJECT": [],
       "SEM": [],
       "PRA": []
     }
   }

Contributing to the UM Timetable Ecosystem

We encourage contributions to enhance this toolkit and expand the possibilities for UM timetable software development. If you encounter issues, have feature suggestions, or wish to contribute code improvements, please utilize the issue reporting and pull request functionalities within this repository. Your contributions are vital to building a thriving ecosystem of UM timetable applications.

License

This project is open-source and licensed under the MIT License.

Acknowledgements

• https://github.com/juhosa/time-edit-api - Providing insights into TimeEdit API interactions.

Author

• Joshua Chew Jay Han
• Gemini 2.0 Flash Thinking Experimental 01-21
