Do not store links which will be rejected

[fiedlerp]

No description provided.

[fiedlerp]

Should I also make the changes to the CPU version?

[stephenswat]

Could you please provide us a bit more information about what you are doing here? And how does this interact with #908?

No need to update the CPU code if the physics performance doesn't change.

[stephenswat]

Having read through it I really like the changes. Can we un-draft this? I am currently running some performance tests, if those turn out alright I am happy to merge.

[stephenswat]

Be aware that this change seems to significantly impact the compute performance.

My initial guess would be that this is due to the fact that we might somehow be keeping more tracks? This would explain the increase in fitting time, even if you didn't touch the fitting kernel at all.

[fiedlerp]

I have more changes to come. Some edge cases, and also usage of track candidate lengths to condition the tips storage in find_tracks and propage_to_next_surface instead of filtering by it in build_tracks.

[beomki-yeo]

It will be likely that cuda tests that compare with cpu finding results might fail if the finding results change. Have you run traccc_test_cuda?

[stephenswat]

It will be likely that cuda tests that compare with cpu finding results might fail if the finding results change. Have you run traccc_test_cuda?

Ah, well spotted! The Gitlab CI doesn't run for Petr.

[stephenswat]

Confirmed the tests fail:

[ RUN      ] CUDACkfCombinatoricsTelescopeValidation/CudaCkfCombinatoricsTelescopeTests.Run/1
WARNING: No entries in volume finder

Detector check: OK
Using hit time
/mnt/ssd1/sswatman/traccc/tests/cuda/test_ckf_combinatorics_telescope.cpp:225: Failure
Expected equality of these values:
  track_candidates_cuda.size()
    Which is: 52488
  std::pow(n_truth_tracks, std::get<11>(GetParam()) + 1)
    Which is: 59049

Here's the number of tracks over these commits:

a9cf4fb:

Using CUDA device: NVIDIA RTX A5000 [id: 0, bus: 1, device: 0]
Warm-up processing [==================================================] 100% [00m:00s]
Event processing   [==================================================] 100% [00m:00s]
Reconstructed track parameters: 1102959
Time totals:
                  File reading  561 ms
            Warm-up processing  10038 ms
              Event processing  10002 ms
Throughput:
            Warm-up processing  1003.89 ms/event, 0.996124 events/s
              Event processing  1000.27 ms/event, 0.999735 events/s

dcb8d32:

Using CUDA device: NVIDIA RTX A5000 [id: 0, bus: 1, device: 0]
Warm-up processing [==================================================] 100% [00m:00s]
Event processing   [==================================================] 100% [00m:00s]
Reconstructed track parameters: 1102962
Time totals:
                  File reading  558 ms
            Warm-up processing  8985 ms
              Event processing  8935 ms
Throughput:
            Warm-up processing  898.504 ms/event, 1.11296 events/s
              Event processing  893.565 ms/event, 1.11911 events/s

348de1a (main):

Using CUDA device: NVIDIA RTX A5000 [id: 0, bus: 1, device: 0]
Warm-up processing [==================================================] 100% [00m:00s]
Event processing   [==================================================] 100% [00m:00s]
Reconstructed track parameters: 1034853
Time totals:
                  File reading  557 ms
            Warm-up processing  8677 ms
              Event processing  8613 ms
Throughput:
            Warm-up processing  867.758 ms/event, 1.15239 events/s
              Event processing  861.315 ms/event, 1.16102 events/s

[fiedlerp]

I see, I will run it locally before the next push. However, I think that I found the discrepancy. It inserts holes when the branching is stopped due to reaching maximum candidates per seed. Also, the hole inserting does not apply this cut. This is one of the reasons why I did not want to undraft it yet.

[stephenswat]

Performance summary

Here is a summary of the performance effects of this PR:

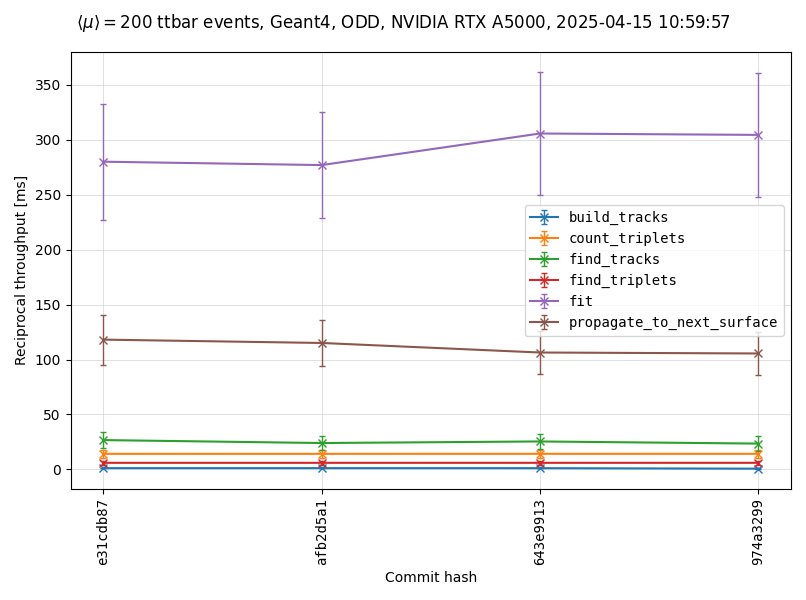

Graphical

Tabular

Kernel	e31cdb8	974a329	Delta
fit	280.01 ms	304.39 ms	8.7%
propagate_to_next_surface	118.09 ms	105.49 ms	-10.7%
find_tracks	26.68 ms	23.49 ms	-12.0%
count_triplets	14.15 ms	14.16 ms	0.0%
find_triplets	5.98 ms	5.99 ms	0.1%
find_doublets	890.52 μs	885.89 μs	-0.5%
Thrust::sort	757.51 μs	720.54 μs	-4.9%
prune_tracks	710.21 μs	709.90 μs	-0.0%
ccl_kernel	682.66 μs	683.99 μs	0.2%
build_tracks	1.14 ms	666.85 μs	-41.4%
count_doublets	625.69 μs	626.37 μs	0.1%
select_seeds	361.78 μs	359.79 μs	-0.5%
apply_interaction	132.24 μs	122.67 μs	-7.2%
update_triplet_weights	96.70 μs	95.85 μs	-0.9%
fill_sort_keys	68.07 μs	58.06 μs	-14.7%
estimate_track_params	34.34 μs	34.39 μs	0.1%
populate_grid	30.37 μs	30.47 μs	0.3%
count_grid_capacities	29.15 μs	29.13 μs	-0.1%
form_spacepoints	14.19 μs	14.19 μs	-0.0%
reduce_triplet_counts	6.67 μs	6.66 μs	-0.2%
static_kernel	1.78 μs	1.78 μs	0.0%
make_barcode_sequence	987.35 ns	1.00 μs	1.8%
fill_prefix_sum	165.48 ns	165.42 ns	-0.0%
Total	450.50 ms	458.57 ms	1.8%

Note

This is an automated message produced on the explicit request of a human being.

[stephenswat]

I'd really like to understand the performance regression that we have going on in the fit kernel. Since you haven't touched the fitting kernel itself, it would seem to me that you are either fitting more tracks or that your tracks are somehow longer. Have you looked into this?

[fiedlerp]

I have not looked into the fitting. I see that the increase is related to the max skipping. The number of tracks is the same, as proven by traccc_test_cuda. The tracks are shorter by one hole, as my change creates the tip instead of creating a candidate with too many holes.

[stephenswat]

I see the following change in the number of tracks being passed to the fitter:

Commit	Tracks	States	States per track
e31cdb8	103,495	572,400	5.531
974a329	104,126	577,516	5.546

So the number of tracks increases by 0.6%, the number of track states increases by 0.9%, and the average number of states per track increases by 0.2%. By itself I don't think this is a problem (and I'm not sure why the fitting time increases by 8.7% while the number of track states increases by only 0.9%) but you claim that tracks should be shorter because you remove holes. 🤔

[stephenswat]

The difference in track counts does go away if we increase --max-num-branches-per-seed:

Before with --max-num-branches-per-seed=1000000
Fitting 117770 tracks with 630243 states

After with --max-num-branches-per-seed=1000000
Fitting 117784 tracks with 630450 states

@beomki-yeo what's your take on this? I think it is okay, and I think we might want to eventually get rid of the --max-num-branches-per-seed flag entirely as it is completely non-deterministic, you have no control over which tracks you keep and which you throw away.

[beomki-yeo]

--max-num-branches-per-seed is (1) to apply a upper bound for the CKF output of very similar tracks which can explode exponentially and (2) to allocate the memory for tips. I am afraid that removing it may cause a bottleneck even though it won't happen very frequently.

It is correct that it is non-deterministic but we may need to find alternative if we want to get rid of it 🤔

[beomki-yeo]

@fiedlerp Could you write a description with some details so we can review the PR? Increased fitting time reported by Stephen is definitely weird to me

[stephenswat]

It is correct that it is non-deterministic but we may need to find alternative if we want to get rid of it 🤔

Indeed this is a good point; ideally I'd like to replace it with some of deterministic mechanism that achieves the same thing... I'll think about it.

[fiedlerp]

@fiedlerp Could you write a description with some details so we can review the PR? Increased fitting time reported by Stephen is definitely weird to me

The PR consists of 3 commits, each handling one of the conditions which kill or reject candidates.

The first commit moves the seed branching cut from propage_to_next_surface to find_tracks. This is done by counting the seed branches while building the candidates. When the seed branching limit is hit, the computation of candidates with the same branch is stopped as fast as possible to avoid wasting computation time.

The second commit moves the step skipping (hole counting) condition also from propage_to_next_surface to find_tracks. This is the part that makes the 10% speedup of the track finding. If the candidate has already reached the maximum number of holes, it is added to tips instead of creating a new hole.

The third commit adjusts the candidate length condition in propagate_to_next_surface to account for holes, so if the candidate is too short, it is not added to the tips. The same condition is also added to find_track's hole counting part. Also, when reaching the last step, the tip adding is moved from propage_to_next_surface to find_tracks, and the computation is stopped after the find_tracks kernel, as no propagation to the next surface is needed. Because tips contain only valid tracks, pruning is unnecessary, as all built tracks are valid.

[beomki-yeo]

The list of changes makes sense to me. Please resolve the @stephenswat 's comments and update the branch to merge the PR

[stephenswat]

Please revert the change introducing the early returns, rebase and we can move towards merging this.

[sonarqubecloud]

Quality Gate passed

Issues
2 New issues
0 Accepted issues

Measures
0 Security Hotspots
0.0% Coverage on New Code
0.0% Duplication on New Code

See analysis details on SonarQube Cloud

[fiedlerp]

The build fails on a detray-related issue.
